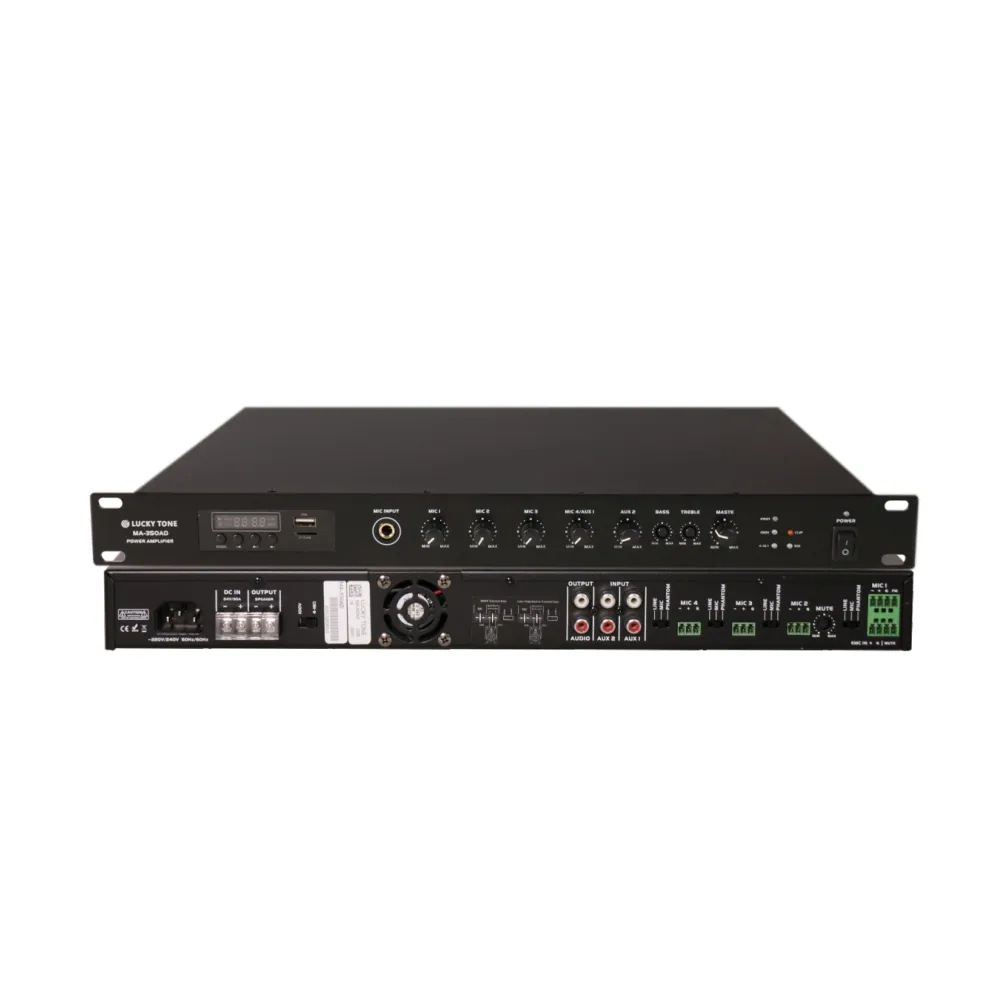

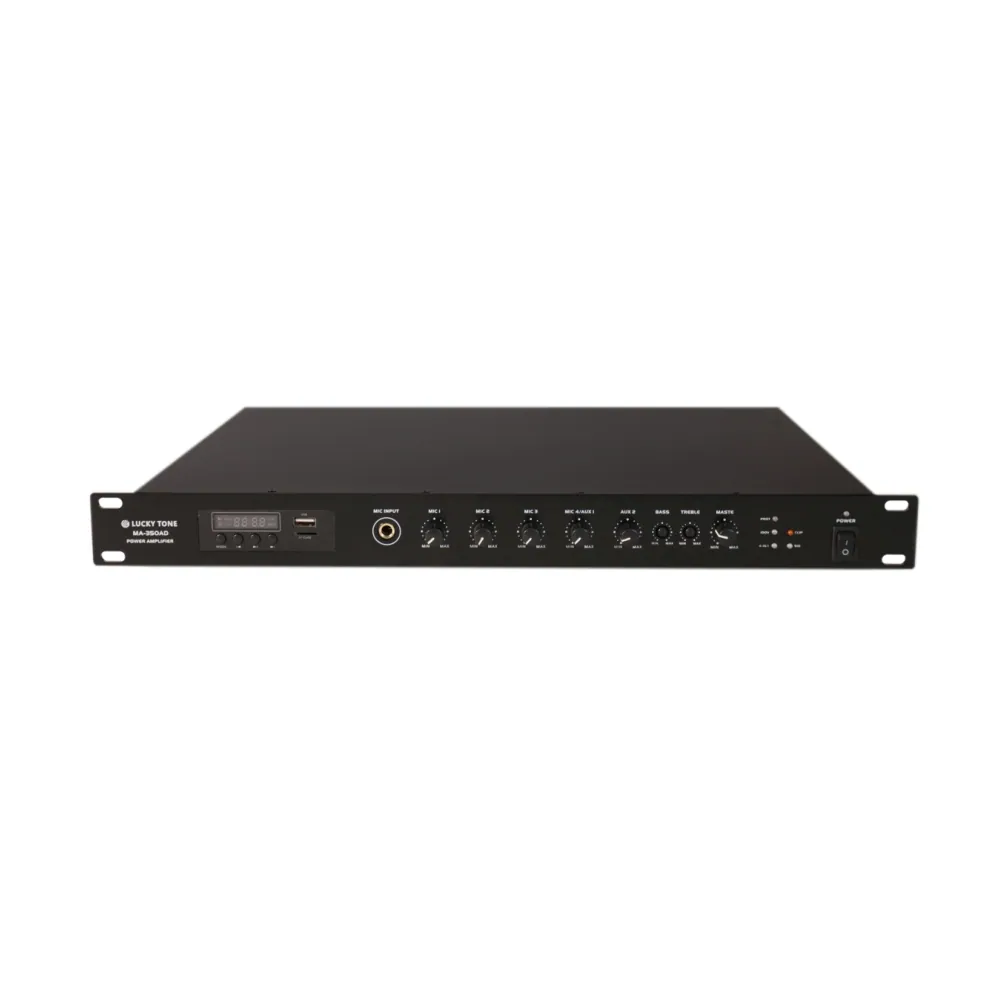

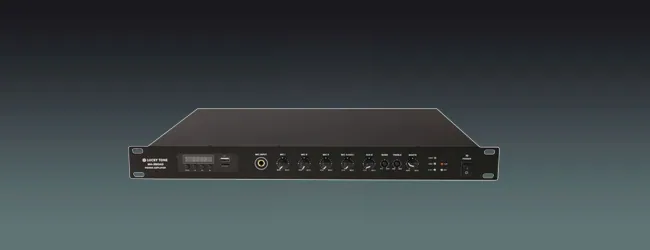

Lucky Tone Digtal Mixer Amplifiers with Audio Source MA-120AD / MA-240AD / MA-350AD / MA-500AD
ModelMA-120AD / MA-240AD / MA-350AD / MA-500AD
Highly flexible mixer amplifiers available at 120, 240, 350 and 500W RMS power and equipped with all necessary microphone and aux inputs for a wide variety of voice and background music applications such as retail shops, restaurants and bars, service centers, houses of worship, warehouses and many more.
- Output power
- MA-120AD: 120W; MA-240AD: 240W; MA-350AD: 350W; MA-500AD: 500W
- Frequency response
- Less than 0.5% at 1kHz (1/3 Rated Power)
- Dimensions
- 44.5(H) x 483(W) x 330(D) mm
- Weight
- MA-120AD: 5.6kg; MA-240AD: 5.6kg; MA-350AD: 5.7kg; MA-500AD: 5.7kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Digtal Mixer Amplifiers with Audio SourcePrice on requestRequest a quotation
01Models4 models in the family
Models compared.
| MODEL | MA-120AD | MA-240AD | MA-350AD | MA-500AD |
|---|---|---|---|---|
| Rated Power Output | 120W | 240W | 350W | 500W |
| Output | 100V or 4 – 16 ohm switchable | 100V or 4 – 16 ohm switchable | 100V or 4 – 16 ohm switchable | 100V or 4 – 16 ohm switchable |
| THD | 60 – 16,000 Hz, +/- 3dB | 60 – 16,000 Hz, +/- 3dB | 60 – 16,000 Hz, +/- 3dB | 60 – 16,000 Hz, +/- 3dB |
| Frequency Response | Less than 0.5% at 1kHz (1/3 Rated Power) | Less than 0.5% at 1kHz (1/3 Rated Power) | Less than 0.5% at 1kHz (1/3 Rated Power) | Less than 0.5% at 1kHz (1/3 Rated Power) |
| Tone Controls | Better than 80dB | Better than 80dB | Better than 80dB | Better than 80dB |
| S/N Ratio | BASS: 100 Hz (+/- 10dB), TREBLE: 10k Hz (+/- 10dB) | BASS: 100 Hz (+/- 10dB), TREBLE: 10k Hz (+/- 10dB) | BASS: 100 Hz (+/- 10dB), TREBLE: 10k Hz (+/- 10dB) | BASS: 100 Hz (+/- 10dB), TREBLE: 10k Hz (+/- 10dB) |
| Controls | All input gain, 1 treble, 1 bass, 1 mute, and power switch | All input gain, 1 treble, 1 bass, 1 mute, and power switch | All input gain, 1 treble, 1 bass, 1 mute, and power switch | All input gain, 1 treble, 1 bass, 1 mute, and power switch |
| Cooling | Internal 12VDC fan, extensive heat sinking | Internal 12VDC fan, extensive heat sinking | Internal 12VDC fan, extensive heat sinking | Internal 12VDC fan, extensive heat sinking |
| Indicators | Power indicator LED, PROT, 100V, 4-16 OHM, CLIP, SIG | Power indicator LED, PROT, 100V, 4-16 OHM, CLIP, SIG | Power indicator LED, PROT, 100V, 4-16 OHM, CLIP, SIG | Power indicator LED, PROT, 100V, 4-16 OHM, CLIP, SIG |
| Power Consumption | Current limiter, short circuit and thermal protection circuits | Current limiter, short circuit and thermal protection circuits | Current limiter, short circuit and thermal protection circuits | Current limiter, short circuit and thermal protection circuits |
| Protection | 170W | 340W | 500W | 720W |
| Power Requirments | 220-240V AC, 50/60 Hz | 220-240V AC, 50/60 Hz | 220-240V AC, 50/60 Hz | 220-240V AC, 50/60 Hz |
| Dimensions | 44.5(H) x 483(W) x 330(D) mm | 44.5(H) x 483(W) x 330(D) mm | 44.5(H) x 483(W) x 330(D) mm | 44.5(H) x 483(W) x 330(D) mm |
| Built-in Dimensions | 1 U rack 19 inch | 1 U rack 19 inch | 1 U rack 19 inch | 1 U rack 19 inch |
| Net Weight | 5.6kg | 5.6kg | 5.7kg | 5.7kg |
| Finish | Panel: Aluminium plate, black Case: steel plate, black | Panel: Aluminium plate, black Case: steel plate, black | Panel: Aluminium plate, black Case: steel plate, black | Panel: Aluminium plate, black Case: steel plate, black |
02DescriptionManufacturer's description
What it is.
Features
- 4 microphone and 2 auxiliary inputs
- Priority:EMC >MIC1>MIC2, MIC3, AUX1, AUX2
- Individual input gain controls with master volume control
- With Phantom power supply to mics
Light weight design
- Mp3/TUNER/Bluetooth module with screen display

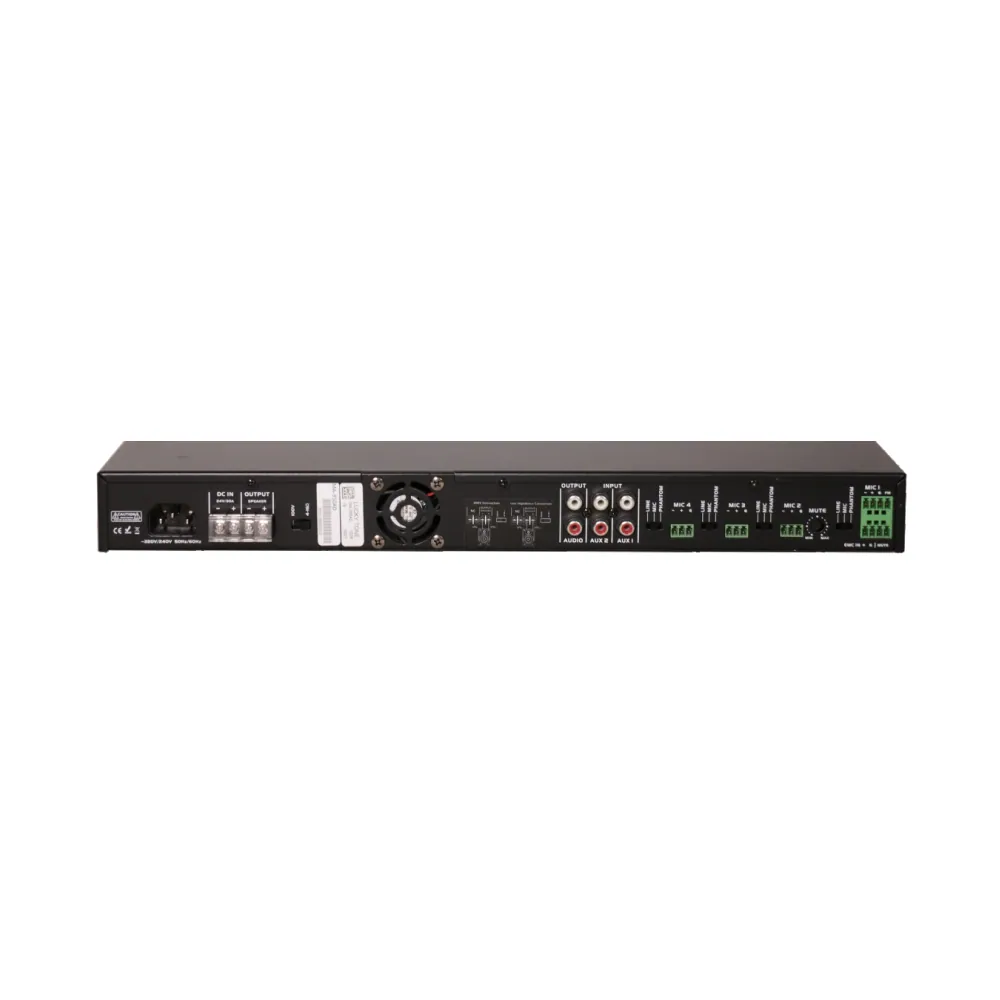

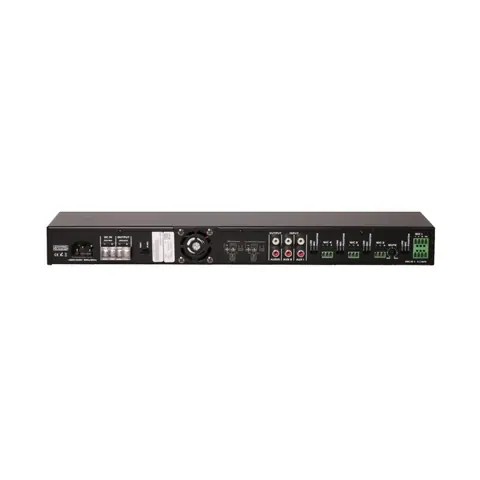

- 100V and 4-16 Ohms rear panel switchable speaker outputs
- Standard 1U 19 inch size with detachable mounting ears
- Automatic mute function for paging and announcements
- Speaker output short circuit protection
03Documents1 file · 1.5 MB
Documents and files.

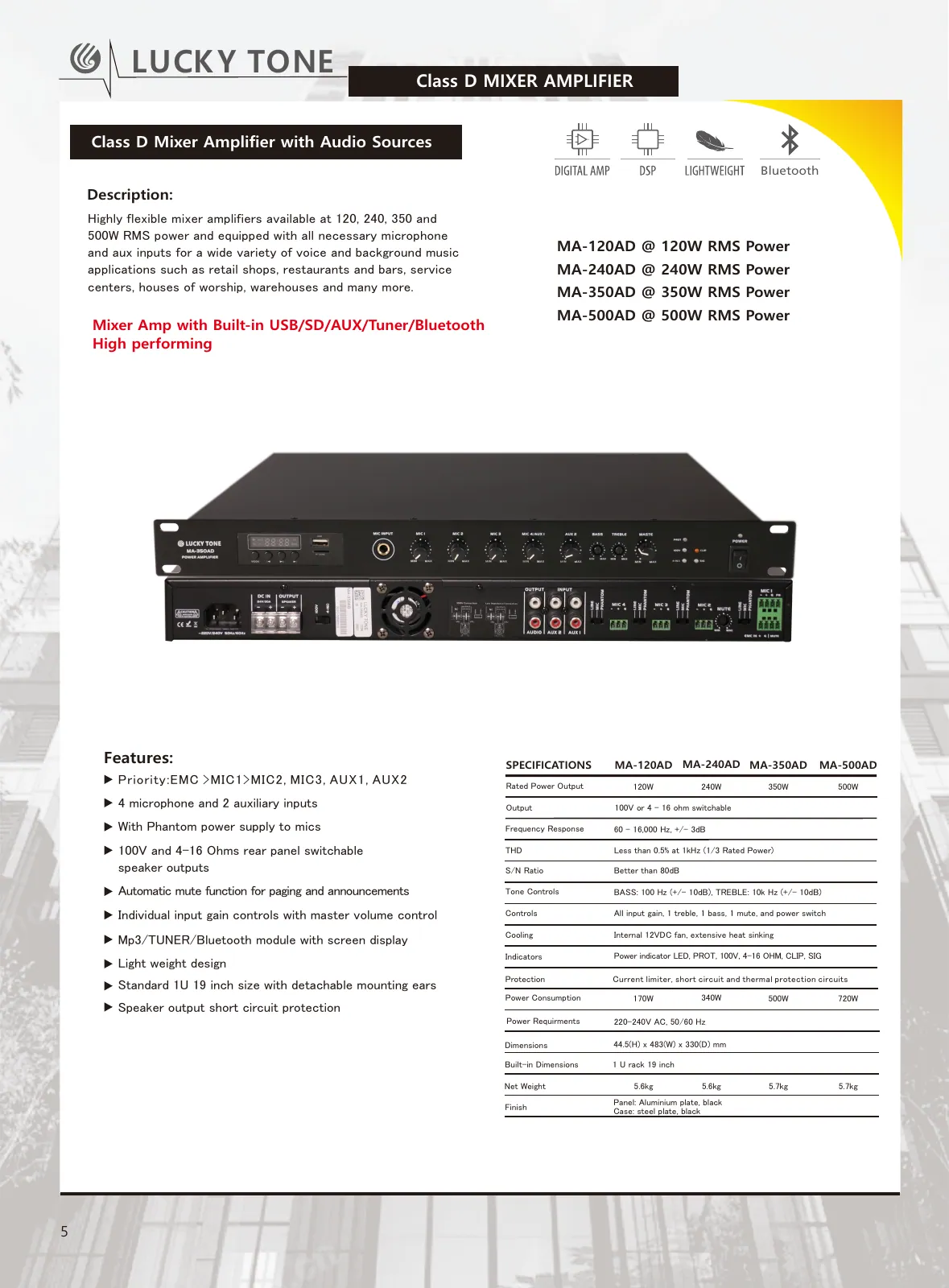

Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
