Sheet 05.311

Lucky Tone · Dante

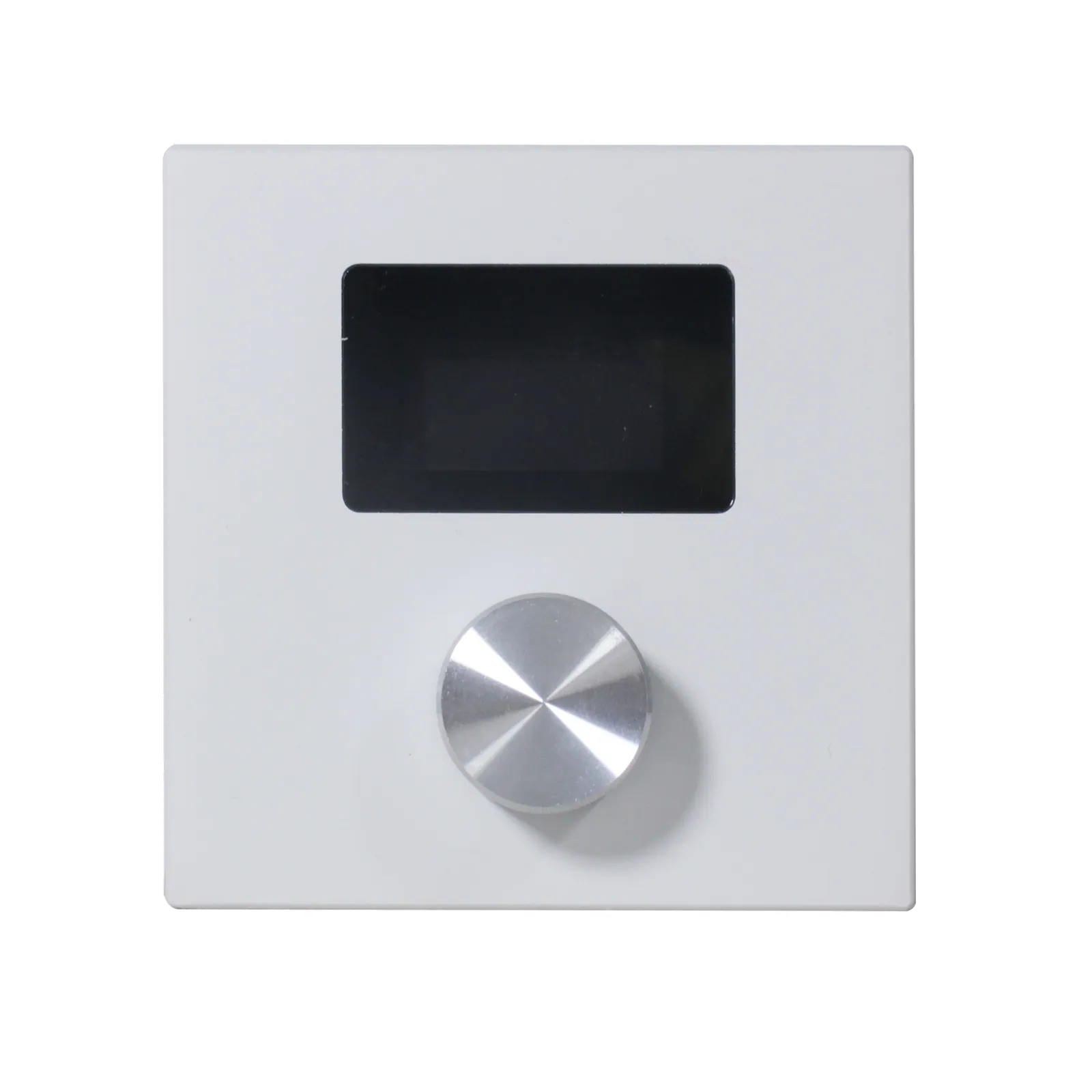

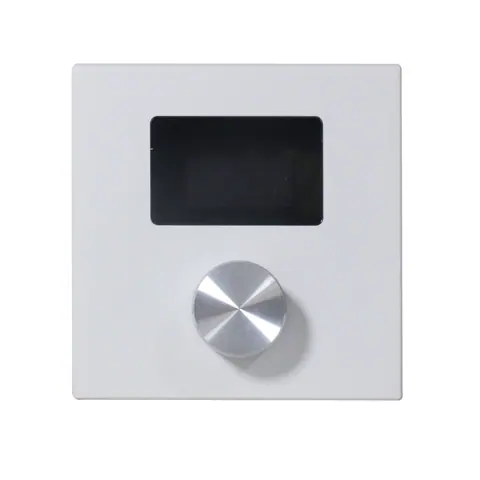

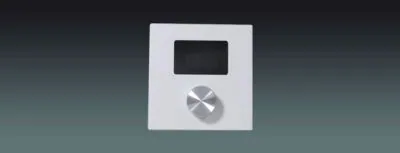

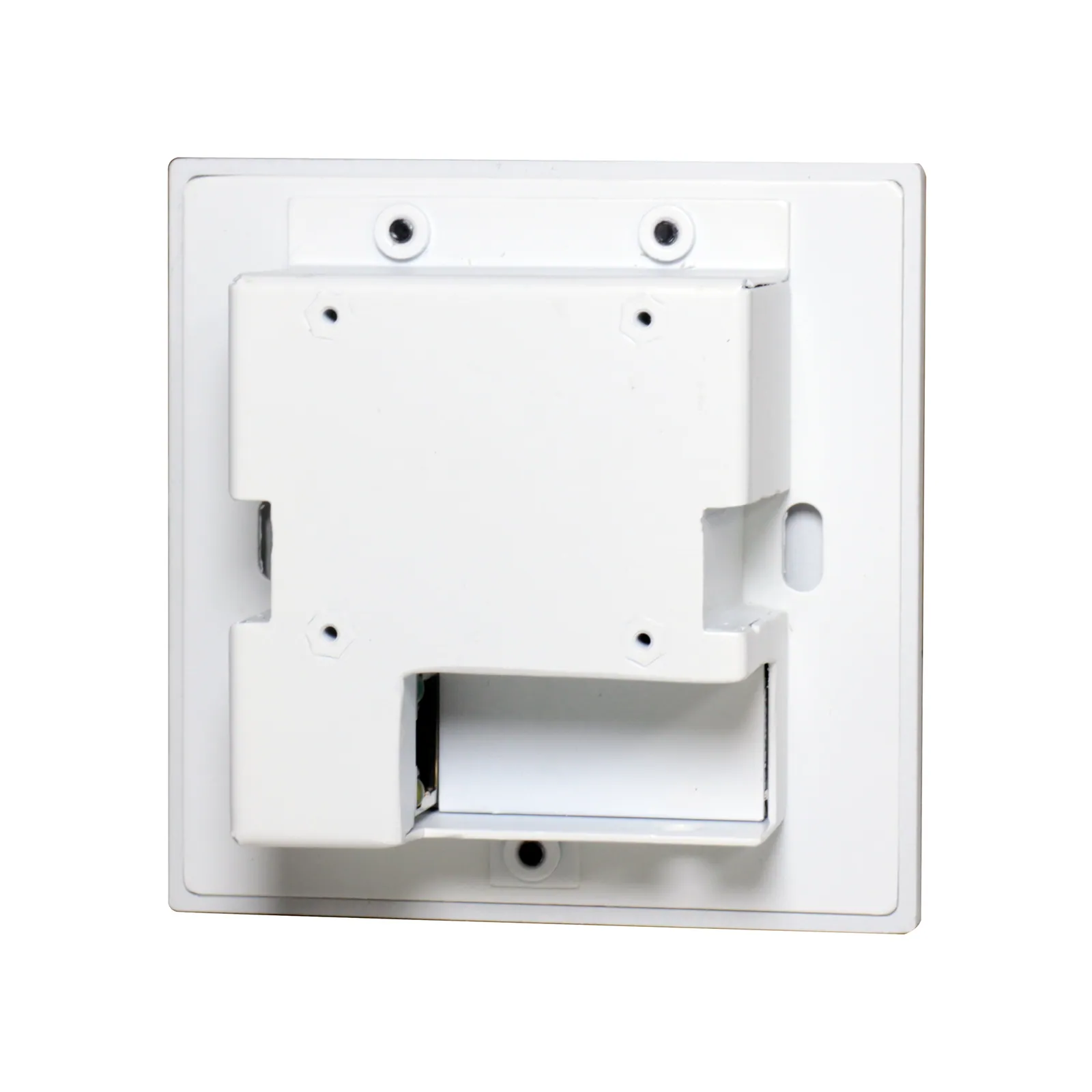

DCON-8 Dante Wall Control Panel

ModelDCON-8

Features:

Power supply: POE power supply

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 11 values

What this product is, in numbers.

PDFSpecifications992 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications11

MODEL: DCON-8
Control knob: 1
Control protocol: UDP communication protocol
Address setting method: TCP/IP
Signal cable length: 100 meters
Power supply: POE power supply
Connection port: RJ-45
Power consumption: <100mw
Color: White
Material: Aluminum alloy sandblasti
Product Dimension: 86 x 86 x 51.5mm

02DescriptionManufacturer's description

What it is.

There is one knob.
Support customized functions.
Use UDP communication protocol.
POE power supply.
Support 32 menus.

03Documents1 file · 992 KB

Documents and files.

Main document

Specifications

PDF · 992 KB

Download specifications
