Sheet 05.313
Lucky Tone · Dante

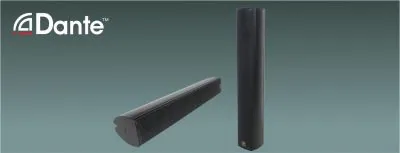

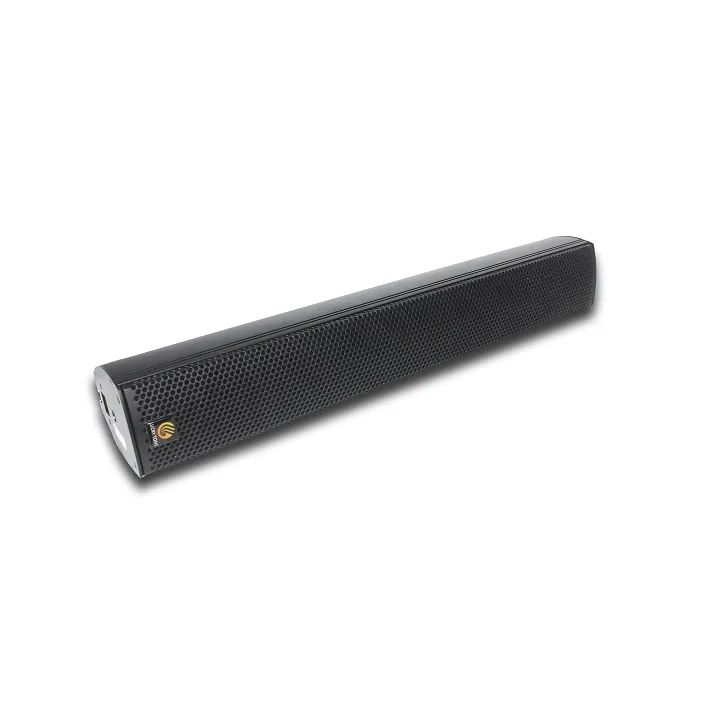

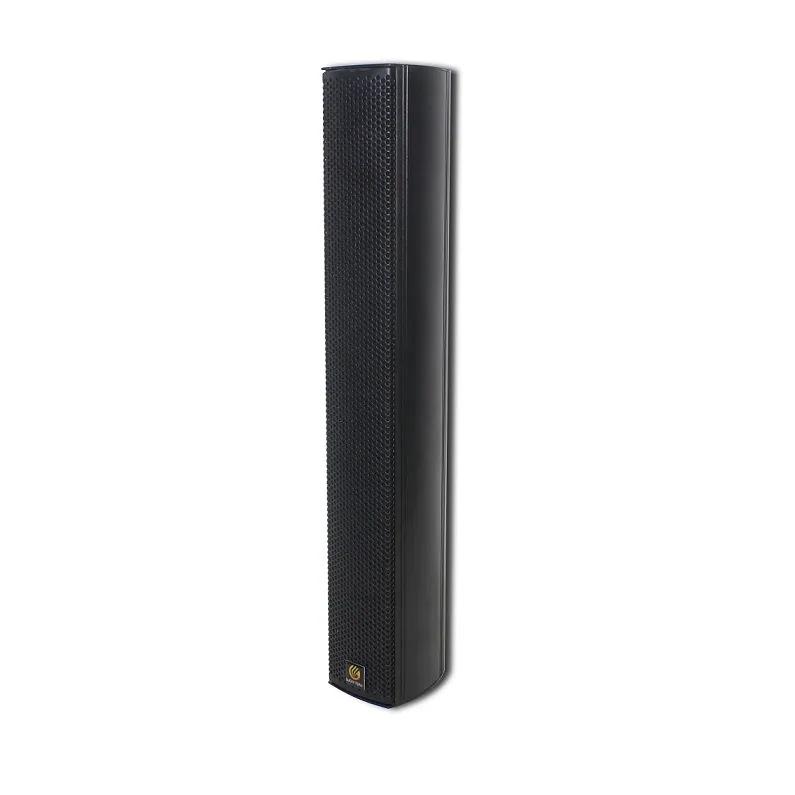

New Dante Column Speaker

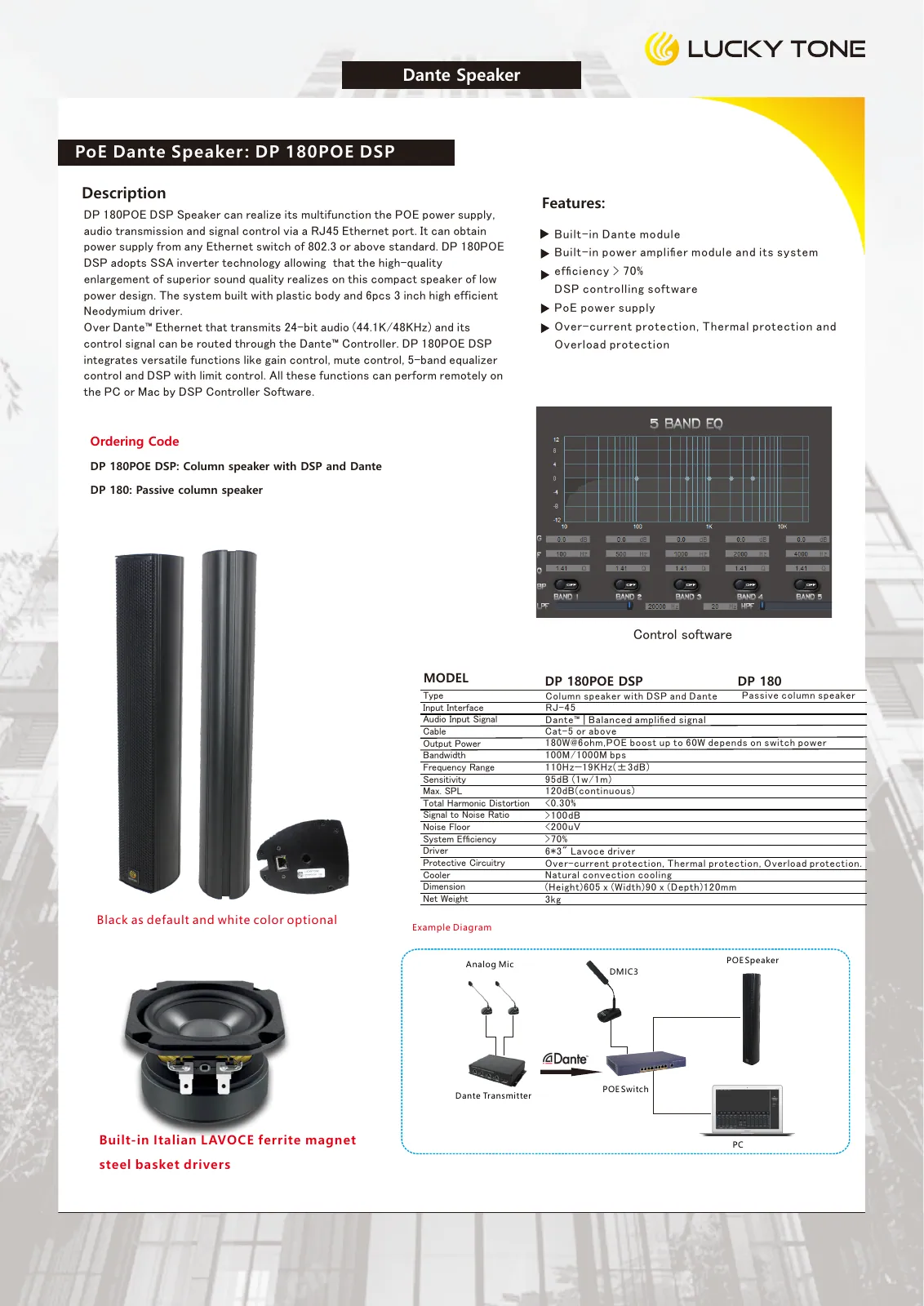

ModelDP 180 / DP 180POE DSP
DP 180POE DSP Speaker can realize its multifunction the POE power supply, audio transmission
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
New Dante Column SpeakerPrice on requestRequest a quotation
01DescriptionManufacturer's description
What it is.

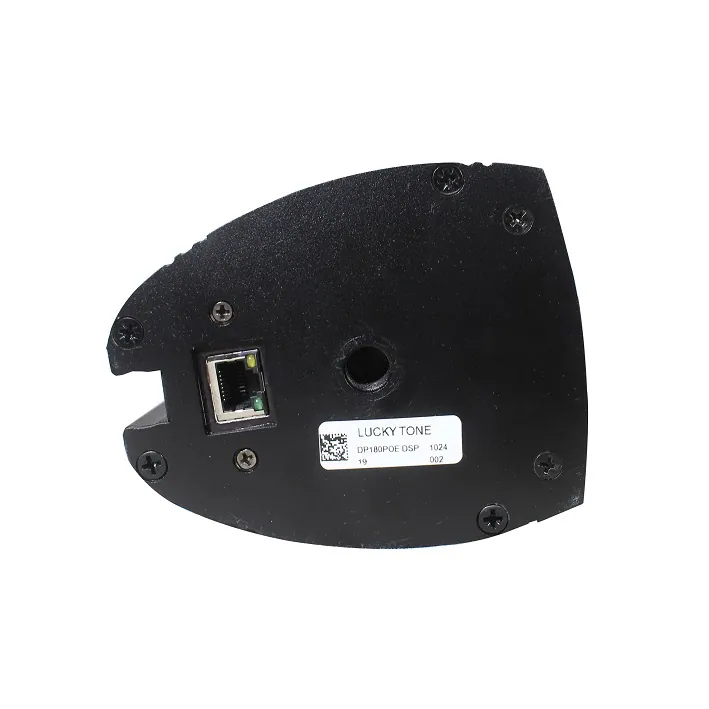

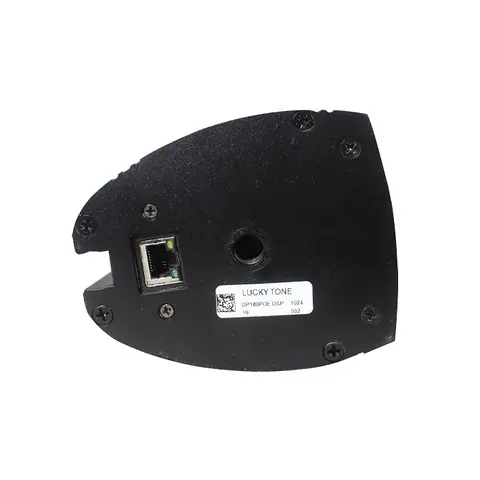

- and signal control via a RJ45 Ethernet port. It can obtain power supply from any Ethernet switch of
- 802.3 or above standard. DP 180POE DSP adopts SSA inverter technology allowing that the high-
- quality enlargement of superior sound quality realizes on this compact speaker of low power
- design. The system built with plastic body and 4pcs 3 inch high efficient Neodymium driver.
- Over Dante™ Ethernet that transmits 24-bit audio (44.1K/48KHz) and its control signal can
- be routed through the Dante™ Controller. DP 180POE DSP integrates versatile functions like
- gain control, mute control, 5-band equalizer control and DSP with limit control.
- All these functions can perform remotely on the PC or Mac by DSP Controller Software.
Features
Built-in Dante module
Built-in power amplifier module and its system
efficiency > 70%
DSP controlling software
PoE power supply
Over-current protection, Thermal protection and Overload protection
02Documents1 file · 1.9 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.

03Related products
In the same range.
EQ-312Lucky ToneNetwork Subwoofer with DSPDANTE-SUB5W/ DANTE-SUB5B / DANTE-SUB8W/ DANTE-SUB8B · DanteOutput powerDANTE-SUB5W/ DANTE-SUB5B: 80W; DANTE-SUB8W/ DANTE-SUB8B: 120WFrequency responseDANTE-SUB5W/ DANTE-SUB5B: 50-400HZ; DANTE-SUB8W/ DANTE-SUB8B: 35-350HZWeightDANTE-SUB5W/ DANTE-SUB5B: 7.3KG; DANTE-SUB8W/ DANTE-SUB8B: 9.2KG

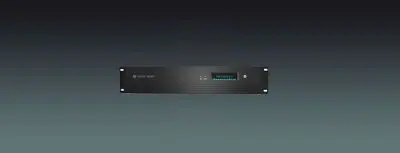

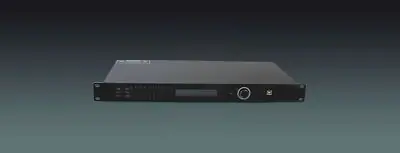

EQ-314Lucky ToneOpen architecture Dante 8 In 8 out DSP audio processorDSP-880 LD+ · DanteFrequency response20Hz~20kHz
