Sheet 05.312
Lucky Tone · Dante
Network Subwoofer with DSP
ModelDANTE-SUB5W/ DANTE-SUB5B / DANTE-SUB8W/ DANTE-SUB8B
Dante™ audio over RJ45, seamless integration
- Output power
- DANTE-SUB5W/ DANTE-SUB5B: 80W; DANTE-SUB8W/ DANTE-SUB8B: 120W
- Frequency response
- DANTE-SUB5W/ DANTE-SUB5B: 50-400HZ; DANTE-SUB8W/ DANTE-SUB8B: 35-350HZ
- Weight
- DANTE-SUB5W/ DANTE-SUB5B: 7.3KG; DANTE-SUB8W/ DANTE-SUB8B: 9.2KG
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Network Subwoofer with DSPPrice on requestRequest a quotation
01Models2 models in the family
Models compared.
| Model | DANTE-SUB5W/ DANTE-SUB5B | DANTE-SUB8W/ DANTE-SUB8B |
|---|---|---|
| Input Interface | RJ45 | RJ45 |
| Audio Input Signal | Dante™ | Balanced amplified signal | Dante™ | Balanced amplified signal |
| Rated Output Power | 80W | 120W |
| Sensitivity | 89±2dB | 88±2dB |
| Max. SPL@ 1M | 89±2dB | 92±2dB |
| Speaker Size | 5.25″ DVC Subwoofer with 35mm Voice Coil | 8″ Subwoofer with 38mm Voice Coil |
| Input Voltage | POE | POE |
| Frequency Response | 50-400HZ | 35-350HZ |
| Materials | MDF | MDF |
| Installation | On Wall/On Floor/On Ceiling | On Wall/On Floor/On Ceiling |
| Color | White/Black | White/Black |
| Product Size (L x W x H) | 450×350×150mm | 545×337×160mm |
| Net Weight | 7.3KG | 9.2KG |
02DescriptionManufacturer's description
What it is.
Features
- PoE powered, no extra power supply needed
- Deep bass performance: 5.25″ or 8″ woofer
- High output for powerful, clear low-frequency reinforcement.
- Equipped with passive radiator for deeper, richer low end (5.25″ model)
- Compact MDF cabinet, White/Black options
- Flexible installation: wall, floor, or ceiling
- Ideal for commercial spaces, rooms, and PA systems using Dante audio.
03Documents1 file · 5.0 MB
Documents and files.

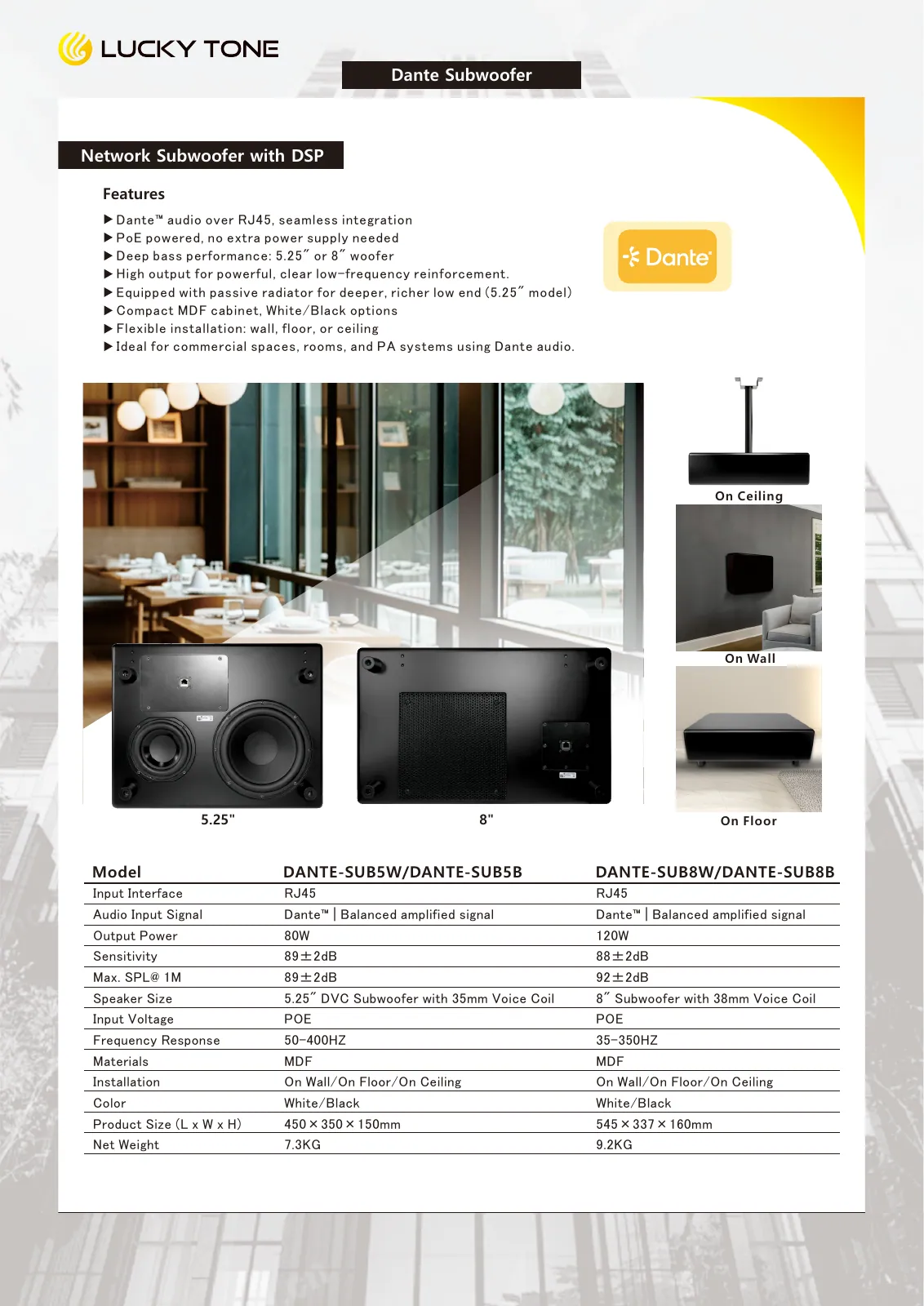

Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
