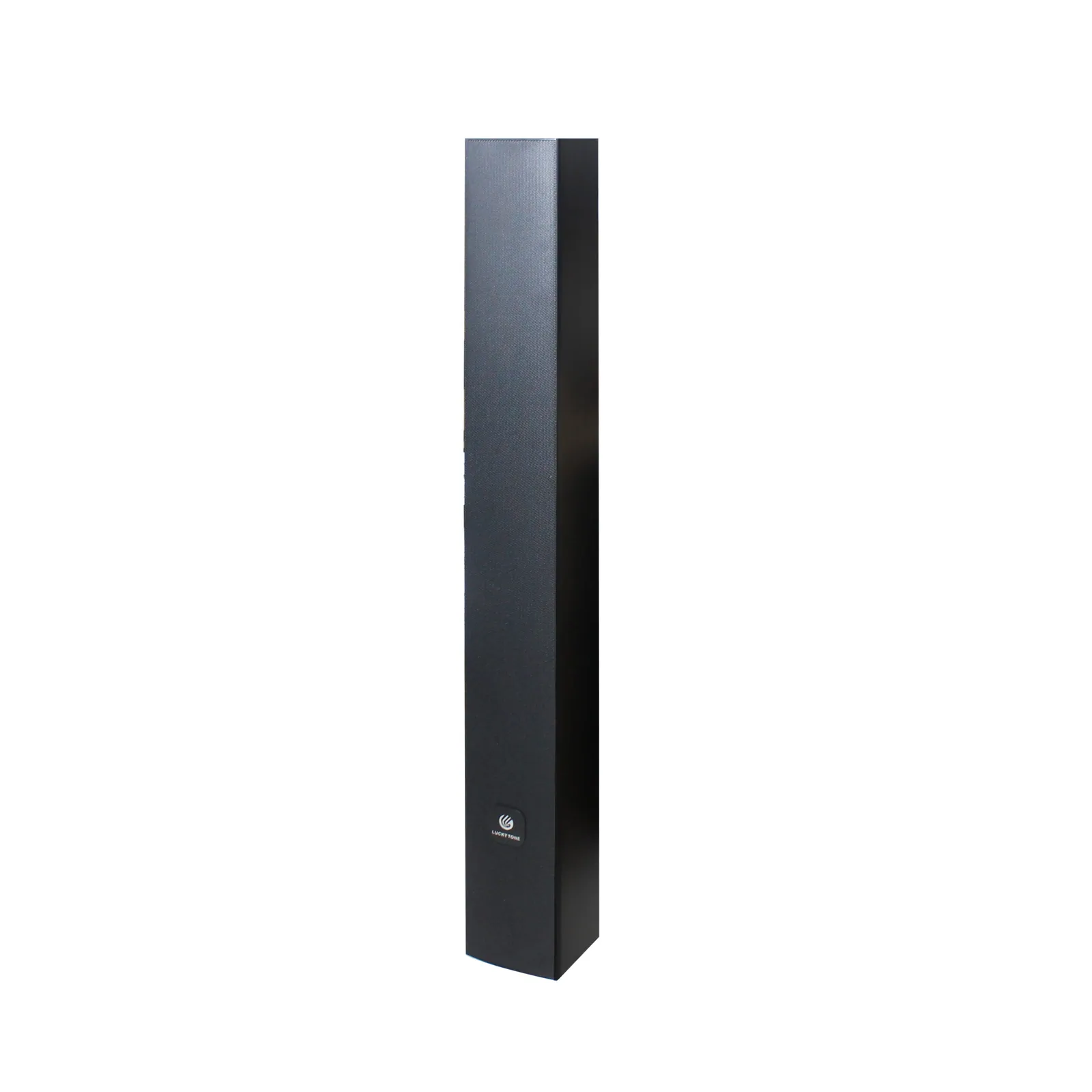

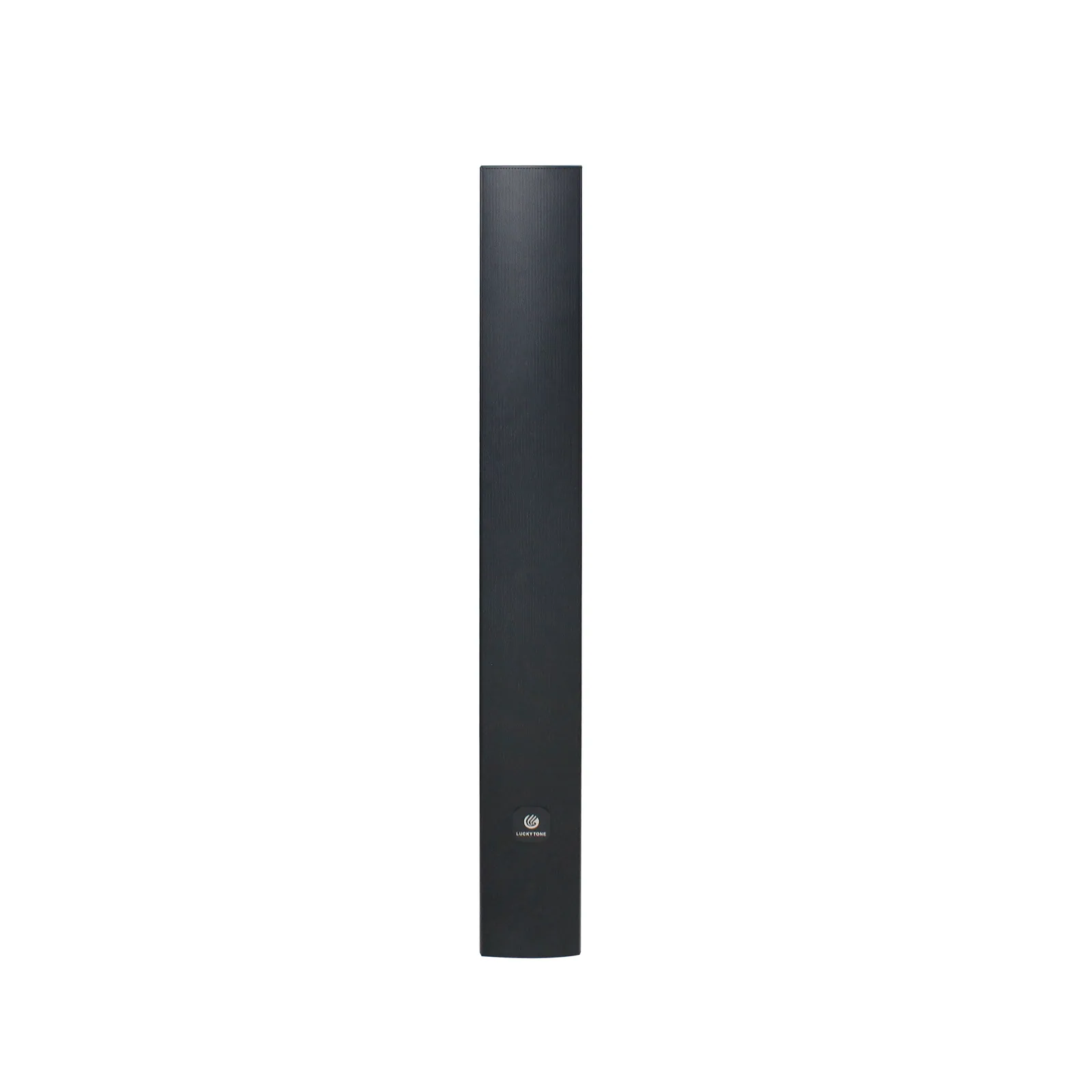

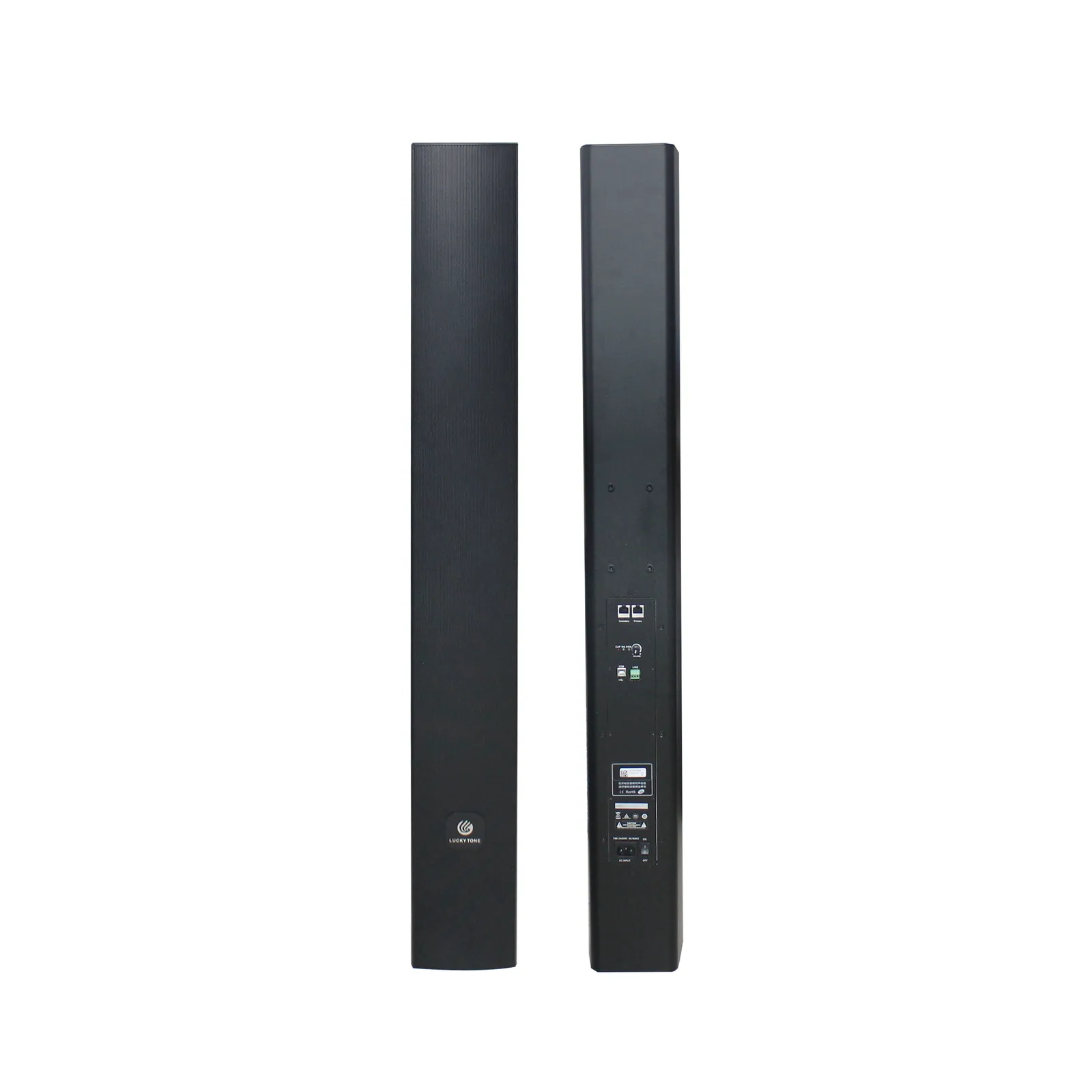

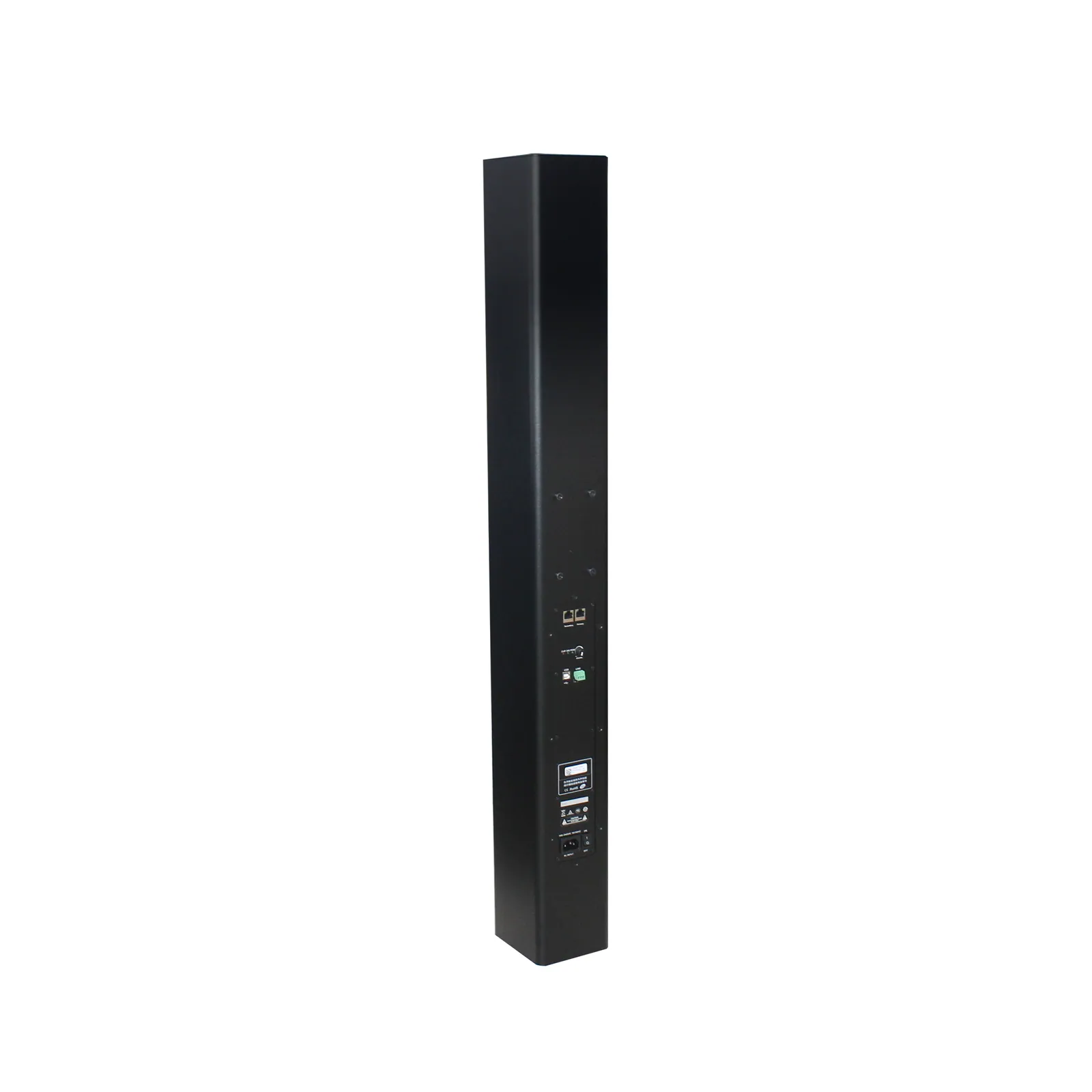

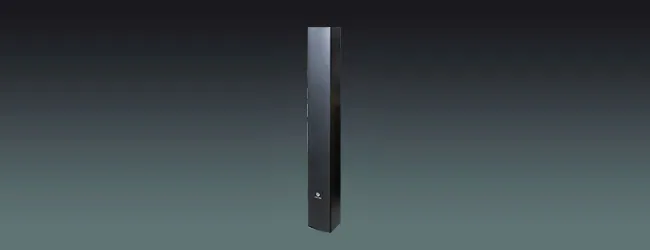

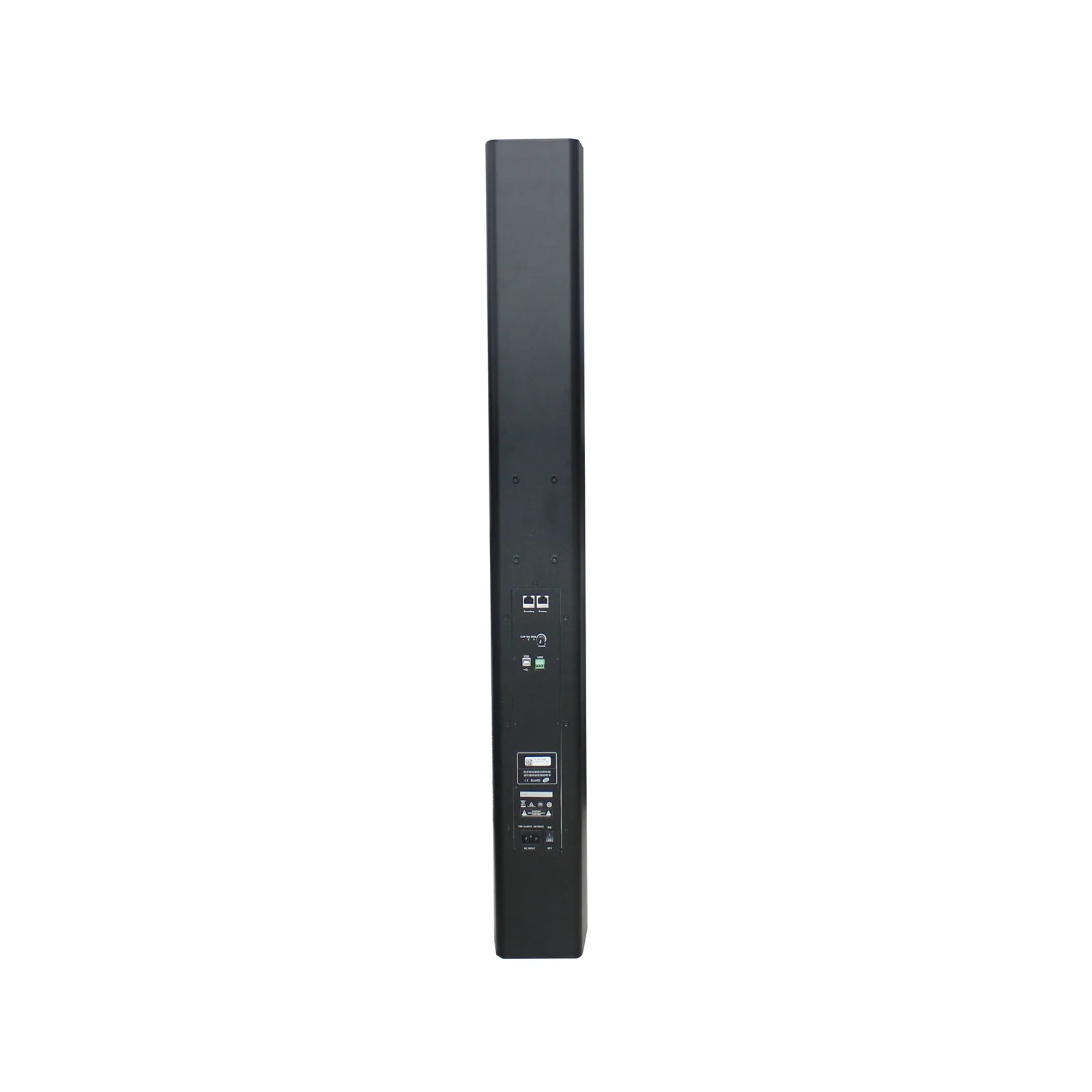

Dante Steerable Line Array Speaker with DSP

ModelDP 320DSP

Output power: 320W
Frequency response: 120Hz~16kHz
Power supply: AC110-240V
Weight: 7.34kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 18 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications18

Model: DP 320DSP
Output Power: 320W
Peak Power: 1280W
Frequency Response: 120Hz~16kHz
Sensitivity(1m/1W): 91dB
SPL: 112dB
THD: ≤0.03%@-5dB
SNR: ≥105dB@20Hz-20kHz
Sampling Rate: 24bit/96KHz
Dispersion Angle: Vertical: 20~ (㊣20~) and horizontal: 160~
Material: Aluminum alloy

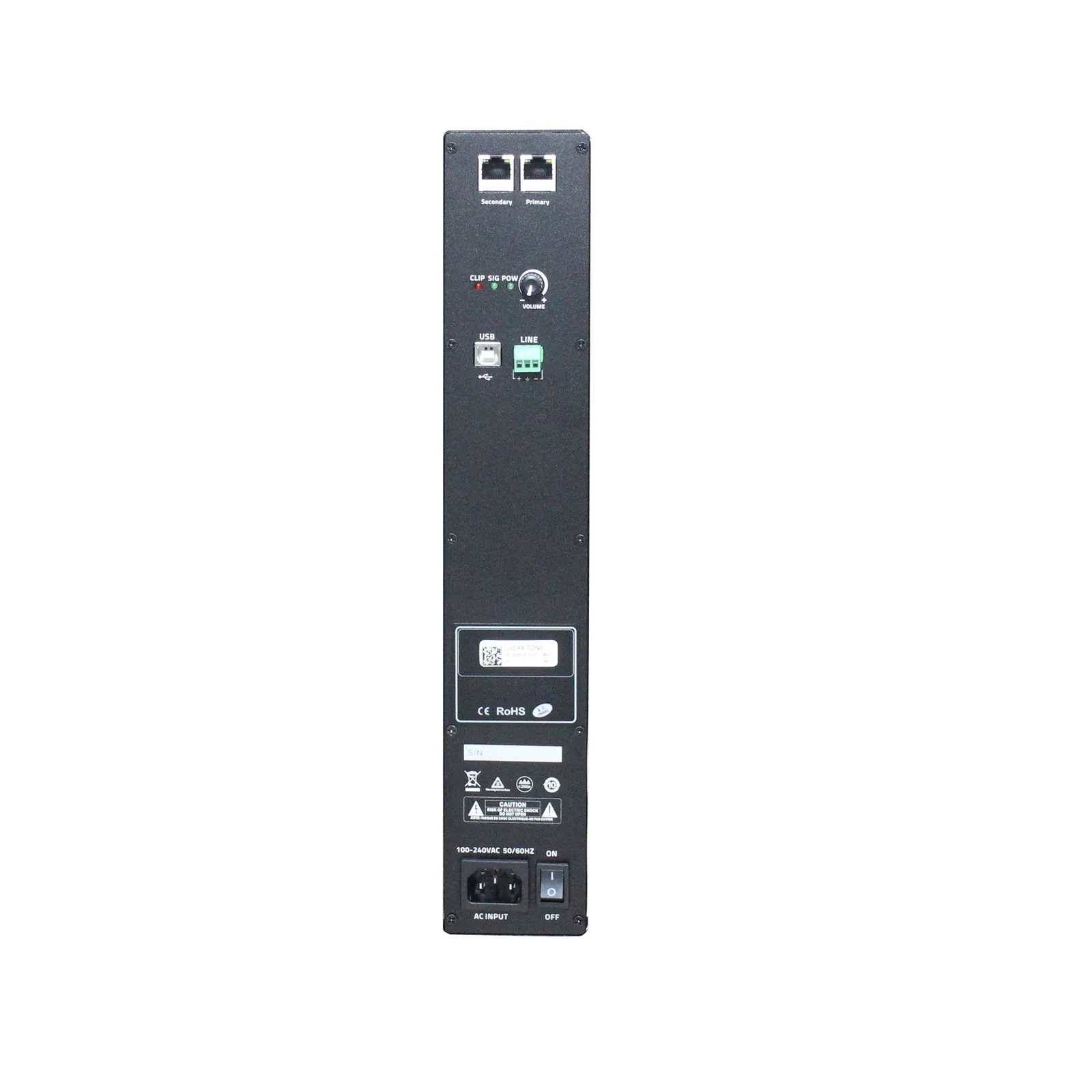

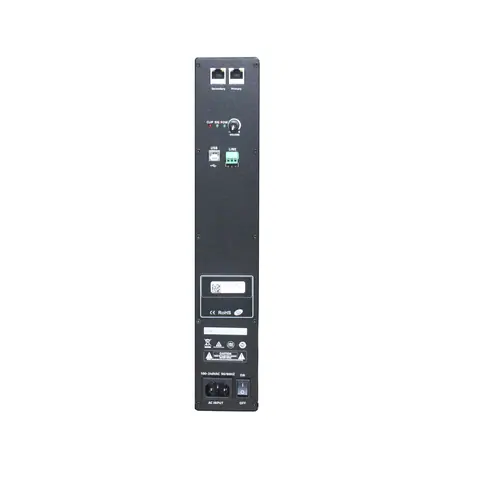

Audio input connection: Two RJ45 interfaces for Dante digital audio input + one Phoenix terminal for analog balanced signal input
DSP Function: Input: Noise gate, gain, phase, mute, compressor (limiter) Output: Gain, phase, mute, delay, high-pass/low-pass filter, 6-band equalizer
Speaker Driver: 8×4″ neodymium magnet
Power Supply: AC110-240V
Color: Black/White
Net Weight: 7.34kg
Product Dimensions: 1126x136x136mm

02DescriptionManufacturer's description

What it is.

Hard construction materials applied in modern buildings lead to disturbing reverberation. DP 320DSP digital beam steering products were designed for dealing with modern architecture combining hard reflective surfaces such as glass, marble and stone etc. This model was developed precisely for this problem and delivers excellent sound quality even in such demanding environments. With the help of the digitally controllable directivity of an array, the sound is aligned in such a way that an optimal sound field and excellent speech intelligibility are ensured. With its elegant and unobtrusive design, the DP 320DSP fits perfectly into any environment.

An DP 320DSP as a basic device can easily be cascaded with other DP 320DSP. The automatic detection in the digital speaker editor software speeds up the configuration process. All internal amplifier and speaker components are fully monitored. The easy to understand and uncomplicated digital speaker editor configuration software makes configuring line array speakers easier than ever. The software calculates the adjustable sound alignment in real time, whether with one or two beams per array.
