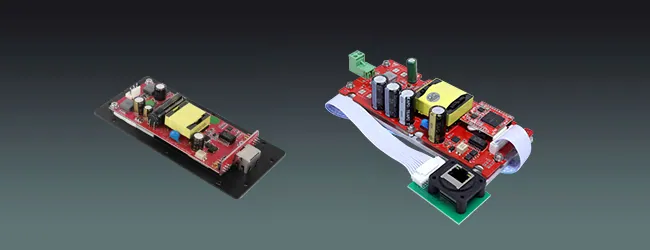

Dante Network Amplifier Module with POE and DSP

ModelPOE 60 / POE 120

Fully compatible with Dante networks for high-quality, low-latency audio distribution

Output power: POE 60: 30W@8ohm, 60W@4ohm; POE 120: 60W@8ohm, 120W@4ohm

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01Models2 models in the family

Models compared.

Model	POE 60	POE 120
Output Power	30W@8ohm, 60W@4ohm	60W@8ohm, 120W@4ohm
Input Interface	RJ-45	RJ-45
Cable	Cat-6 or above	Cat-6 or above
Transmission Rate	100M/1000M bps	100M/1000M bps
Freq. Response	20~20KHz	20~20KHz
Output Connector	3-Pin Euroblock Phoenix Connector	3-Pin Euroblock Phoenix Connector
Audio Control	Volume/Mute/Limiter/EQ/Channel Selection	Volume/Mute/Limiter/EQ/Channel Selection
Protection Function	Over-current/Over-temperature/Overload Protection	Over-current/Over-temperature/Overload Protection
Power Requirements	PoE	PoE
THD	<0.30% @ >100 dB	<0.30% @ >100 dB
Noise Floor	<200uV	<200uV
SNR	>100dB	>100dB
System Efficiency	>76%	>76%
Operation Temperature	0 to 40 Degree	0 to 40 Degree
Product Dimensions	148x68x22mm	158×62.5x36mm

02DescriptionManufacturer's description

What it is.

Integrated DSP for precise sound processing and flexible system tuning

Delivers audio transmission and PoE power via a standard RJ45 Ethernet port, enabling simple wiring and easy management

Can be embedded into passive speakers or installed on walls, cabinets, under tables, and in ceiling spaces
Ideal for small to medium fixed installations and commercial applications
Supports independent adjustment of speaker gain, EQ, crossover, and limiter functions
Enables remote monitoring of speaker temperature, audio level, and fault feedback
Centralized interface for unified parameter setting and monitoring of all speakers in the system

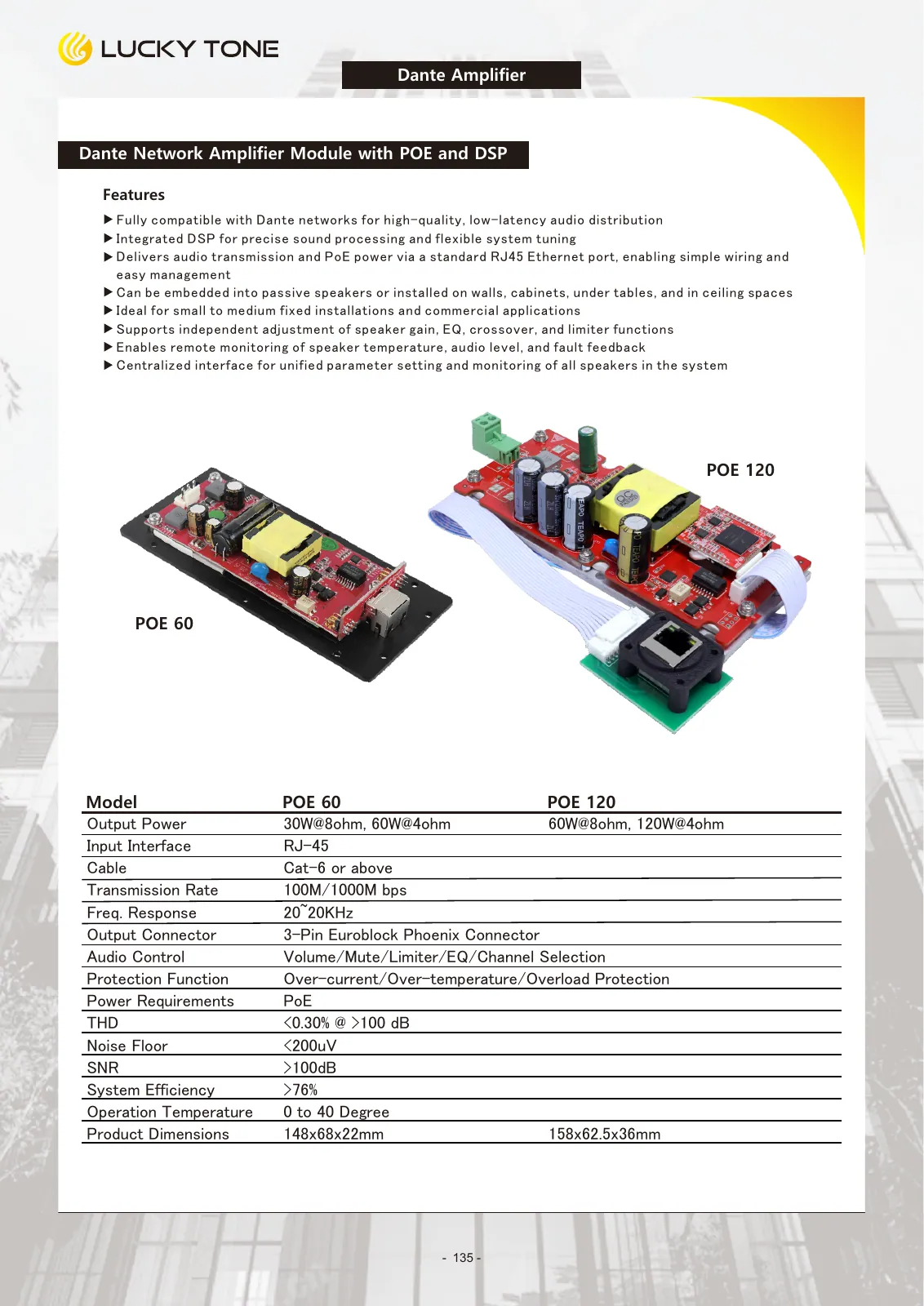

03Documents1 file · 2.8 MB
