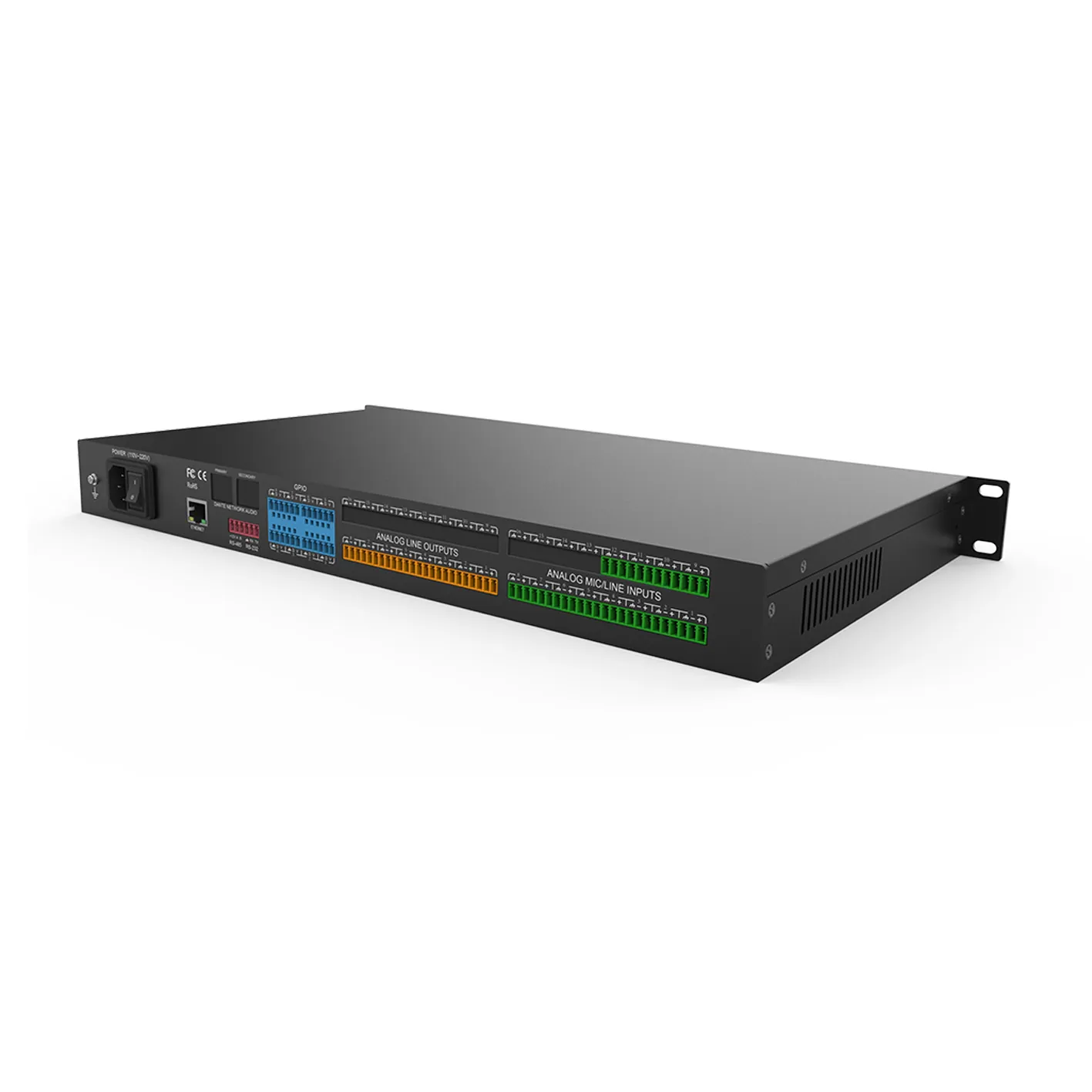

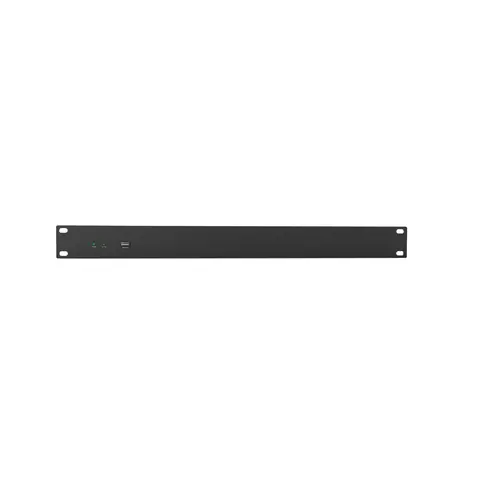

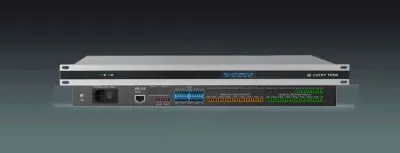

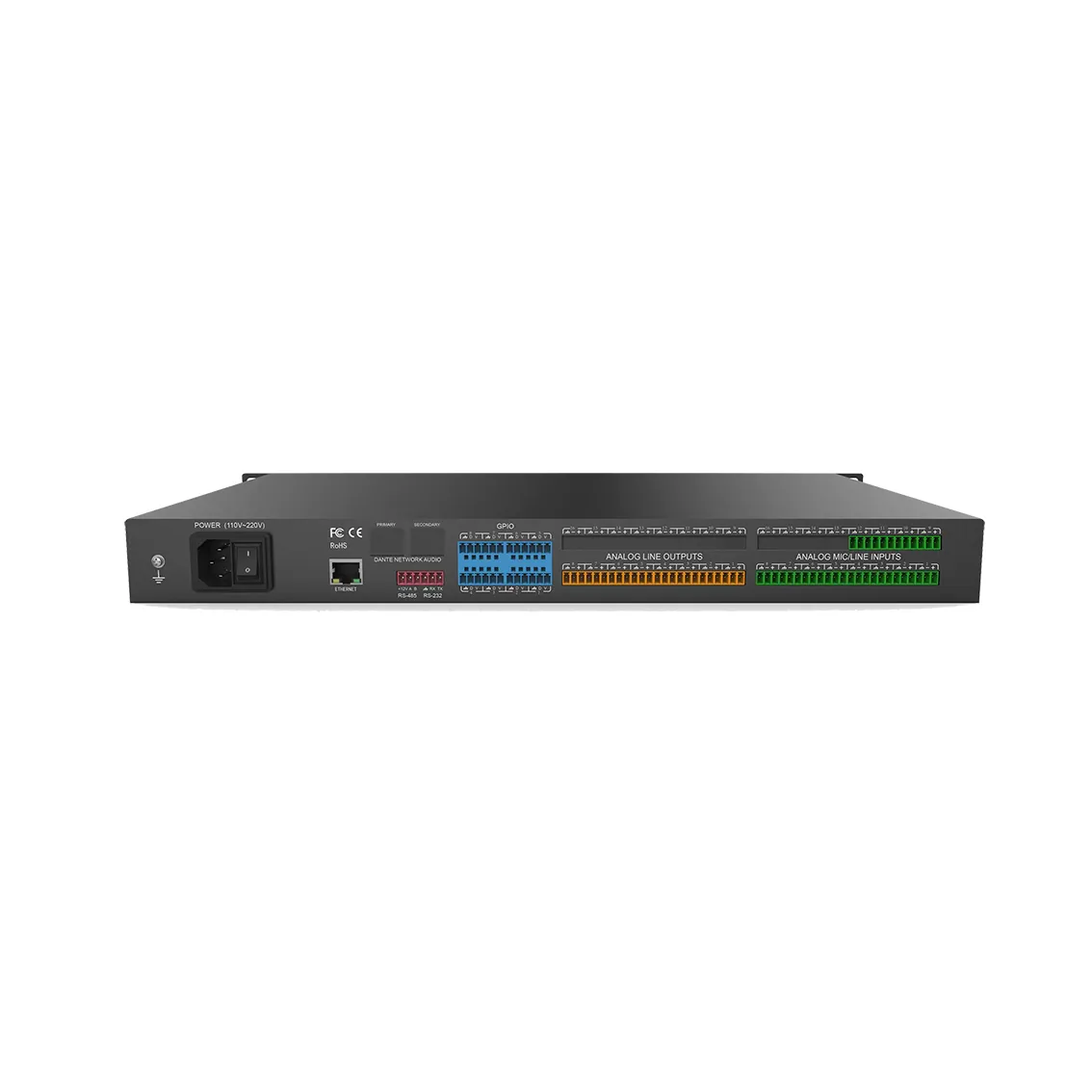

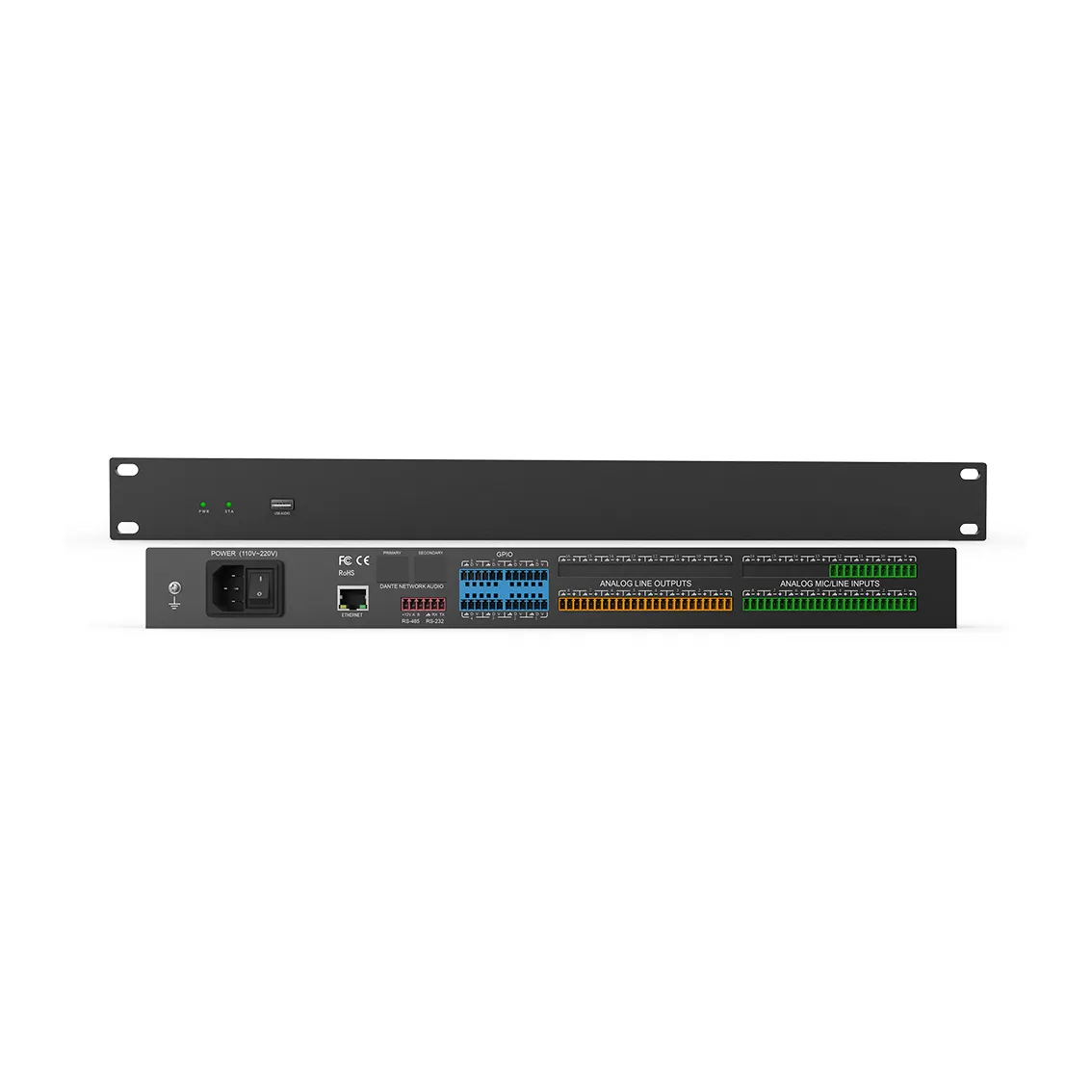

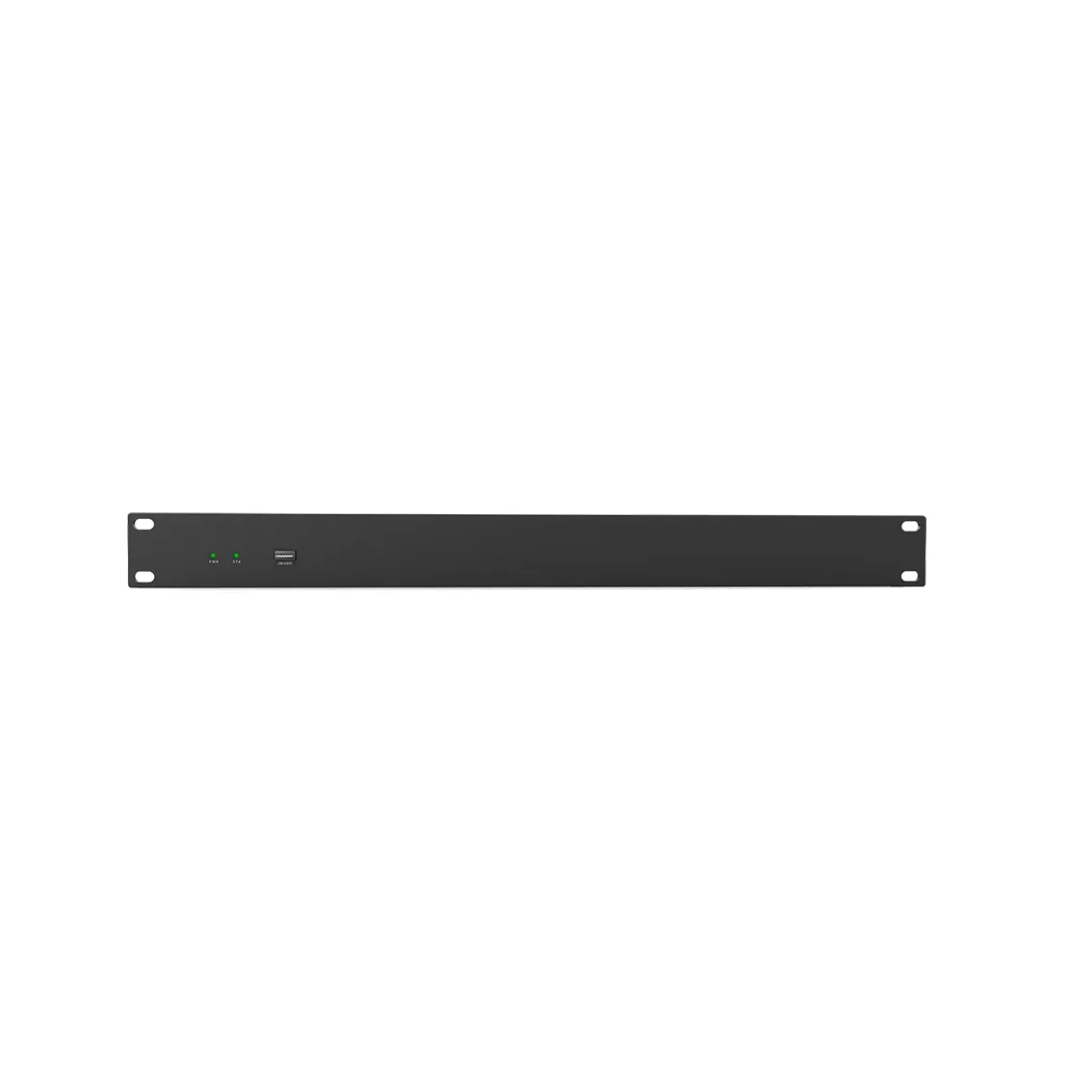

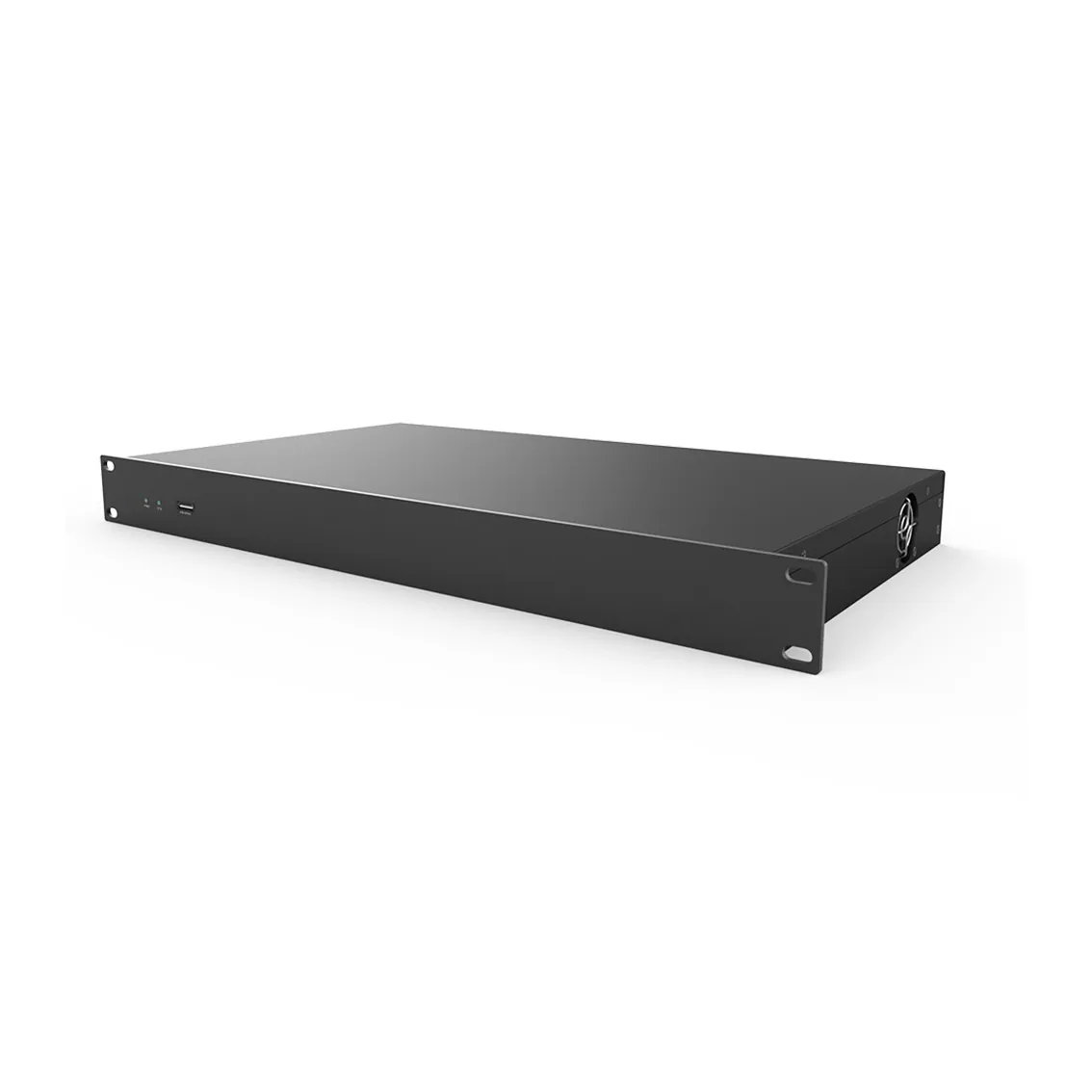

12 In 8 Out DSP Audio Processor

ModelDSP-1280N2+AI

1. AI machining learning can intelligently eliminate environmental noises such as table knock, page turn, fan noise, etc., to realize the separation of non-human voice signals.

Frequency response: (20~20kHz):±0.3dB
Power supply: AC110~240V,50Hz/60Hz
Dimensions: 482 x 260 x 45mm
Weight: 4KG

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 20 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications20

Model: DSP-1280N2+AI
Input Channels(analog): 12
Output Channels(analog): 8
Processor: ADI SHARC 21489@450 MHz SIMD
DSP Handling Capacity: 400 MIPS, 1.6 GFLOPS
Sampling Rate: 48K/40bit
Frequency Response: (20~20kHz):±0.3dB
THD+N: <-94dB @17dBu
Input Dynamic Range: 110dB
Output Dynamic Range: 112dB
Input gain: 0/3/6/9/12/15/18/21/24/27/30/33/36/39/42/45/48 dBu
Phantom Power: +48V/10mA max
Maximum level: +18dBu
Channel isolation @1kHz: 108dB
Input Impedance (balanced connection): 5.4KΩ
Output Impedance (balanced connection): 600Ω
System Latency: <3ms
Power Supply: AC110~240V,50Hz/60Hz
Dimension: 482 x 260 x 45mm
Weight: 4KG

02DescriptionManufacturer's description

What it is.

Features

2. Machining learning (100,000 hours): the number of network nodes can be dynamically adjusted, achieving online learning and featuring low latency.

3. The processing module is confifigurable and can be freely replaced.

4. Built-in one-in-one-out USB sound card, supports music playback, recording and video conferences (such as ZOOM, Tencent conference, etc.);

5. Supports AFC (feedback suppression), AEC (echo cancellation), ANS (noise suppression), Ducker, ANC (noise gain compensation), AGC (automatic gain), gain sharing, threshold automatic mixing.

6. 12-band equalizer providing 5 fifilter options: Parametric, Lowshelf, Highshelf, Lowpass, Highpass.
7. Provides customizable user interface, and support up to 30 devices to be managed under the same UI.
8. Support camera control
