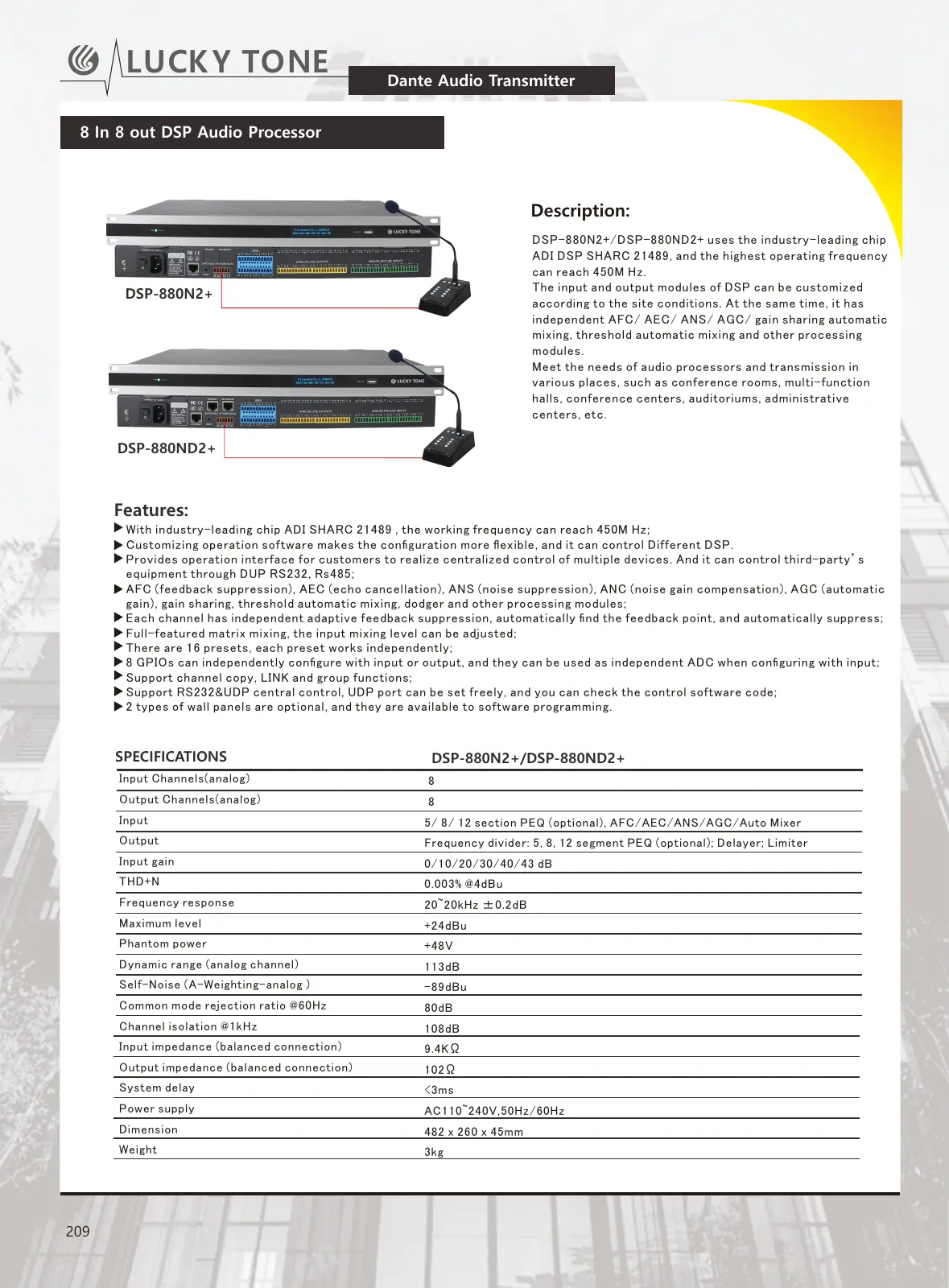

8 In 8 out DSP Dante Audio Processor

• 21489, and the highest operating frequency can reach 450M Hz.
• The input and output modules of DSP can be customized
• according to the site conditions. At the same time, it has
• independent AFC/ AEC/ ANS/ AGC/ gain sharing automatic
• mixing, threshold automatic mixing and other processing
• modules.
• Meet the needs of audio processors and transmission in various
• places, such as conference rooms, multi-function halls,
• conference centers, auditoriums, administrative centers, etc.

Features

• With industry-leading chip ADI SHARC 21489 , the working
• frequency can reach 450M Hz;
• Customizing operation software makes the configuration
• more flexible, and it can control Different DSP.
• Provides operation interface for customers to realize
• centralized control of multiple devices. And it can control
• third-party’s equipment through DUP RS232, RS485;
• AFC (feedback suppression), AEC (echo cancellation), ANS
• (noise suppression), ANC (noise gain compensation), AGC
• (automatic gain), gain sharing, threshold automatic mixing,
• dodger and other processing modules;
• Each channel has independent adaptive feedback
• suppression, automatically find the feedback point, and
• automatically suppress;
• Full-featured matrix mixing, the input mixing level can be
• adjusted;
• There are 16 presets, each preset works independently;
• 8 GPIOs can independently configure with input or output,
• and they can be used as independent ADC when
• configuring with input;
• Support channel copy, LINK and group functions;
• Support RS232&UDP central control, UDP port can be set
• freely, and you can check the control software code;
• 2 types of wall panels are optional, and they are available
• to software programming.
