Sheet 05.276
Lucky Tone · Dante

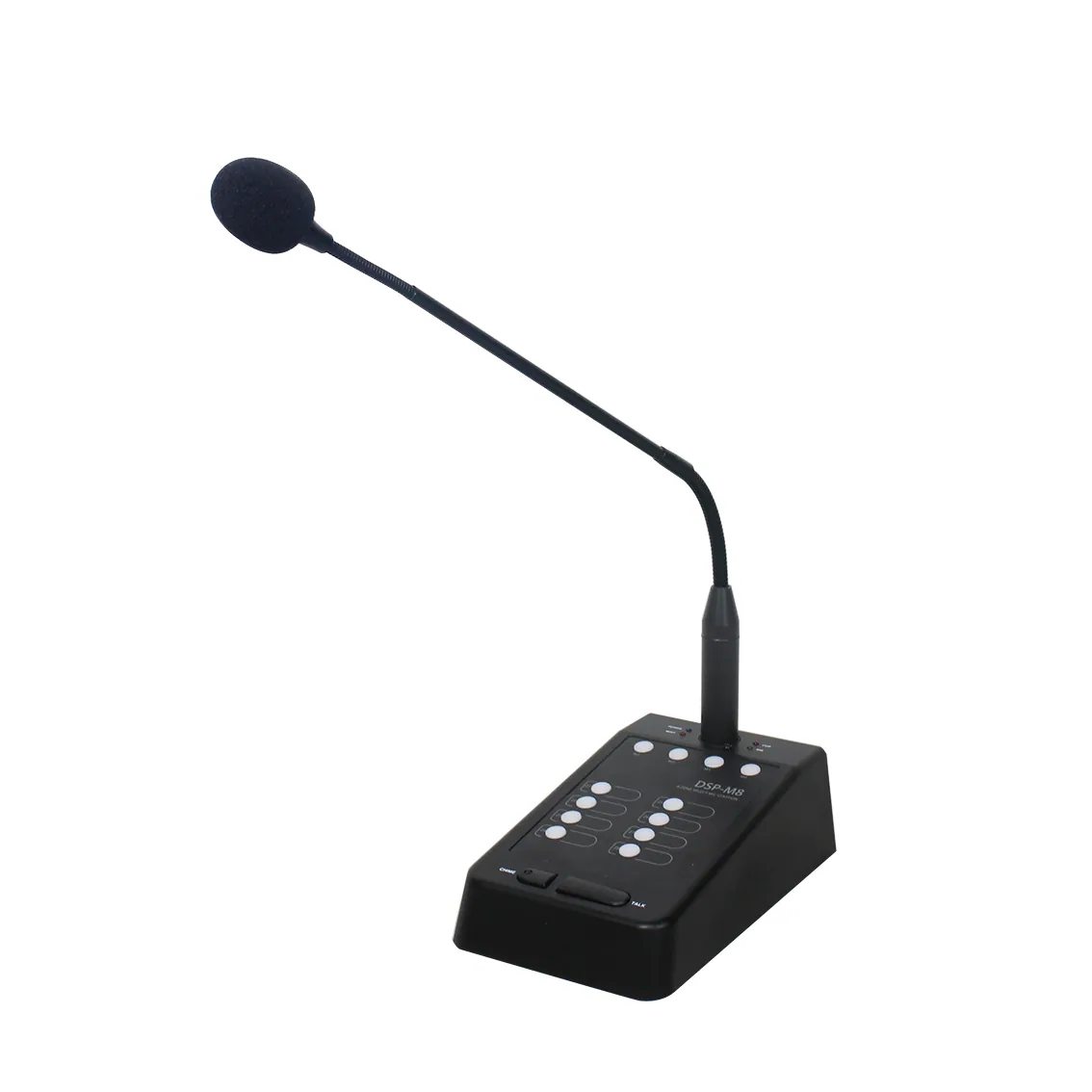

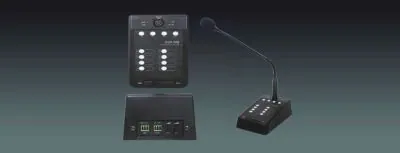

8 Zone Paing Microphone Station
ModelDSP-M8
8 ZONE Remote Microphone Station for DSP-880N+,DSP-880M+,DSP-880ND+
- Dimensions
- 115x60x195m(only body)
- Weight
- 1.2kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
8 Zone Paing Microphone StationPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 9 values
What this product is, in numbers.

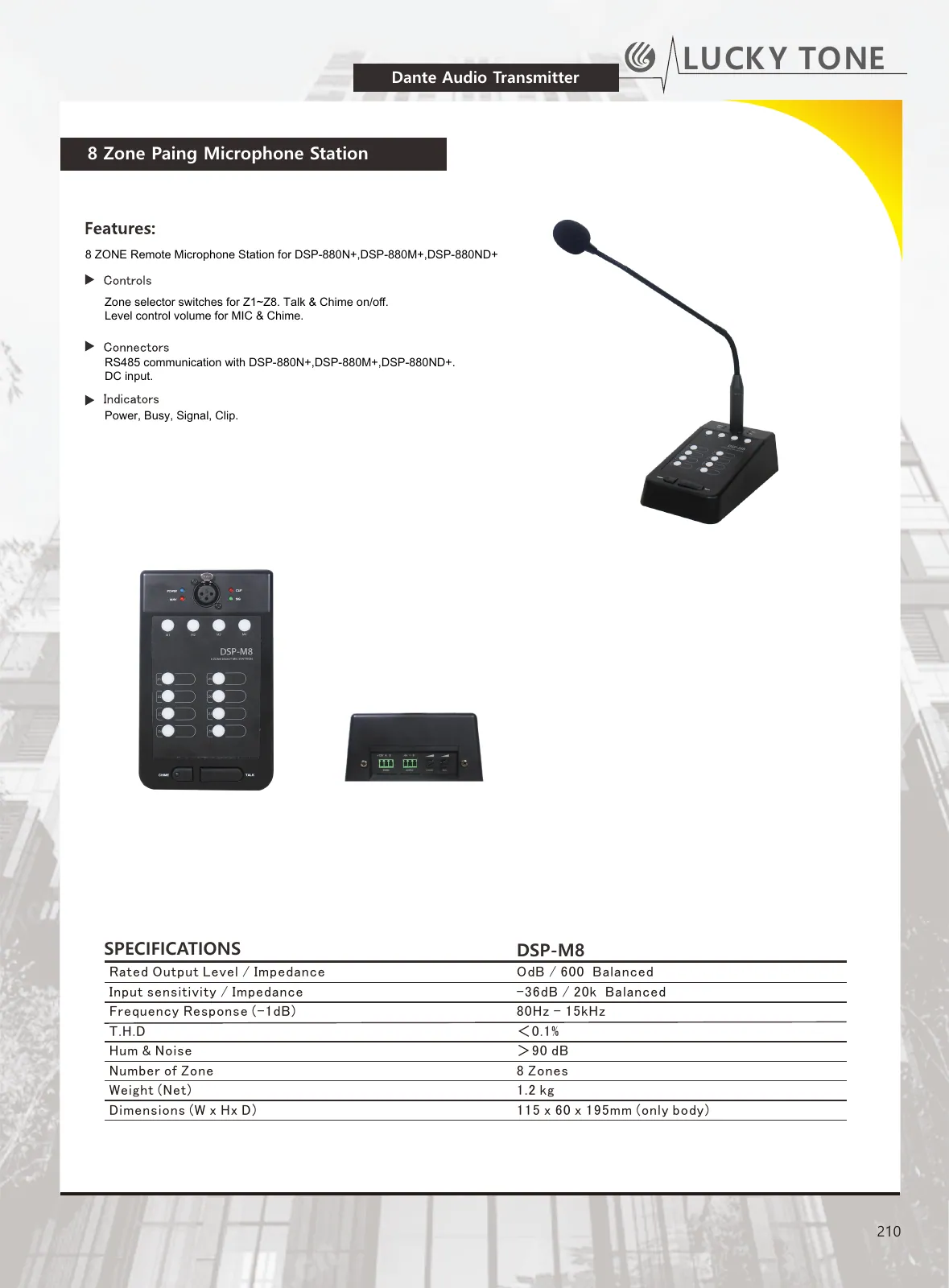

PDFSpecifications1.4 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications9
- MODEL
- DSP-M8
- Rated power level/Impedance
- 0dB/600ohm balanced
- Input sensitivity/Impedance
- -36dB/20kohm balanced
- Frequency response(-1dB)
- 80Hz-15KHz
- T.H.D
- less than 0.1%
- Hum&Noise
- more than 90dB
- Number of Zone
- 8 zones
- Net Weight
- 1.2kg
- Dimensions(WxHxD)
- 115x60x195m(only body)
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Feature
Controls

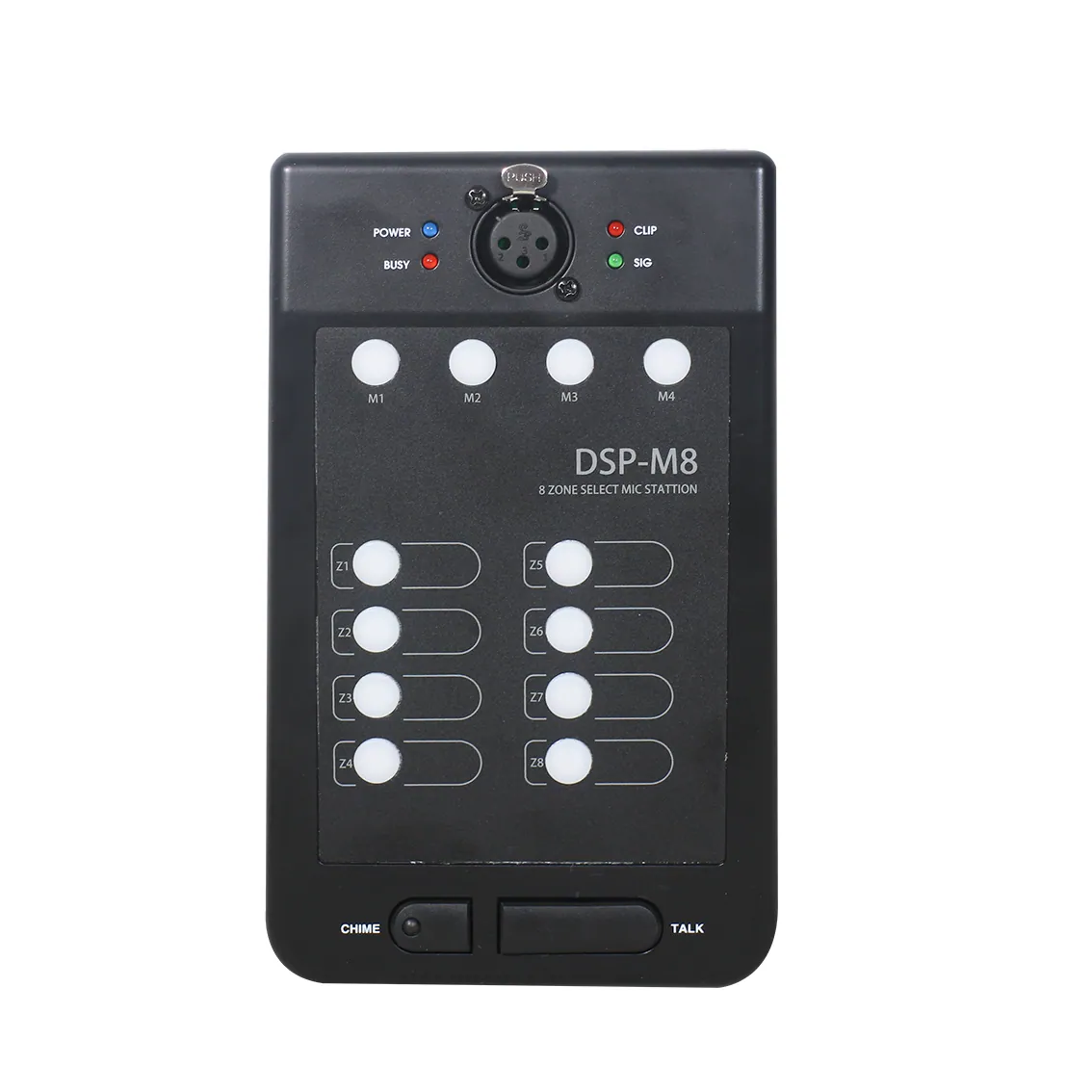

Zone selector switches for Z1~Z8. Talk & Chime on/off.
Level control volume for MIC & Chime.

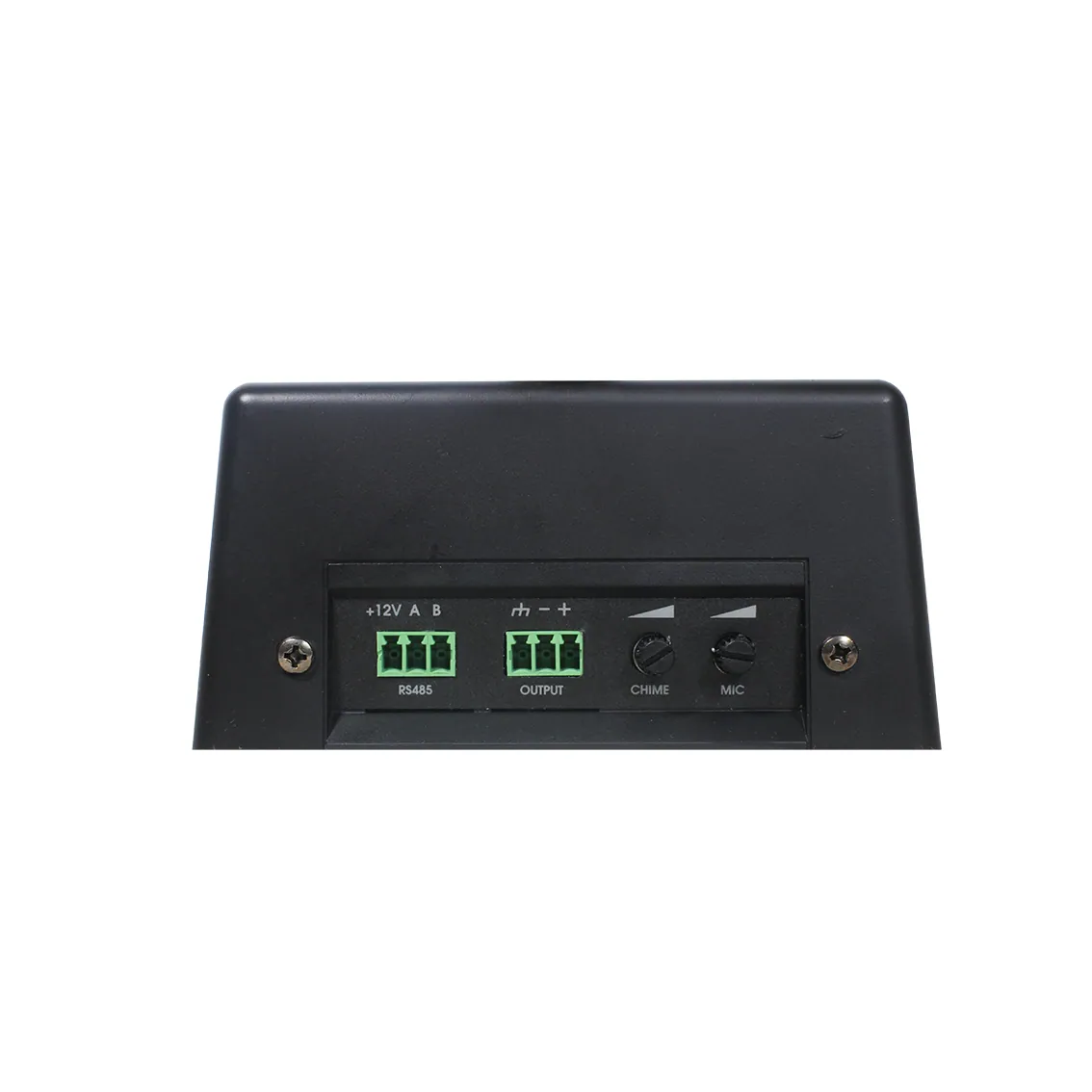

Connectors
RS485 communication with DSP-880N+,DSP-880M+,DSP-880ND+.
DC input.
Indicators
Power, Busy, Signal, Clip.
