Sheet 05.390
Lucky Tone · Public address

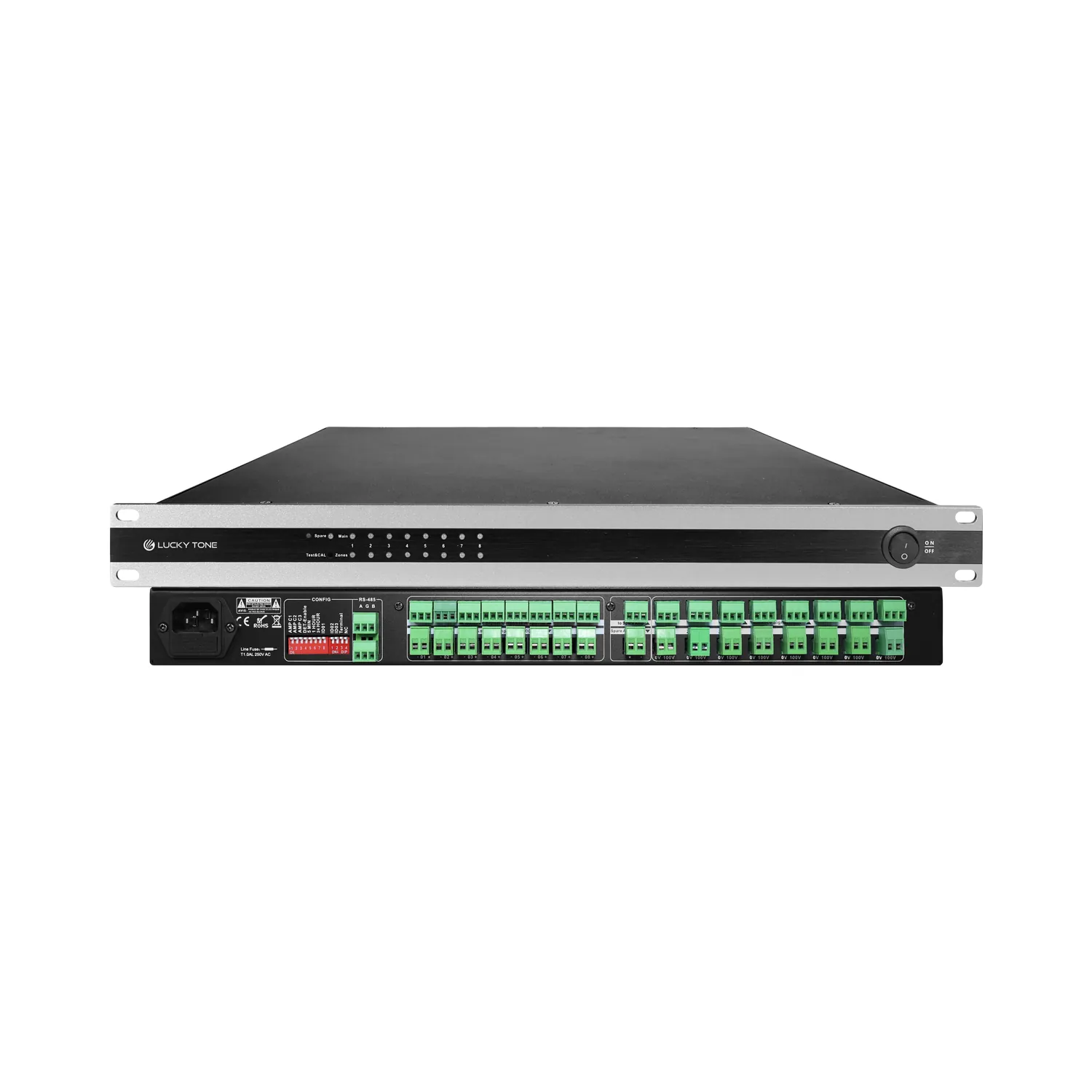

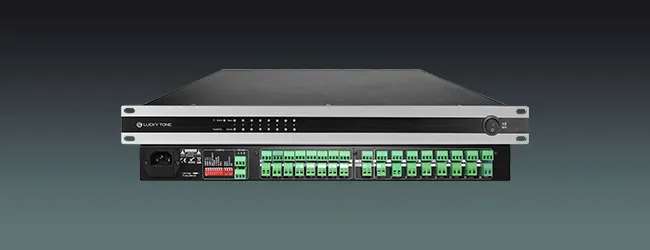

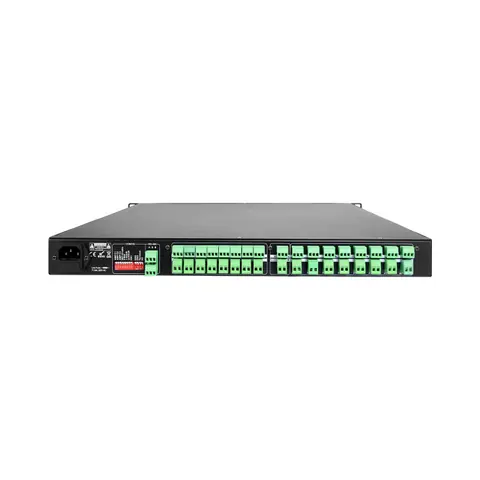

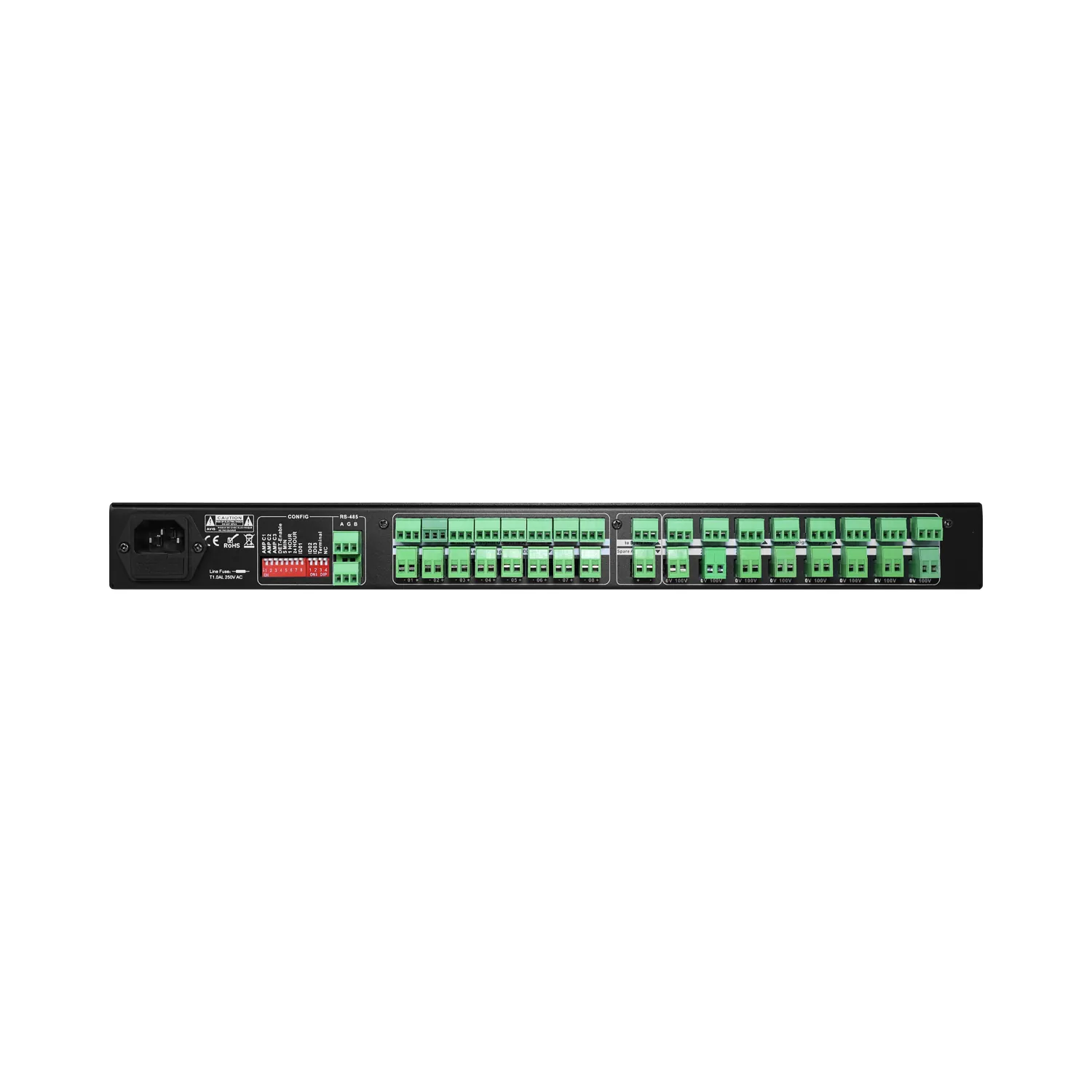

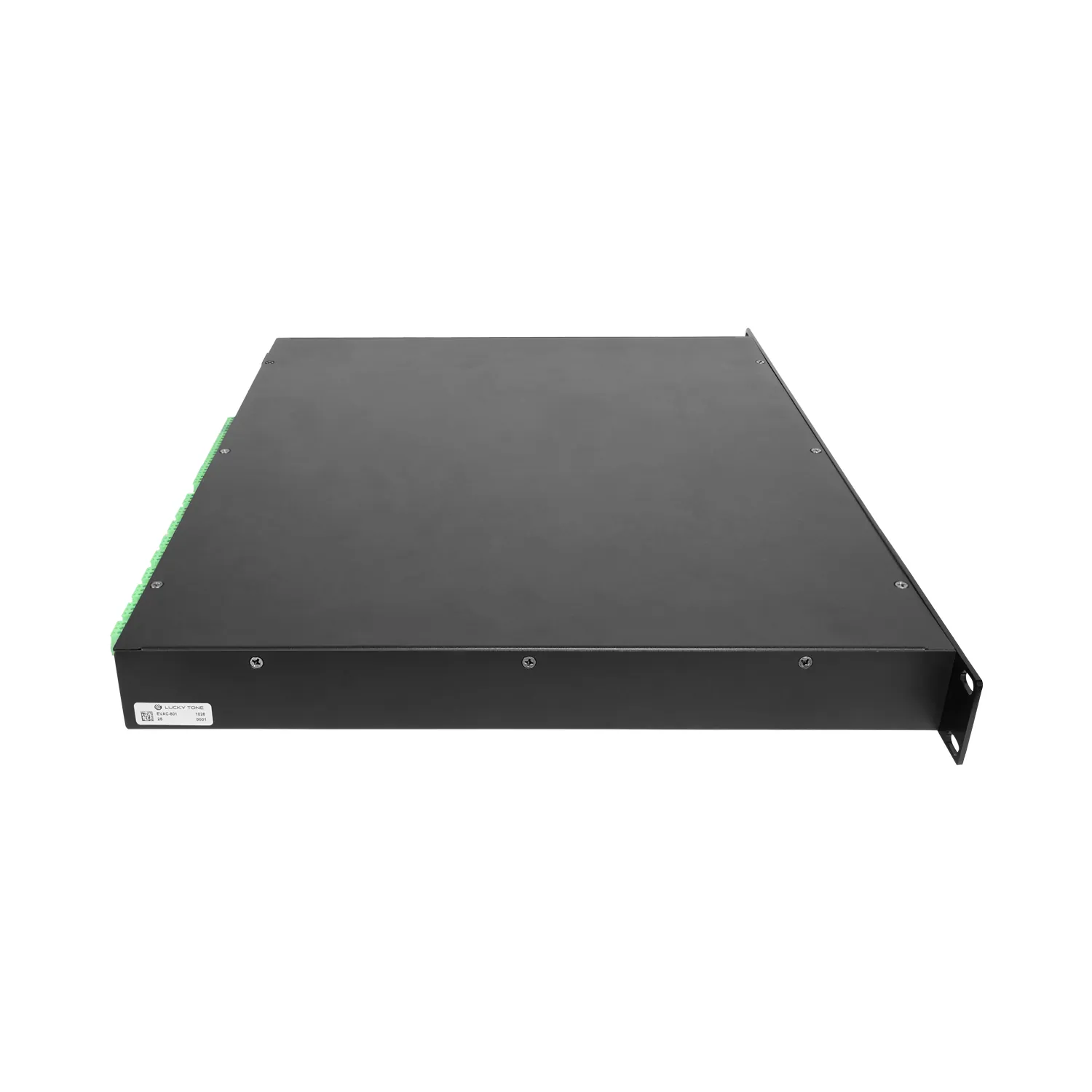

Intelligent Amplifier Changeover & Speaker Line Supervision Unit
ModelEVAC-801
The EVAC-801 is an intelligent device that integrates power amplifier detection, automatic backup, and partition monitoring in one unit.It provides a third-party programmable interface and SDK protocol support for real-time status monitoring.Its high reliability, modular structure, and flexible configuration make it an ideal choice for modern intelligent broadcasting and voice evacuation systems.
- Power supply
- AC 90–264V / 0.1A
- Dimensions
- 483 × 44 × 368 mm
- Weight
- 4.3kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Intelligent Amplifier Changeover & Speaker Line Supervision UnitPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 10 values
What this product is, in numbers.
PDFSpecifications1.4 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications10
- Model
- EVAC-801
- Control Power per Zone
- 800W RMS / 100V 8A
- Amplifier Fault Detection
- 8 Main + 1 Backup
- Speaker Line Detection
- 8 Zones
- Detection Interval
- No Detect / 5 min / 1 hr / 24 hr
- Measurement Accuracy
- ± 10 % Line Impedance
- Power Supply
- AC 90–264V / 0.1A
- Fuse
- T1A / 250V
- Dimensions
- 483 × 44 × 368 mm
- Net Weight
- 4.3kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Description
Features

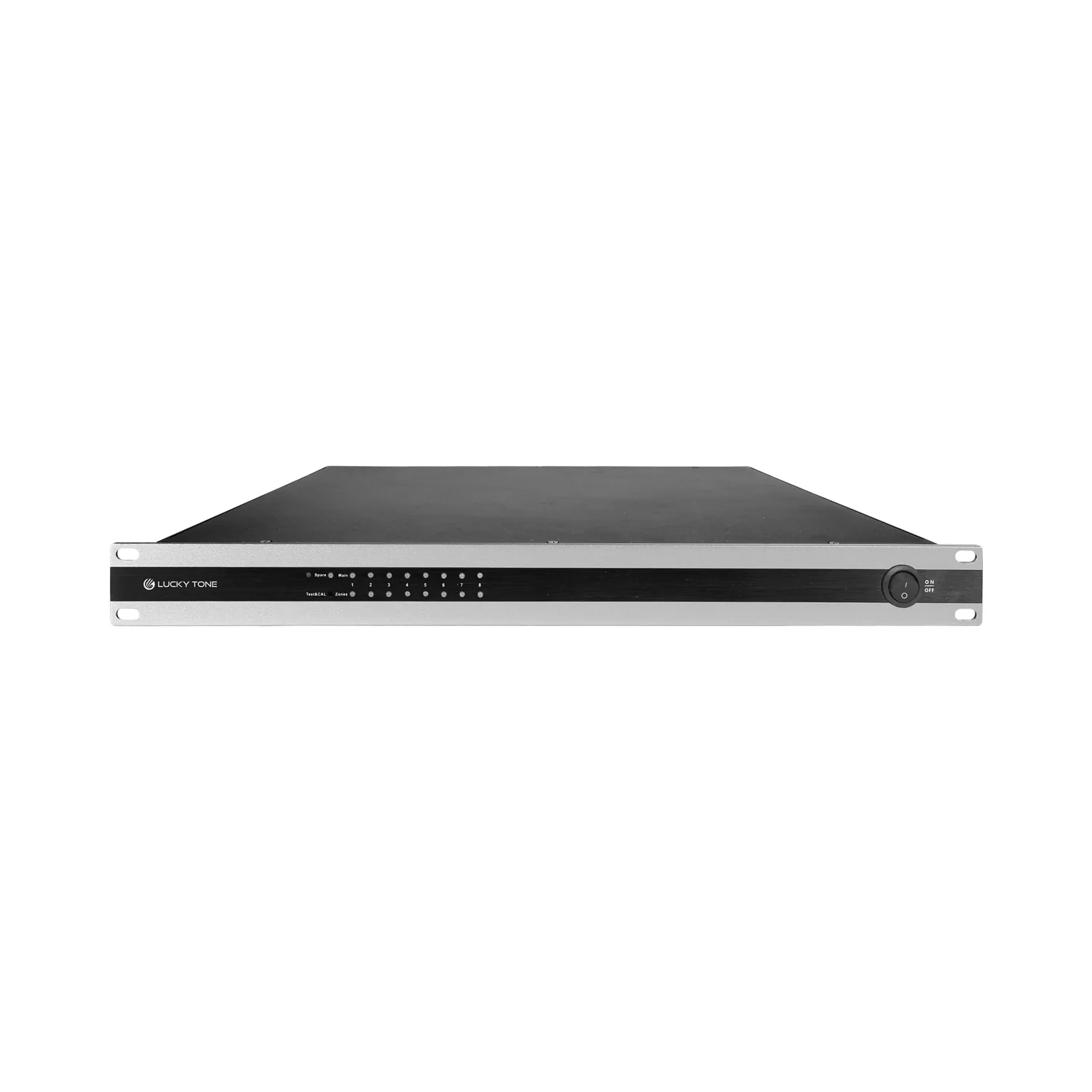

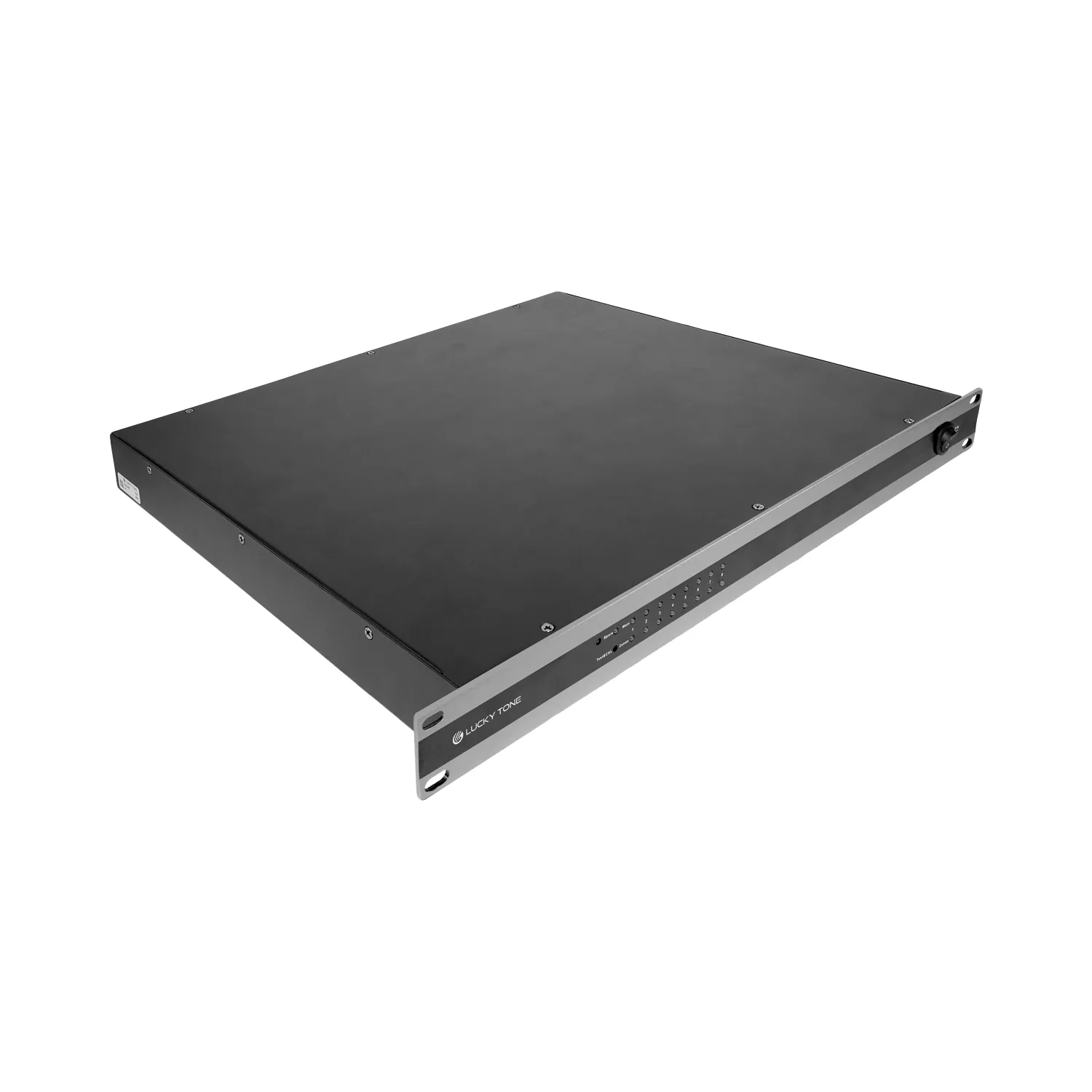

- 1U Aluminum Alloy Panel — Compact, modular, and durable design.
- Amplifier Changeover & Line Supervision 2-in-1-Combines automatic amp backup and 8-zone speaker monitoring.

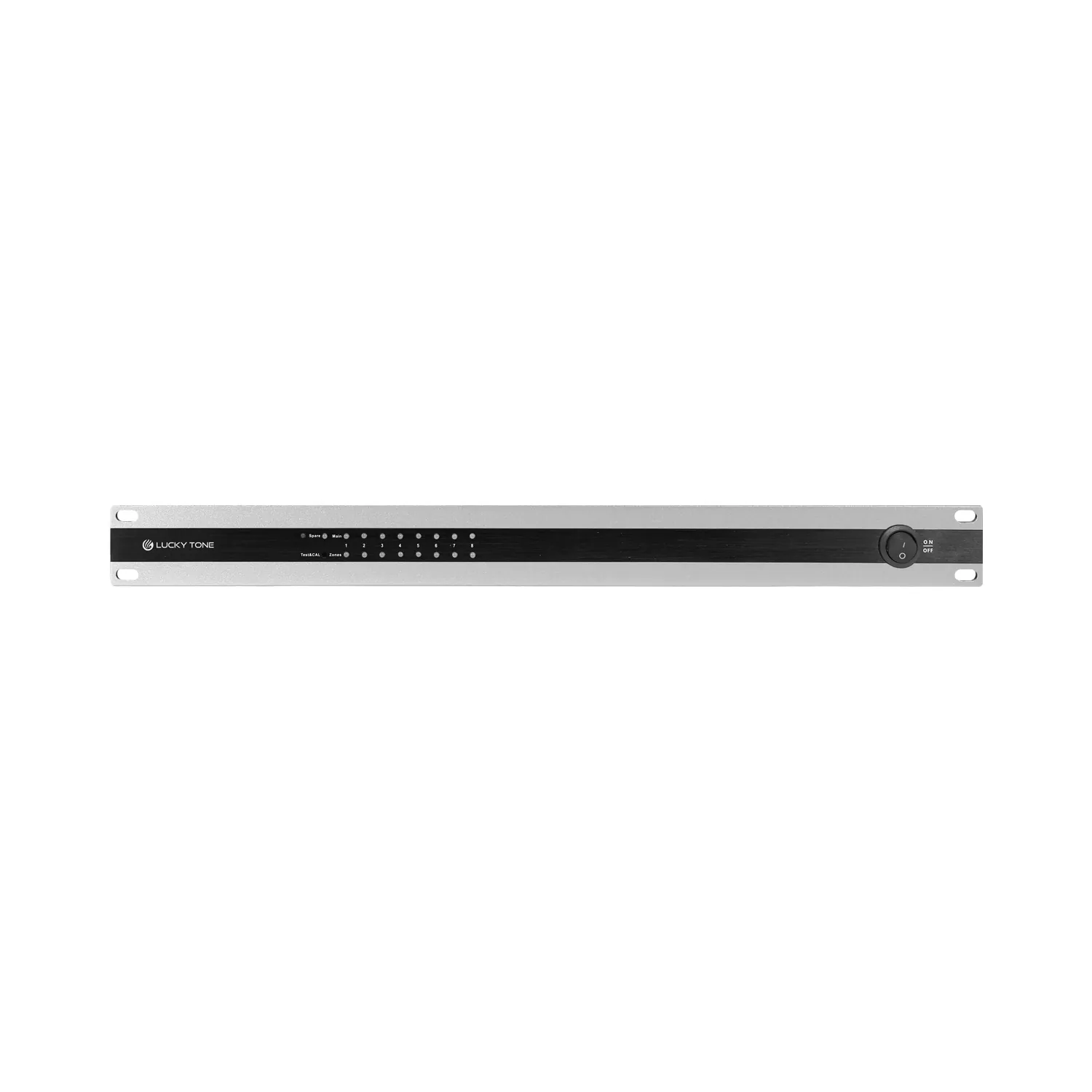

- Real-Time Fault Feedback — Detects amplifier and speaker line status with visual LED indication.
- Automatic & Manual Detection Modes — Detection interval configurable to 5 min / 1 hr / 24 hr.
- RS-485 Communication — Enables remote monitoring and control through centralized systems.
- Flexible Configuration — Supports 8 main + 1 backup or custom amplifier allocation.
03Documents1 file · 1.4 MB
Documents and files.

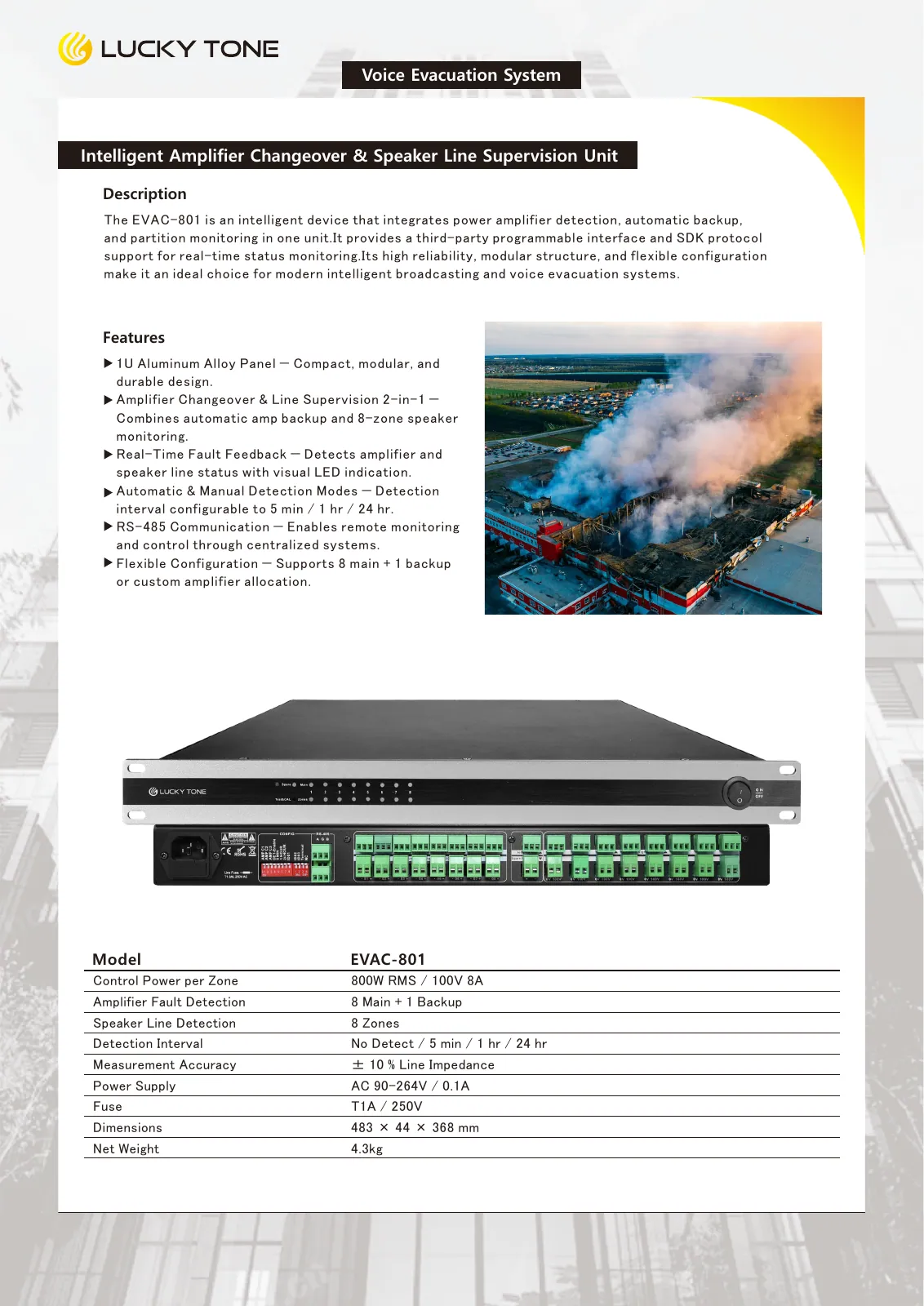

Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
