Sheet 05.389
Lucky Tone · Public address

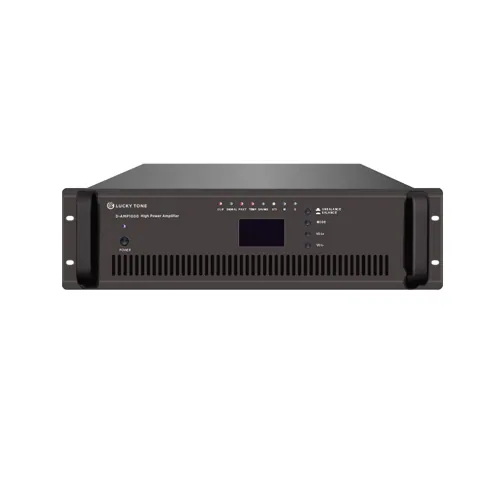

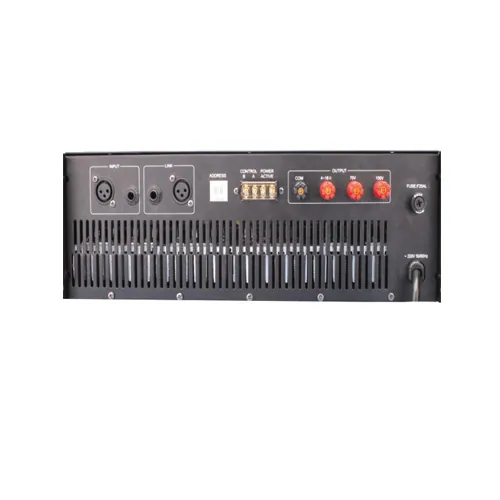

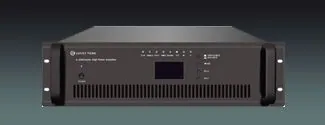

High Power Amplifier
ModelD-AMP1000 / D-AMP1500
● Ranging from 1000W to 1500W power capacity
- Output power
- D-AMP1000: 1000W; D-AMP1500: 1500W
- Frequency response
- D-AMP1000: 50 – 18,000 Hz, +/- 1.5dB; D-AMP1500:
- Dimensions
- D-AMP1000: 133(H) x 486(W) x 483(D) mm; D-AMP1500:
- Weight
- 25.80kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
High Power AmplifierPrice on requestRequest a quotation
01Models2 models in the family
Models compared.
| MODEL | D-AMP1000 | D-AMP1500 |
|---|---|---|
| Rated Power Output | 1000W | 1500W |
| Output Regulation | Less than 3 dB (no load to full load) | |
| Speaker Output | 4.9 ohms (70V), balanced | 3.3 ohms (70V), balanced |
| Speaker Output | 10.0 ohms (100V), balanced | 6.7 ohms (100V), balanced |
| Speaker Output | Low impedance: 4-16 ohms, balanced | Low impedance: 4-16 ohms, balanced |
| Input | Less than 1V, unbalanced, XLR and phone jack | |
| Output | 775V, 0dB, XLR and phone jack | |
| Frequency Response | 50 – 18,000 Hz, +/- 1.5dB | |
| THD | Less than 0.5% at 1KHz (1/3 Rated Power) | |
| S/N Ratio | Better than 105dB | |
| Slew Rate | 40V/Us | |
| Controls | Volume control and power switch | |
| Cooling | Internal 12VDC fan, extensive heat sinking | |
| Indicators | Power, Clip, Signal, Protect, and Temp LEDs | |
| Protection | AC Fuse: 20A | AC Fuse: 25A |
| Protection | Current limiter, short circuit and thermal protection circuits | |
| Power Consumption | 1350W | 2000W |
| Power Requirement | AC 220V ± 10% 50-60Hz | |
| Dimensions | 133(H) x 486(W) x 483(D) mm | |
| Net Weight | 25.80kg | 25.80kg |
| Gross Weight | 28.10kg | 38.10kg |
02DescriptionManufacturer's description
What it is.
Features
- ● Reliable and mature technology prevent device from overheat
- ● Selectable output: 100V, 70V and 4-16 Ohm
- ● Loudspeaker output with short circuit protection
