Sheet 05.388
Lucky Tone · Public address

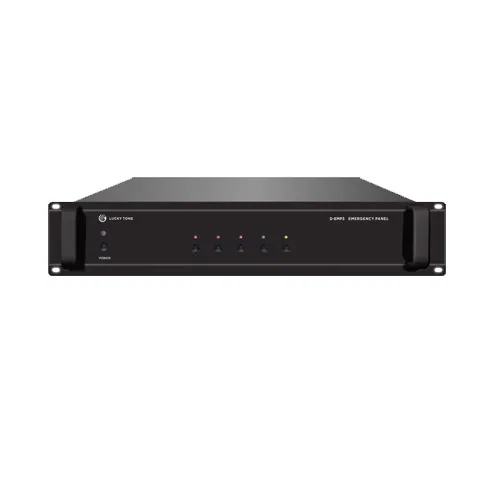

Emergency Panel
ModelD-EMP3
● Delivering alarming sound when it is triggered by external signal or manually control.
- Frequency response
- Alarm siren or record:100 Hz ~ 3.4k Hz (+ / – 3 dB)
- Dimensions
- 89(H) x 483(W) x 350(D) mm
- Weight
- 4.8kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Emergency PanelPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 18 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications18
- MODEL
- D-EMP3
- Input
- MIC : 5mV , 600 ohms,unbalanced
- Input
- LINE: 330mV , 10k ohms, unbalanced
- Output
- 10k ohms 330mV (0 dB) , unbalanced
- Frequency Response
- Alarm siren or record:100 Hz ~ 3.4k Hz (+ / – 3 dB)
- Frequency Response
- MIC input or audio input:60 Hz ~ 16k Hz (+ / – 3 dB)
- THD
- Less than 0.01% at 1kHz
- ADC/DAC
- Sampling frequency: 8kHz, 5-bit;
- Controls
- Play/rec controls, volume, rec level and power
- Alarm Activation
- 0V Short Circuit Signal
- Recording Time
- MSG 1, MSG 2, False Alarm 60 up to 60 Seconds Each
- Protection
- AC Fuse: 0.5A
- Power Consumption
- 10~15W
- Power Requirement
- AC 220V ± 10% 50-60Hz; 24VDC
- Dimensions
- 89(H) x 483(W) x 350(D) mm
- Built-in Dimensions
- 2U rack 19 inch
- Net Weight
- 4.8kg
- Gross Weight
- 6.0kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Features
● Voice message can be recorded in built-in memory by using microphone or other audio sources.
● It is designed to work with D-PREC16, D-PREM10 and D-MTX4.
