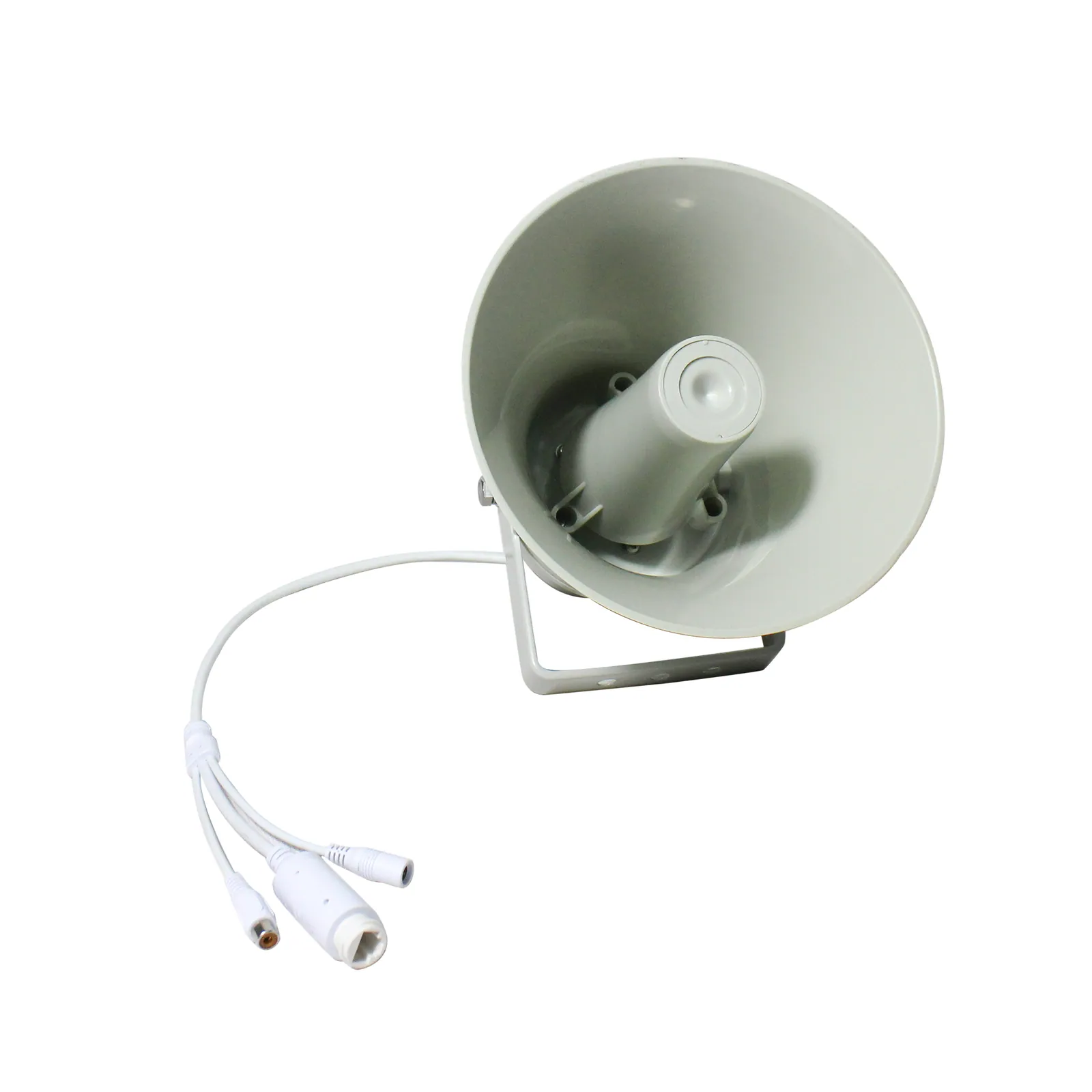

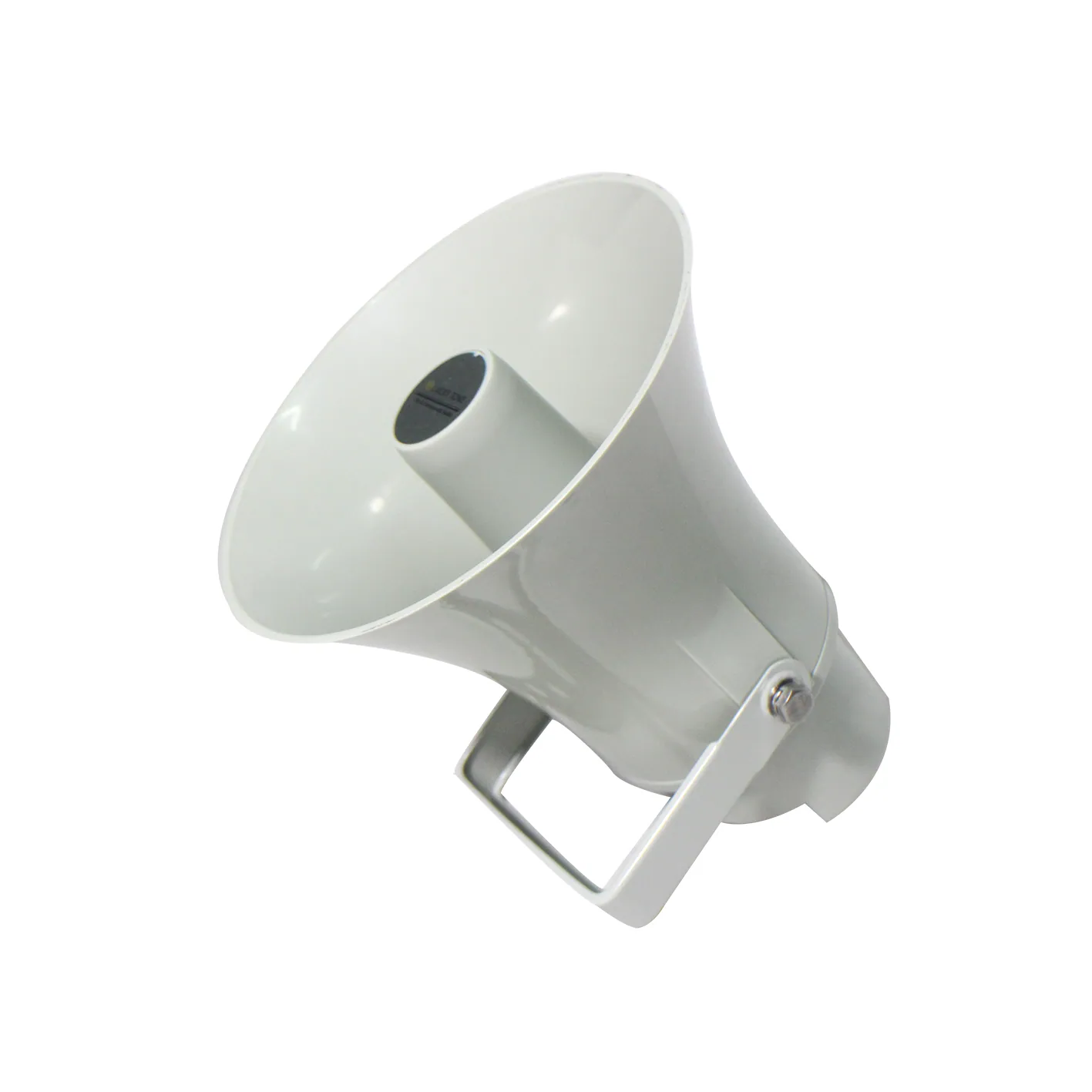

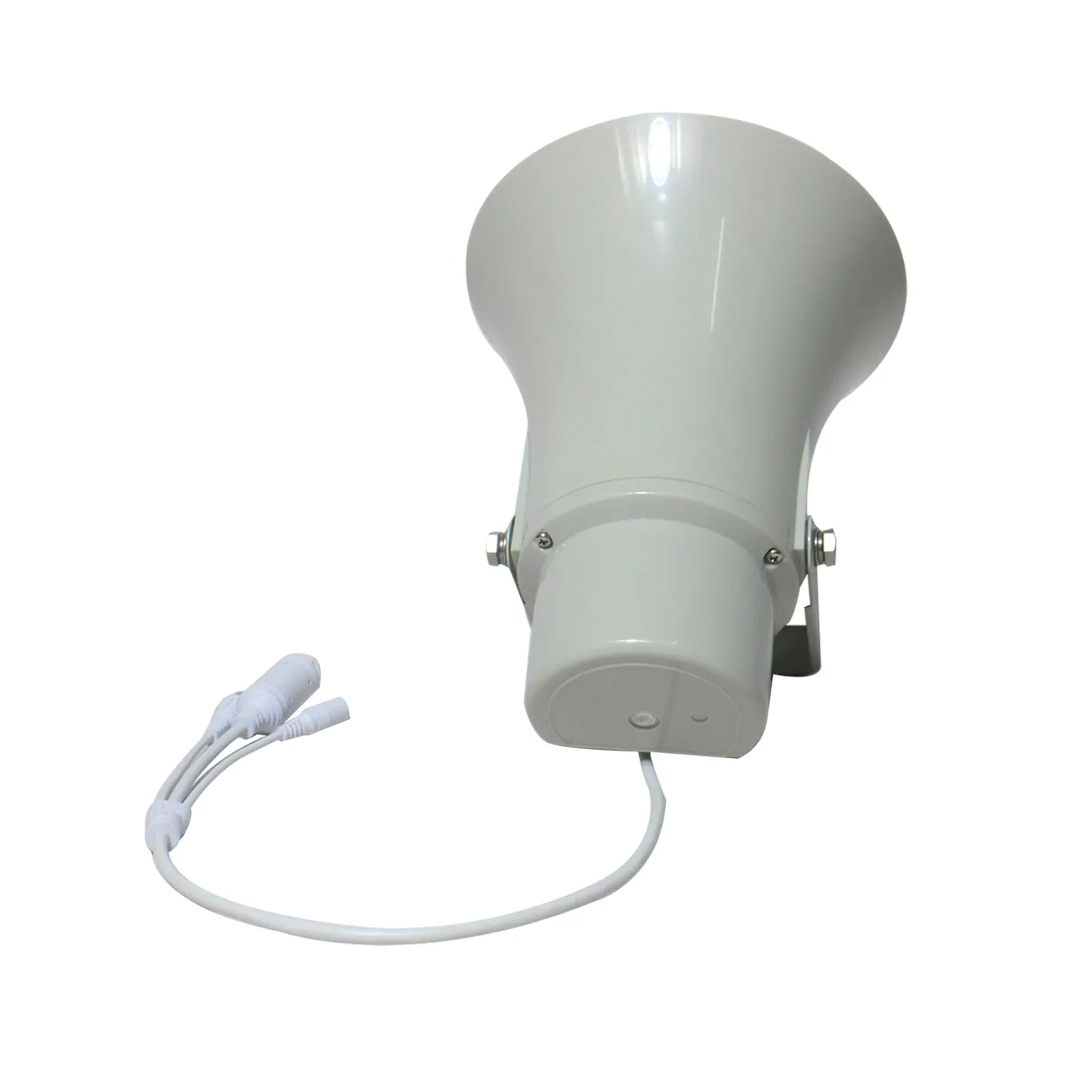

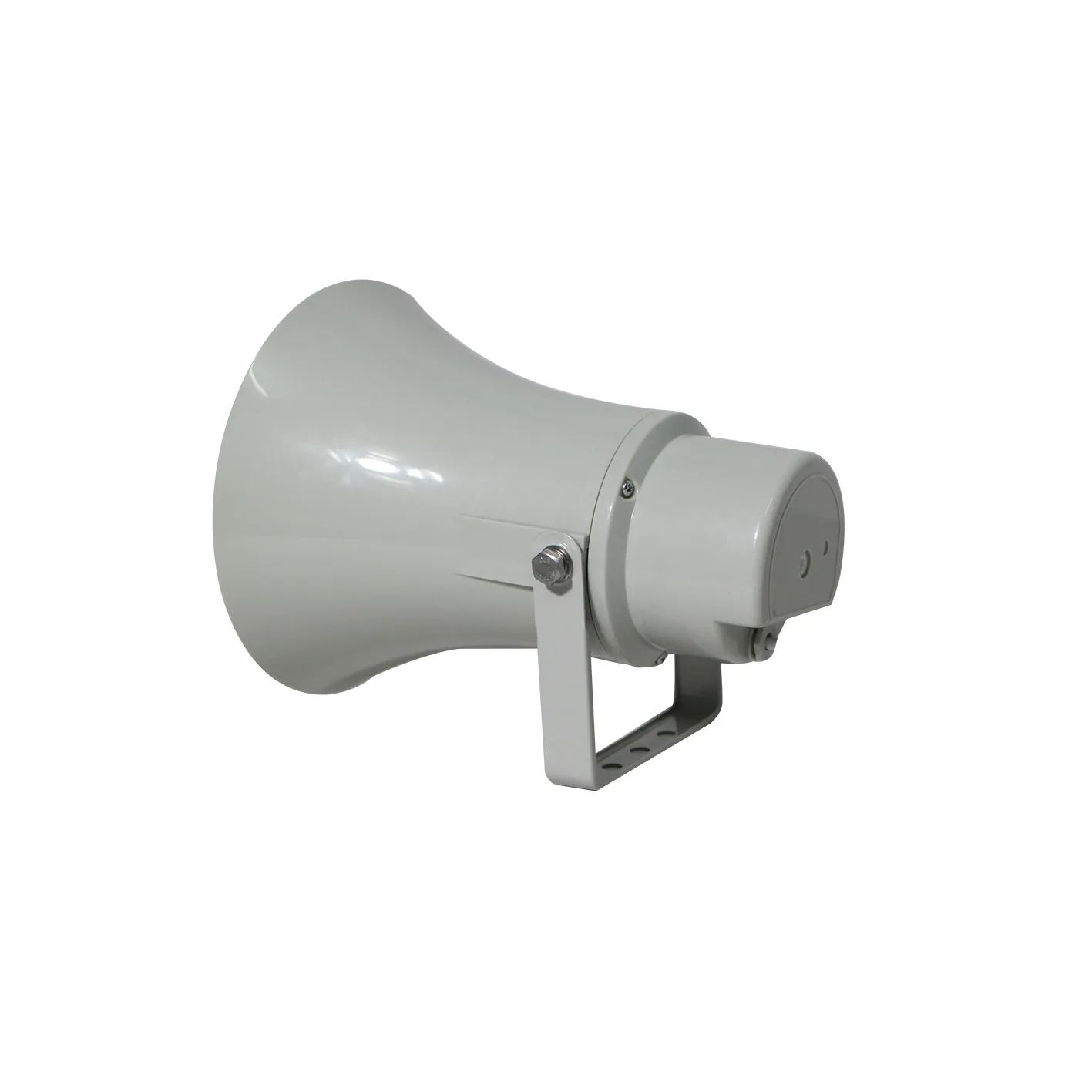

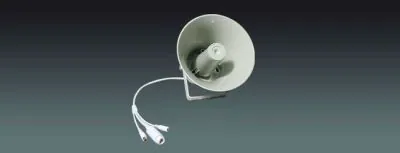

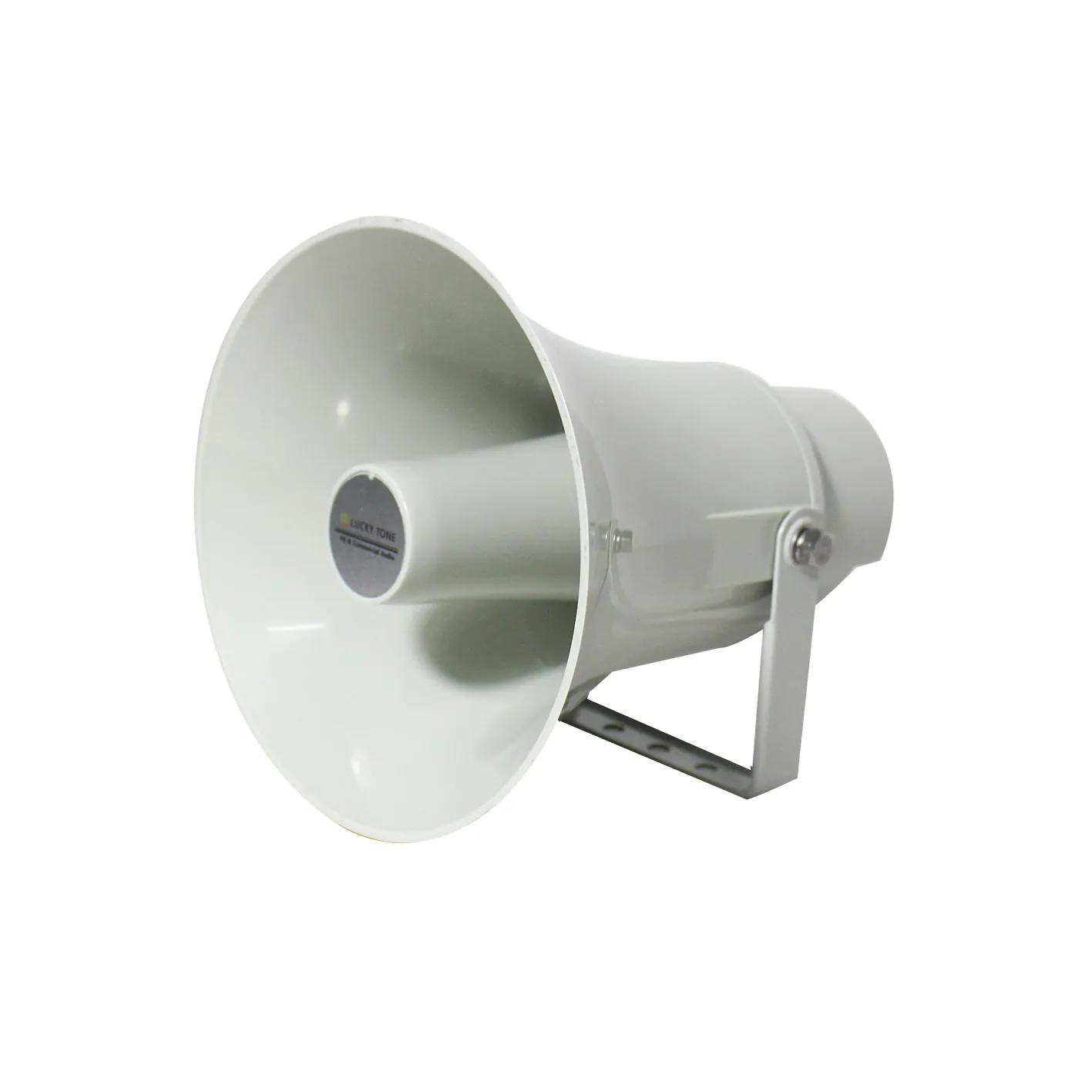

SIP Horn Speaker with Local Audio Input

ModelIPH-15SPOEA / IPH-30SPOEA

IPH-15SPOEA is a simple-to-install indoor and outdoor loudspeaker that provides clear, intelligible voice for remote speech and superior sound quality for BGM in public notification applications.

Output power: IPH-15SPOEA: 15W; IPH-30SPOEA: 30W
Power supply: IPH-15SPOEA: DC 12V or POE; IPH-30SPOEA: DC12V / PoE

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01Models2 models in the family

Models compared.

MODEL	IPH-15SPOEA	IPH-30SPOEA
Rated Power	15W	30W
Power Supply	DC 12V or POE	DC12V / PoE
Network Communication Protocol	SIP	SIP
Audio Decoding	MP3/WMA/WAV	MP3/WMA/WAV
Network Interface	10/100Base-TX, RJ45 Port	10/100Base-TX, RJ45 Port
Speaker SPL (1W/1M)	101dB	105dB
Enclosure Material	ABS	ABS
Product Size	Dia 200 x 230 mm	Dia 240 x 290 mm

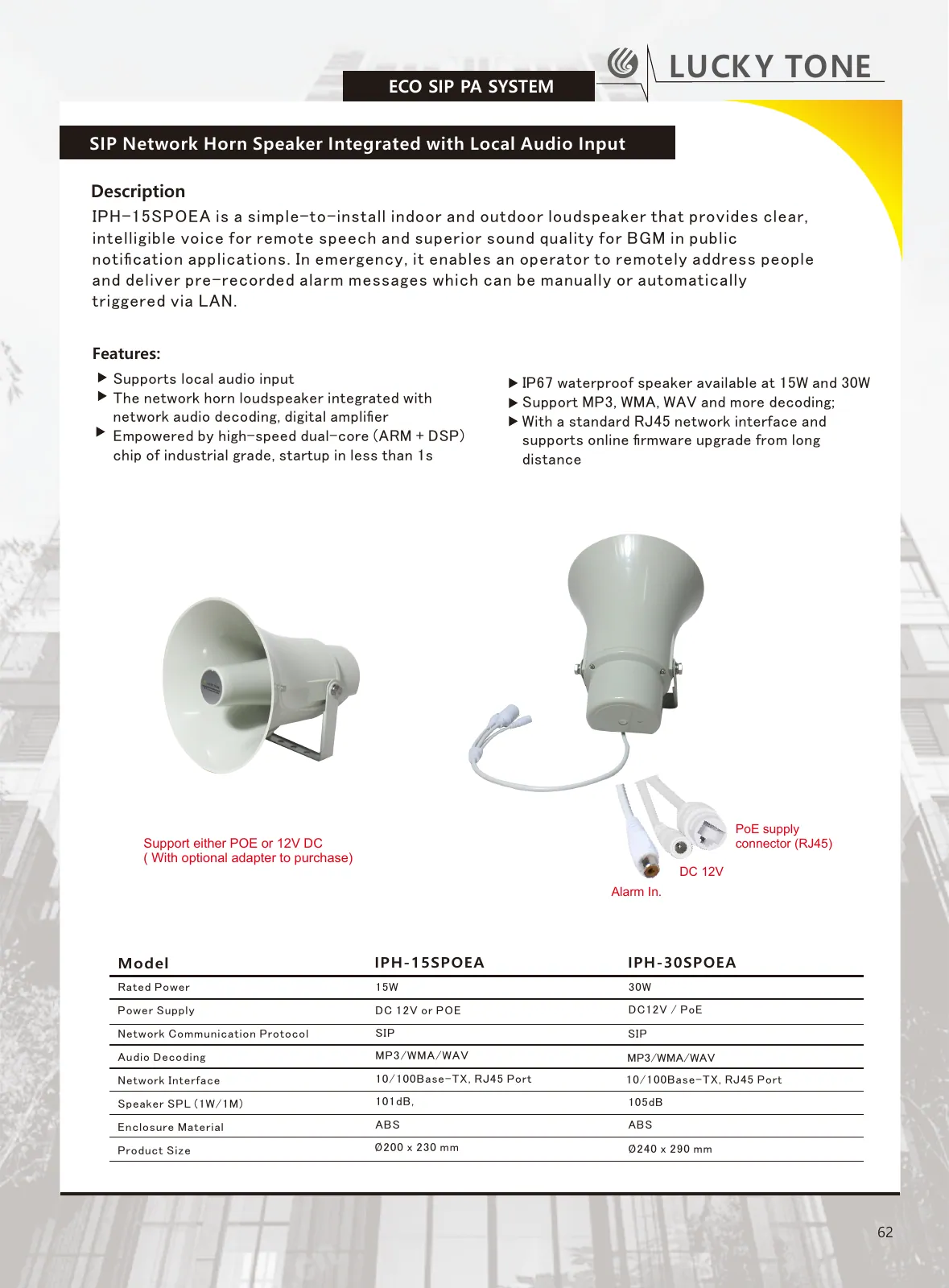

02DescriptionManufacturer's description

What it is.

IPH-15SPOEA is a simple-to-install indoor and outdoor loudspeaker that provides clear, intelligible voice for remote speech and superior sound quality for BGM in public notification applications. In emergency, it enables an operator to remotely address people and deliver pre-recorded alarm messages which can be manually or automatically triggered via LAN.

Features

Supports local audio input
The network horn loudspeaker integrated with network audio decoding, digital amplifier
Empowered by high-speed dual-core (ARM + DSP) chip of industrial grade, startup in less than 1s
IP67 waterproof speaker available at 15W and 30W
Support MP3, WMA, WAV and more decoding;
With a standard RJ45 network interface and supports online firmware upgrade from long distance

03Documents1 file · 1.3 MB
