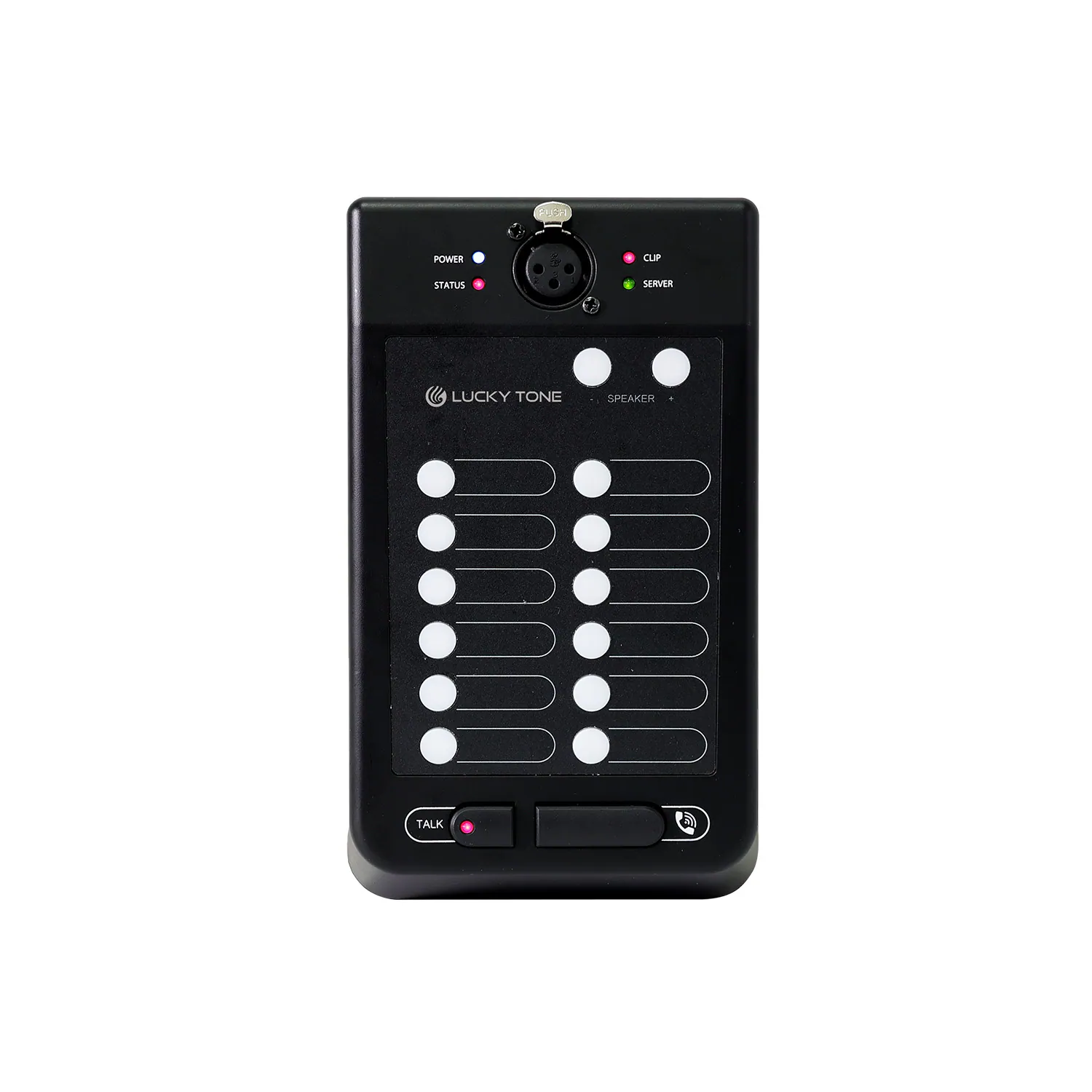

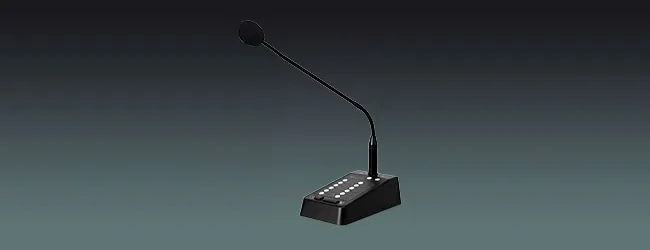

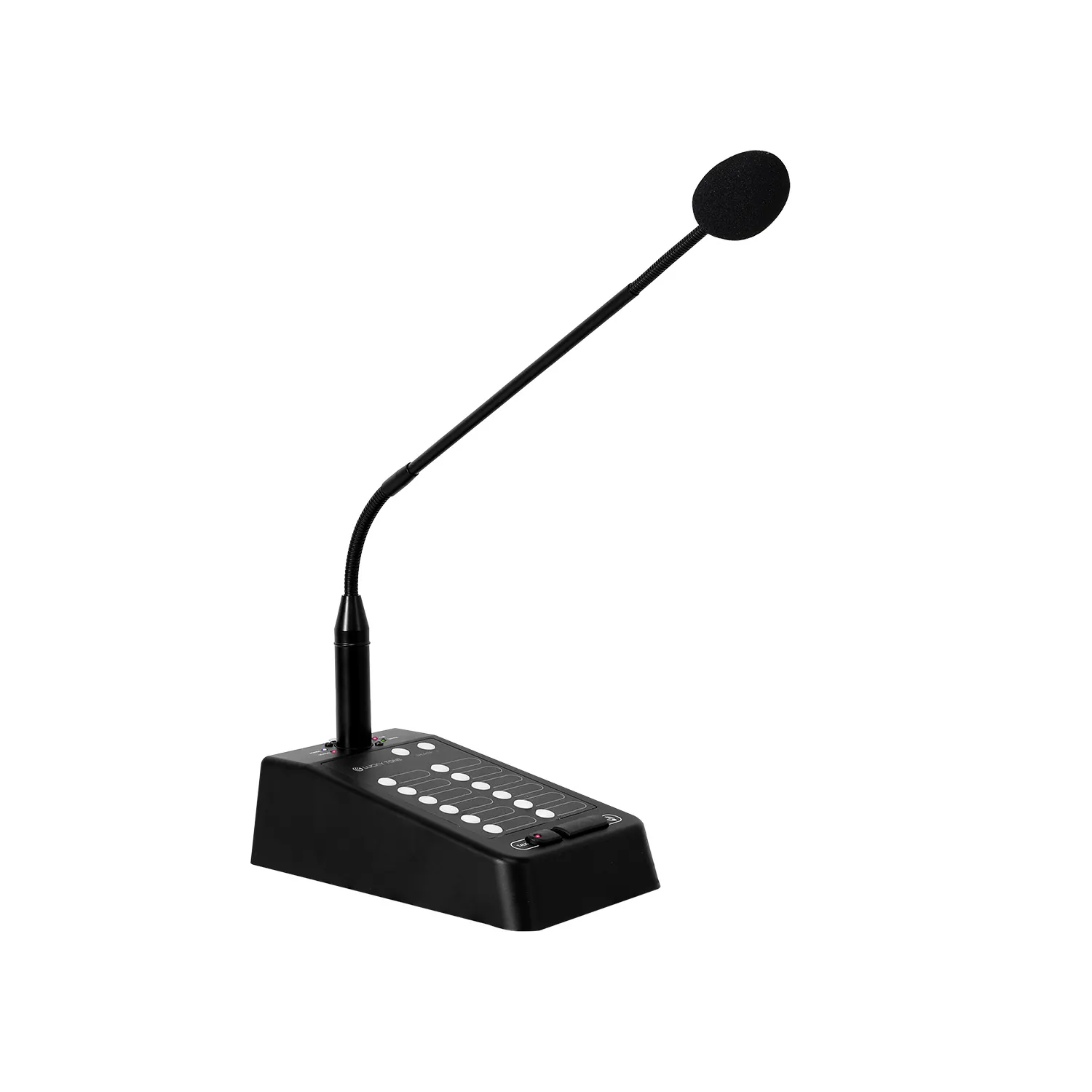

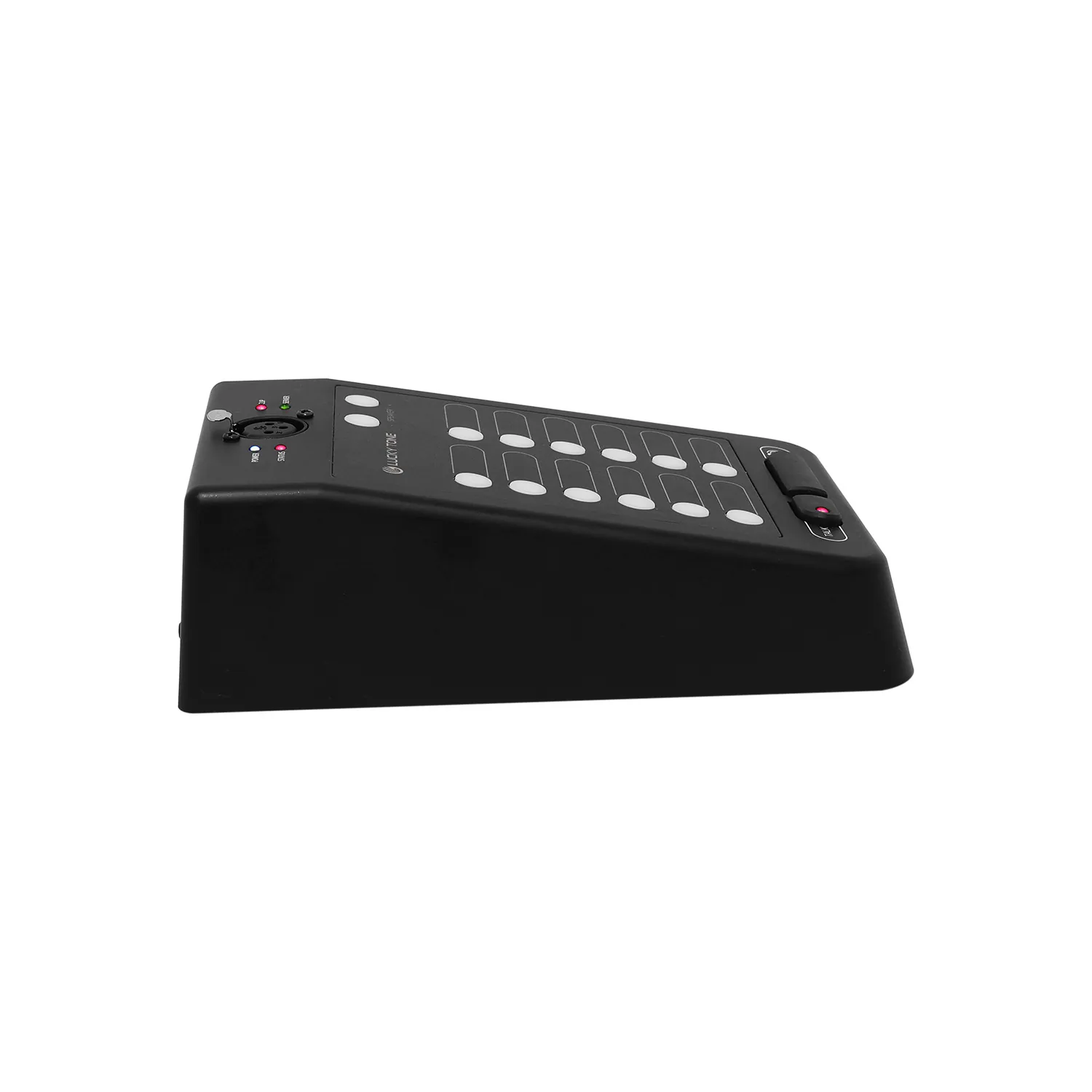

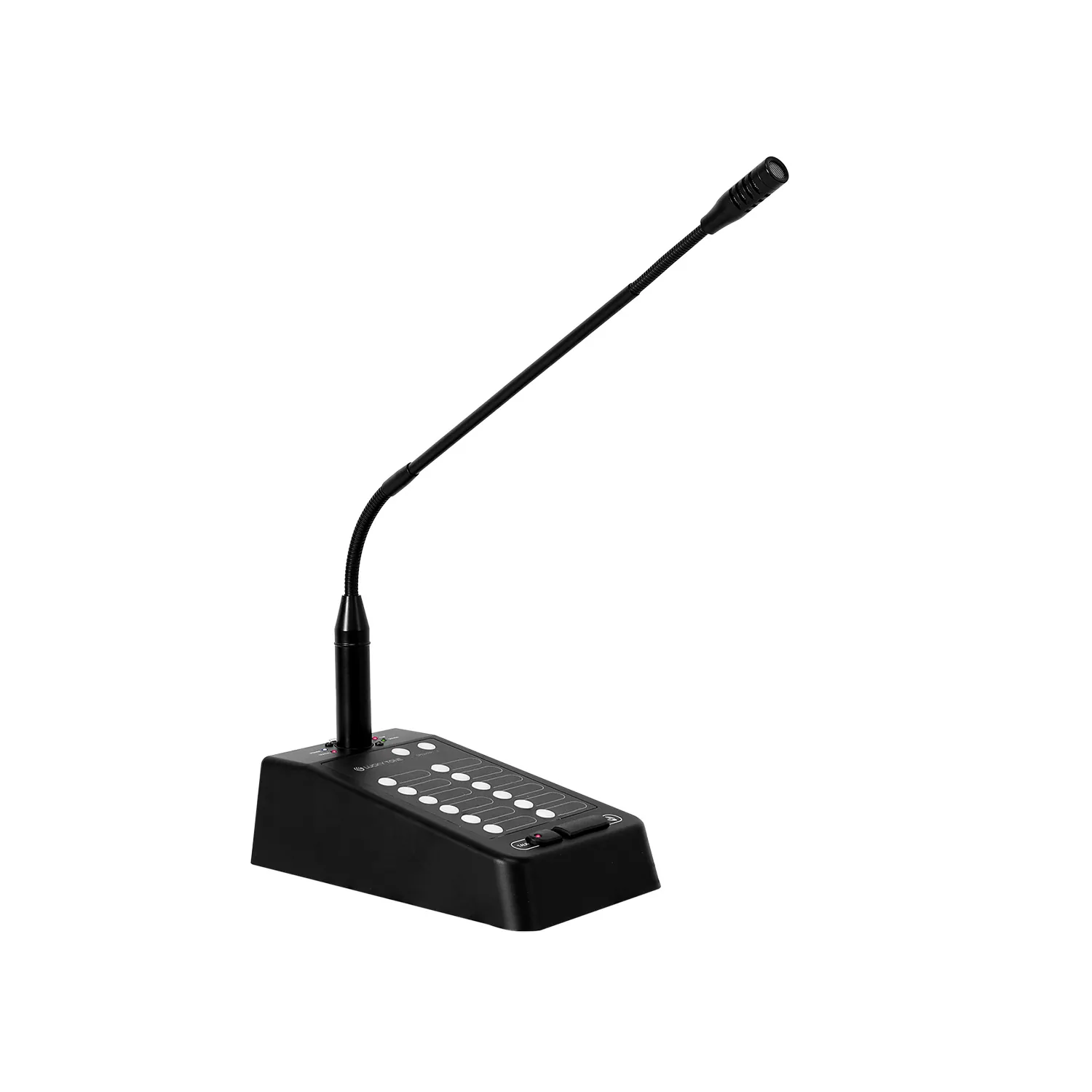

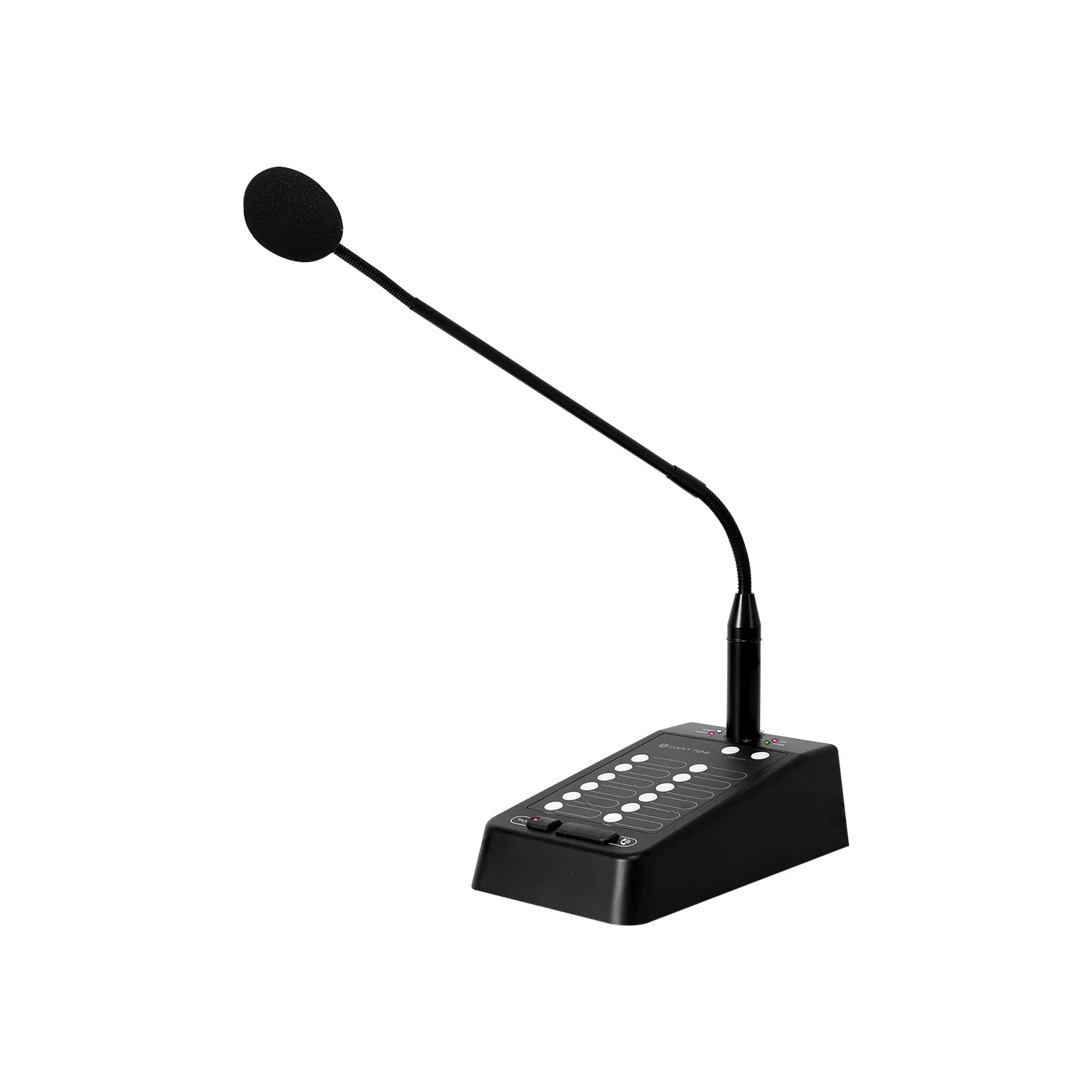

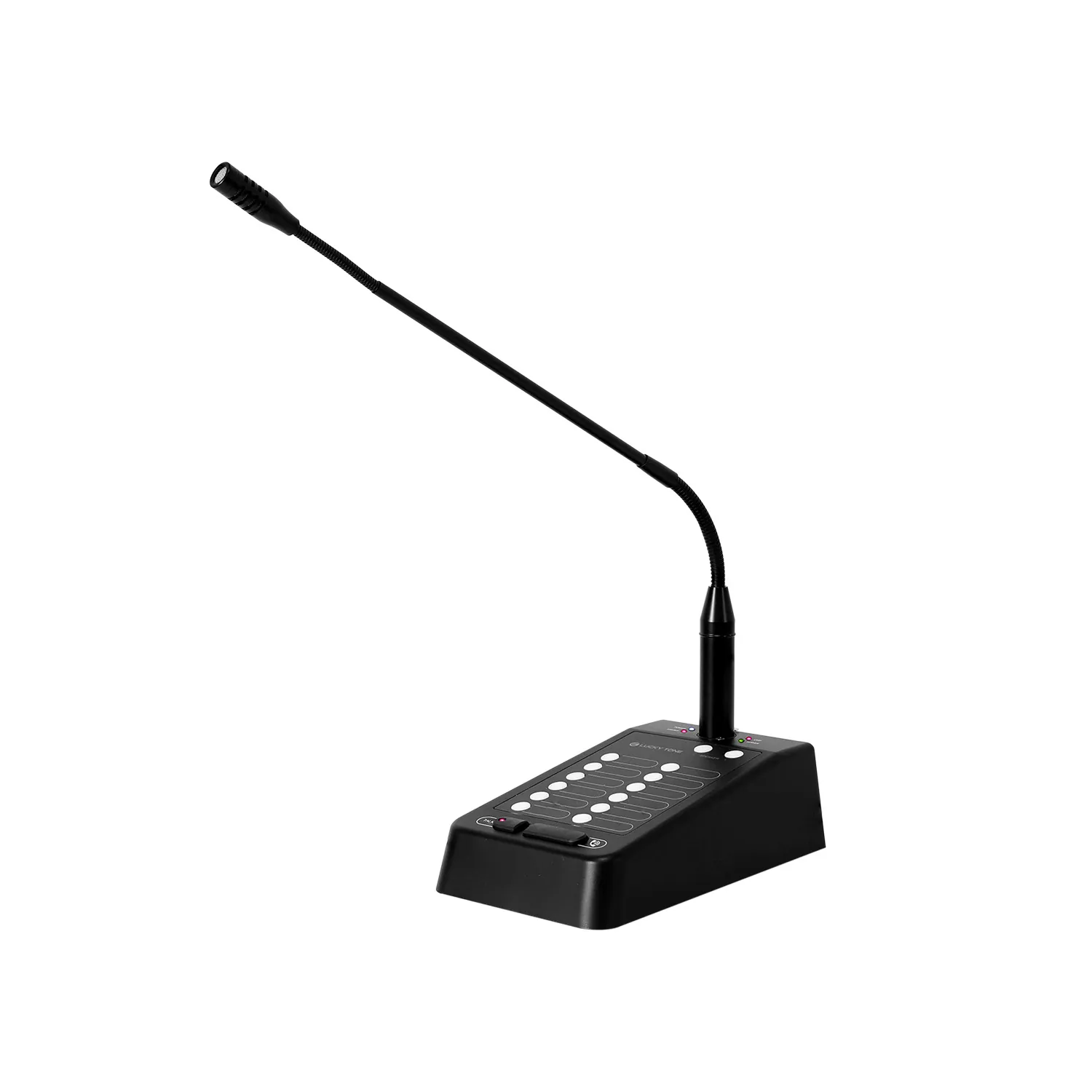

SIP Microphone with 12 Programmable Buttons
ModelSIPM-12
With a 10/100M Ethernet interface, line input and output, SIPM-12 is an SIP desktop intercom host that is used with SlP server.
- Power supply
- DC 12V/1A or PoE AF(IEEE 802.3af)
- Dimensions
- 200 x 120 x 60 mm
- Weight
- <0.7kg
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications16
- Model
- SIPM-12

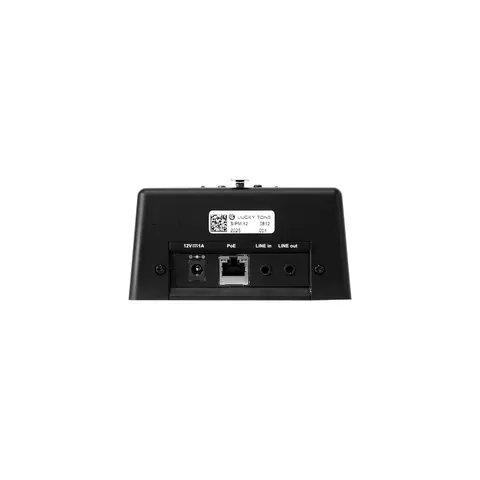

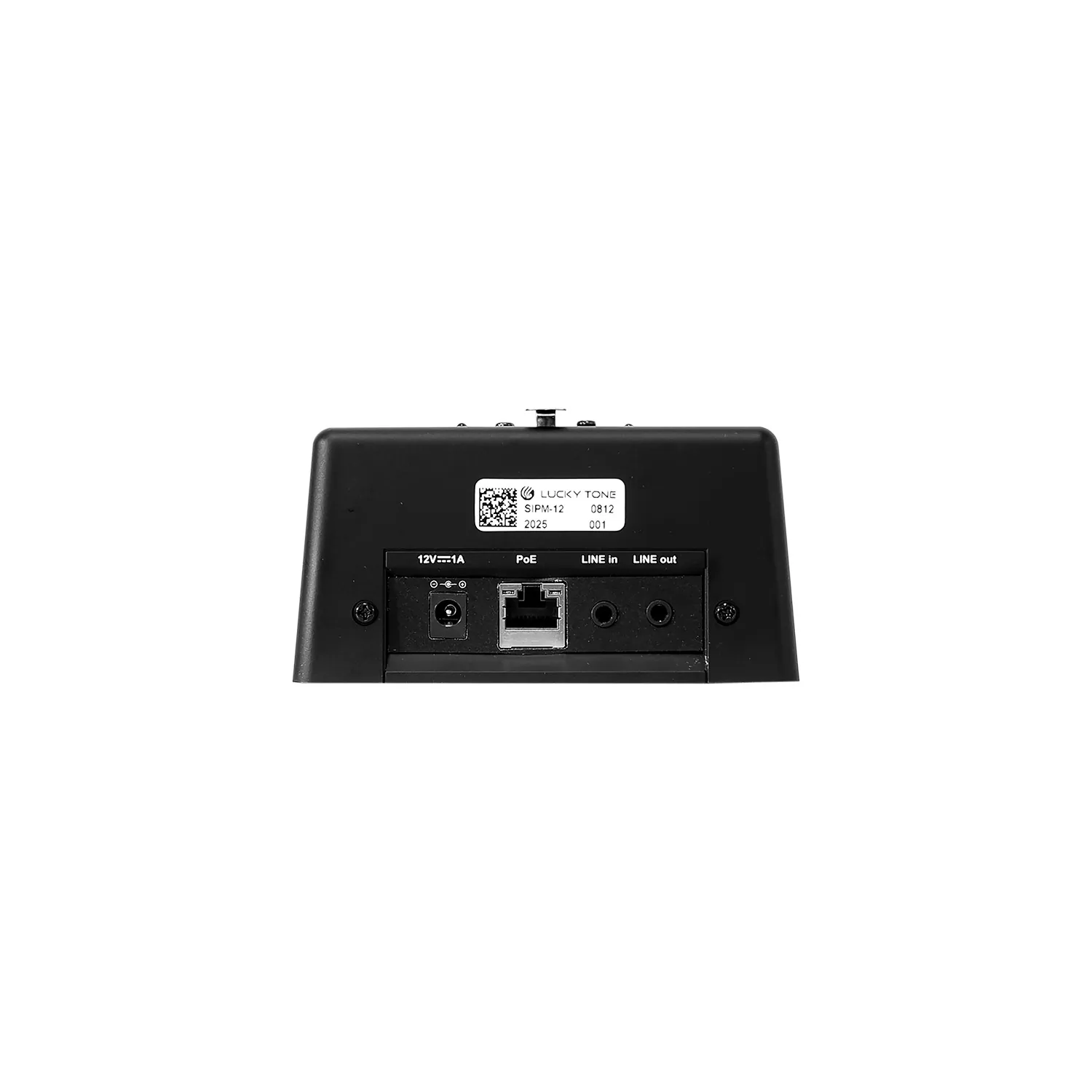

- Network Interface
- 10/100Base-TX, RJ45
- Network Communication Protocol
- SIP
- Microphone Frequency Range
- 770Hz to 12.5KHz
- SNR
- 68dB
- Frequency and Sampling Rate
- 8kHz to 32 kHz, 16 bit
- Decoding
- MPEG, ADPC
- Line Output
- Connect to active speaker or amplifier, typical amplitude 2200mVpp
- Intercom Output
- With a waterproof 3W speaker
- Intercom Mode
- Supports quiet mode and noisy mode, button answering and automatic answering, on-site hanging and remote hanging, etc.
- Power Supply
- DC 12V/1A or PoE AF(IEEE 802.3af)
- T.H.D
- <0.05%
- Operating Temperature
- 0°C to 40°C
- Power Consumption
- <3W
- Net Weight
- <0.7kg
- Dimension(WxDxH)
- 200 x 120 x 60 mm
Show the full specificationHide the rest of the specification0 more groups · 0 values
What it is.

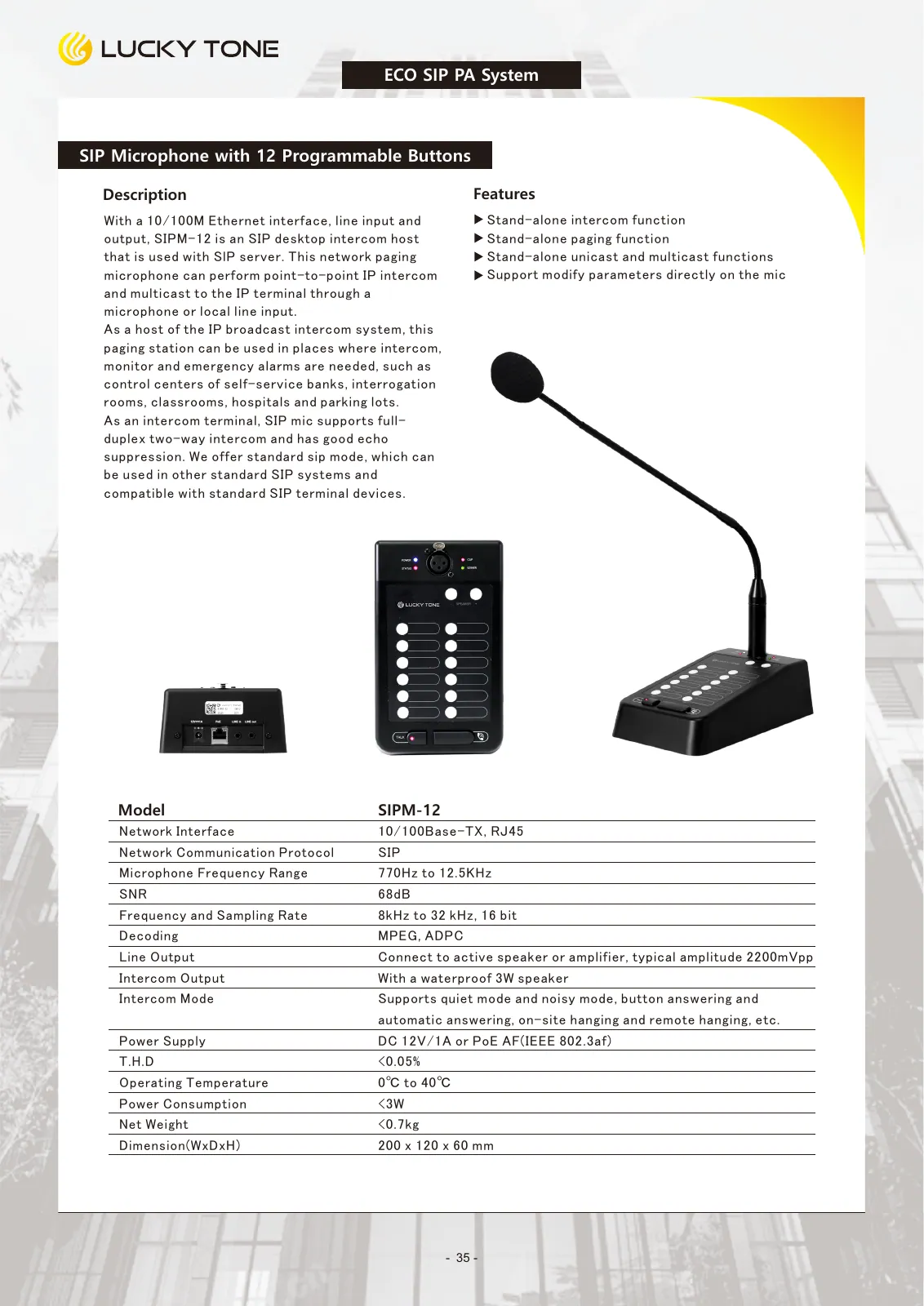

With a 10/100M Ethernet interface, line input and output, SIPM-12 is an SIP desktop intercom host that is used with SlP server. This network paging microphone can perform point-to-point IP intercom and multicast to the IP terminal through a microphone or local line input.
As a host of the IP broadcast intercom system, this paging station can be used in places where intercom, monitor and emergency alarms are needed, such as control centers of self-service banks, interrogation rooms, classrooms, hospitals and parking lots.
As an intercom terminal, SIP mic supports full duplex two-way intercom and has good echo suppression. We offer standard sip mode, which can be used in other standard SIP systems and compatible with standard SIP terminal devices.
- Stand-alone intercom function
- Stand-alone paging function
- Stand-alone unicast and multicast functions
- Support modify parameters directly on the mic
