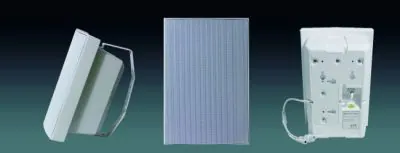

Lucky Tone SIP In/Out Door Wall Speaker, product photo 1 of 4
Fig. 01 / 04 · manufacturer’s images

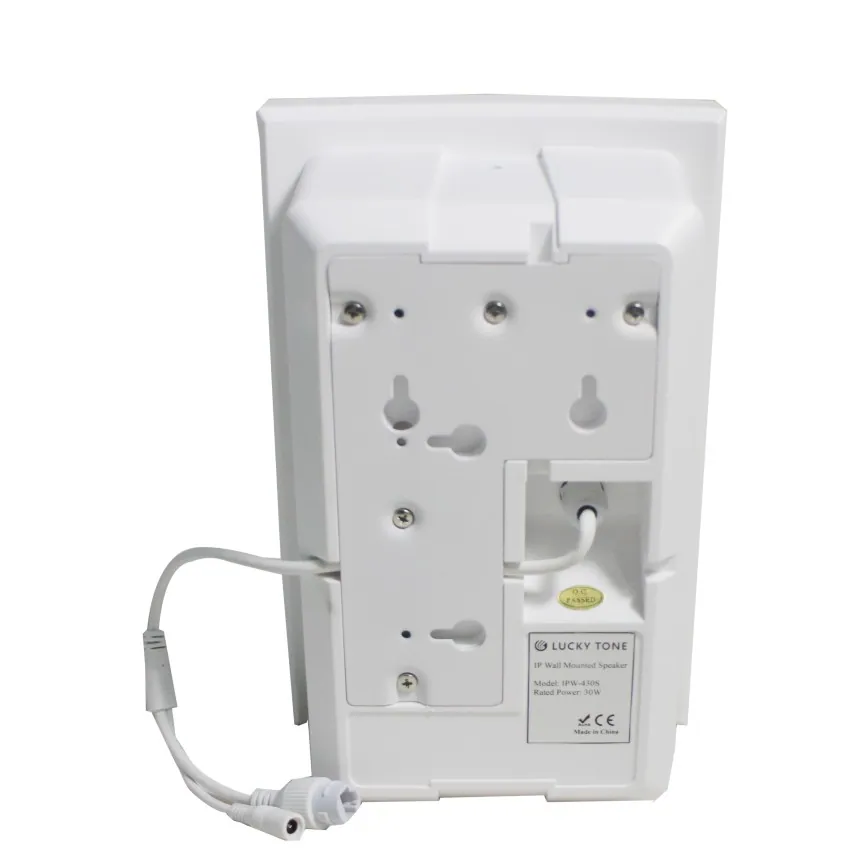

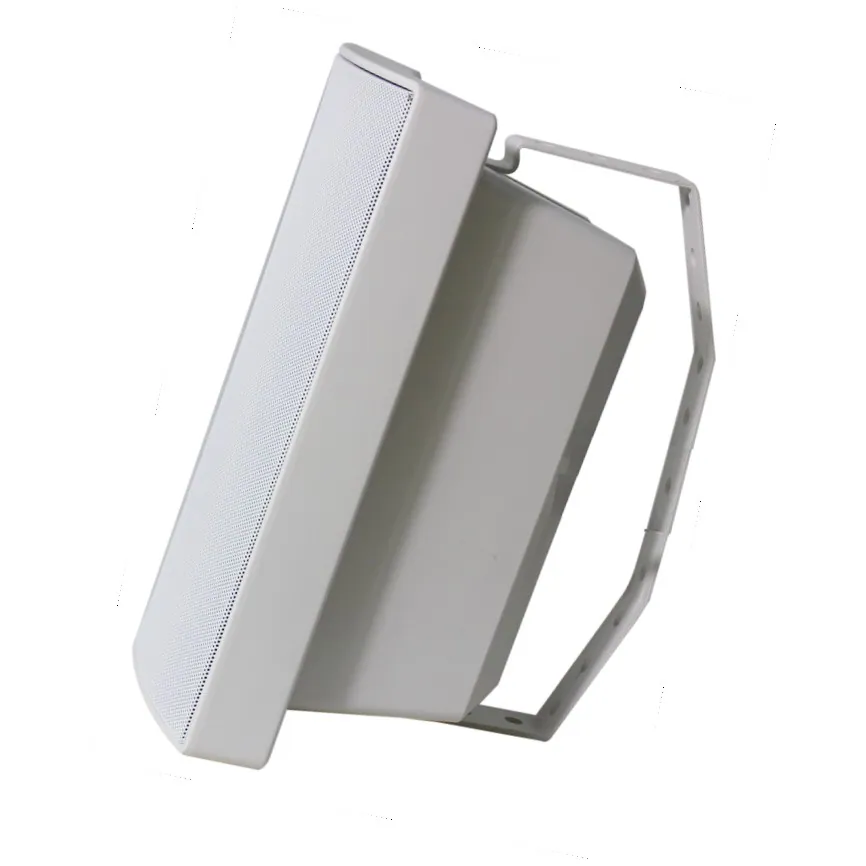

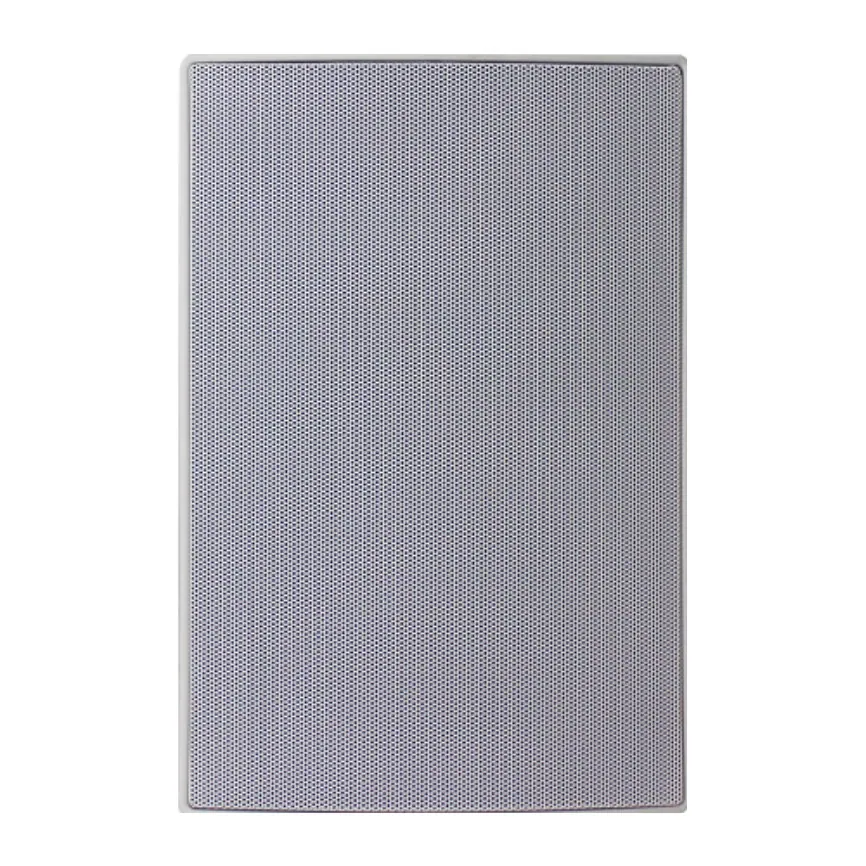

  • Lucky Tone SIP In/Out Door Wall Speaker, product photo 1 of 4
  • Lucky Tone SIP In/Out Door Wall Speaker, product photo 2 of 4
  • Lucky Tone SIP In/Out Door Wall Speaker, product photo 3 of 4
  • Lucky Tone SIP In/Out Door Wall Speaker, product photo 4 of 4
Lucky Tone · IP, SIP and ONVIF

SIP In/Out Door Wall Speaker

ModelIPW-415S / IPW-415SPOE / IPW-430S / IPW-430SPOE

●The network wall loudspeaker integrated with network audio decoding, digital amplifier

Output power
IPW-415S: 15W; IPW-415SPOE: 15W; IPW-430S: 30W; IPW-430SPOE: 30W
Frequency response
80Hz~20KHz
Power supply
IPW-415S: DC 12V; IPW-415SPOE: DC 12V or POE; IPW-430S: DC 12V; IPW-430SPOE: DC 12V or POE
PriceOn request
Request a quotationDiscuss your project

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01Models4 models in the family

Models compared.

ModelIPW-415SIPW-415SPOEIPW-430SIPW-430SPOE
Rated Power15W15W30W30W
Network ProtocolSIPSIPSIPSIP
Network Interface10/100Base-TX, RJ4510/100Base-TX, RJ4510/100Base-TX, RJ4510/100Base-TX, RJ45
Speaker SPL (MAX)101dB101dB105dB105dB
DecodingMP3/WMA/WAVMP3/WMA/WAVMP3/WMA/WAVMP3/WMA/WAV
Frequency Response80Hz~20KHz80Hz~20KHz80Hz~20KHz80Hz~20KHz
InstallationWall MountedWall MountedWall MountedWall Mounted
Enclosure MaterialABSABSABSABS
Power SupplyDC 12VDC 12V or POEDC 12VDC 12V or POE
Product Size296 x 196 x 157 mm296 x 196 x 157 mm296 x 196 x 157 mm296 x 196 x 157 mm
02DescriptionManufacturer's description

What it is.

Features

  • ●Empowered by high-speed dual-core (ARM + DSP) chip of industrial grade, startup in less than 1s
  • ●IP55 water-proof, good for both in and outdoor application
  • ●Support MP3, WMA, WAV and more decoding
  • ●With a standard RJ45 network interface and supports online firmware upgrade from long distance
03Documents1 file · 1.3 MB

Documents and files.

Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
