Sheet 05.353
Lucky Tone · IP, SIP and ONVIF

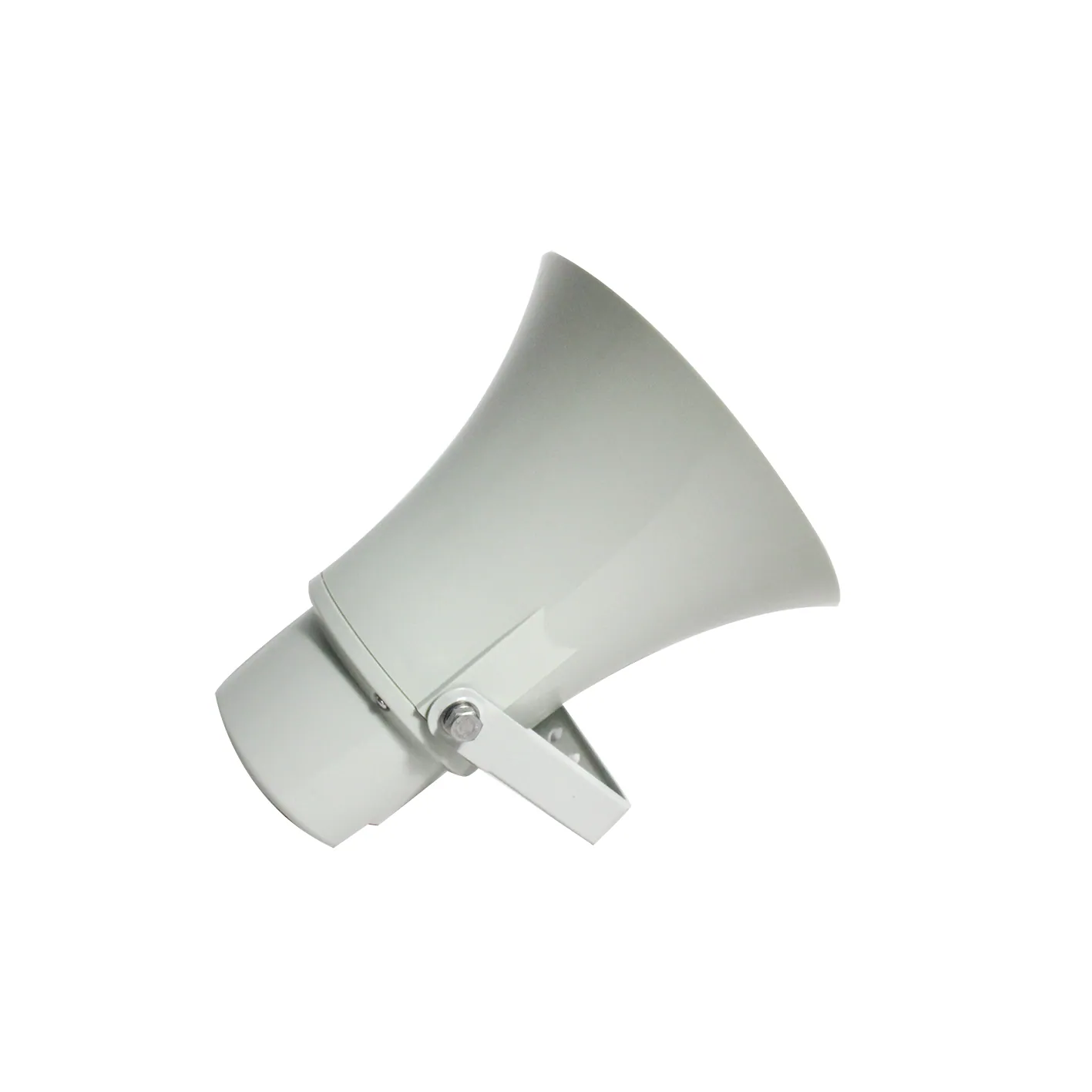

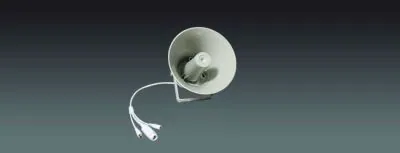

Lucky Tone SIP Network Horn Speaker IPH-15SPOED / IPH-30SPOED
ModelIPH-15SPOED / IPH-30SPOED
IPH-15SPOED is a simple-to-install indoor and outdoor loudspeaker that provides clear, intelligible voice for remote speech and superior sound quality for BGM in public notification applications.
- Output power
- IPH-15SPOED: 15W; IPH-30SPOED: 30W
- Power supply
- IPH-15SPOED: DC12V/POE; IPH-30SPOED: DC12V/PPOE
- Dimensions
- IPH-15SPOED: Ø200 x 230 mm; IPH-30SPOED: Ø240 x 290 mm
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
SIP Network Horn SpeakerPrice on requestRequest a quotation
01Models2 models in the family
Models compared.
| MODEL | IPH-15SPOED | IPH-30SPOED |
|---|---|---|
| Rated Power | 15W | 30W |
| Power Supply | DC12V/POE | DC12V/PPOE |
| Network Communication Protocol | SIP | SIP |
| Audio Encoding | MP3/WMA/WAV | MP3/WMA/WAV |
| Network Interface | 10/100Base-TX, RJ45 Port | 10/100Base-TX, RJ45 Port |
| Speaker SPL (1W/1M) | 101dB | 105dB |
| Enclosure Material | ABS | ABS |
| Dimension | Ø200 x 230 mm | Ø240 x 290 mm |
02DescriptionManufacturer's description
What it is.
IPH-15SPOED is a simple-to-install indoor and outdoor loudspeaker that provides clear, intelligible voice for remote speech and superior sound quality for BGM in public notification applications. In emergency, it enables an operator to remotely address people and deliver prerecorded alarm messages which can be manually or automatically triggered via LAN.
Features
Supports integration with 3rd party system via dry contact (e.g. CCTV alarm signal). When receives the signal, the message stored in the server will be triggered.
- The network horn loudspeaker integrated with network audio decoding, digital amplifier
- Empowered by high-speed dual-core (ARM + DSP) chip of industrial grade, startup in less than 1s
- Ip67 waterproof speaker available at 15W and 30W
- Support MP3, WMA, WAV and more decoding;
- With a standard RJ45 network interface and supports online firmware upgrade from long distance
