Sheet 05.351
Lucky Tone · IP, SIP and ONVIF

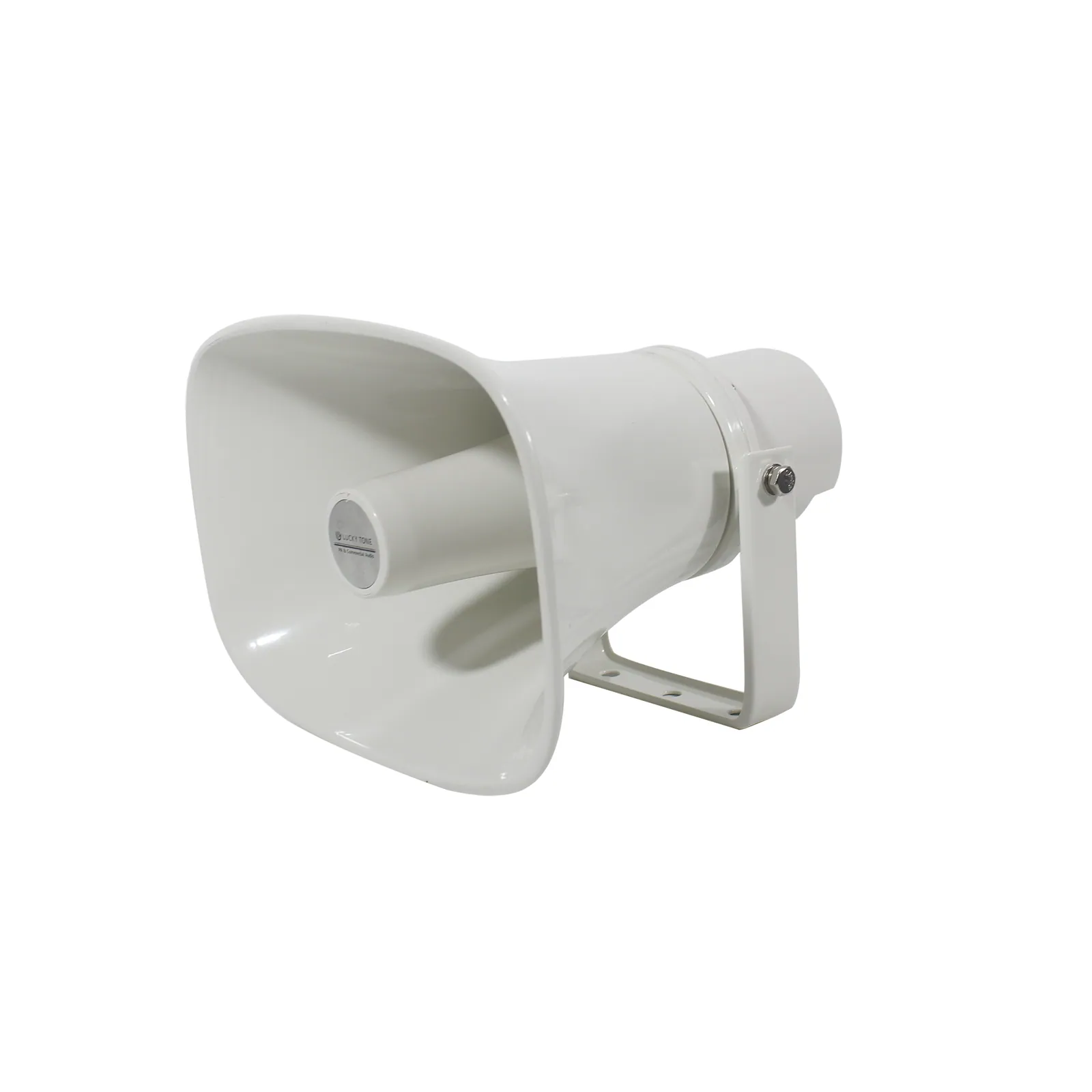

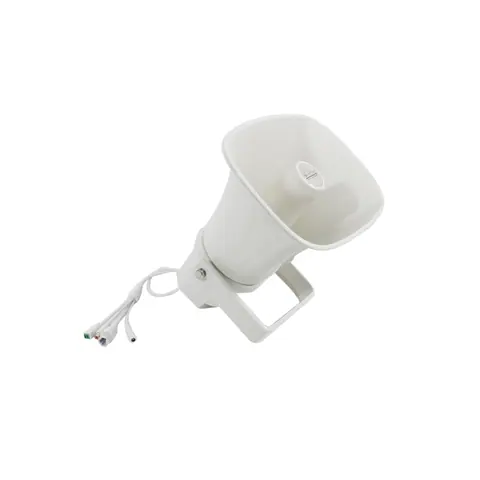

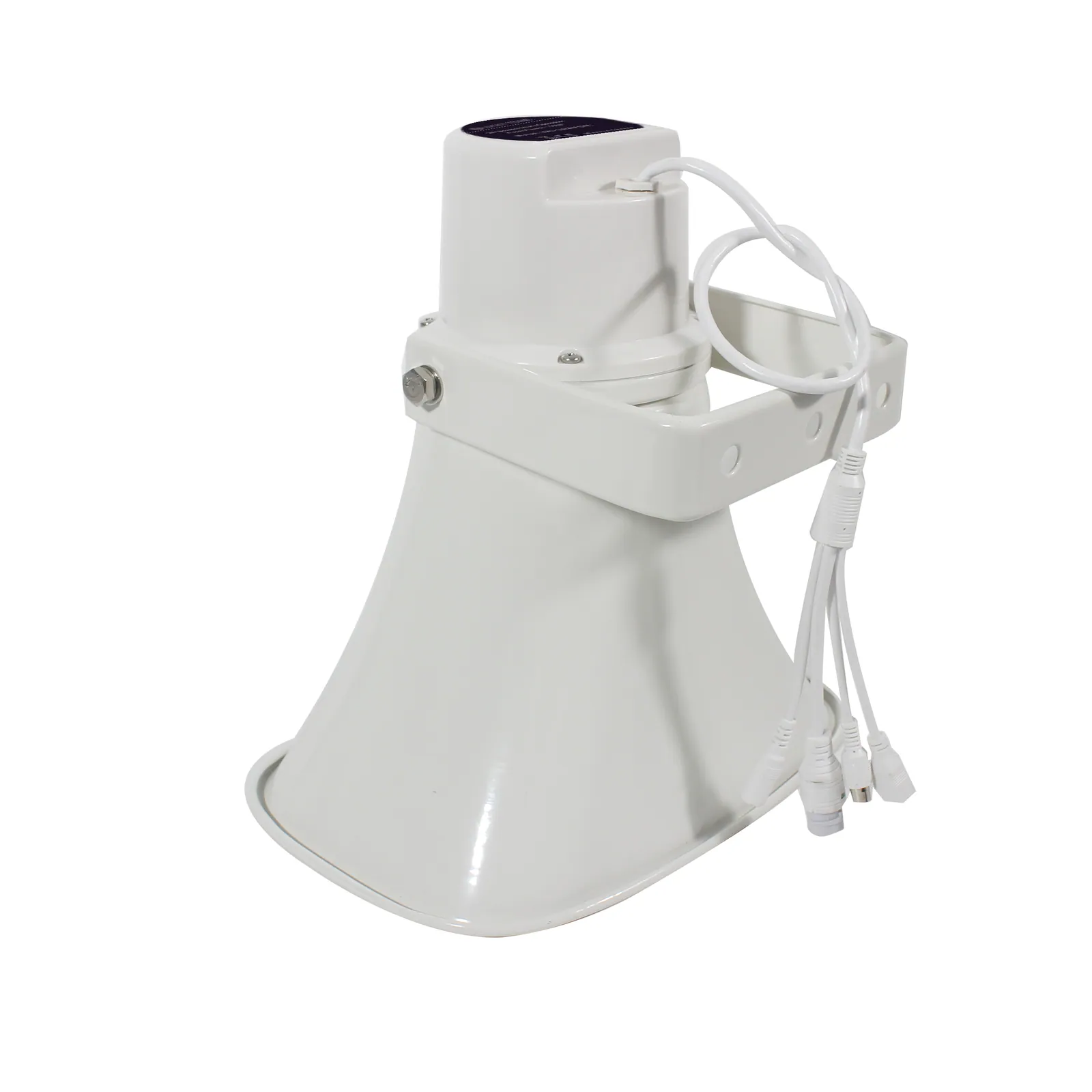

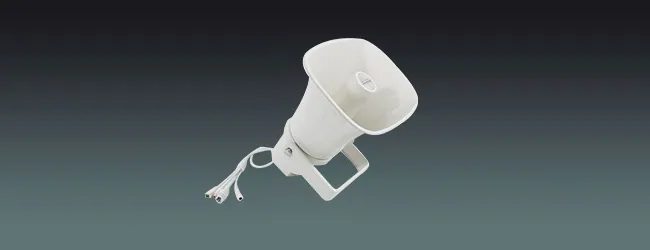

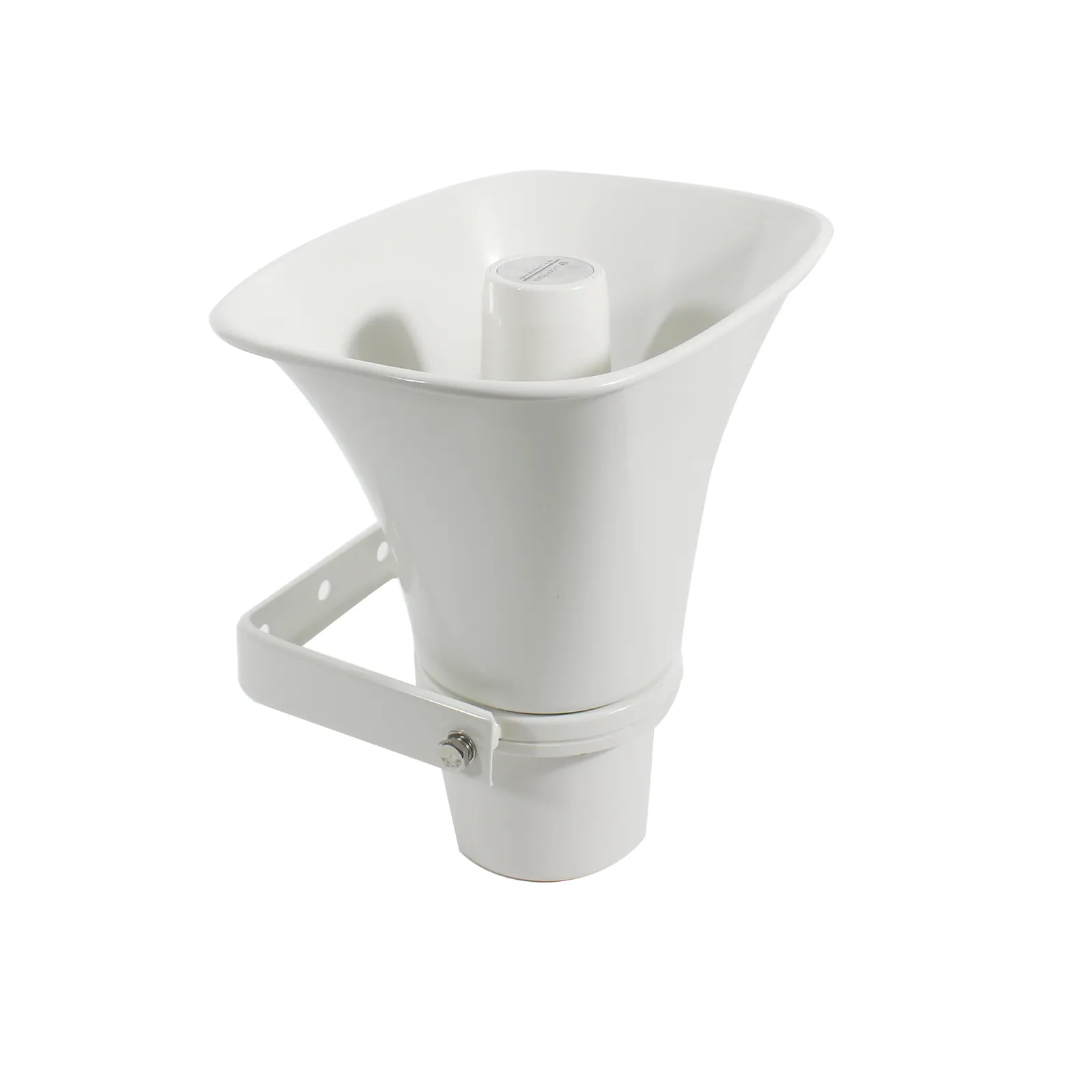

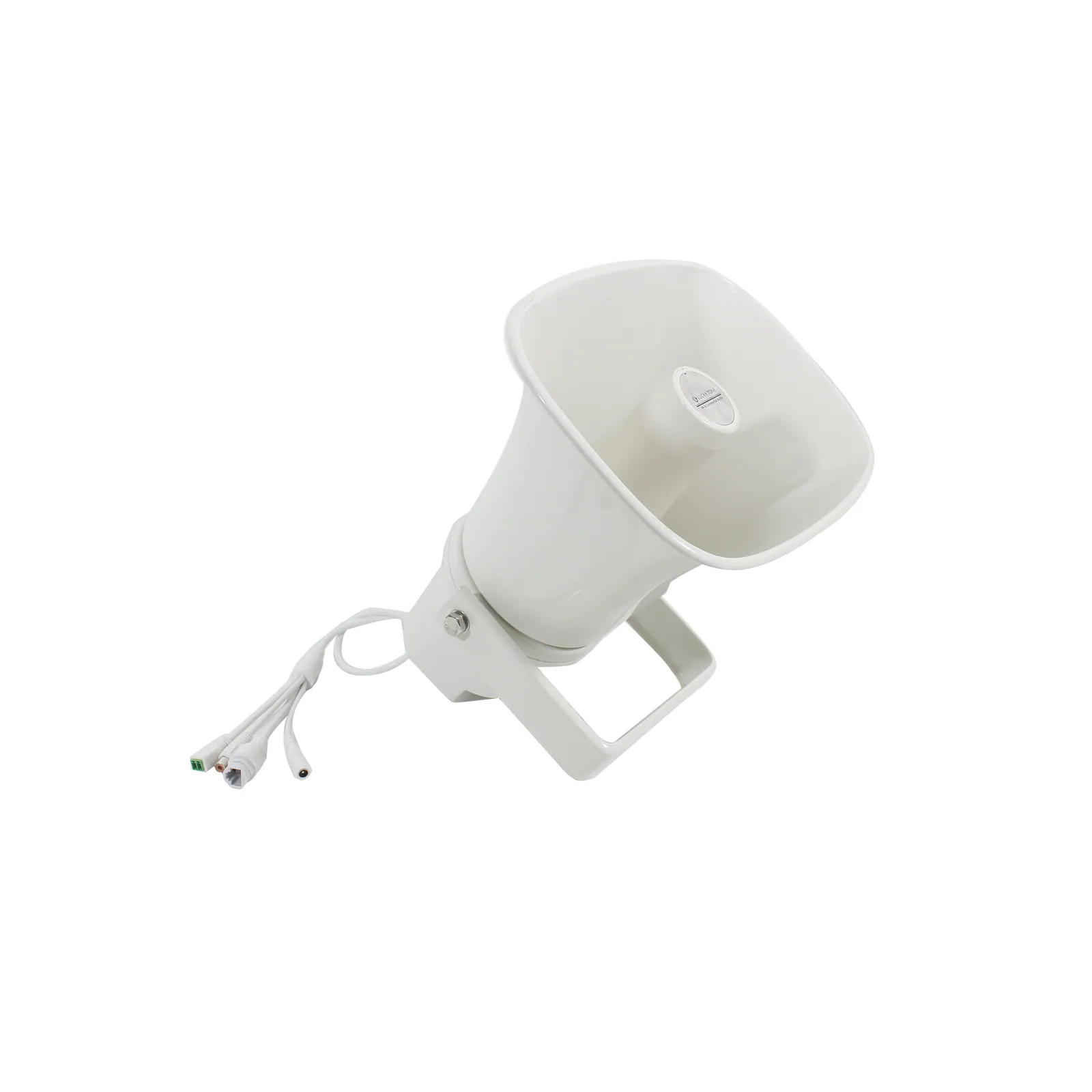

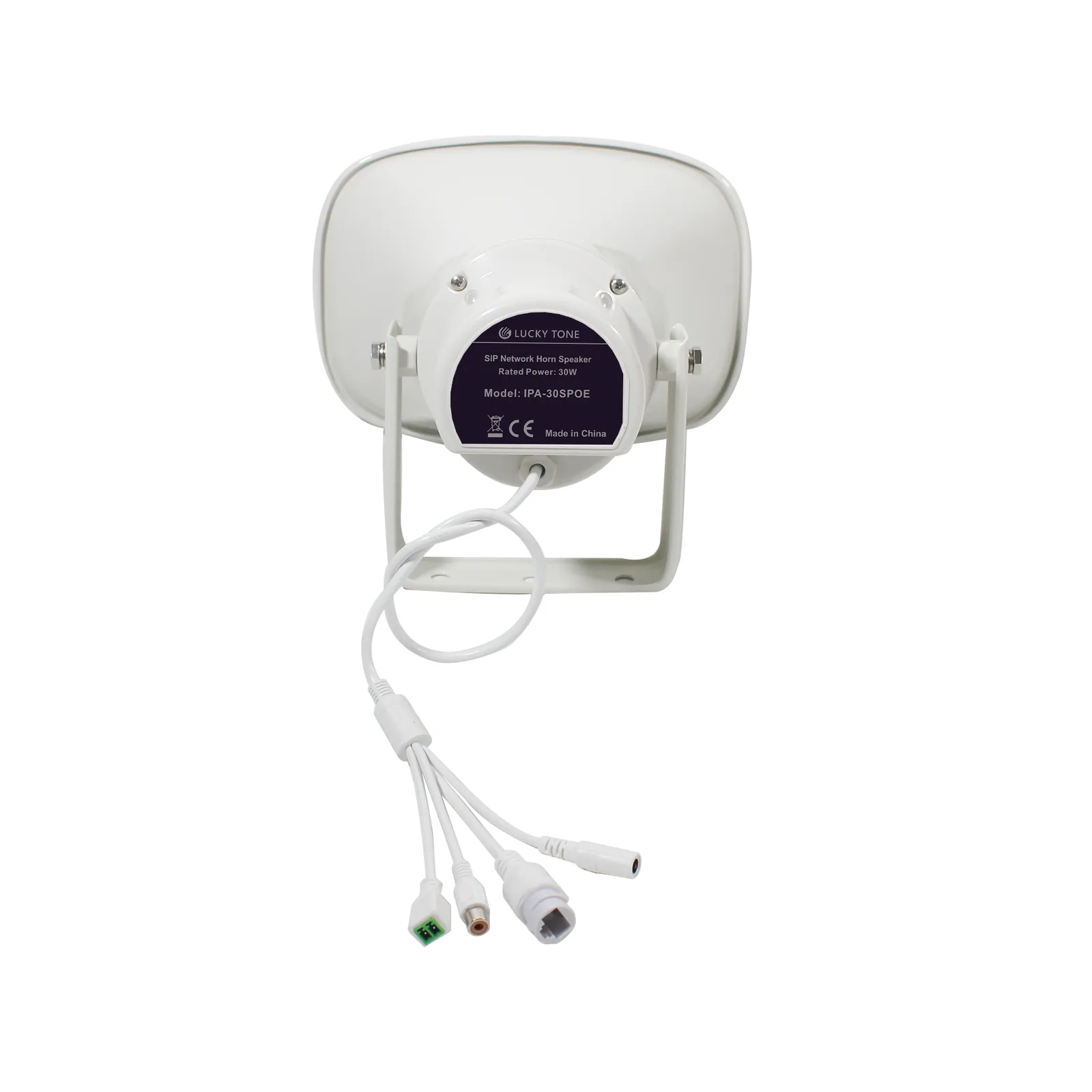

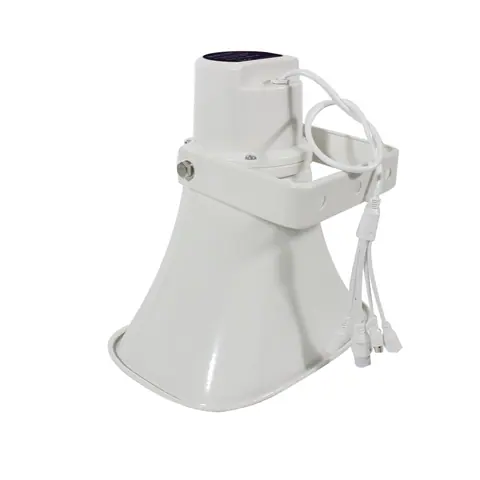

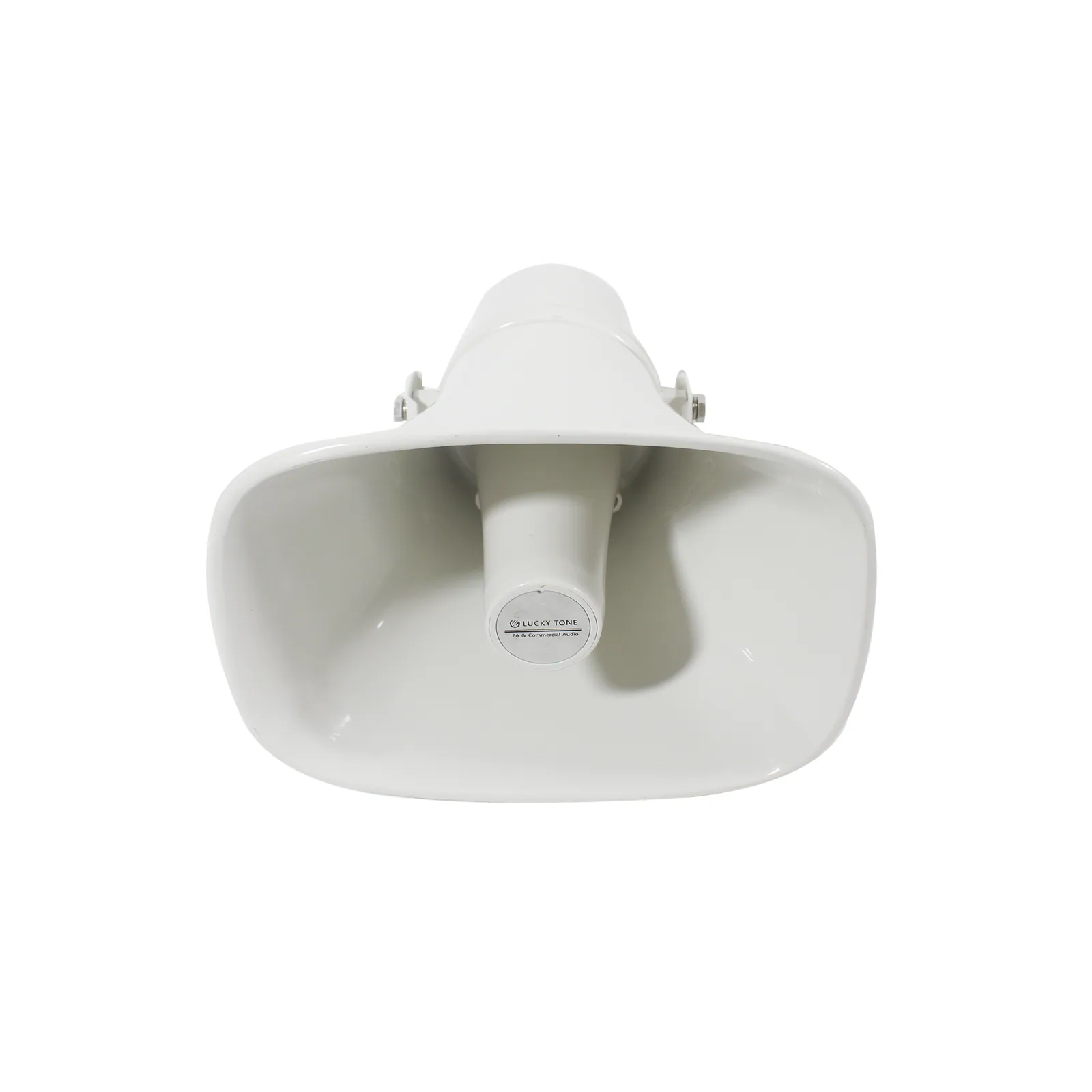

Lucky Tone SIP Network Horn Speaker IPA-15SPOE / IPA-30SPOE
ModelIPA-15SPOE / IPA-30SPOE
The network horn loudspeaker integrated with network audio decoding, digital amplifier
- Output power
- IPA-15SPOE: 15W; IPA-30SPOE: 30W
- Power supply
- DC12V / PoE
- Dimensions
- IPA-15SPOE: 225 x 165x 240 mm; IPA-30SPOE: 285 x 205x 290 mm
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
SIP Network Horn SpeakerPrice on requestRequest a quotation
01Models2 models in the family
Models compared.
| Model | IPA-15SPOE | IPA-30SPOE |
|---|---|---|
| Rated Power | 15W | 30W |
| Power Supply | DC12V / PoE | DC12V / PoE |
| Network Communication Protocol | SIP | SIP |
| Audio Encoding | MP3/WMA/WAV | MP3/WMA/WAV |
| Network Interface | 10/100Base-TX, RJ45 Port | 10/100Base-TX, RJ45 Port |
| Speaker SPL (1W/1M) | 101dB | 105dB |
| Enclosure Material | ABS | ABS |
| Dimension | 225 x 165x 240 mm | 285 x 205x 290 mm |
02DescriptionManufacturer's description
What it is.
- Empowered by high-speed dual-core (ARM + DSP) chip of industrial grade, startup in less than 1s
- IP66 water-proof horn speaker available at 15W and 30W
- Support MP3, WMA, WAV and more decoding
- With a standard RJ45 network interface and supports online firmware upgrade from long distance
03Documents1 file · 1.6 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
