Sheet 05.352

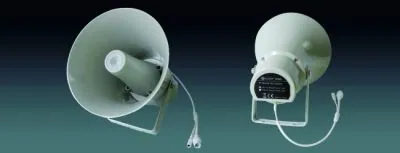

Lucky Tone SIP Network Horn Speaker, product photo 1 of 3
Fig. 01 / 03 · manufacturer’s images
  • Lucky Tone SIP Network Horn Speaker, product photo 1 of 3

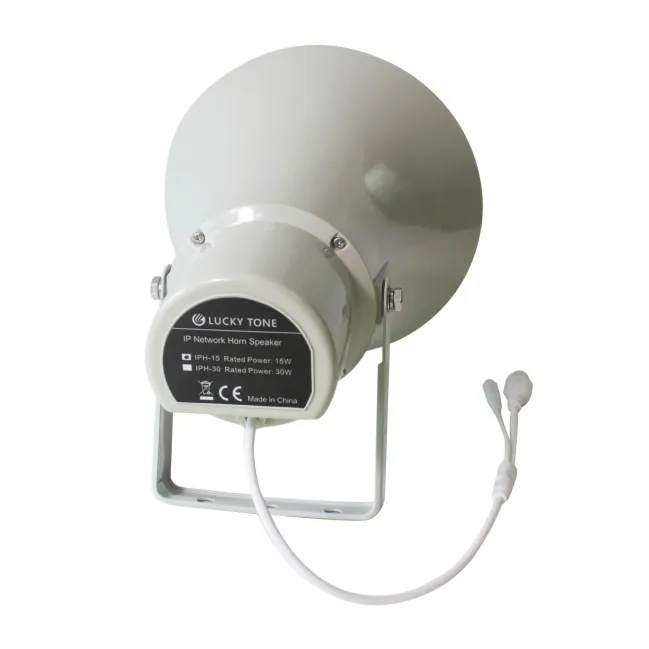

  • Lucky Tone SIP Network Horn Speaker, product photo 2 of 3

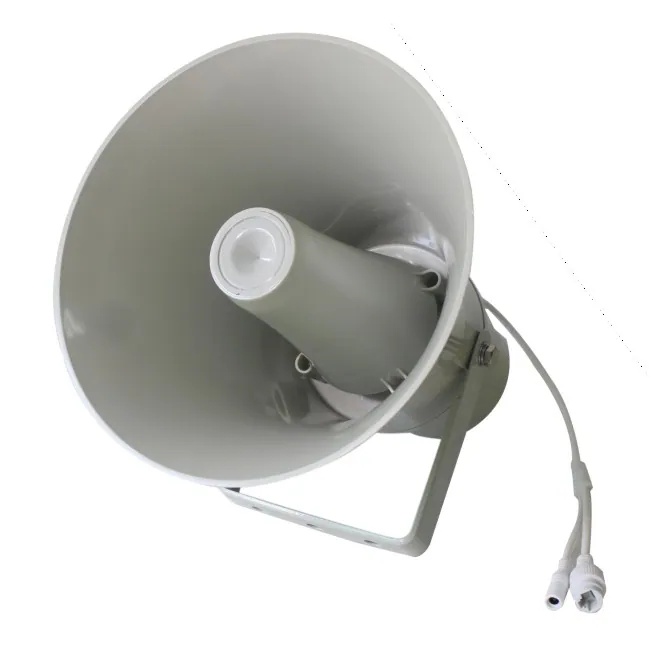

  • Lucky Tone SIP Network Horn Speaker, product photo 3 of 3
Lucky Tone · IP, SIP and ONVIF

Lucky Tone SIP Network Horn Speaker IPH-15S / IPH-15SPOE

ModelIPH-15S / IPH-15SPOE

● The network horn loudspeaker integrated with network audio decoding, digital amplifier

Output power
15W
Power supply
IPH-15S: DC24V; IPH-15SPOE: POE
Dimensions
Ø200 x 230 mm
PriceOn request
Request a quotationDiscuss your project

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01Models2 models in the family

Models compared.

MODELIPH-15SIPH-15SPOE
Rated Power15W15W
Power SupplyDC24VPOE
Network Communication ProtocolSIPSIP
Audio EncodingMP3/WMA/WAVMP3/WMA/WAV
Network Interface10/100Base-TX, RJ45 Port10/100Base-TX, RJ45 Port
Speaker SPL (1W/1M)101dB101dB
Enclosure MaterialABSABS
DimensionØ200 x 230 mmØ200 x 230 mm
02DescriptionManufacturer's description

What it is.

Features

  • ● Empowered by high-speed dual-core (ARM + DSP) chip of industrial grade, startup in less than 1s
  • ● IP67 water-proof horn speaker available at 15W and 30W
  • ● Support MP3, WMA, WAV and more decoding
  • ● With a standard RJ45 network interface and supports online firmware upgrade from long distance
03Documents1 file · 1.7 MB

Documents and files.

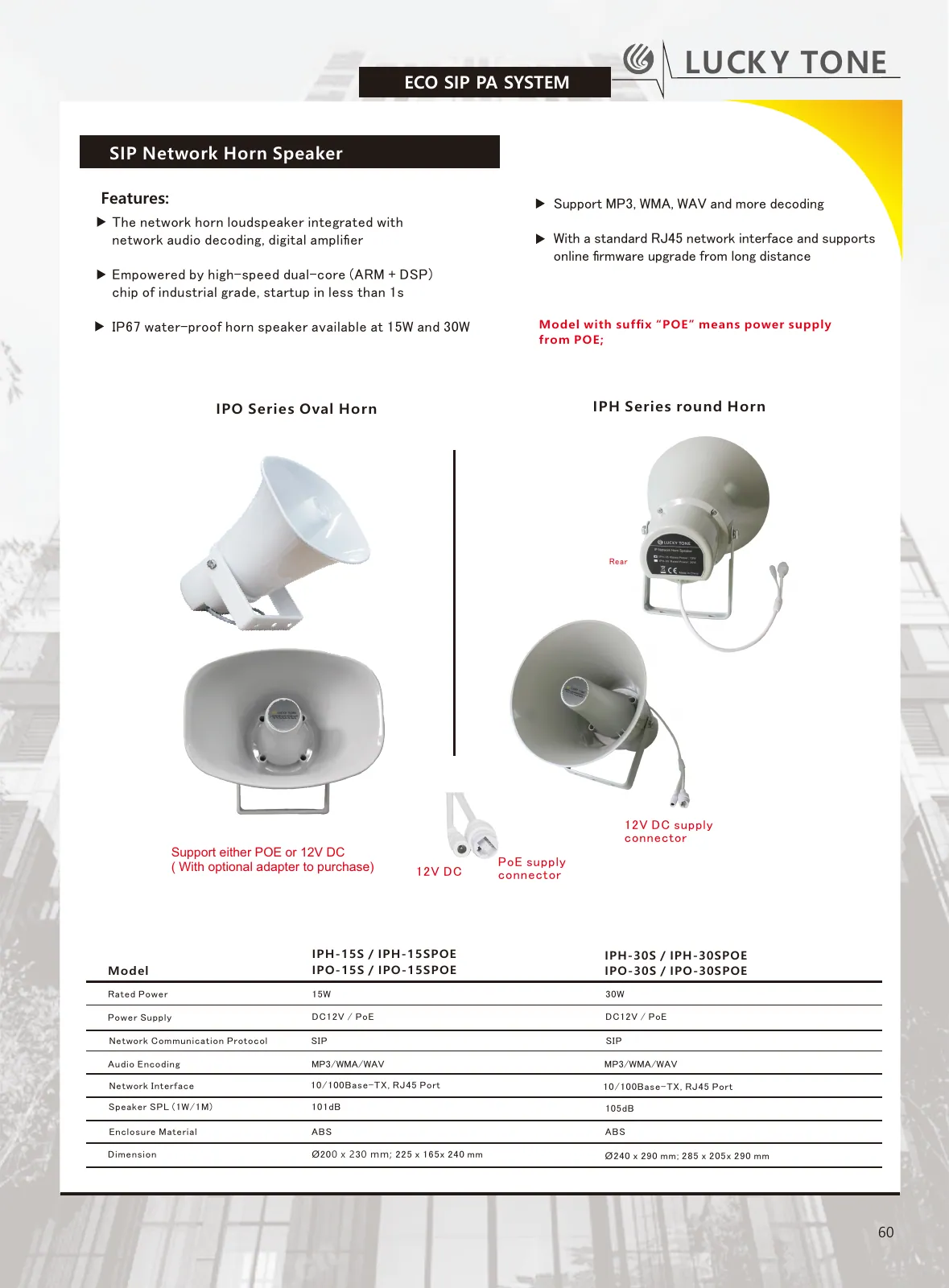

Datasheets, manuals, drawings and certificates as the manufacturer publishes them.

04Related products

In the same range.

All: IP, SIP and ONVIF
EQ-351Lucky ToneSIP Network Horn SpeakerIPA-15SPOE / IPA-30SPOE · IP, SIP and ONVIFOutput powerIPA-15SPOE: 15W; IPA-30SPOE: 30WDimensionsIPA-15SPOE: 225 x 165x 240 mm; IPA-30SPOE: 285 x 205x 290 mmPower supplyDC12V / PoEEQ-353Lucky ToneSIP Network Horn SpeakerIPH-15SPOED / IPH-30SPOED · IP, SIP and ONVIFOutput powerIPH-15SPOED: 15W; IPH-30SPOED: 30WDimensionsIPH-15SPOED: Ø200 x 230 mm; IPH-30SPOED: Ø240 x 290 mmPower supplyIPH-15SPOED: DC12V/POE; IPH-30SPOED: DC12V/PPOEEQ-350Lucky ToneSIP Network AmplifierHA-1120 SIP / HA-1250 SIP / HA-1500 SIP · IP, SIP and ONVIFFrequency response80Hz~17KHz ( +1dB /-3dB )Weight3.3kgEQ-354Lucky ToneSIP Network Horn SpeakerIPH-30S · IP, SIP and ONVIFOutput power30WDimensionsØ240 x 290 mmPower supplyDC24V
