Sheet 05.174
Lucky Tone · Loudspeakers

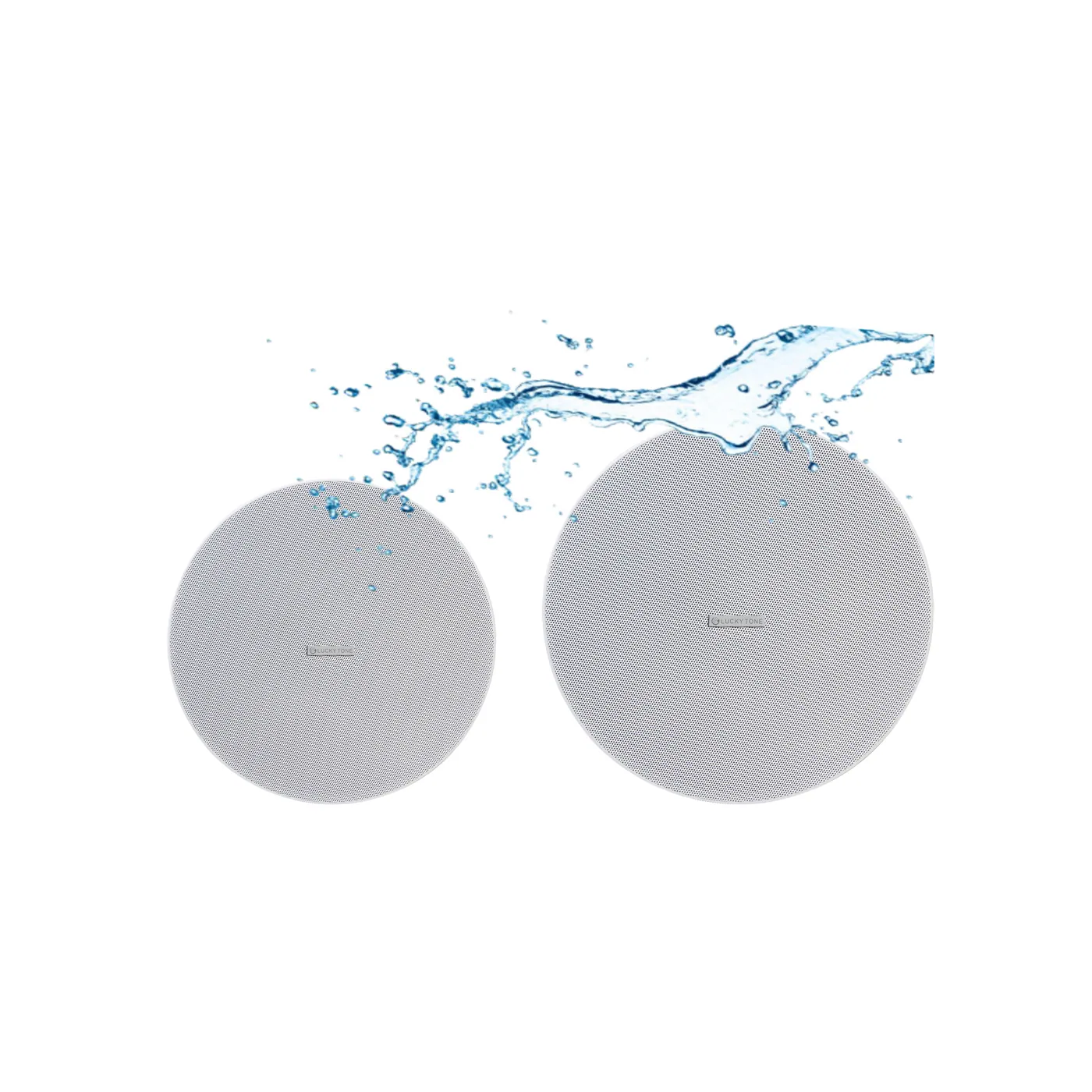

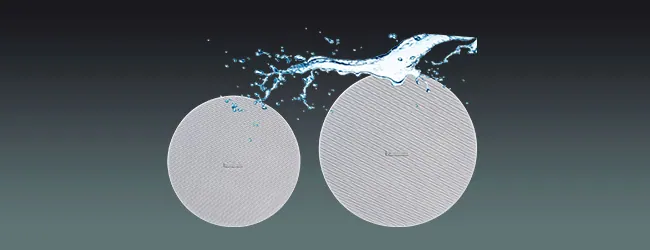

IP66 Wterproof Rimless Ceiling speaker

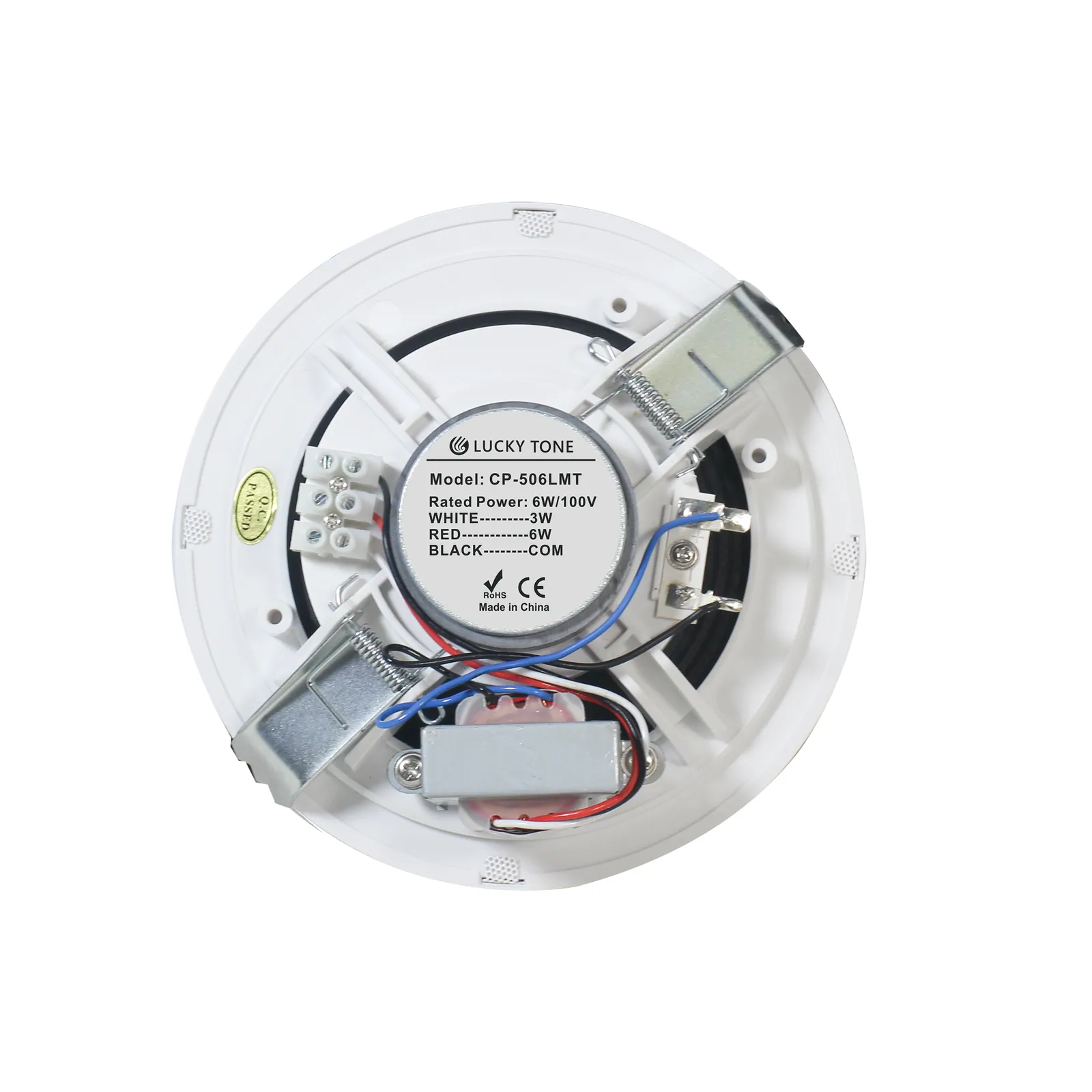

ModelCP-506LMT IP66 / CP-606LMT IP66
Full range yet high quality music and speech reproduction
- Weight
- CP-506LMT IP66: 0.5Kg; CP-606LMT IP66: 0.7Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
IP66 Wterproof Rimless Ceiling speakerPrice on requestRequest a quotation
01Models2 models in the family
Models compared.
| Model | CP-506LMT IP66 | CP-606LMT IP66 |
|---|---|---|
| Power at 100V | 3/6W | 3/6W |
| Power at 70V | 1.5/3W | 1.5/3W |
| SPL( 1W/1M) | 92dB | 92dB |
| Max SPL@ 1M | 99dB | 99dB |
| Freq. Response | 100Hz-16KHz | 100Hz-18KHz |
| Cutout Size | Dia 140mm | Dia 170mm |
| Product Size | Dia160x55mm(H) | Dia185x75mm(H) |
| Installation | Inceiling | Inceiling |
| Enclosure Material | ABS | ABS |
| Weight | 0.5Kg | 0.7Kg |
| Finish | White | White |
| Speakers | 5″x1 full range | 6″x1 full range |
02DescriptionManufacturer's description
What it is.
Fast installation range of speaker
Elegant Rimless design
With IP 66 in the model means IP 66 version and with aluminium grille.
03Documents1 file · 1.6 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
