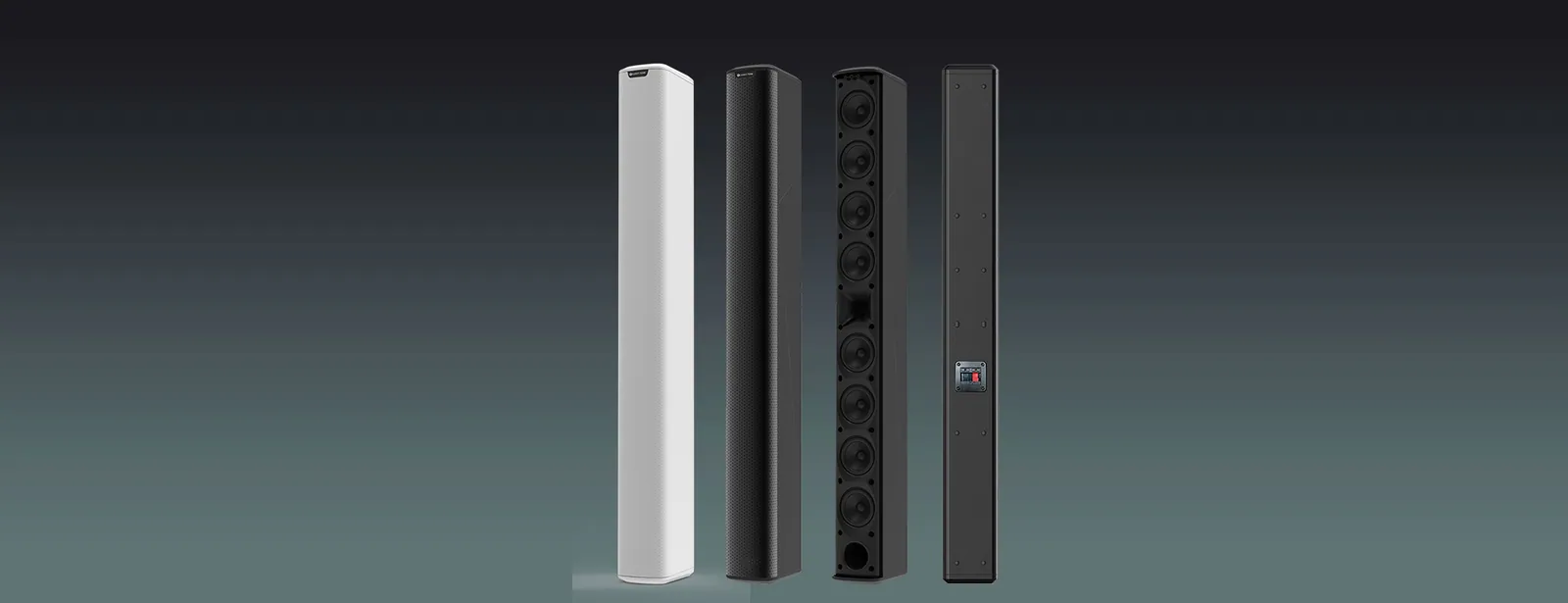

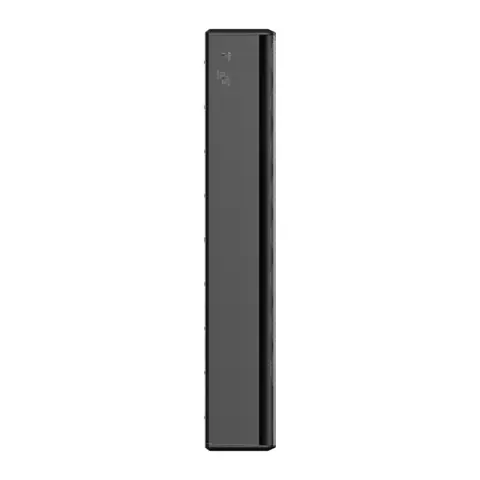

270W Ferrite Unit Array Acoustic Column Speaker

ModelLA- 308 LB V2 / LA- 308 L W V2 / LA- 308 B V2 / LA- 308 W V2

Designed for small and medium-sized video conference rooms. digital courts,conference centers, lecture halls. lecture halls.

Output power: LA- 308 LB V2 / LA- 308 L W V2: 270W@4ohm (1080W Peak); LA- 308 B V2 / LA- 308 W V2: 270W@4ohm (1080W Peak) 200W/50W/25W@100V 100W/25W/12.5W@70V
Frequency response: 100Hz~20kHz
Dimensions: 934x98x150mm
Weight: 4.85kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01Models2 models in the family

Models compared.

Model	LA- 308 LB V2 / LA- 308 L W V2	LA- 308 B V2 / LA- 308 W V2
Operating Modes	/	Switchable between music/speech mode
Input	4ohm	100V/70V/4ohm
Rated Power	270W@4ohm (1080W Peak)	270W@4ohm (1080W Peak) 200W/50W/25W@100V 100W/25W/12.5W@70V
Sensitivity (1m/1W)	93dB	93dB
Max. SPL	124dB	124dB
Frequency Range	100Hz~20kHz	100Hz~20kHz
Cabinet Material	ABS plastic and fiberglass	ABS plastic and fiberglass
Mesh material	Aluminum	Aluminum
Diffusion Angle (-6dB)	Vertical >30°, Horizontal >160°	Vertical >30°, Horizontal >160°
Installation	Intelligent mounting bracket or embedded mounting bracket	Intelligent mounting bracket or embedded mounting bracket

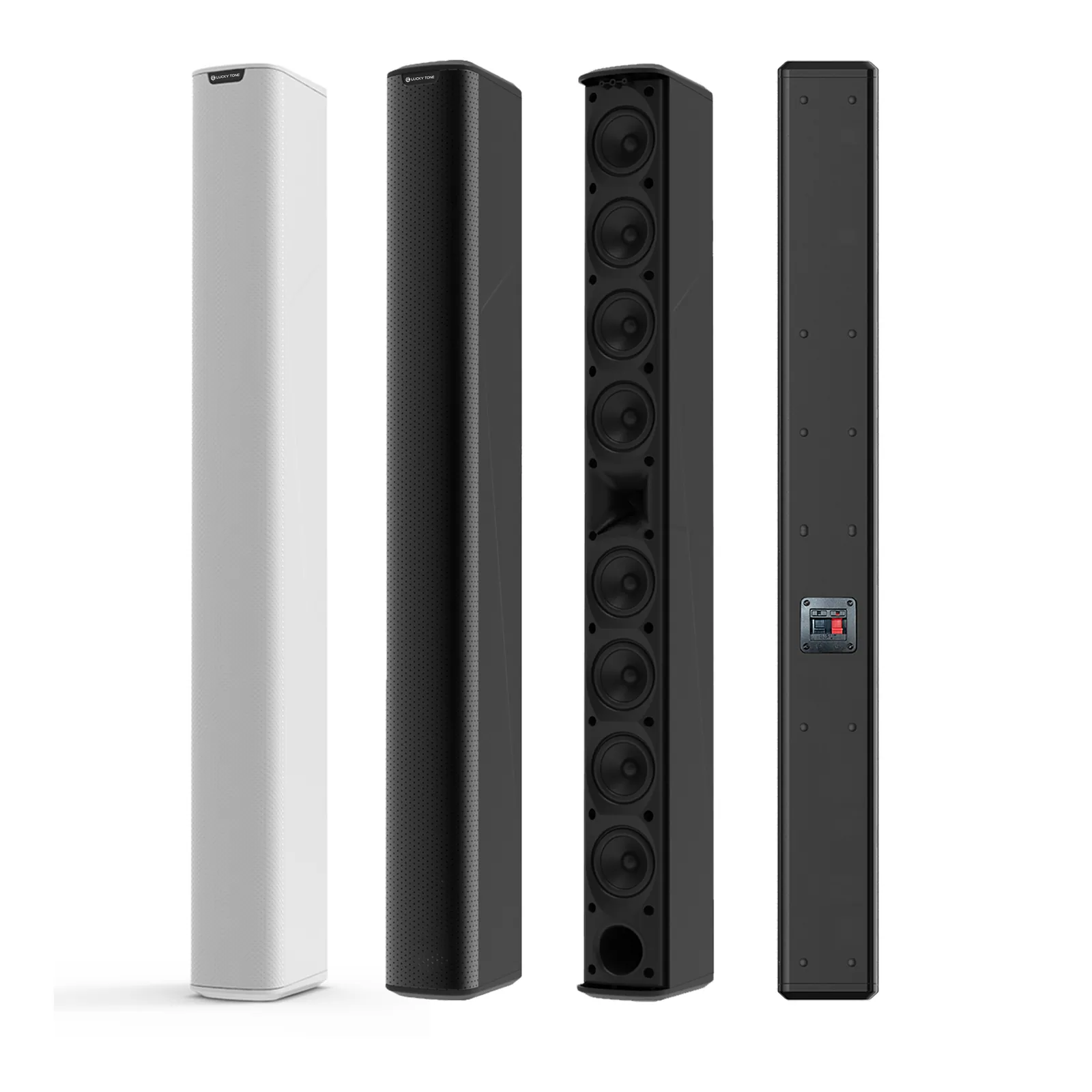

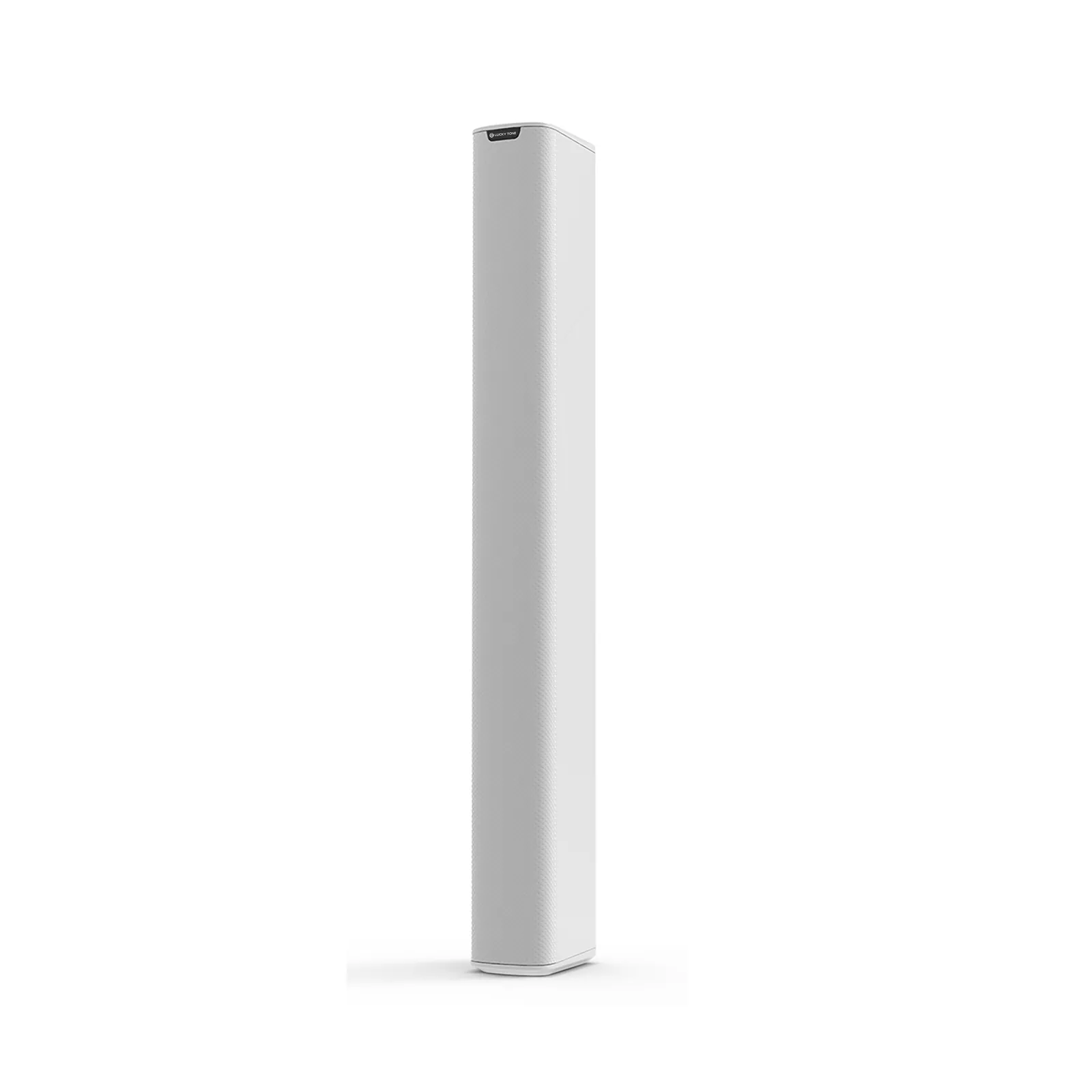

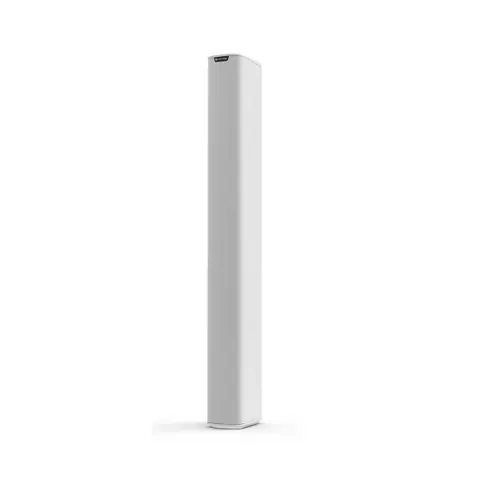

Color	Black/White	Black/White
Dimension (HWD)	934x98x150mm	934x98x150mm
Net Weight	4.85kg	4.85kg
Speaker Driver	8×3″ Ferrite	8×3″ Ferrite

02DescriptionManufacturer's description

What it is.

Description

Designed for small and medium-sized video conference rooms. digital courts,conference centers, lecture halls. lecture halls. other language-based sound reinforcement systems,and background music systems for various architectural spaces such as churches,museums,transportation hubs,and public areas in squares.This model solves a typical problem that the column speaker of the is too large to put on the wall, and it also looks not beautiful and tidy.Through the Constant Beam Technology in the Line array sound column speaker,the problem of projection and interference of the traditional conference room speaker is solved,Therefore, in terms of sound performance, it is very good for the human sound reinforcement.

Features

The array column loudspeaker adopts streamlined design with beautiful and practical appearance,whichis suitable for sound reinforcement of various architectural spaces in superb sound quality.

The sound column speaker is the fberglass reinforced ABS cabinet.which is sturdy and durable.

The circular waveguide hole in the front and the damping port at the rear of the box form a uniquelow-frequency cardioid diffusion.The treble is crisp and sweet, the sound is natural and thick, and the bass is full.

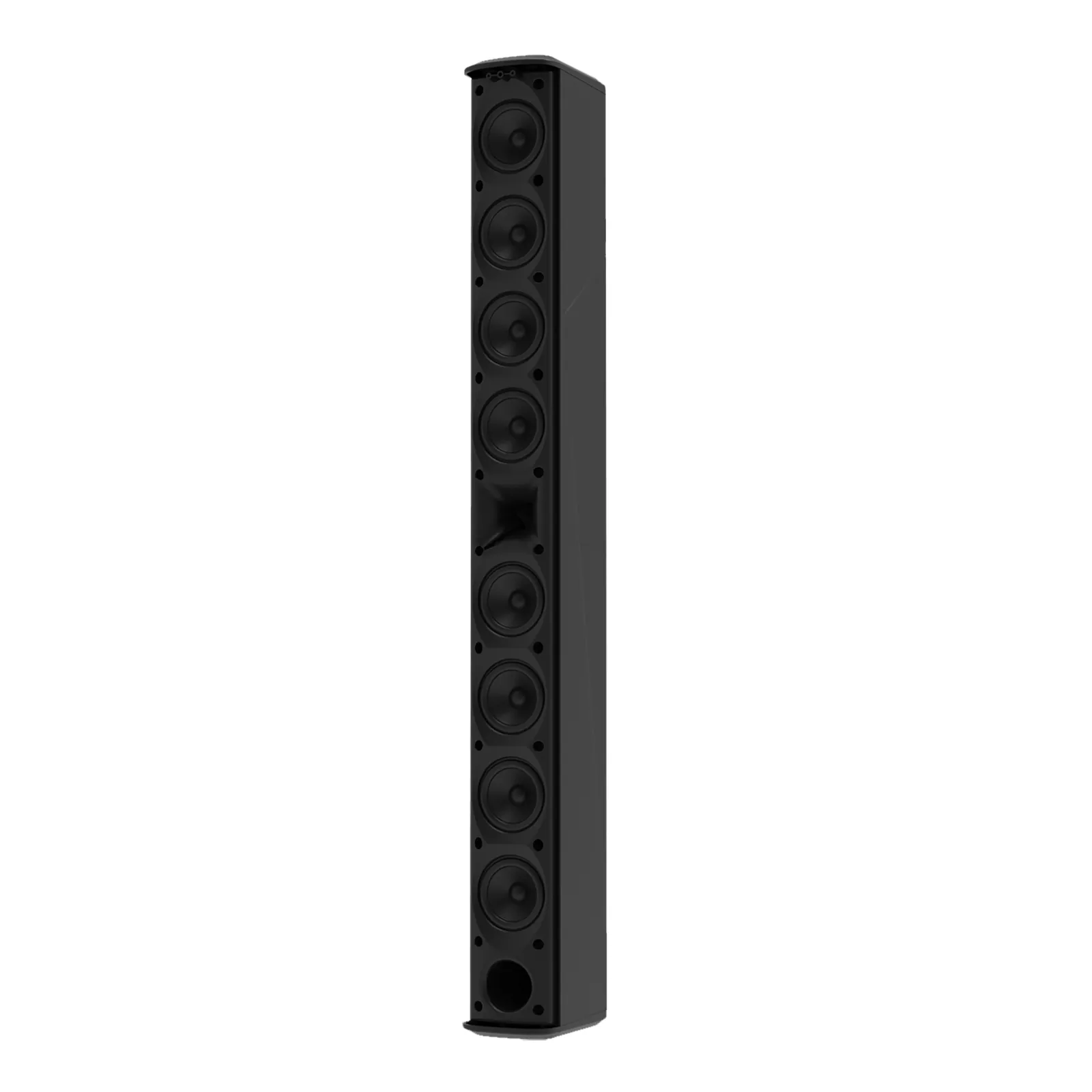

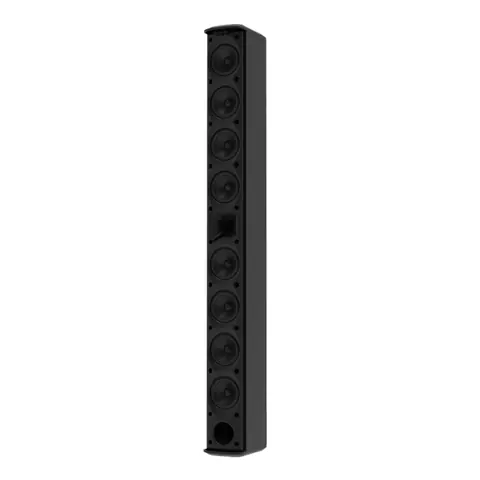

8*3-inch high-performance Ferrite drive unit.

ABS cabinet with UV resistant paint at IP55 rating is excellent for both outdoor and indoor applications

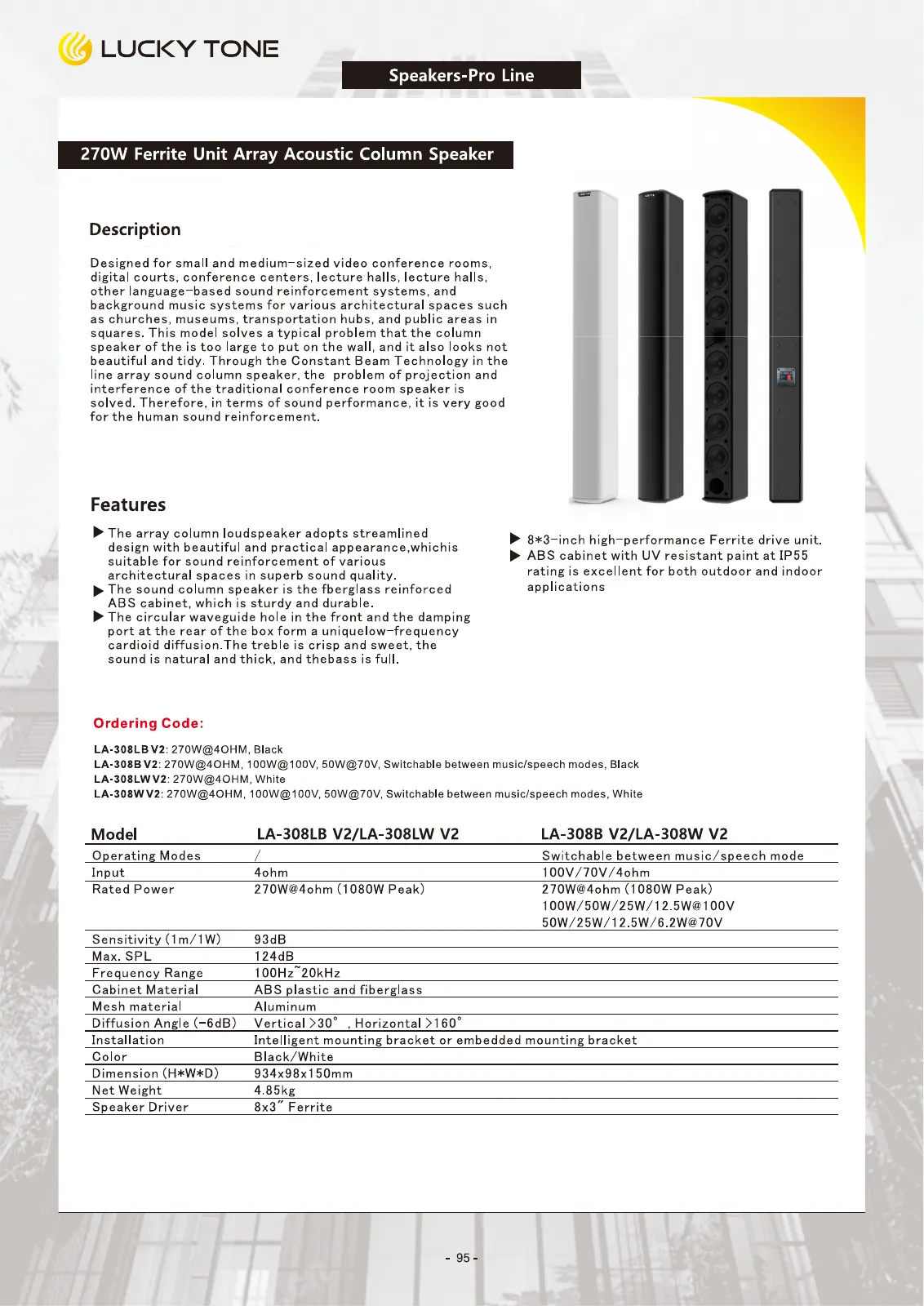

03Documents1 file · 747 KB
