Sheet 05.125
Lucky Tone · Loudspeakers

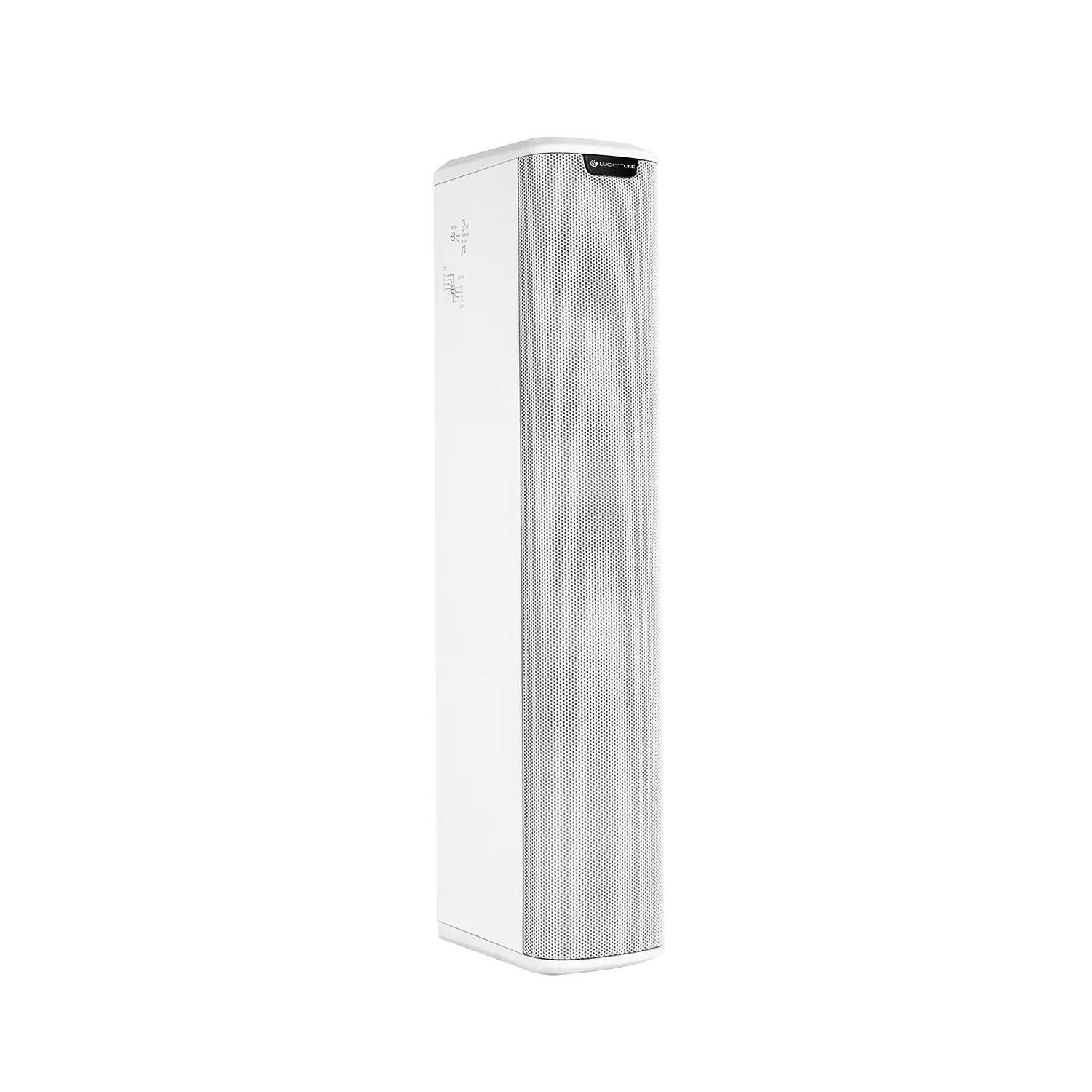

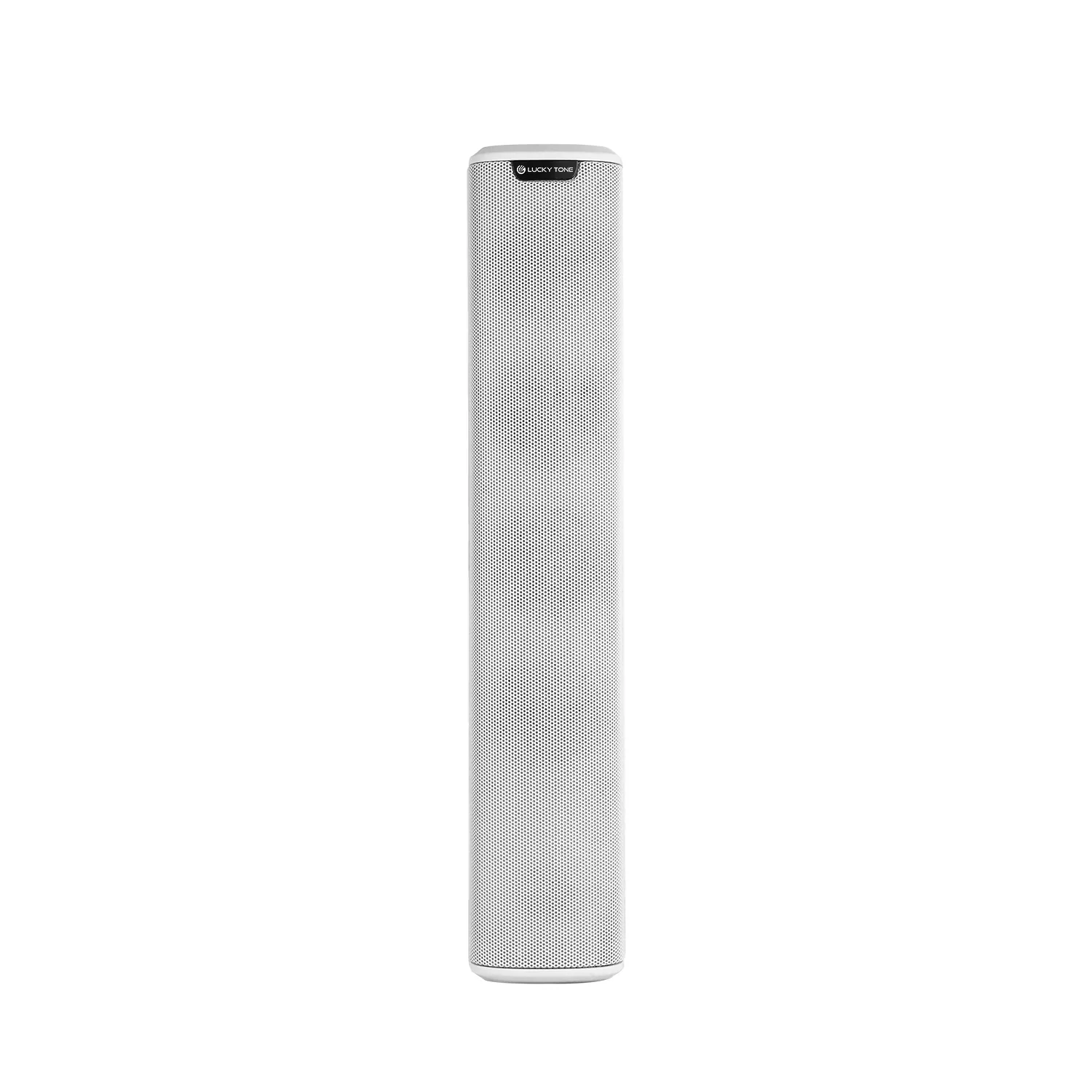

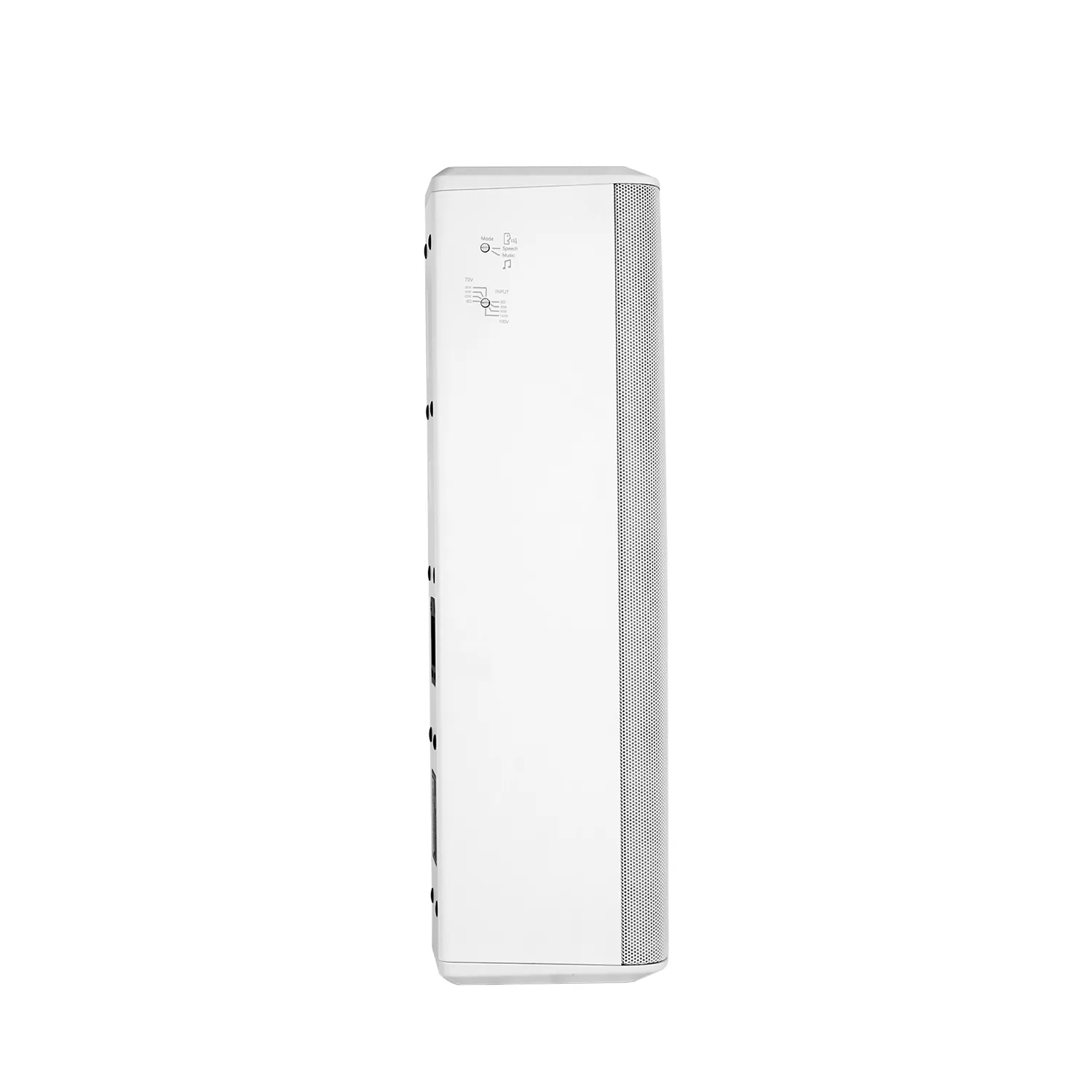

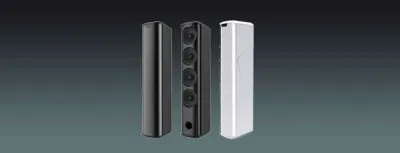

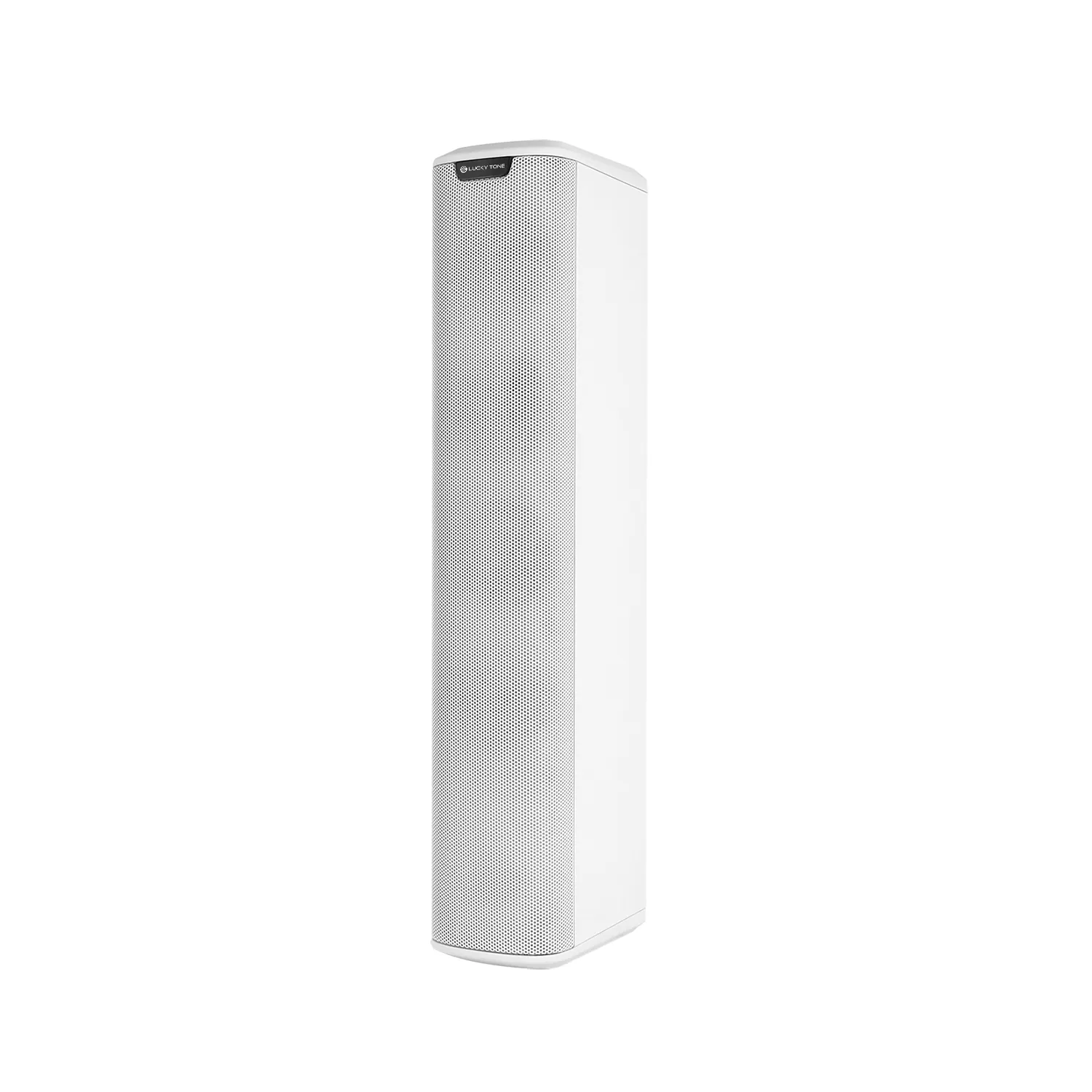

160W Ferrite Unit Array Acoustic Column Speaker
ModelLA-100B V2/LA-100W V2
Designed for small and medium-sized video conference rooms, digital courts, conference centers, lecture halls, lecture halls, other language-based sound reinforcement systems, and background music systems for various architectural spaces such as churches, museums, transportation hubs, and public areas in squares. This model solves a typical problem that the column speaker of the is too large to put on the wall, and it also looks not beautiful and tidy. Through the Constant Beam.Technology in the line array sound column speaker, the problem of projection and interference of the traditional conference room speaker is solved. Therefore, in terms of sound performance, it is very good for the human sound reinforcement.
- Output power
- 160W/80W/40W@100V 80W/40W/20W@70V 160W@8ohm
- Frequency response
- 80Hz to 20kHz, -10dB
- Dimensions
- 530*100*150mm
- Weight
- 4.1kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
160W Ferrite Unit Array Acoustic Column SpeakerPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 18 values
What this product is, in numbers.

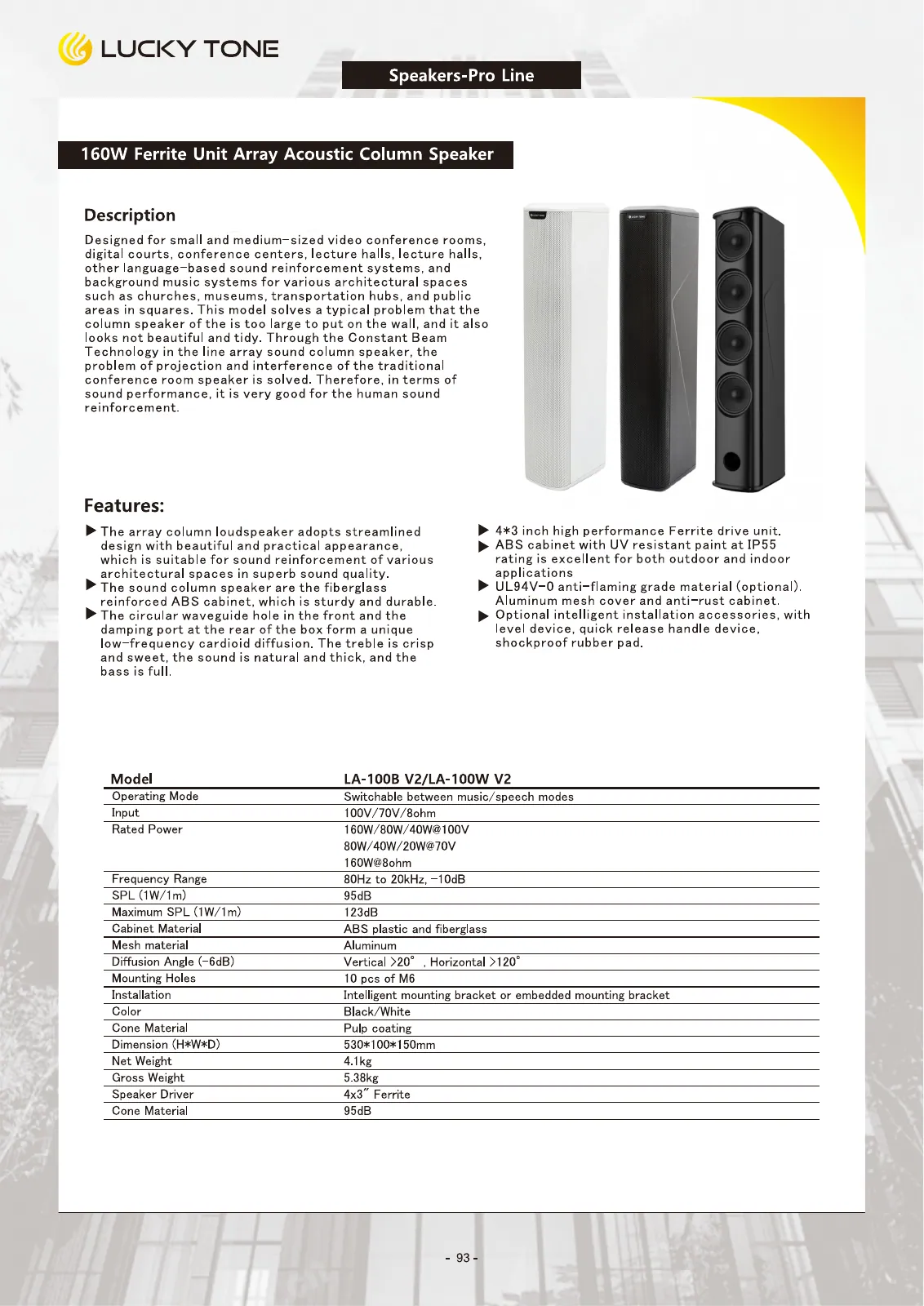

PDFSpecifications737 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications18
- Model
- LA-100B V2/LA-100W V2
- Operating Mode
- Switchable between music/speech modes
- Input
- 70V/100V/8Ω
- Rated power
- 160W/80W/40W@100V 80W/40W/20W@70V 160W@8ohm
- Frequency Range
- 80Hz to 20kHz, -10dB
- SPL( 1W/1M)
- 95dB
- Max SPL@ 1M
- 123dB
- Cabinet material
- ABS plastic and fiberglass
- Mesh material
- Aluminum
- Diffusion angle (-6dB)
- vertical>20°, horizontal>120°

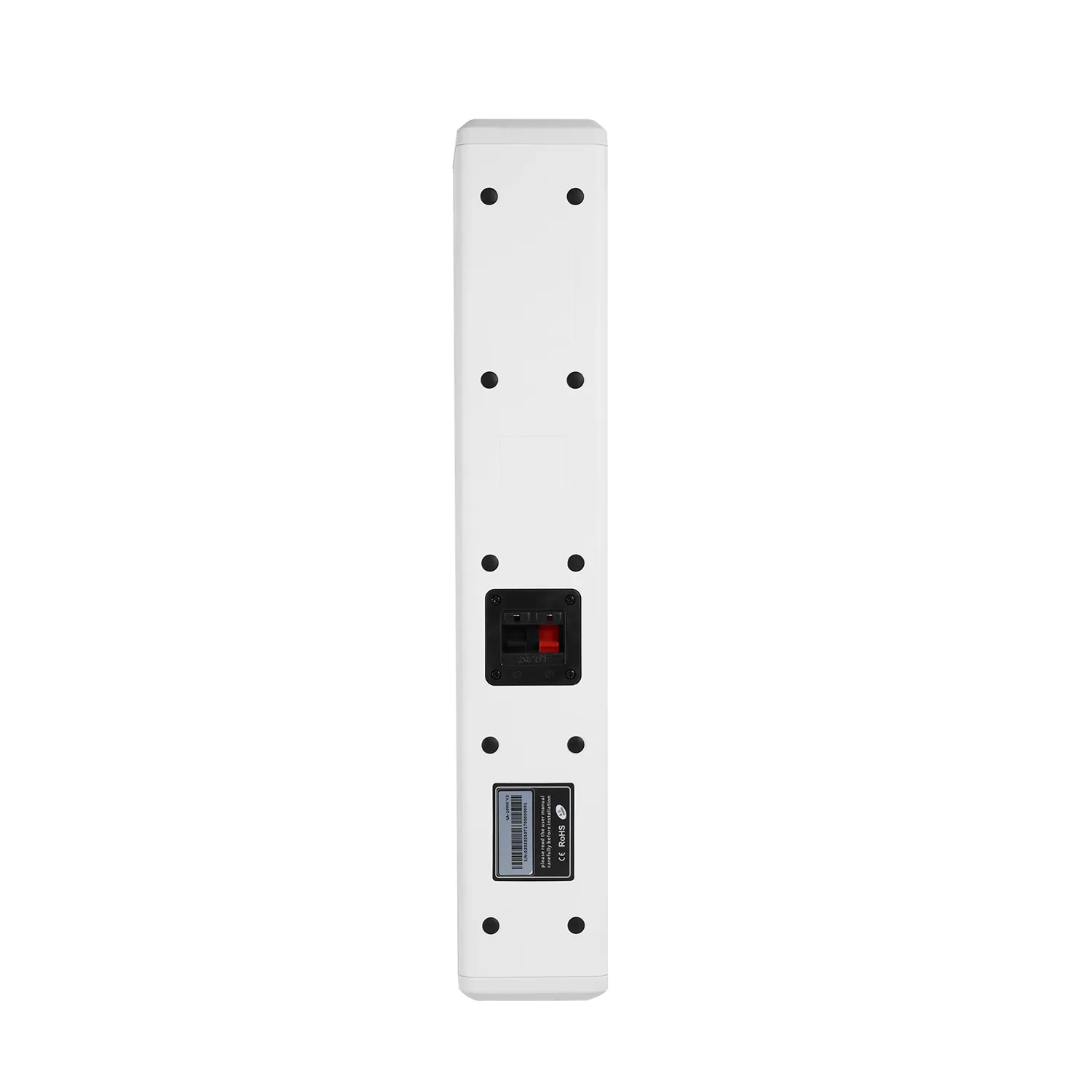

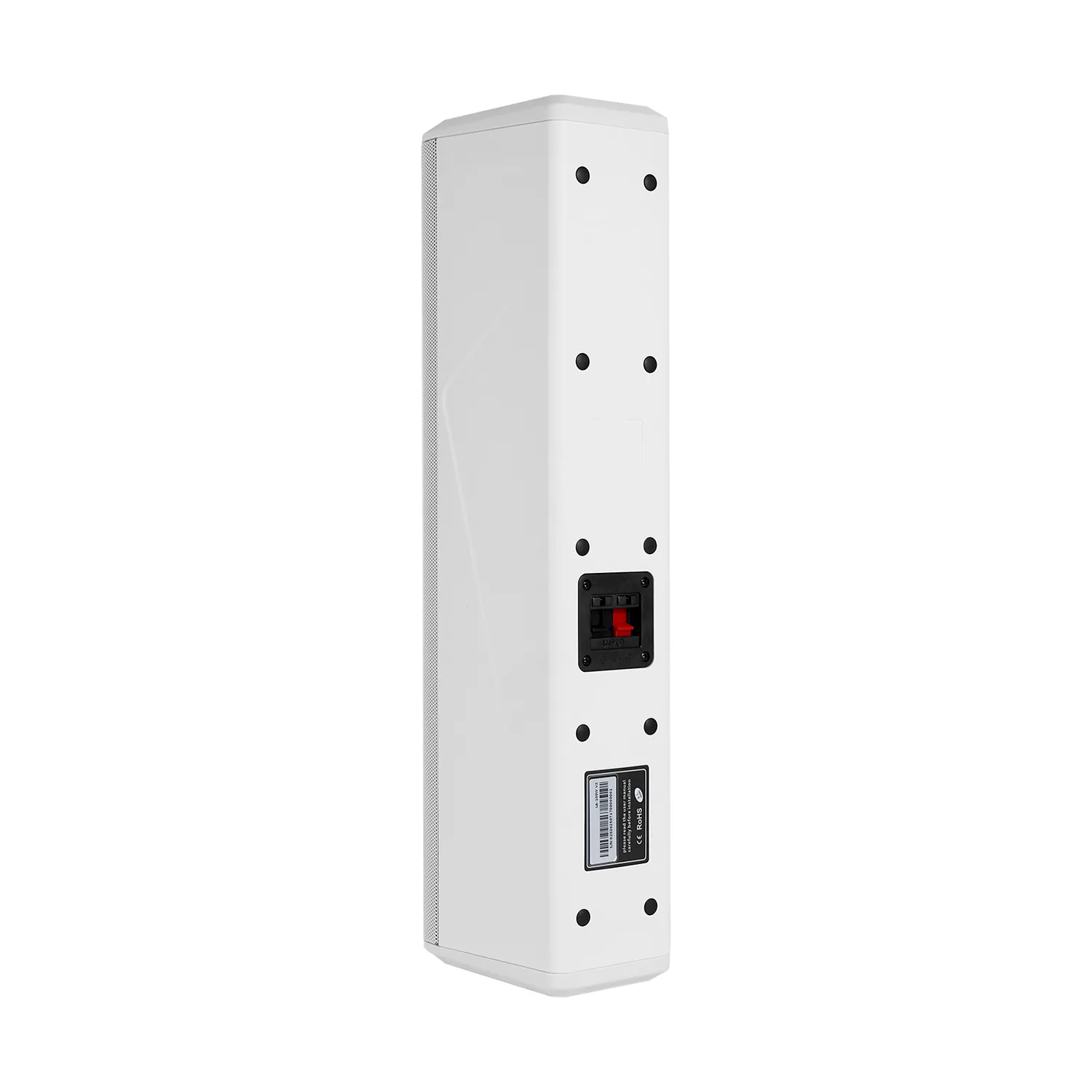

- Mounting holes
- 10 pcs of M6
- Installation
- Intelligent mounting bracket or embedded mounting bracket
- Color
- Black/White
- Cone material
- Pulp coating
- Dimension (H*W*D)
- 530*100*150mm
- Net weight
- 4.1kg
- Gross weight
- 5.38kg
- Speaker driver
- 4×3″ Ferrite
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Features
The array column loudspeaker adopts streamlined design with beautiful and practical appearance, which is suitable for sound reinforcement of various architectural spaces in superb sound quality.
The sound column speaker are the fiberglass reinforced ABS cabinet, which is sturdy and durable.
The circular waveguide hole in the front and the damping port at the rear of the box form a unique low-frequency cardioid diffusion. The treble is crisp
- and sweet, the sound is natural and thick, and the bass is full.
- 4*3 inch high performance Ferrite drive unit.
- ABS cabinet with UV resistant paint at IP55 rating is excellent for both outdoor and indoor applications
- UL94V-0 anti-flaming grade material (optional). Aluminum mesh cover and anti-rust cabinet.
Optional intelligent installation accessories, with level device, quick release handle device, shockproof rubber pad.
