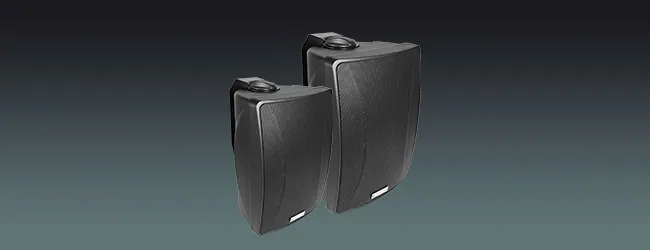

Lucky Tone Active Wall Mount Speaker Pair, product photo 1 of 6 — Fig. 01 / 06 · manufacturer’s images

Lucky Tone · Loudspeakers

Active Wall Mount Speaker Pair

ModelWP- 22 0A W/WP-220AB / WP- 23 0A W/WP-230AB

Experience immersive audio with a pair of active wall speakers, featuring a powerful active speaker and a passive counterpart for balanced sound reproduction.

Output power: WP- 22 0A W/WP-220AB: 2x20W; WP- 23 0A W/WP-230AB: 2x30W
Frequency response: WP- 22 0A W/WP-220AB: 95Hz-20KHz; WP- 23 0A W/WP-230AB: 80Hz-20KHz
Power supply: AC220-240V 50Hz/60Hz or DC24V 3A
Weight: WP- 22 0A W/WP-220AB: 4.2KG/pair; WP- 23 0A W/WP-230AB: 5.1KG/pair

PriceOn request

Request a quotation Discuss your project

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01Models2 models in the family

Models compared.

Model	WP- 22 0A W/WP-220AB	WP- 23 0A W/WP-230AB
Rated Power	2x20W	2x30W
Impedance	8ohm	8ohm
Sensitivity	90±2dB	92±2dB
Max. SPL	103±2dB	105±2dB
Frequency Response	95Hz-20KHz	80Hz-20KHz
THD	≤1%	≤1%
Channel Separation	≥60dB	≥60dB
SNR	≥81dB	≥81dB

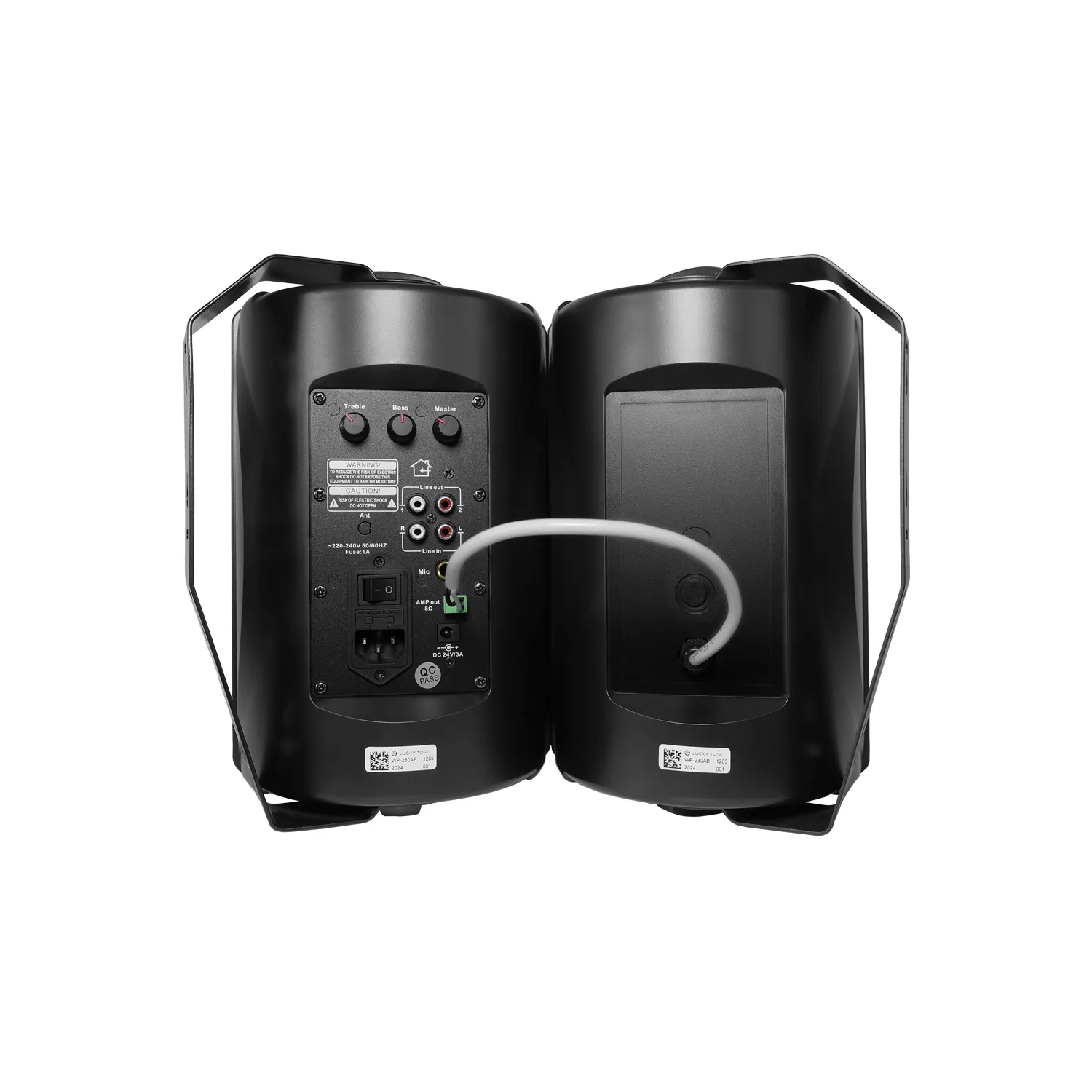

Input & Output	RCA line input, RCA line output, 6.3mm microphone input	RCA line input, RCA line output, 6.3mm microphone input
Amplifier	Class-D	Class-D
Power Supply	AC220-240V 50Hz/60Hz or DC24V 3A	AC220-240V 50Hz/60Hz or DC24V 3A
Speaker Unit	4″ woofer x 1, 1″ tweeter x 1	5″ woofer x 1, 2″ tweeter x 1
Enclosure Material	ABS	ABS
Product Dimensions	255x194x185mm	285x194x185mm
Net Weight	4.2KG/pair	5.1KG/pair
Color	White/Black	White/Black

02DescriptionManufacturer's description

What it is.

Features

Dynamic Sound

Built-in Amplification

The active speaker comes equipped with a built-in amplifier, eliminating the need for external amplifiers and simplifying your audio setup.

Versatile Connectivity

Equipped with line-in and line-out for seamless integration with various audio sources and systems.

Microphone Input

Allows direct connection for microphone use, ideal for presentations and public

Customizable Sound Control

Features adjustable bass, treble, and master volume for precise sound tuning to suit any environment.

Easy Installation

Designed for hassle-free setup, these speakers mount directly onto the wall, saving space while complementing any room decor.

Ordering Code

WP-220AW/WP-220AB: 4″ Active Wall Speaker Pair, 2x20W, white/black color
WP-230AW/WP-230AB: 5″ Active Wall Speaker Pair, 2x30W, white/black color
WP-220VW/WP-220VB: 4″ Wall Speaker, 100V, white/black color
WP-230VW/WP-230VB: 5″ Wall Speaker, 100V, white/black color
WP-220LW/WP-220LB: 4″ Wall Speaker, 8Ohm, white/black color
WP-230LW/WP-230LB: 5″ Wall Speaker, 8Ohm, white/black color

03Documents1 file · 1.9 MB

Documents and files.

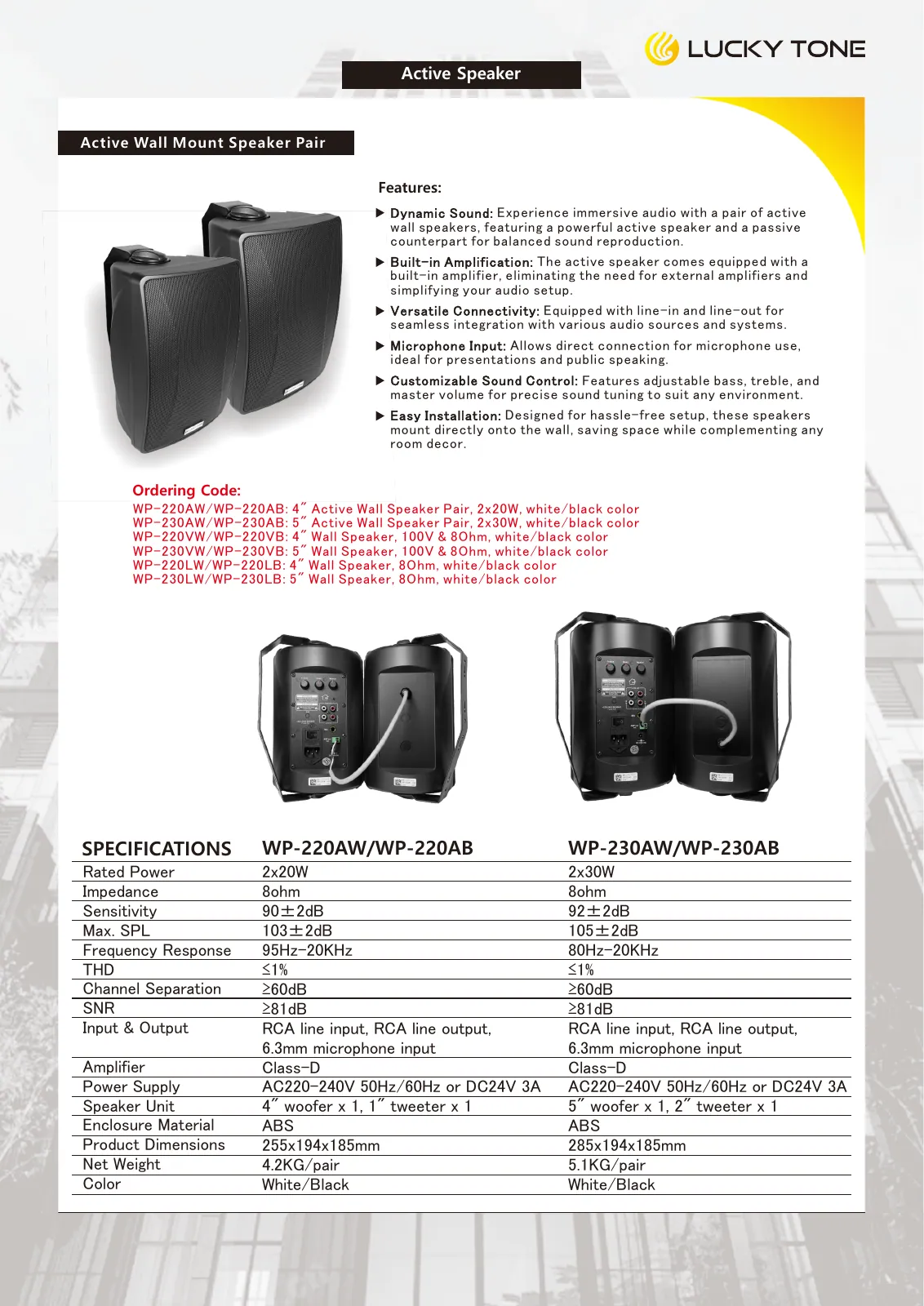

Main document

Specifications

PDF · 1.9 MB

Download specifications
