Sheet 05.188
Lucky Tone · Loudspeakers

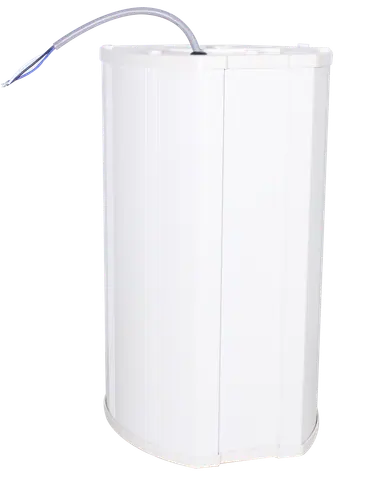

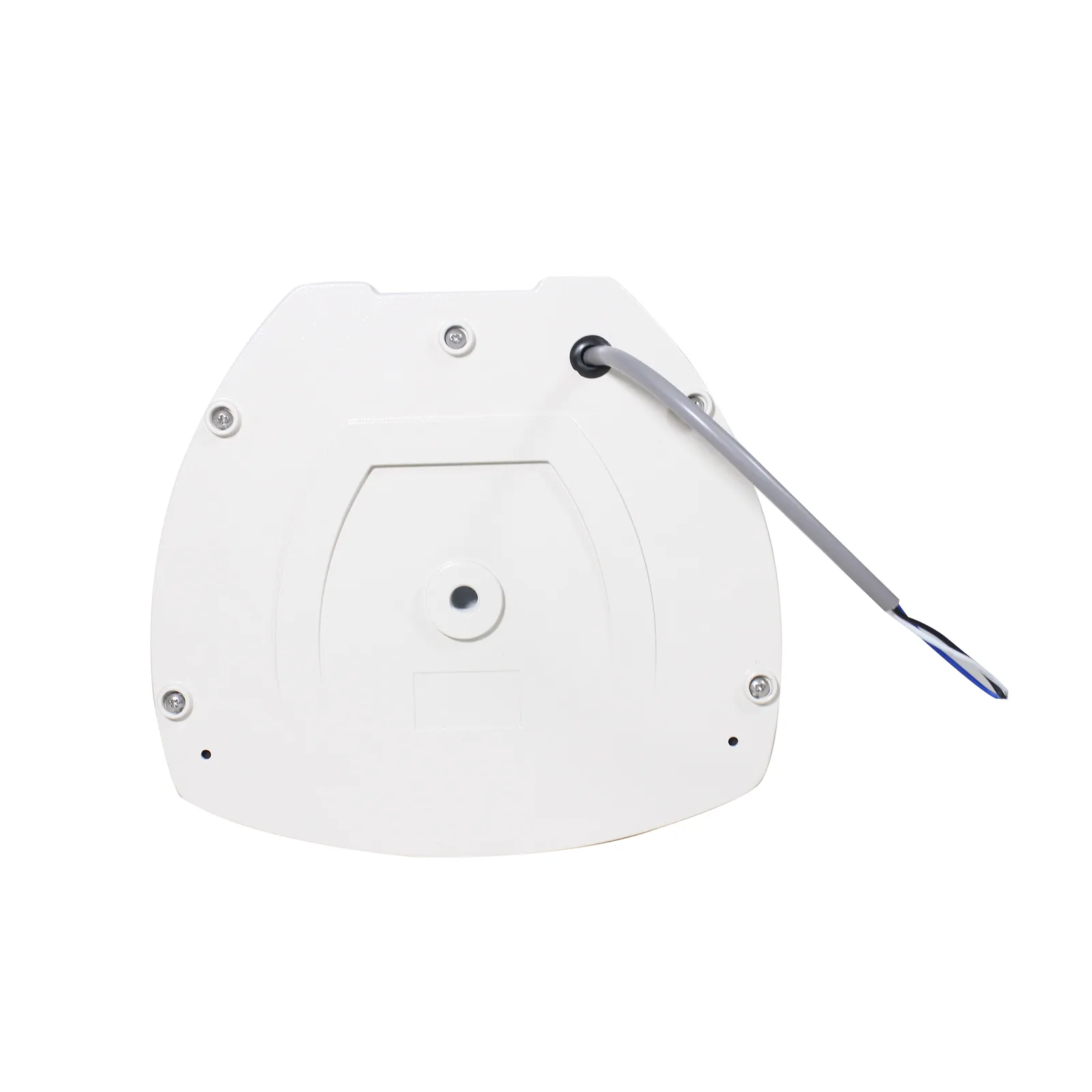

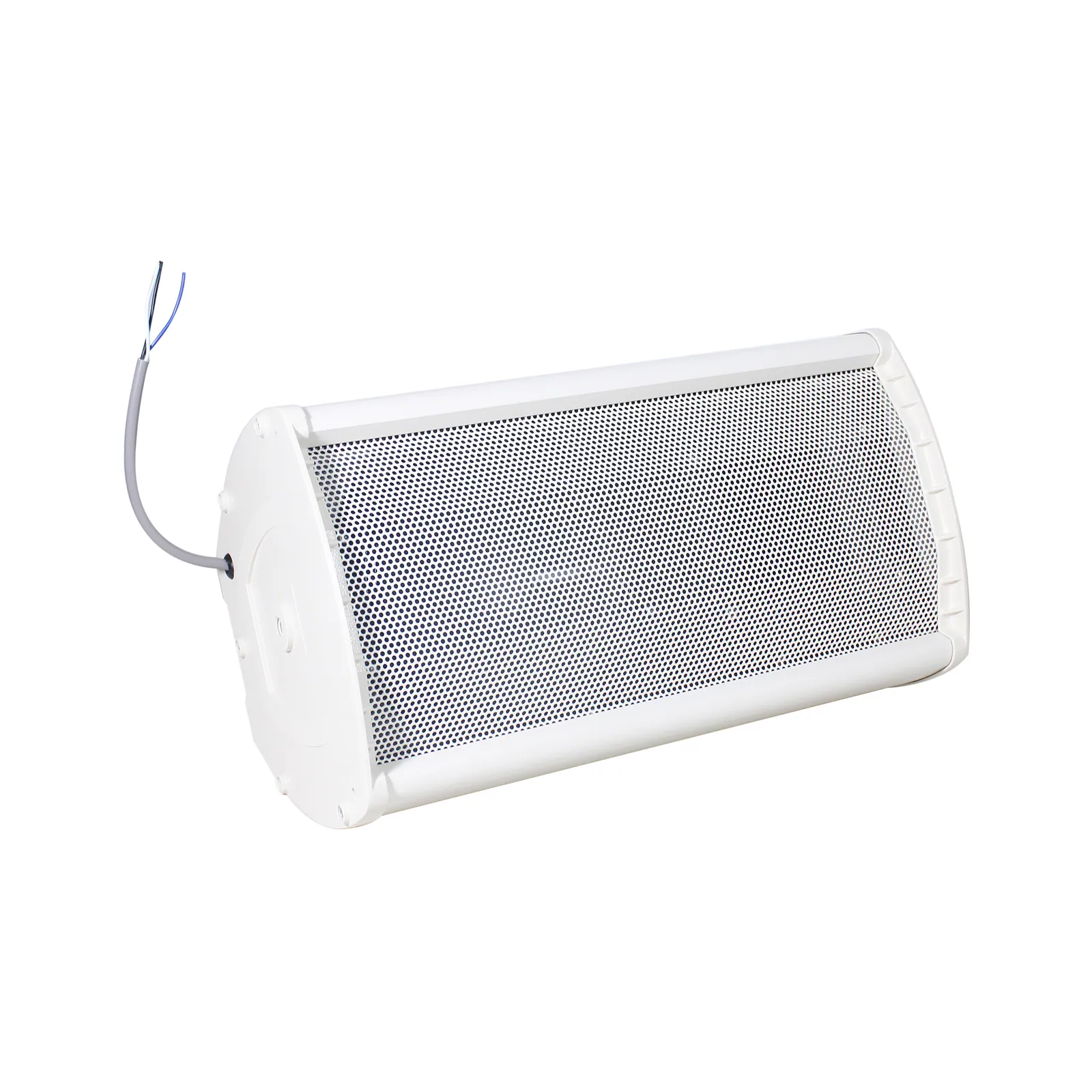

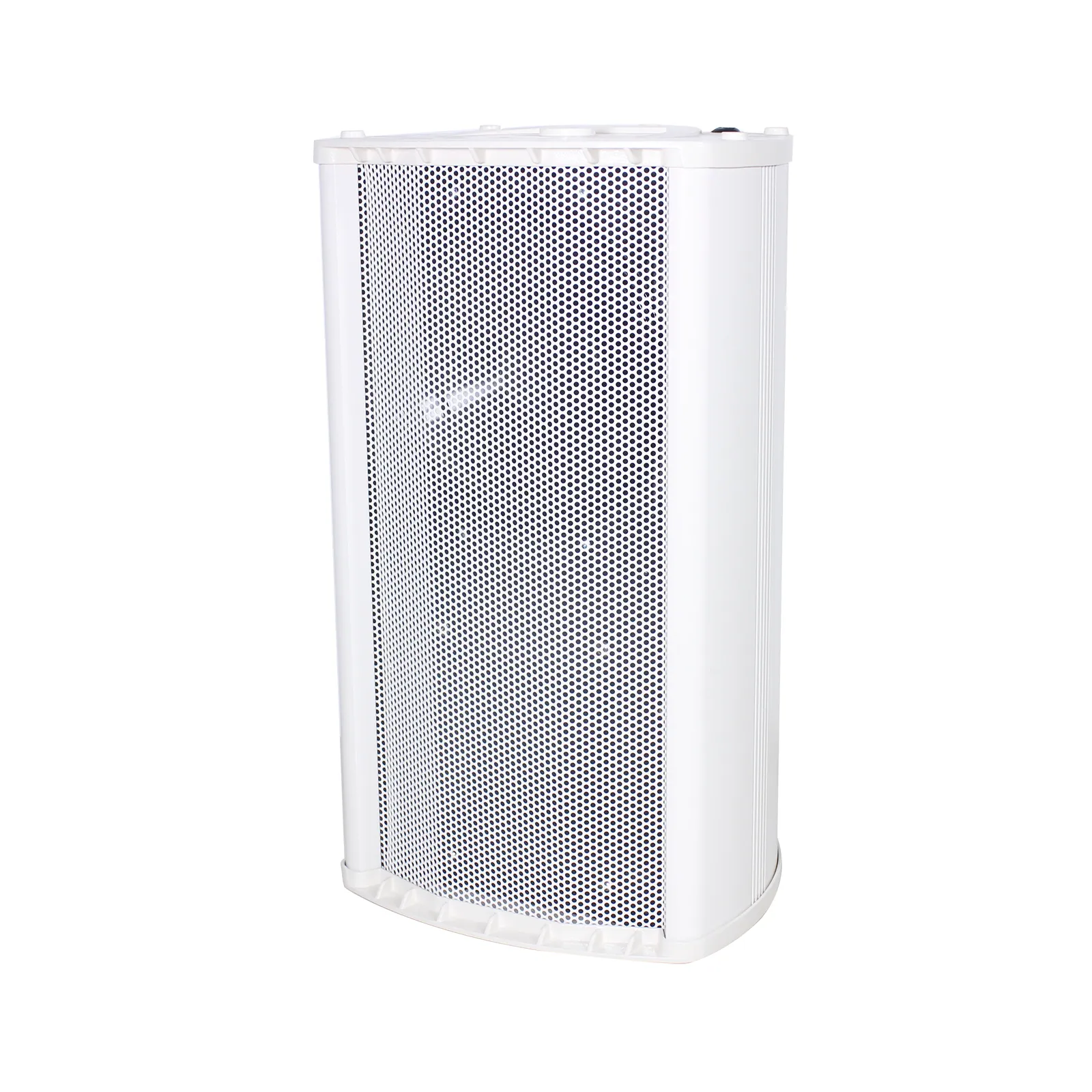

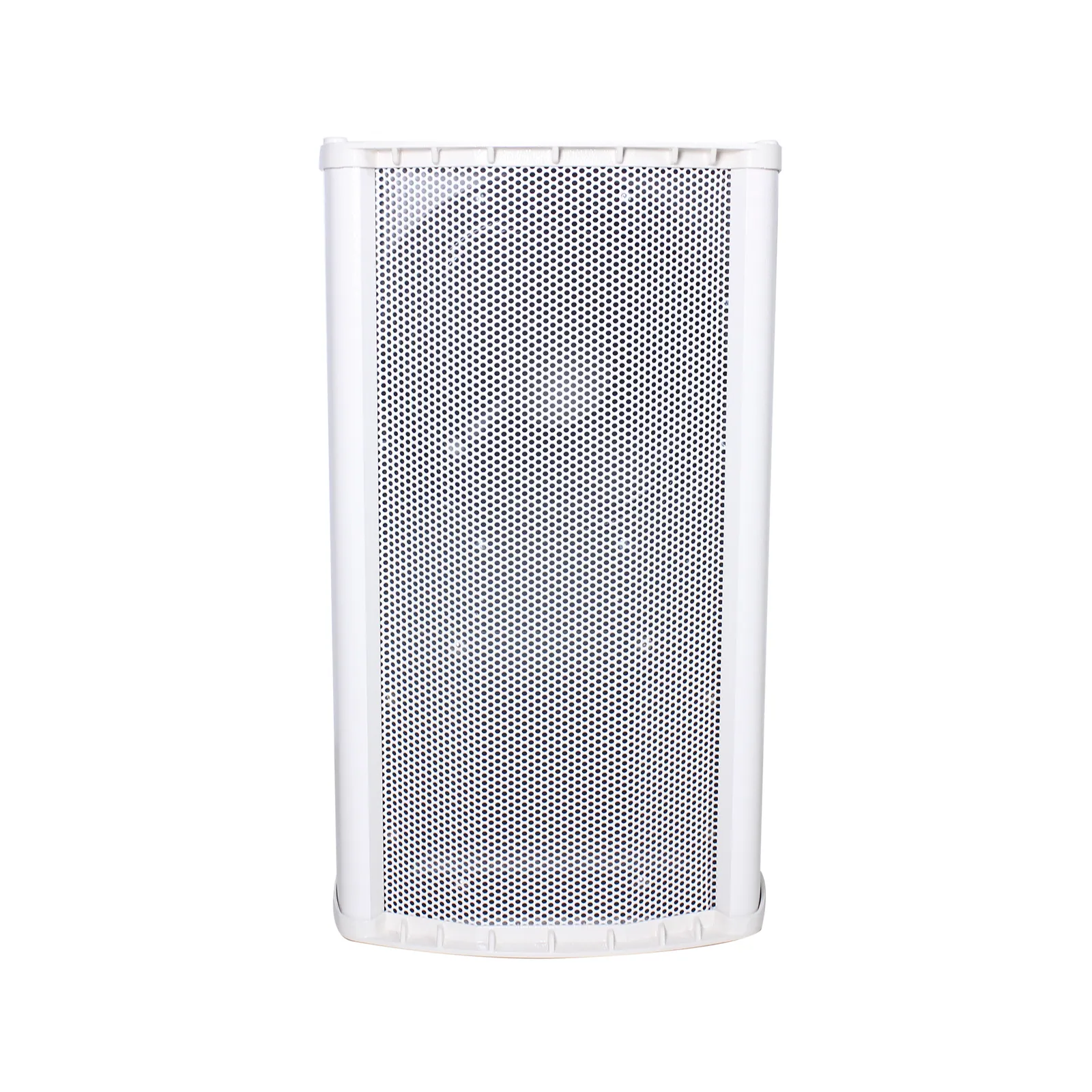

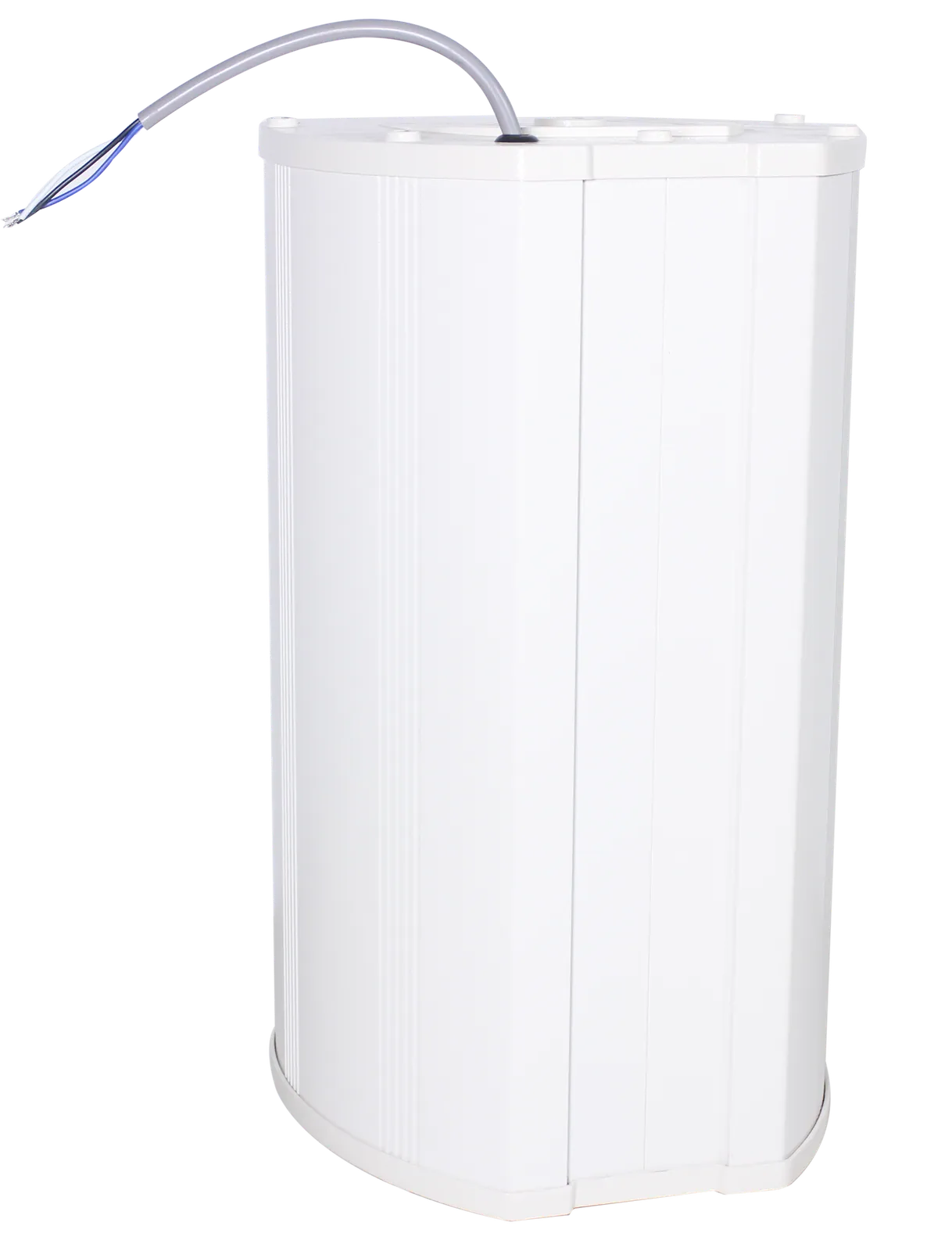

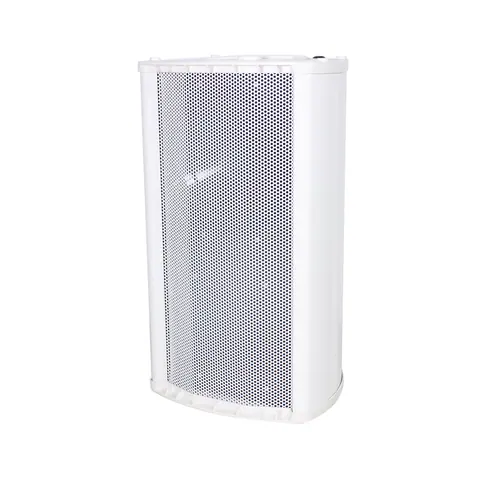

Lucky Tone Outdoor Column Speaker LT-168 / LT-268 / LT-368 / LT-468
ModelLT-168 / LT-268 / LT-368 / LT-468
With built-in 70V/100V transformer, LT series column speaker realizes a highvoltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible.
- Weight
- LT-168: 8.5kg; LT-268: 13kg; LT-368: 17kg; LT-468: 23kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Outdoor Column SpeakerPrice on requestRequest a quotation

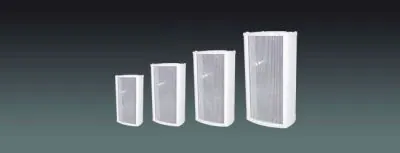

01Models4 models in the family
Models compared.
| MODEL | LT-168 | LT-268 | LT-368 | LT-468 |
|---|---|---|---|---|
| Power at 100V | 30W/60W | 60W/120W | 90W/180W | 120W/240W |
| Power at 70V | 15W/30W | 30W/60W | 45W/90W | 60W/120W |
| Sensitivity(1M/1W) | 91dB | 92dB | 93dB | 94dB |
| Max SPL@ 1M | 107dB | 111dB | 114dB | 116dB |
| Freq. Response | 80Hz-16KHz | 80Hz-16KHz | 80Hz-16KHz | 80Hz-16KHz |
| Installation | Wall mounted | Wall mounted | Wall mounted | Wall mounted |
| Enclosure Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Weight | 8.5kg | 13kg | 17kg | 23kg |
| Product Size(L×W×H) | 230x250x430mm | 230x250x665mm | 230x250x905mm | 230x250x1320mm |
| Finish | White | White | White | White |
| Speaker driver | 8″×1;4″×1 | 8″×2;4″×1 | 8″×3;4″×1 | 8″×4;4″×2 |
02DescriptionManufacturer's description
What it is.
With built-in 70V/100V transformer, LT series column speaker realizes a highvoltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible. It is designed for outdoor occasions such as station, park, school, square, military camp, industrial park, beach, etc.
Features
Elegant outlook
- Weatherproof design for outdoor use with high IP rating.
- Aluminum enclosure & grill
- Built-in 100V/70V transformer
- IPX6 waterproof level for outdoor use
03Documents1 file · 3.6 MB
Documents and files.

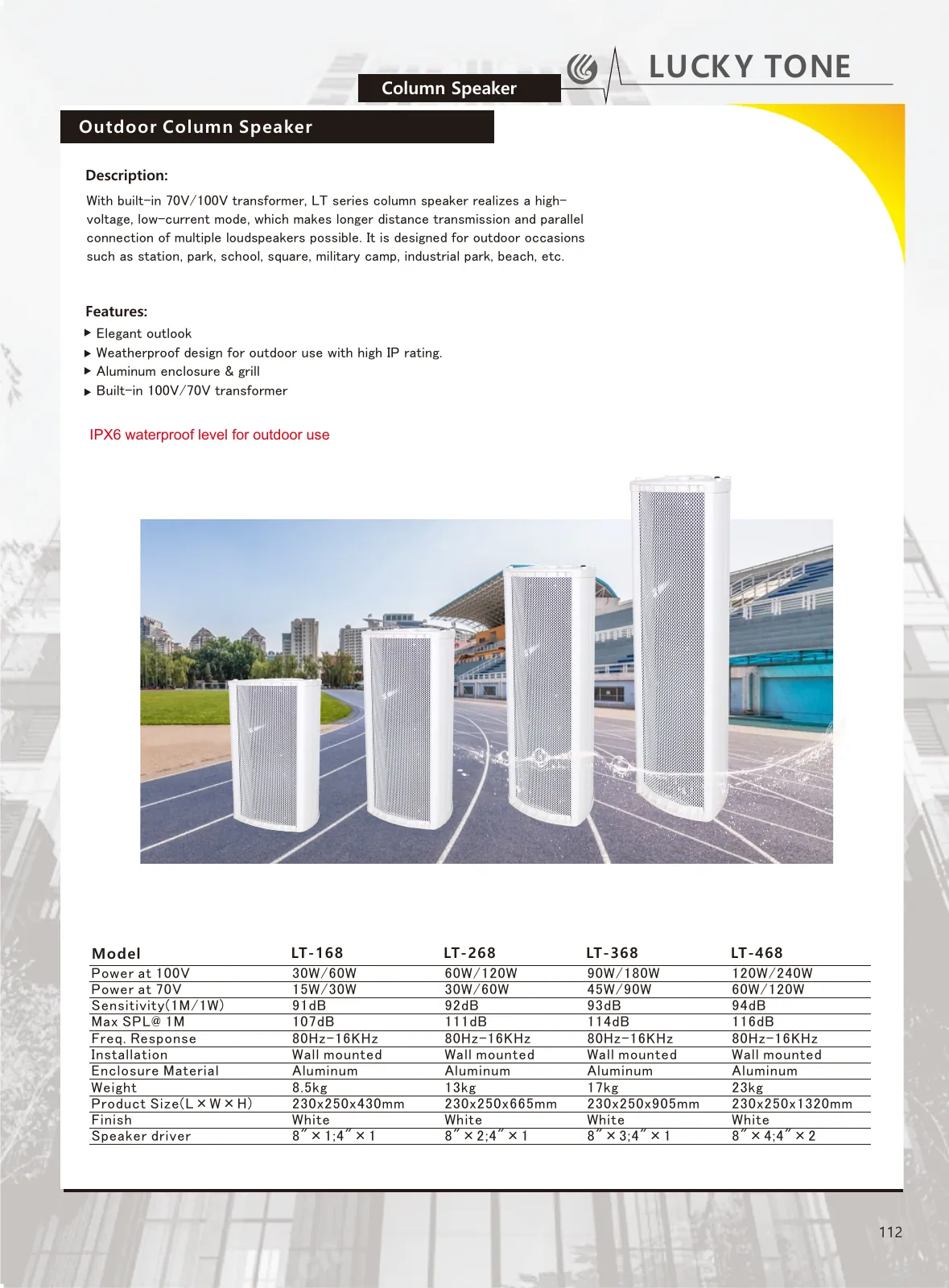

Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
04Related products
In the same range.

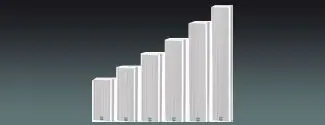

EQ-187Lucky ToneOutdoor Column SpeakerLM-620 / LM-640 / LM-660 / LM-680 / LM-6100 / LM-6120 · LoudspeakersWeightLM-620: 3.20kg; LM-640: 5.00kg; LM-660: 6.80kg; LM-680: 8.60kg; LM-6100: 10.50kg; LM-6120: 12.50kg
EQ-189Lucky ToneOutdoor Column SpeakerLT-266 / LT-466 · LoudspeakersWeightLT-266: 3kg; LT-466: 4kg
EQ-186Lucky ToneOutdoor Column SpeakerLM-510T / LM-520T / LM-530T / LM-540T · LoudspeakersWeightLM-510T: 2.60kg; LM-520T: 4.10kg; LM-530T: 4.40kg; LM-540T: 5.00kg

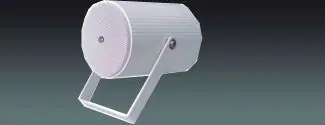

EQ-190Lucky ToneOutdoor Directional SpeakerPJ-510M · LoudspeakersWeight2.20kg05Talk to us
