Sheet 05.187
Lucky Tone · Loudspeakers

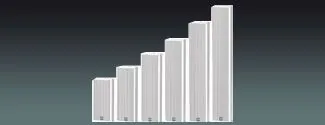

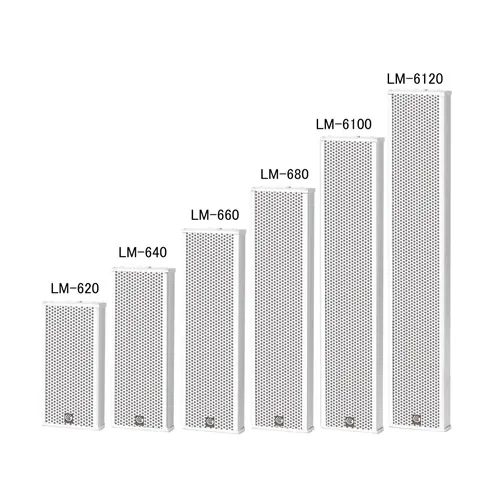

Lucky Tone Outdoor Column Speaker LM-620 / LM-640 / LM-660 / LM-680 / LM-6100 / LM-6120
ModelLM-620 / LM-640 / LM-660 / LM-680 / LM-6100 / LM-6120
● Heavy duty aluminum column speaker for outdoor application with high IP rating
- Weight
- LM-620: 3.20kg; LM-640: 5.00kg; LM-660: 6.80kg; LM-680: 8.60kg; LM-6100: 10.50kg; LM-6120: 12.50kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Outdoor Column SpeakerPrice on requestRequest a quotation
01Models6 models in the family
Models compared.
| MODEL | LM-620 | LM-640 | LM-660 | LM-680 | LM-6100 | LM-6120 |
|---|---|---|---|---|---|---|
| Power at 100V | 10/20W | 20/40W | 30/60W | 40/80W | 50/100W | 60/120W |
| Power at 70V | 5/10W | 10/20W | 15/30W | 20/40W | 25/50W | 30/60W |
| SPL (1W/1M) | 93dB | 93dB | 94dB | 95dB | 96dB | 96dB |
| Max SPL@1M | 105dB | 108dB | 112dB | 116dB | 117dB | 118dB |
| Freq.Response | 130Hz-16KHz | 130Hz-16KHz | 130Hz-16KHz | 130Hz-16KHz | 130Hz-16KHz | 130Hz-16KHz |
| Dispersion Angel | 80x100degree | 80x100degree | 80x100degree | 80x100degree | 80x100degree | 80x100degree |
| Product Size | 304x227x125mm | 520x227x125mm | 736x227x125mm | 952x227x125mm | 1168x227x125mm | 1384x227x125mm |
| Installation | Wall Mounted | Wall Mounted | Wall Mounted | Wall Mounted | Wall Mounted | Wall Mounted |
| Enclosure Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Weight | 3.20kg | 5.00kg | 6.80kg | 8.60kg | 10.50kg | 12.50kg |
| Finish | White | White | White | White | White | White |
| Speakers | 6″x1 Full range | 6″x2 Full range | 6″x3 Full range | 6″x4 Full range | 6″x5 Full range | 6″x6 Full range |
02DescriptionManufacturer's description
What it is.
Features
● Excellent frequency response
● Suitable for both background music and paging
03Documents1 file · 3.0 MB
Documents and files.

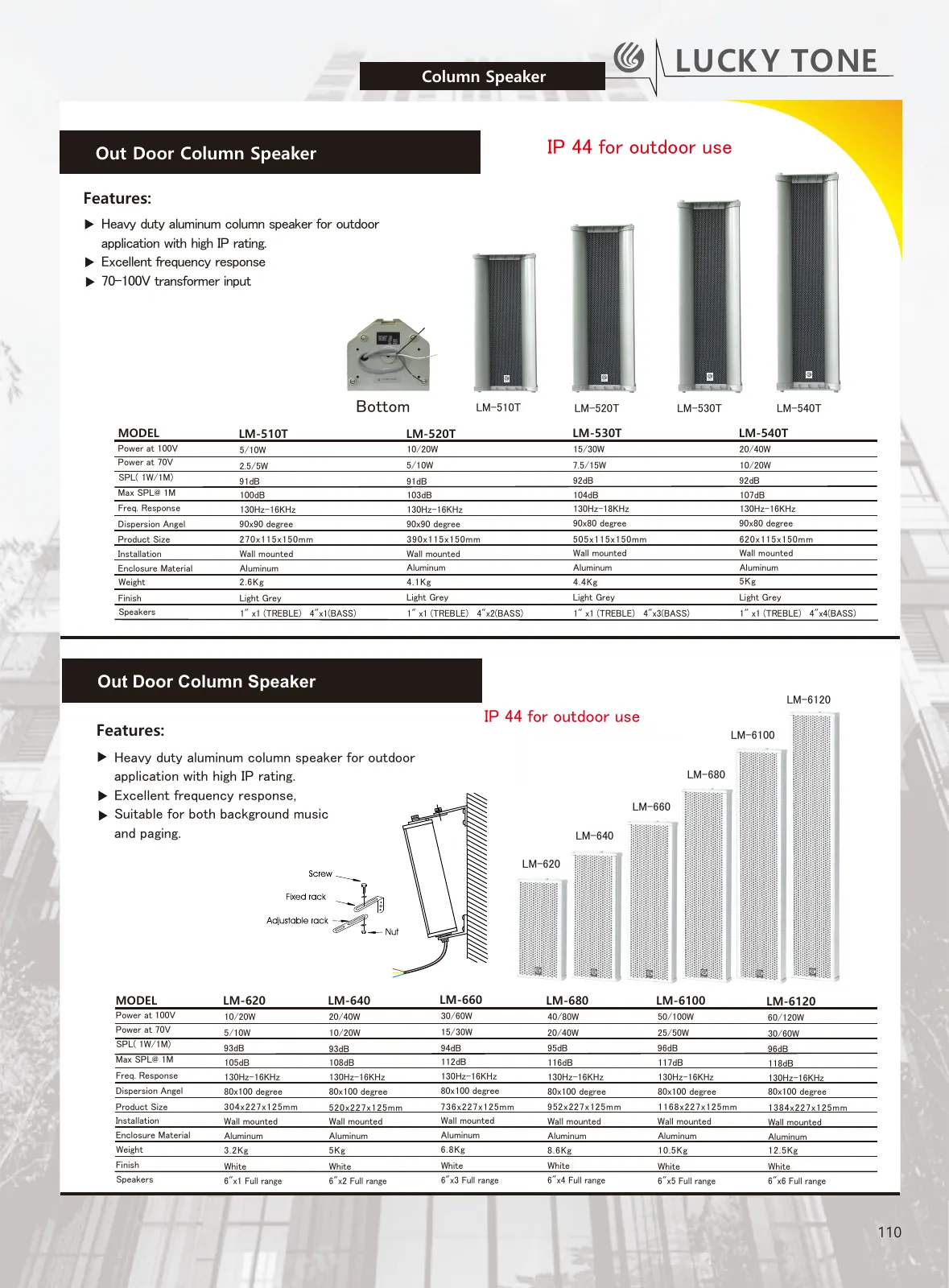

Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
