Sheet 05.186
Lucky Tone · Loudspeakers

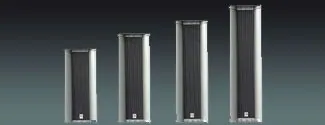

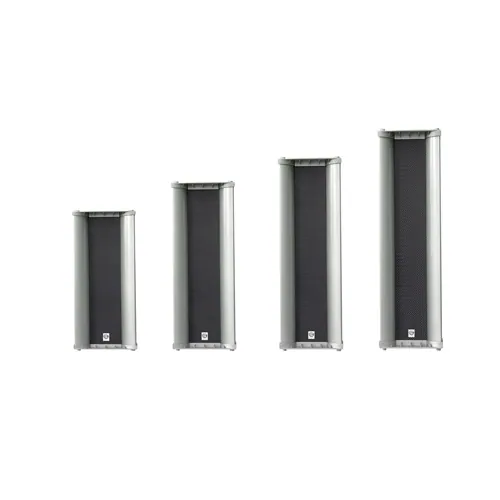

Lucky Tone Outdoor Column Speaker LM-510T / LM-520T / LM-530T / LM-540T
ModelLM-510T / LM-520T / LM-530T / LM-540T
● Heavy duty aluminum column speaker for outdoor application with high IP rating.
- Weight
- LM-510T: 2.60kg; LM-520T: 4.10kg; LM-530T: 4.40kg; LM-540T: 5.00kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Outdoor Column SpeakerPrice on requestRequest a quotation
01Models4 models in the family
Models compared.
| MODEL | LM-510T | LM-520T | LM-530T | LM-540T |
|---|---|---|---|---|
| Power at 100V | 5/10W | 10/20W | 15/30W | 20/40W |
| Power at 70V | 2.5/5W | 5/10W | 7.5/15W | 10/20W |
| SPL (1W/1M) | 91dB | 91dB | 92dB | 92dB |
| Max SPL@1M | 100dB | 103dB | 104dB | 107dB |
| Freq.Response | 130Hz-16KHz | 130Hz-16KHz | 130Hz-16KHz | 130Hz-16KHz |
| Dispersion Angel | 90×90 degree | 90×90 degree | 90×80 degree | 90×80 degree |
| Product Size | 270x115x150mm | 390x115x150mm | 505x115x150mm | 620x115x150mm |
| Installation | Wall Mounted | Wall Mounted | Wall Mounted | Wall Mounted |
| Enclosure Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Weight | 2.60kg | 4.10kg | 4.40kg | 5.00kg |
| Finish | Light Grey | Light Grey | Light Grey | Light Grey |
| Speakers | 1″ x1 (TREBLE) 4″x1(BASS) | 1″ x1 (TREBLE) 4″x2(BASS) | 1″ x1 (TREBLE) 4″x3(BASS) | 1″ x1 (TREBLE) 4″x4(BASS) |
02DescriptionManufacturer's description
What it is.
Features
● Excellent frequency response
● 70-100V transformer input
