Sheet 05.379
Lucky Tone · Public address

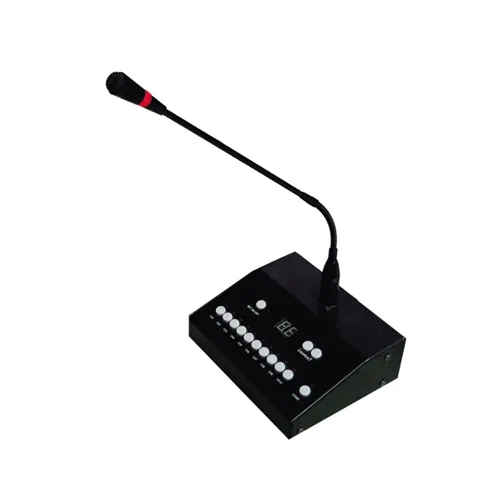

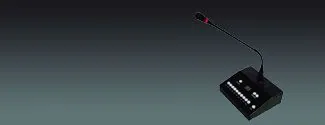

160 Zone Paging Station
ModelAL-10R
● Flexible with long distance audio transmission
- Frequency response
- MIC:100Hz – 10kHz (+/- 3dB); Line: 20Hz – 15kHz
- Dimensions
- 80(H) x 75(W) x 205(D) mm
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
160 Zone Paging StationPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 11 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications11
- MODEL
- AL-10R
- Inputs
- Gooseneck mic: 600 ohms, 5mV, unbalanced, XLR
- Inputs
- Line in: 10k ohms, 775mV, unbalanced, RCA jack
- Inputs
- Line out: bigger than 775mV,(0dB) unbalanced
- Control Zones
- Channel 1 to 10
- Frequency Response
- MIC:100Hz – 10kHz (+/- 3dB); Line: 20Hz – 15kHz
- Signal to Noise Ratio
- Better than 70dB
- THD
- Less than 0.1% at 1KHz
- Power Consumption
- 5~10W
- Power Requirement
- 220~240V AC, 50/60Hz
- Dimensions
- 80(H) x 75(W) x 205(D) mm
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Features
- ● Paging up to 16pcs of AL10P at 160 zones
- ● Long distance at 1KM
- ● Built-in pleasant chime
- ● High resolution LED showing the address of AL-10P paging to
- ● With high sensitivity gooseneck microphone and line in
- ● Up to 4pcs of AL-10R for the system
- ● Automatic mute function
- ● All call function
