Sheet 05.399
Lucky Tone · Public address

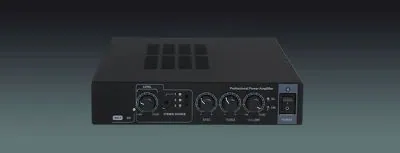

Lucky Tone Power Amplifier MPA 200
ModelMPA 200
MPA 200 is an installation amplifier which incorporates 3 line inputs(input 1 with bluetooth function), with selector and its own volume control two tone controls and LEDs which mark the signal presence and limit mode.
- Output power
- 2x 100W @ 8Ω / 200W (70/100V Line)
- Frequency response
- 20 Hz-20kHz, 0dB – 0.5dB
- Dimensions
- 215x48x264mm(WxHxD)
- Weight
- 2.3 kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Power AmplifierPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 8 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications8
- MODEL
- MPA 200
- Output Power
- 2x 100W @ 8Ω / 200W (70/100V Line)
- Audio Inputs
- 3 LINE (unbalanced), 1 MIC, 1 RJ45 (RS485 commands)
- THD +N
- 1 kHz, 15W, 8Ω/16Ω, 0.1% 1 kHz, 30W, 70V/100V, 0.2%
- Frequency Response
- 20 Hz-20kHz, 0dB – 0.5dB
- Main Supply AC power
- 100 – 240 V, 50/60Hz
- Dimensions
- 215x48x264mm(WxHxD)
- Weight
- 2.3 kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
MPA 200 is an installation amplifier which incorporates 3 line inputs(input 1 with bluetooth function), with selector and its own volume control two tone controls and LEDs which mark the signal presence and limit mode. Additionally, the amplifier incorporates microphone input, providing a mixing function and adding several features which set the system according to the installation requirements. These functions that can be set are:
– MIC priority
- – Mono/stereo input mode
- – 3 gain levels in MIC input
- – 3 anti-feedback presets in MIC input
03Documents1 file · 1.2 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
