Sheet 05.401
Lucky Tone · Public address

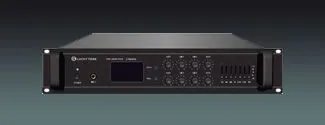

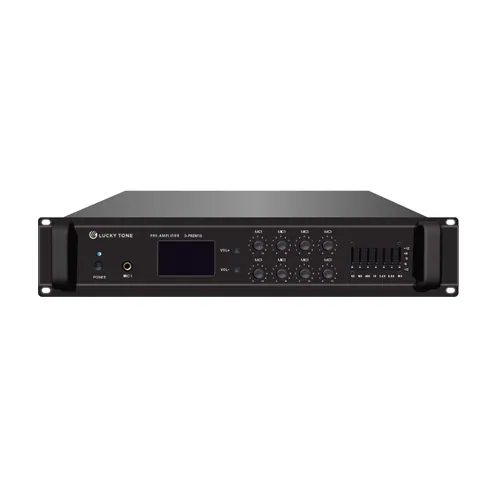

Pre-amplifier
ModelD-PREM10
● Provides versatile inputs to connect with external audio sources
- Frequency response
- 60Hz – 16kHz (+/- 3dB)
- Dimensions
- 89(H) x 483(W) x 350(D) mm
- Weight
- 5.10kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Pre-amplifierPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 22 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications22

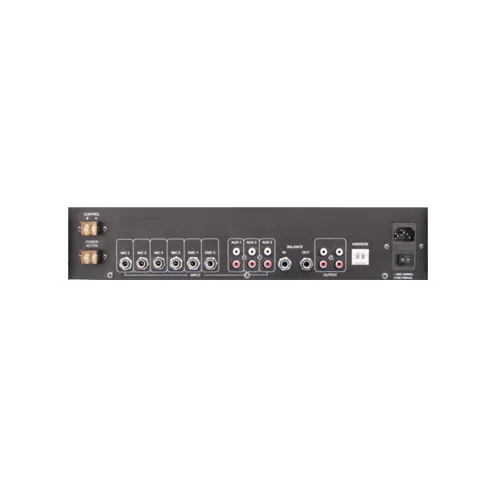

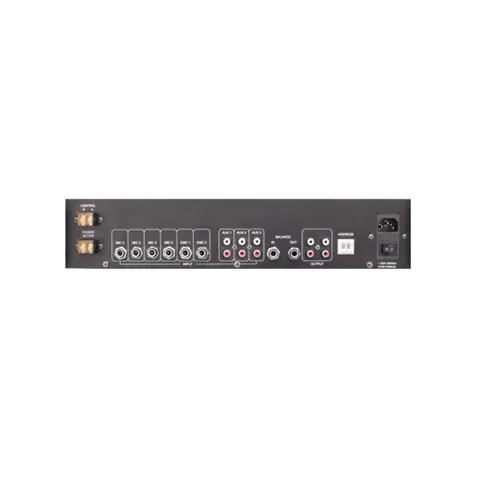

- MODEL
- D-PREM10
- Input
- MIC 1, 2, 3, 4,5: 600 ohms, 5mV, unbalanced, phone jack
- Input
- AUX 1, 2,3, 10k ohms,330mV, unbalanced, RCA jack
- Input
- Aux3:10k ohms,10v balanced
- Input
- EMC 1, 2: 10k ohms, 330mV, unbalanced, phone jack
- Output
- 10k ohms, 775mV, 0 dB, unbalanced,RCA jack
- Output
- 1 trigger out
- Frequency Response
- 60Hz – 16kHz (+/- 3dB)
- S/N Ratio
- Better than 70dB
- THD
- Less than 0.01% at 1KHz
- Master Volume Control
- 32 steps, digital control
- Mute Function
- MIC1 has the highest priority overrides all other inputs,EMC1
- Mute Function
- and EMC2 have the second highest priority override other inputs
- Controls
- 8 input volume controls,2 output volume controllers
- Controls
- (VOL+,VOL-),1 power switch,7 band equalizer
- Indicators
- Power LED
- Protection
- AC Fuse: 0.5A
- Power Consumption
- 10~15W
- Power Requirement
- AC 220V ± 10% 50-60Hz; 24VDC
- Dimensions
- 89(H) x 483(W) x 350(D) mm
- Net Weight
- 5.10kg
- Gross Weight
- 6.30kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Features
- ● With priority settings for inputs
- ● Can be worked with D-EMP3 to deliver emergency announcement
- ● Individual gain control for inputs with master volume control
- ● Bass and Treble adjustment
- ● With 7-band Equalizer
