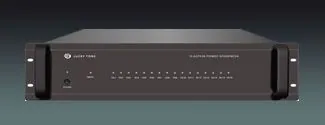

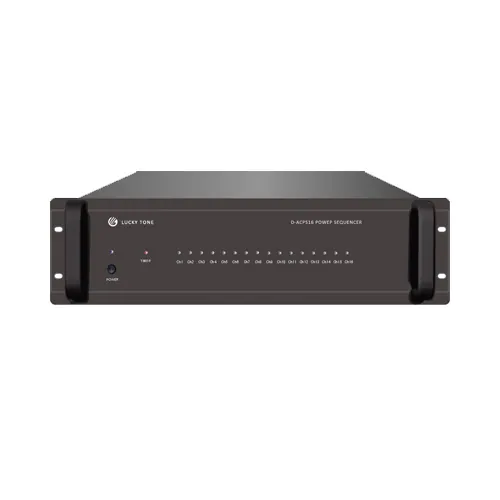

Power Sequencer

ModelD-ACPS16

● Manage power supply for up to 16 system components in orders

Power supply: AC 220V ± 10% 50-60Hz
Dimensions: 133(H) x 483(W) x 390(D) mm

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 11 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications11

MODEL: D-ACPS16
Channels: 16 Channels (CH1~CH16)
Input: AC 220V, 20A
Output: 280W / Channel
Sequence Interval: 0.4~0.5S
Power Handling: 2KW total capacity
Controls: Power ON/OFF switch
Power Consumption: 25~30W
Indicators: POWER, CH1 ~ CH16, TIMER
Power Supply: AC 220V ± 10% 50-60Hz
Dimensions: 133(H) x 483(W) x 390(D) mm

02DescriptionManufacturer's description

What it is.

Features

● AC mains overload prevention
● Total capacity support 2 KW
● Can be worked with D-T6

03Related products

EQ-399Lucky TonePower AmplifierMPA 200 · Public addressOutput power2x 100W @ 8Ω / 200W (70/100V Line)Frequency response20 Hz-20kHz, 0dB – 0.5dBDimensions215x48x264mm(WxHxD)

EQ-401Lucky TonePre-amplifierD-PREM10 · Public addressFrequency response60Hz – 16kHz (+/- 3dB)Dimensions89(H) x 483(W) x 350(D) mmWeight5.10kg

EQ-398Lucky TonePower AmplifierD-AMP360 / D-AMP460 / D-AMP660 · Public addressOutput powerD-AMP360: 360W; D-AMP460: 460W; D-AMP660: 660W; :Frequency responseD-AMP360: 60 – 15,000 Hz, +/- 3dB; D-AMP460: ; D-AMP660: ; :DimensionsD-AMP360: 133(H) x 496(W) x 483(D) mm; D-AMP460: ; D-AMP660: ; :

EQ-402Lucky TonePre-amplifier with Multi Versatile InputAL-11P · Public addressFrequency response60Hz – 15kHz (+/- 3dB)Dimensions89(H) x 483(W) x 366(D) mm
