Lucky Tone New Class D Desktop Mixer Amplifier Mpro-30 / Mpro-60 / Mpro-120
ModelMpro-30 / Mpro-60 / Mpro-120
Three line and two microphone inputs with Euro block and RCA jack.
- Output power
- Mpro-30: 30W; Mpro-60: 60W; Mpro-120: 120W
- Frequency response
- 80Hz-17KHz ( +1dB /-3dB )
- Weight
- Mpro-30: 2.1kg; Mpro-60: 2.5kg; Mpro-120: 3.3kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
New Class D Desktop Mixer AmplifierPrice on requestRequest a quotation
01Models3 models in the family
Models compared.
| Model | Mpro-30 | Mpro-60 | Mpro-120 |
|---|---|---|---|
| Rated Output Power | 30W | 60W | 120W |
| Input sensitivity / Impedance | MIC: -50dB/600ohm Line: 6dB/10kohm | MIC: -50dB/600ohm Line: 6dB/10kohm | MIC: -50dB/600ohm Line: 6dB/10kohm |
| Power Supply Voltage | 100-240V 50/60Hz | 100-240V 50/60Hz | 100-240V 50/60Hz |
| Power Consumption | 65W | 95W | 165W |
| Speaker Output | 100V( 333Ω),70V( 163Ω), 4Ω(11V) ; 100V( 166Ω),70V( 82Ω),4Ω(15V) | 100V( 333Ω),70V( 163Ω), 4Ω(11V) ; 100V( 166Ω),70V( 82Ω),4Ω(15V) | 100V( 333Ω),70V( 163Ω), 4Ω(11V) ; 100V( 166Ω),70V( 82Ω),4Ω(15V) |
| Frequency Response | 80Hz-17KHz ( +1dB /-3dB ) | 80Hz-17KHz ( +1dB /-3dB ) | 80Hz-17KHz ( +1dB /-3dB ) |
| S/N Ratio | >80dB (with A-Weight) | >80dB (with A-Weight) | >80dB (with A-Weight) |
| T.H.D | <1 at rated power, 1kHz | <1 at rated power, 1kHz | <1 at rated power, 1kHz |
| Microphone input | -50dB/600Ω, unbalanced input | -50dB/600Ω, unbalanced input | -50dB/600Ω, unbalanced input |
| Auxiliary input | 0dBu/10KΩ, unbalanced input | 0dBu/10KΩ, unbalanced input | 0dBu/10KΩ, unbalanced input |
| Tone Controls | Bass:100Hz(±10dB), Treble:10KHz(±10dB) | Bass:100Hz(±10dB), Treble:10KHz(±10dB) | Bass:100Hz(±10dB), Treble:10KHz(±10dB) |
| Mute Function | MIC over other inputs | MIC over other inputs | MIC over other inputs |
| Working Temperature | -10°C~+ 40° C | -10°C~+ 40° C | -10°C~+ 40° C |
| Product Dimension (WxHxD) | 280x60x200 mm | 280x60x200 mm | 280x60x200 mm |
| Net Weight | 2.1kg | 2.5kg | 3.3kg |
02DescriptionManufacturer's description
What it is.
- Acceptable wide range input level.
- 30Watts(MPro-30) / 60Watts(MPro-60) / 120Watts(MPro-120) output.
- Advanced protection system includeds current limiting, over current and thermal protections.
Desktop type
- Two bands tone controls
- Low distortion and low noise level
- Compact size and light weight
- Ideal commercial and industrial use
Functions
Controls

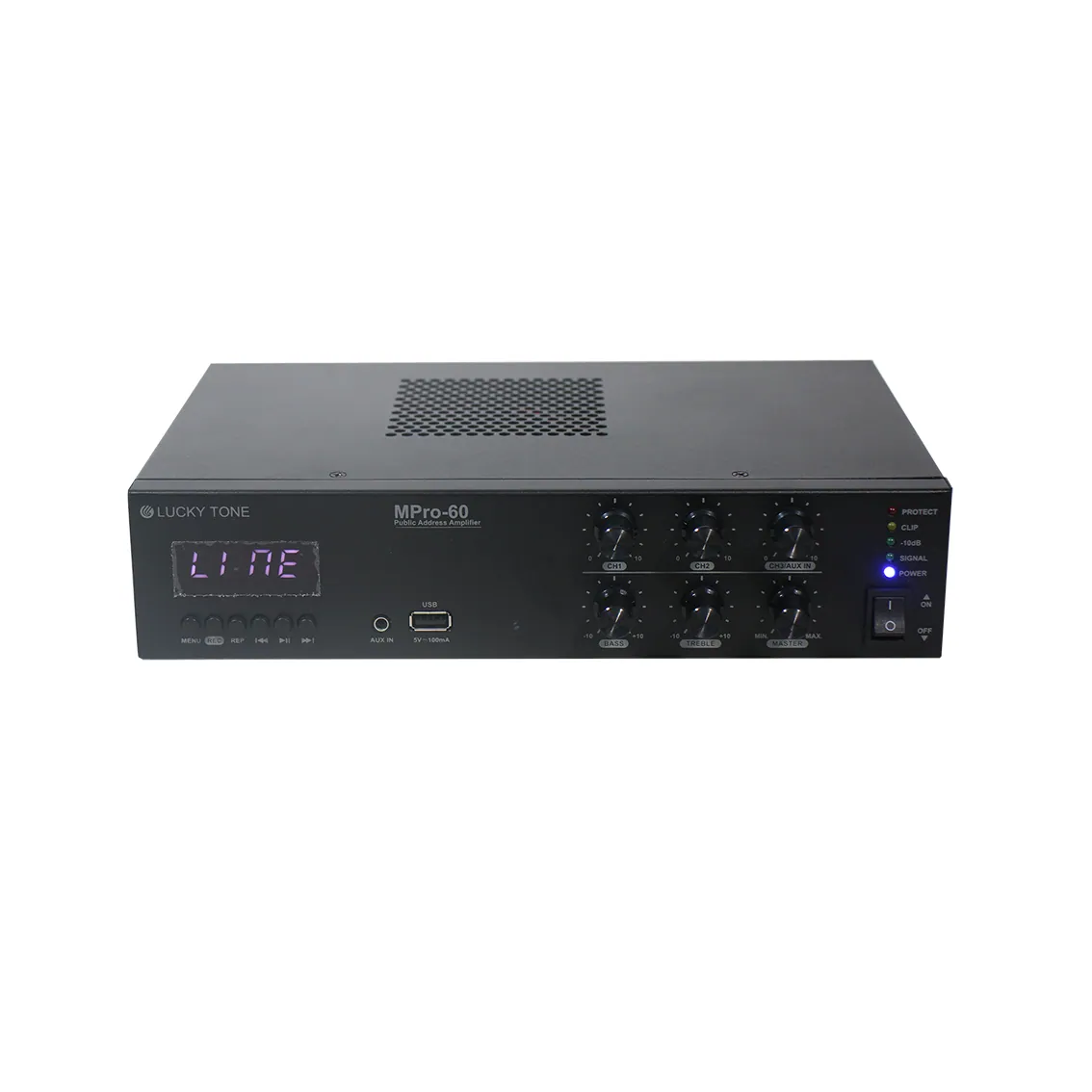

- Front : 3 Channel Volume Control & Tone Control, Master Volume
- Control.

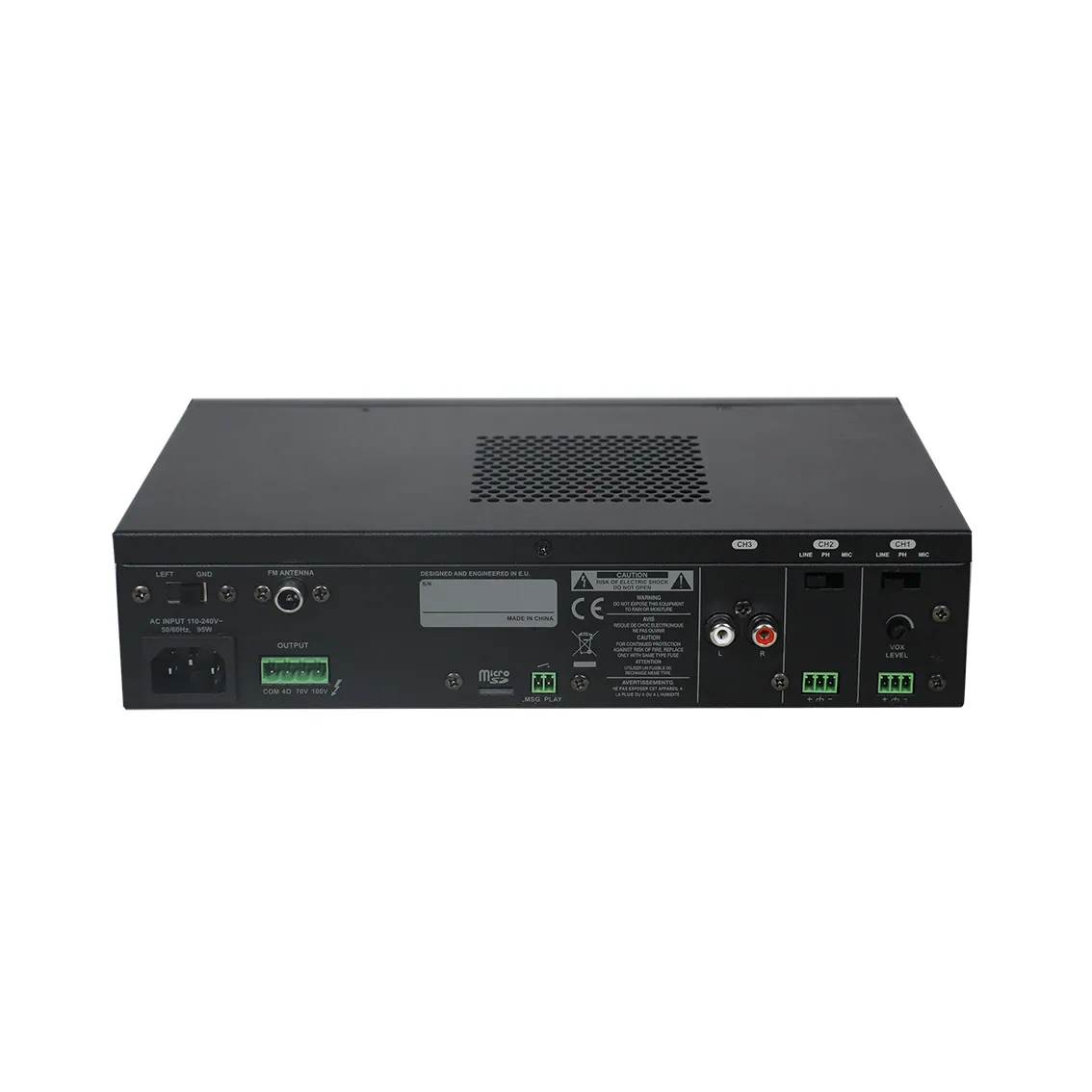

- Rear : Line/MIC selector, Talkover level volume, Phantom Switch ,Ground lift Switch, Message play and stop.
Connectors
- Euro Block for Channel 1-2 Input and USB.
- RCA and AUX phone for Channel 3 Input.
- Euro Block for Speaker Output and FM antenna input.
- Message play : playback the recorded message with micro sd card on the rear panel.
- Media Player : MP3 play, Record to USB memory, Bluetooth, FM.
- Indicators : Power, Signal, -10dB, Clip and Protect.
- Protection : Current Limiting, Thermal & DC Offset Protection.
- Cooling : Convection Cooling.
03Documents1 file · 2.0 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
