Sheet 05.394
Lucky Tone · Public address

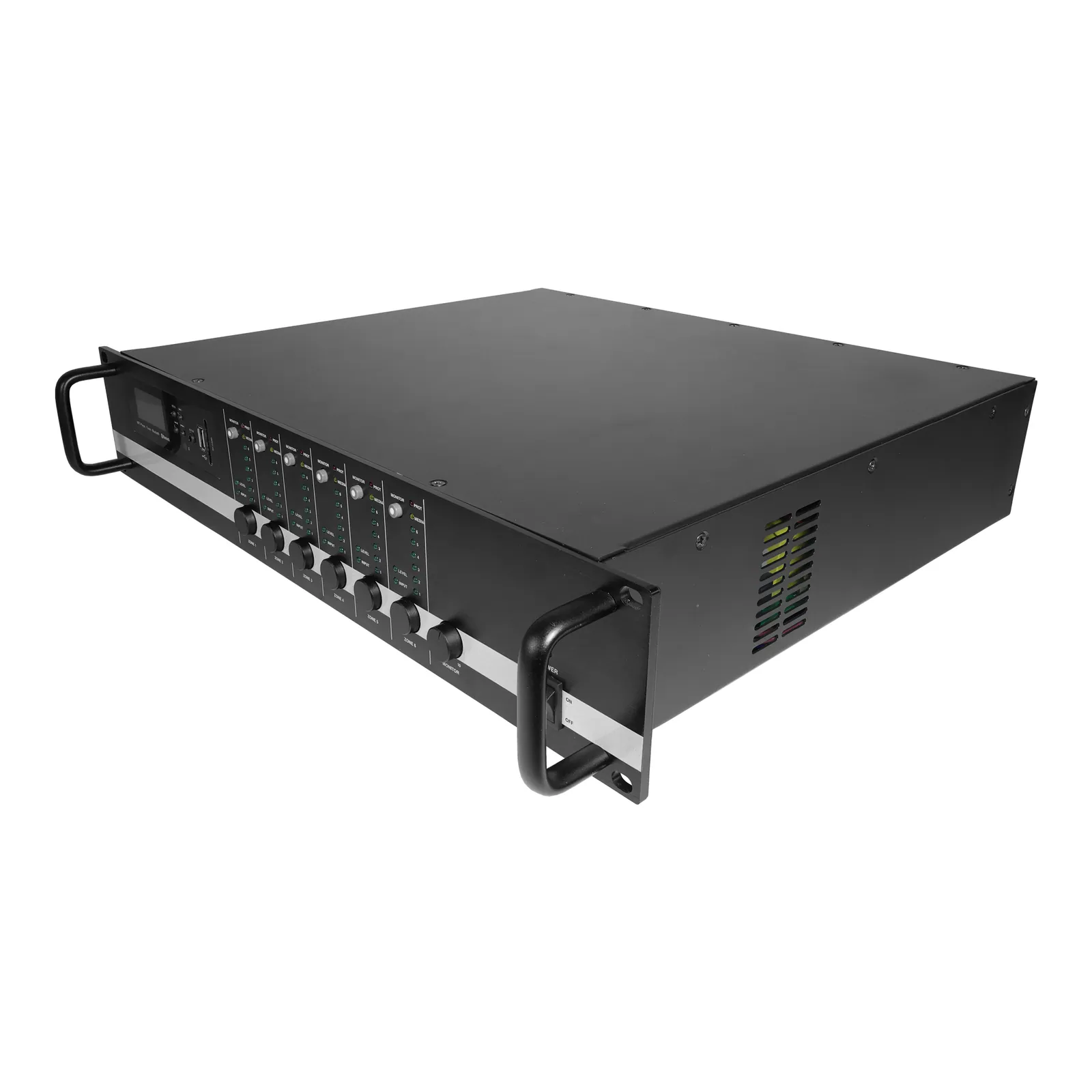

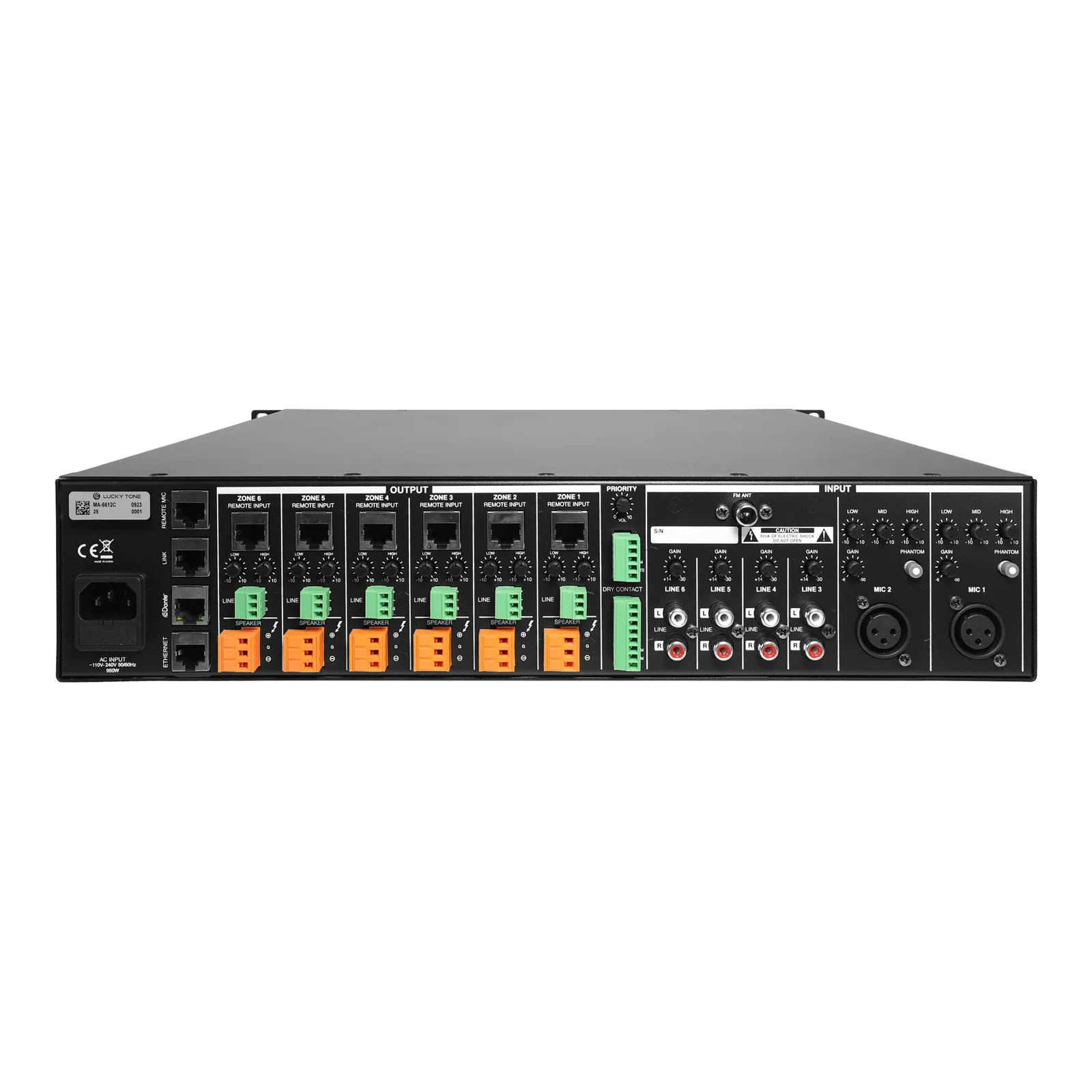

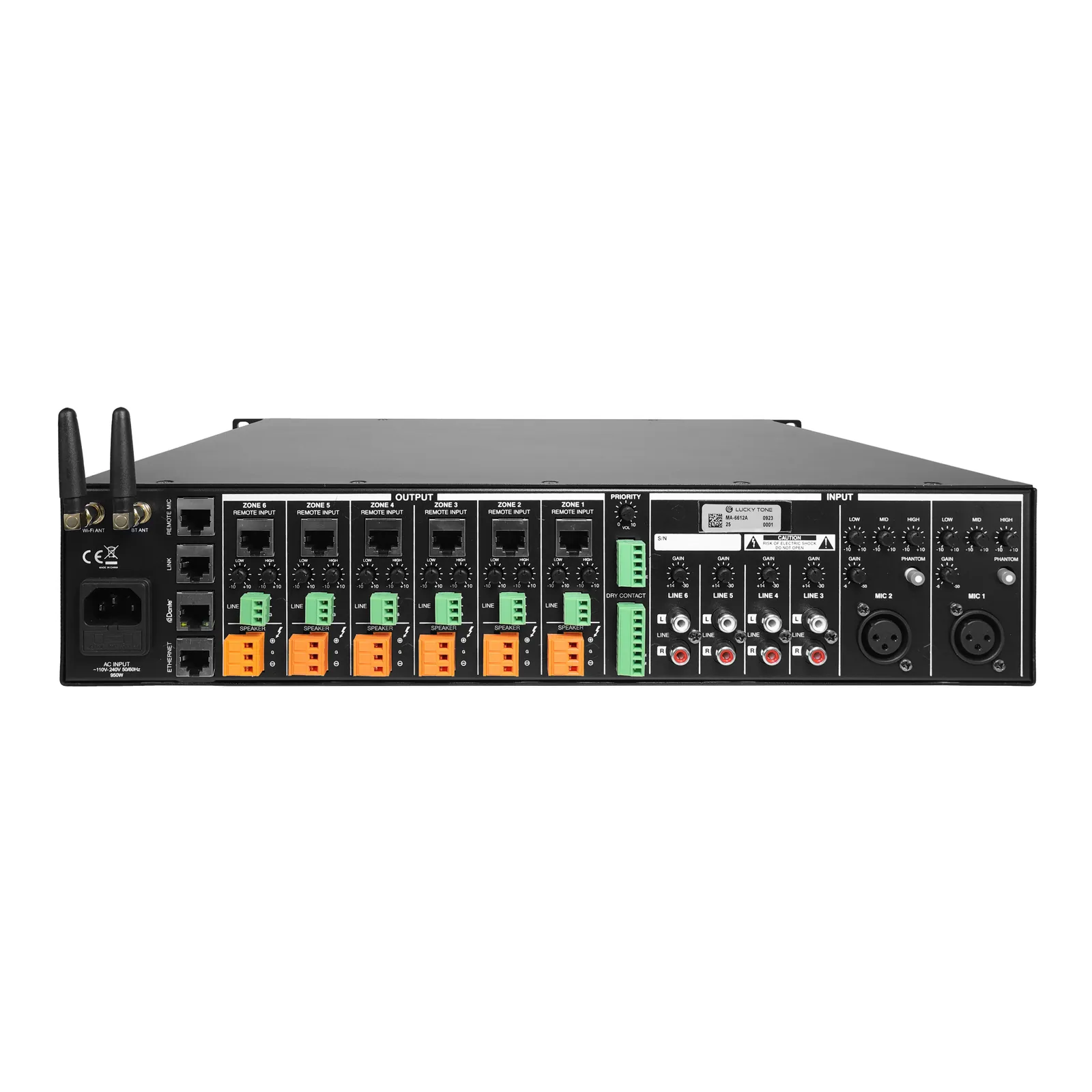

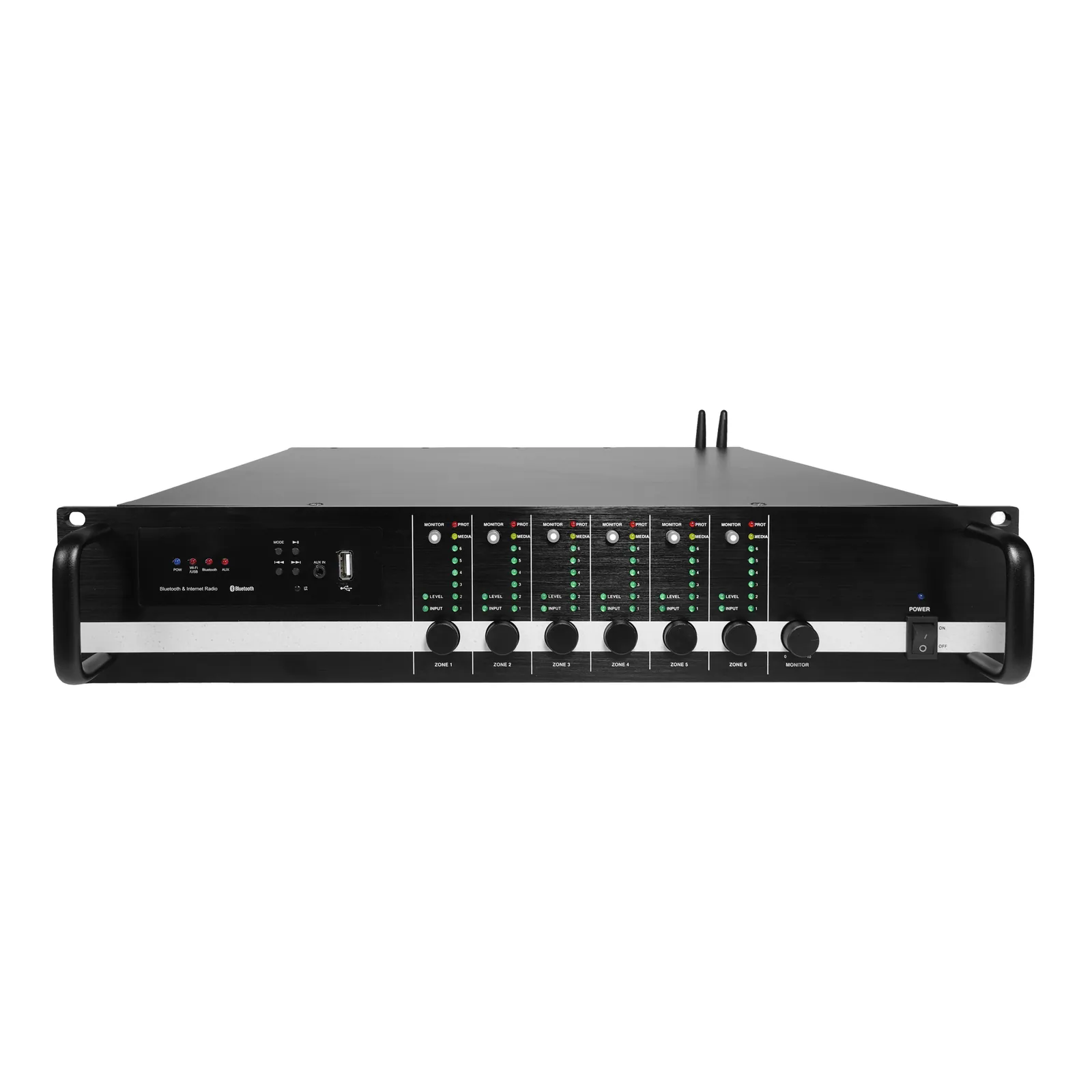

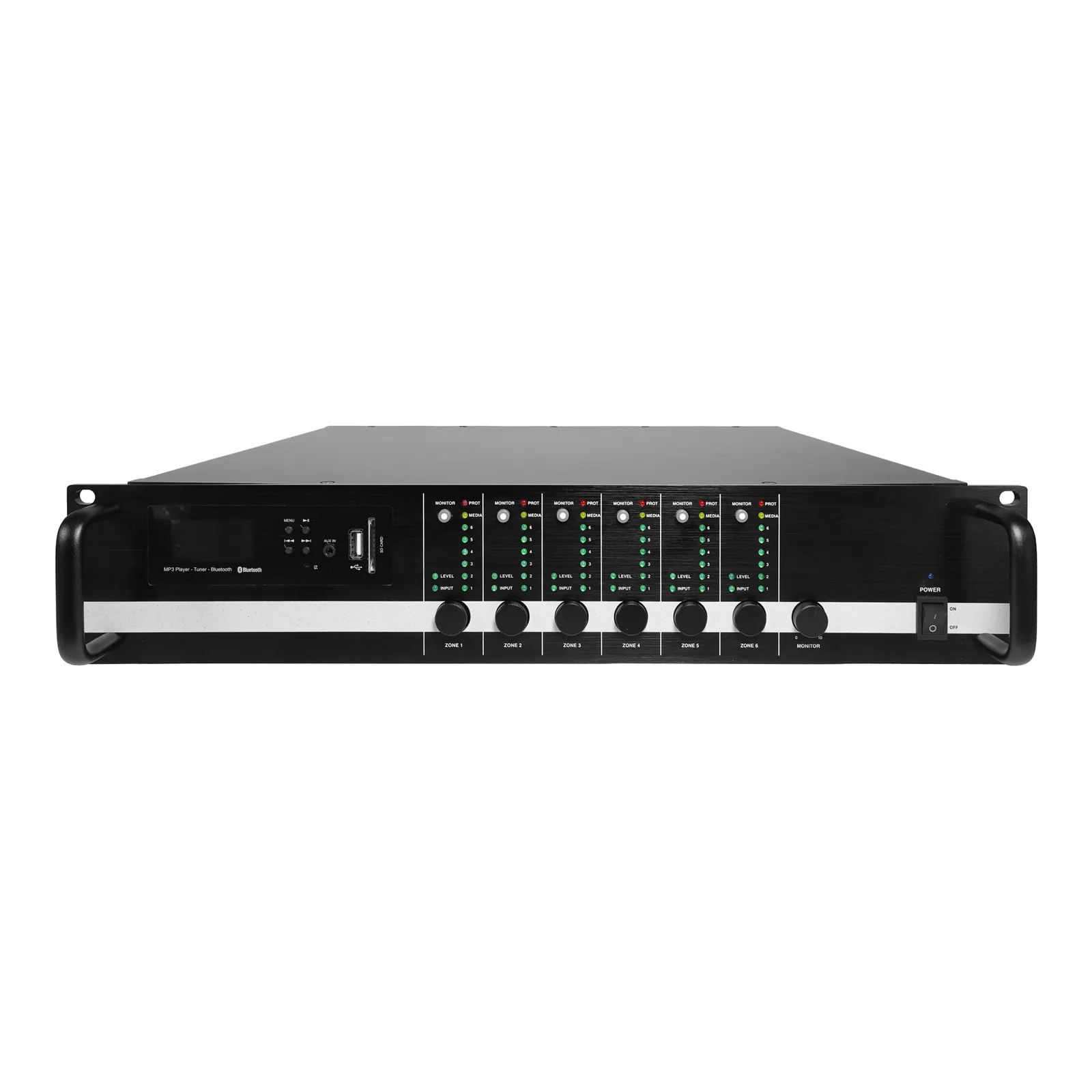

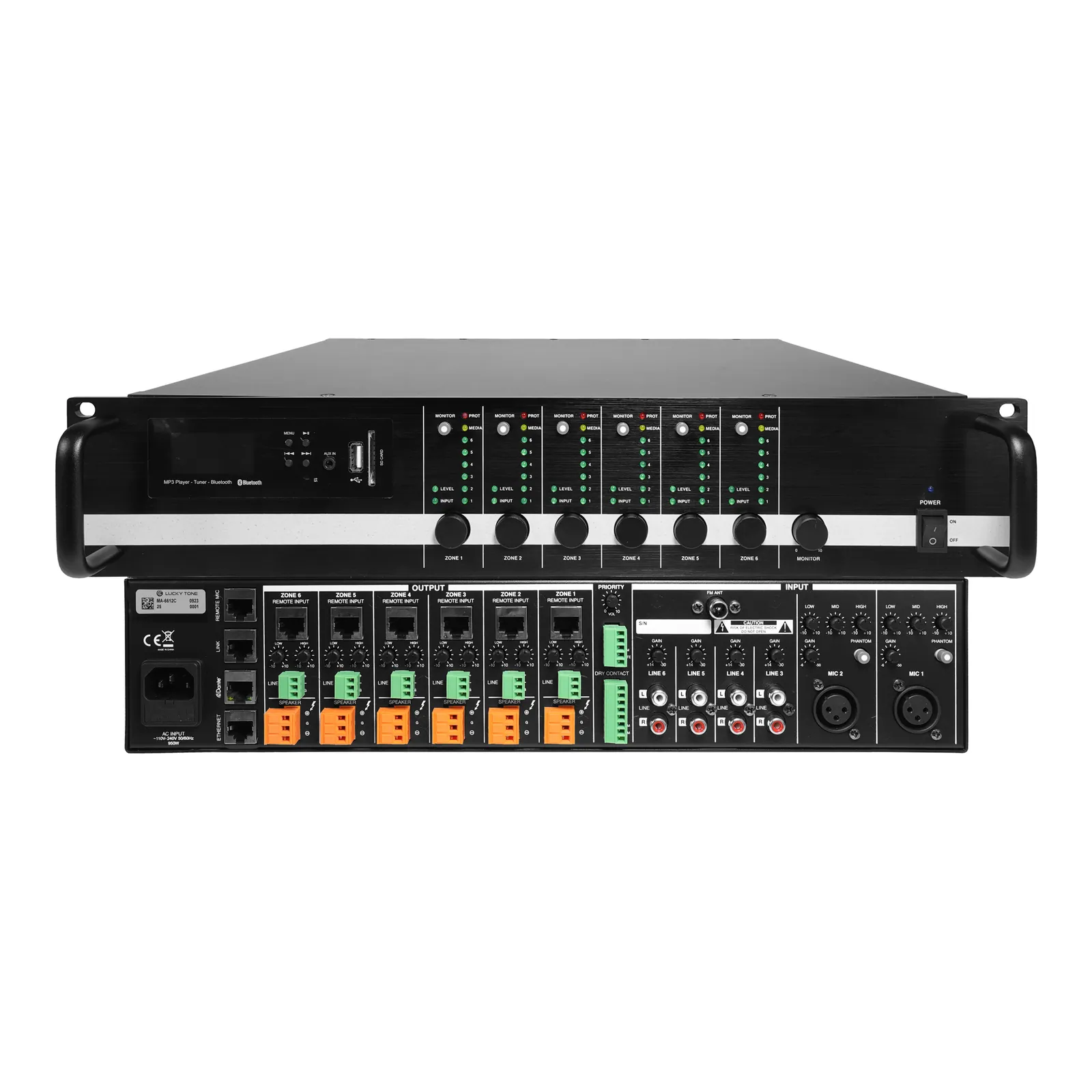

Matrix Amplifier with Dynamic Power Sharing
ModelMA-6612A
– Dynamic Power Sharing across all channels
- Dimensions
- 483×88×440mm
- Weight
- 10.5kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Matrix Amplifier with Dynamic Power SharingPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 15 values
What this product is, in numbers.

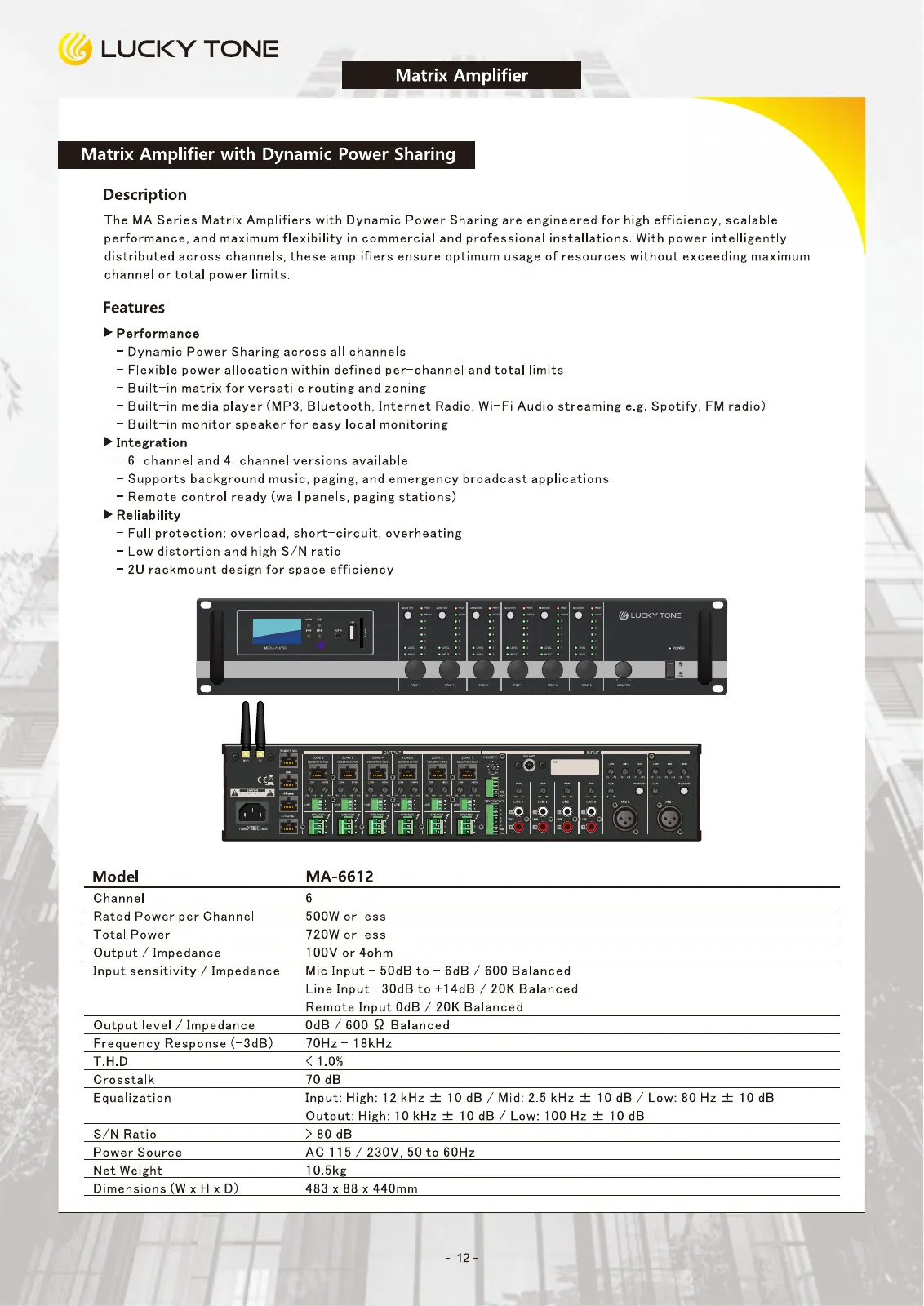

PDFSpecifications1.8 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications15
- Model
- MA-6612A
- Channel
- 6
- Rated Power per Channel
- 500W or less
- Total Power
- 720W or less
- Output /Impedance
- 100V or 4ohm
- Input sensitivity /Impedance
- Mic Input-50dB to-6dB/600 Balanced Line Input -6dB to+14dB/20K Balanced Remote Input OdB/20K Balanced
- Output level/Impedance
- 0dB/600 Ω Balanced
- Frequency Response(-3dB)
- 70Hz-18kHz
- T.H.D
- <1.0%
- Crosstalk
- 70 dB
- Equalization
- Input:High:12kHz±10 dB/Mid:2.5 kHz±10 dB/Low:80 Hz±10 dB Output:High:10 kHz±10 dB/Low:100 Hz±10 dB
- S/N Ratio
- >80 dB
- Power Source
- AC 115/230V,50 to 60Hz
- Net Weight
- 10.5kg
- Dimensions(W×H×D)
- 483×88×440mm
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Features
Performance
- – Flexible power allocation within defined per-channel and total limits
- – Built-in matrix for versatile routing and zoning

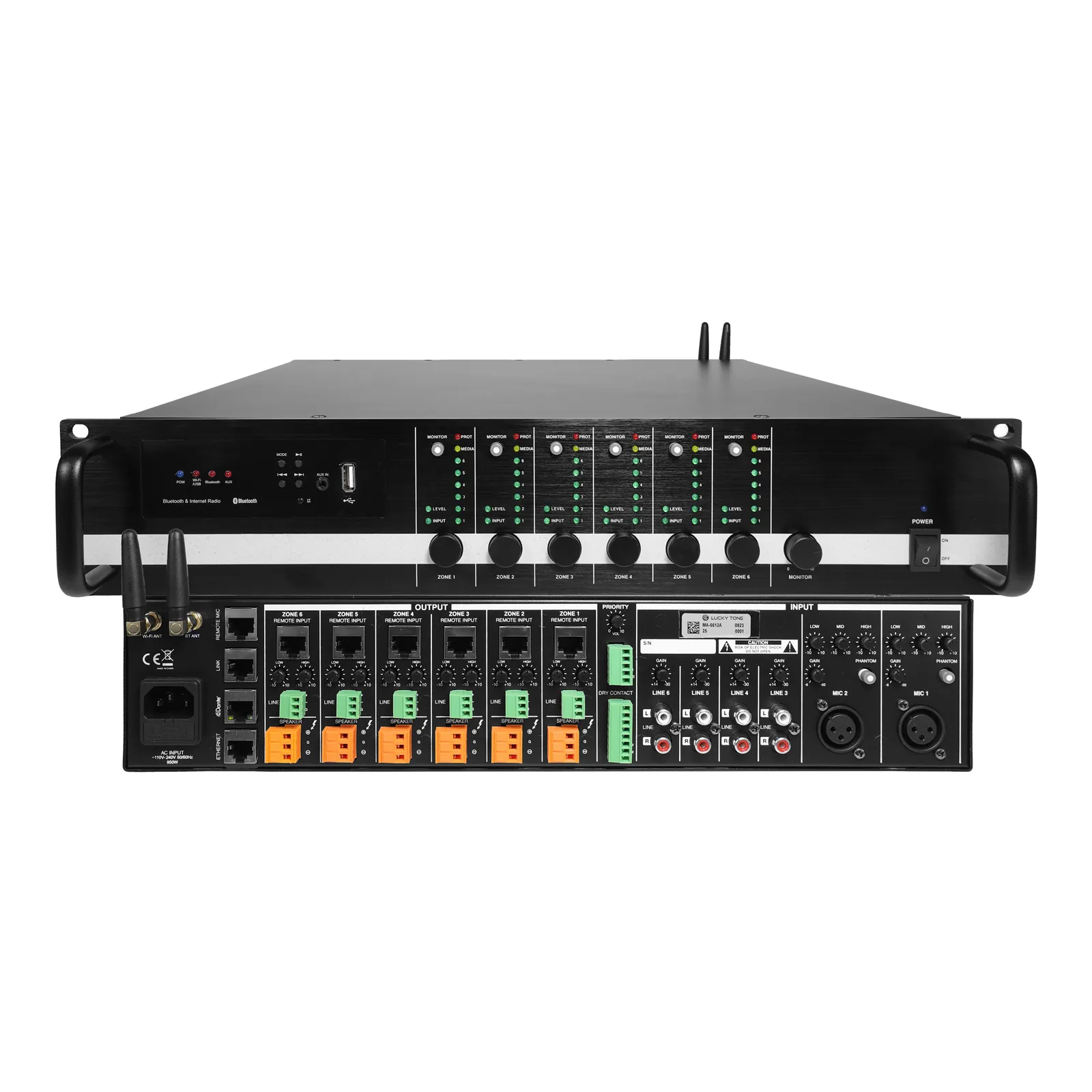

- – Built-in media player (MP3, Bluetooth, Internet Radio, Wi-Fi Audio streaming e.g. Spotify, FM radio)
- – Built-in monitor speaker for easy local monitoring
Integration

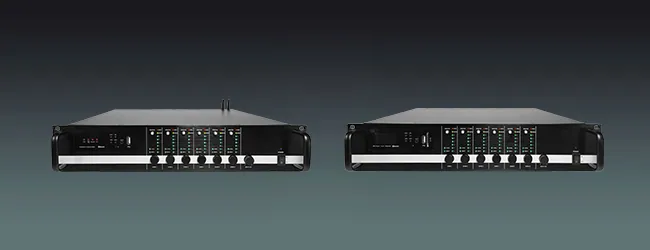

- – 6-channel and 4-channel versions available
- – Supports background music, paging, and emergency broadcast applications

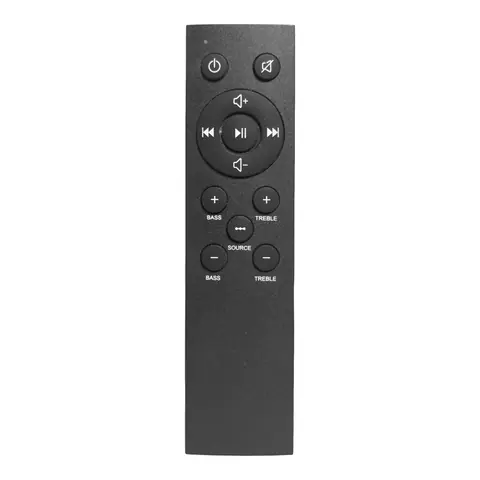

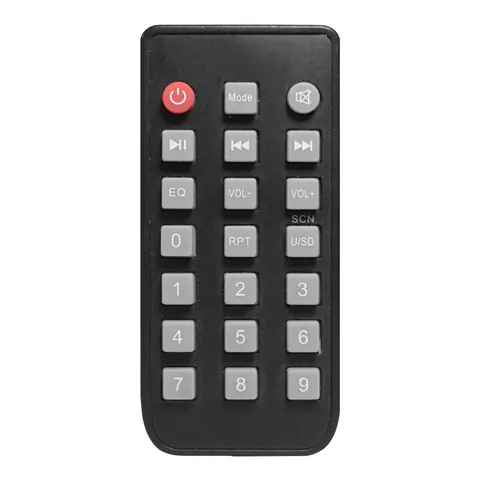

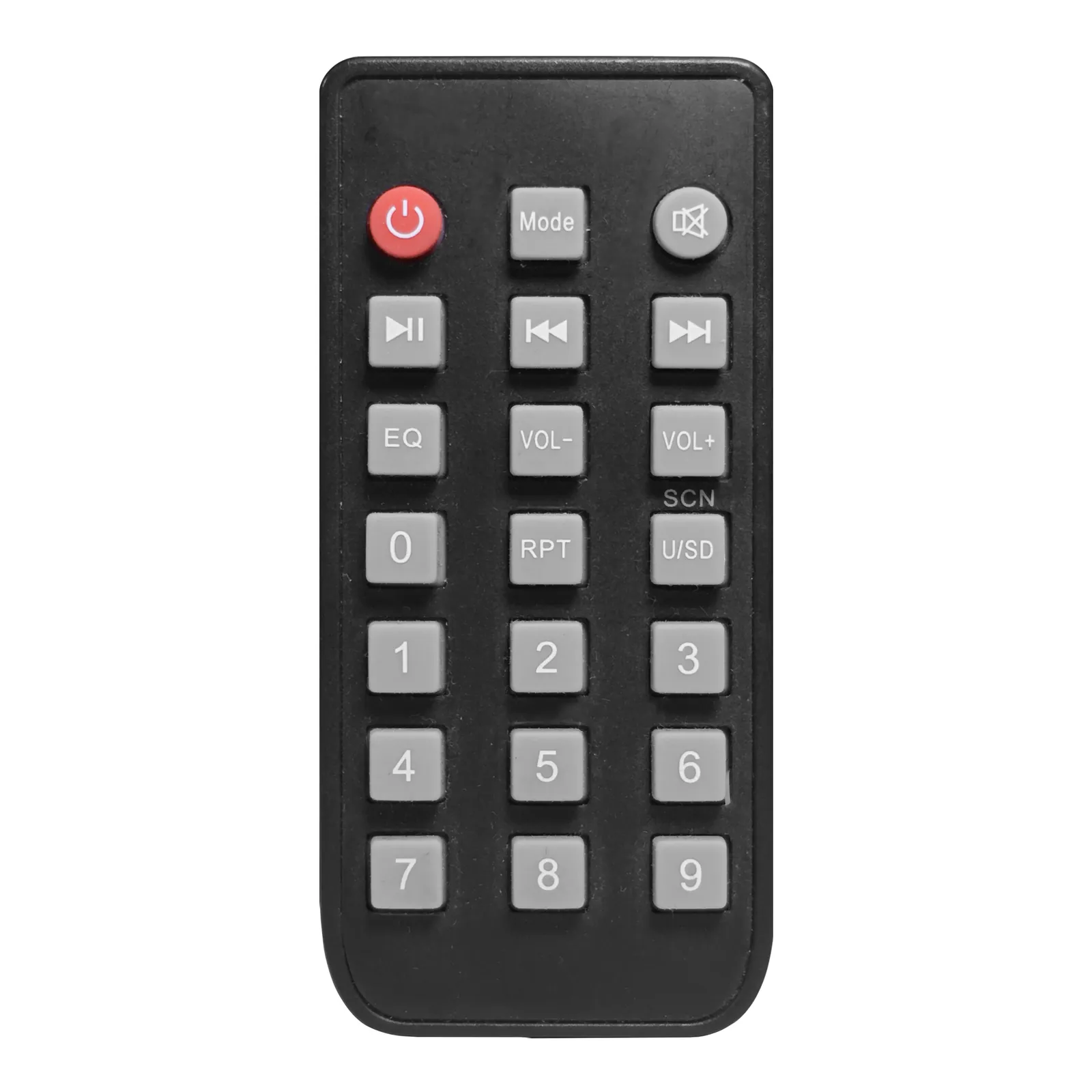

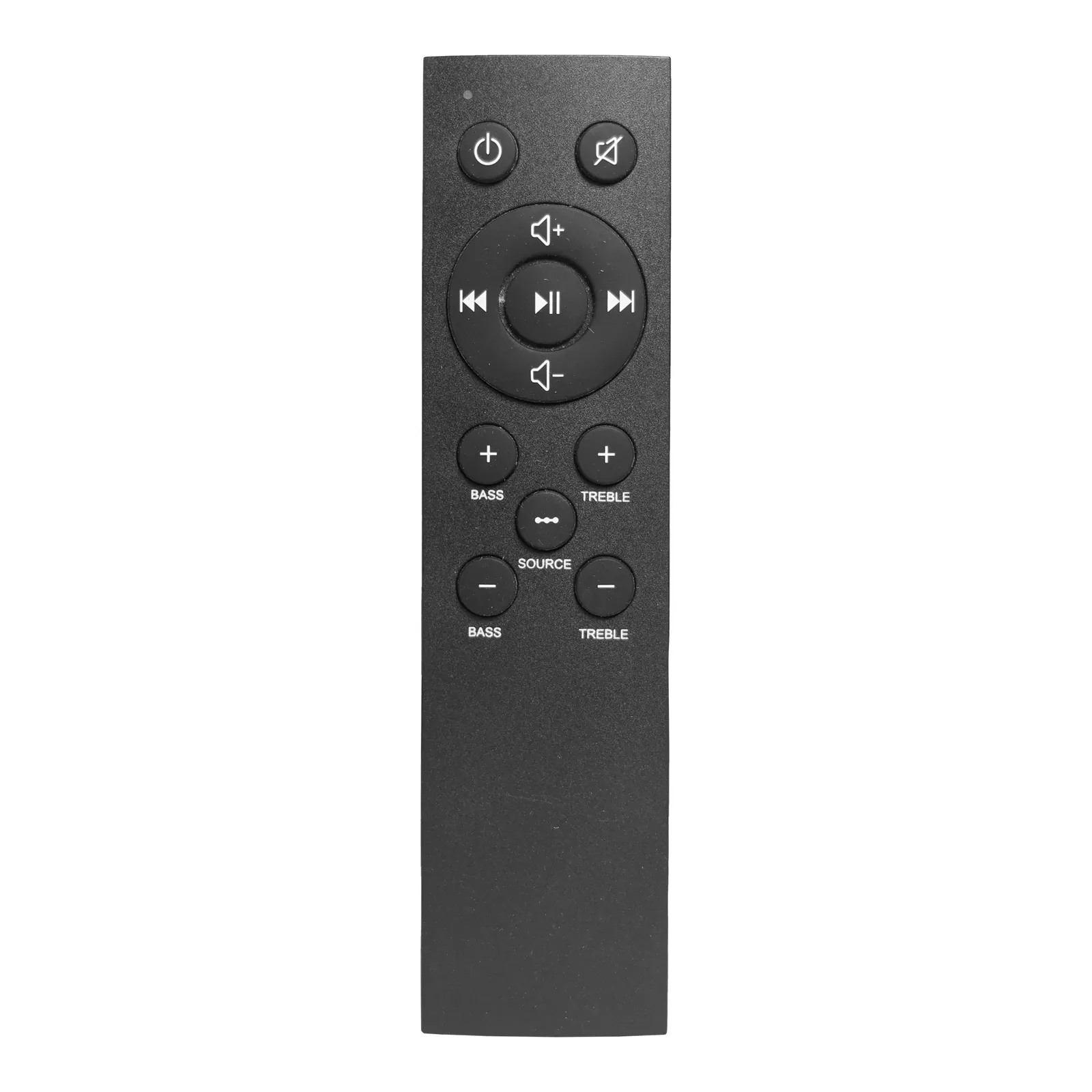

- – Remote control ready (wall panels, paging stations)
Reliability
- – Full protection: overload, short-circuit, overheating
- – Low distortion and high S/N ratio
- – 2U rackmount design for space efficiency
