Sheet 05.395
Lucky Tone · Public address

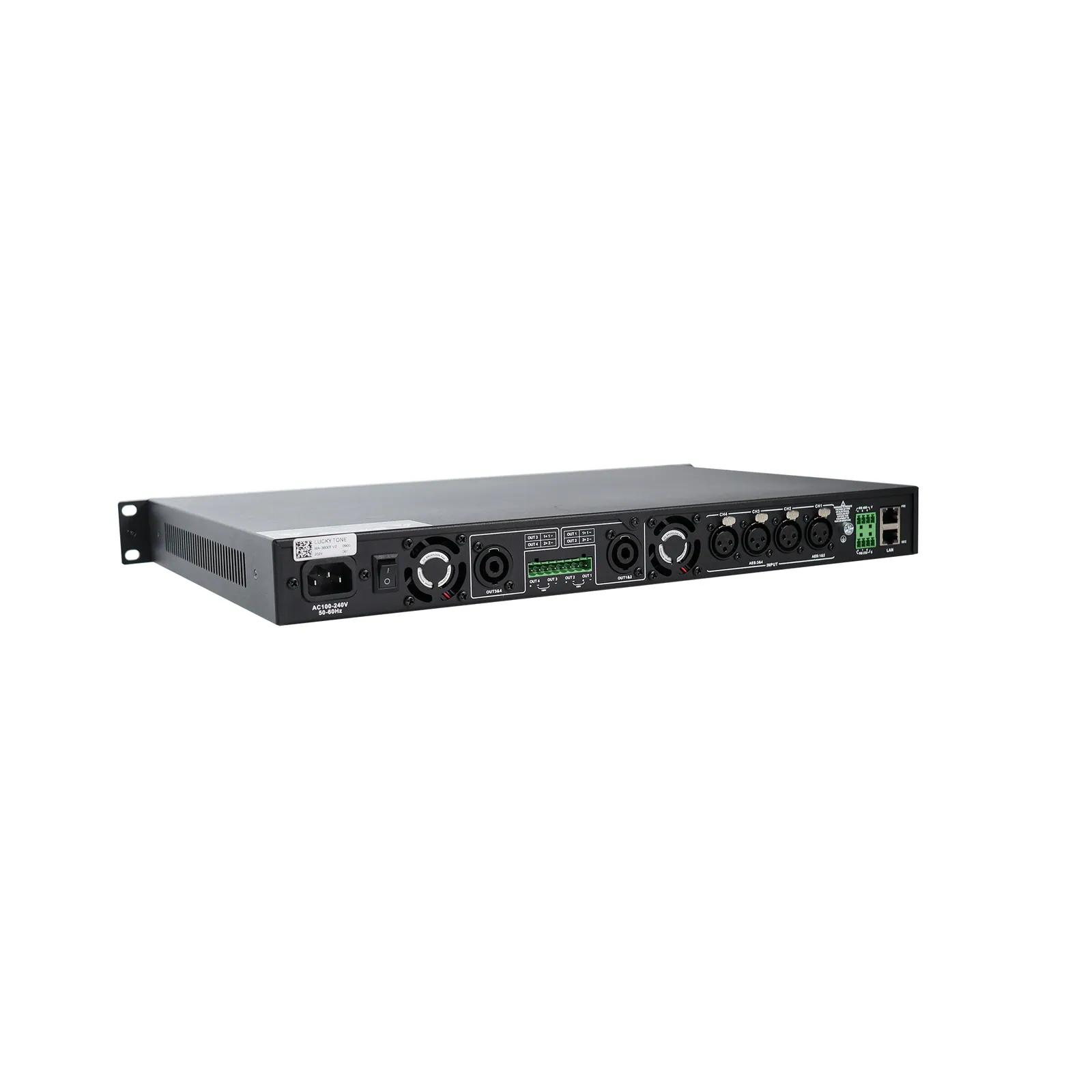

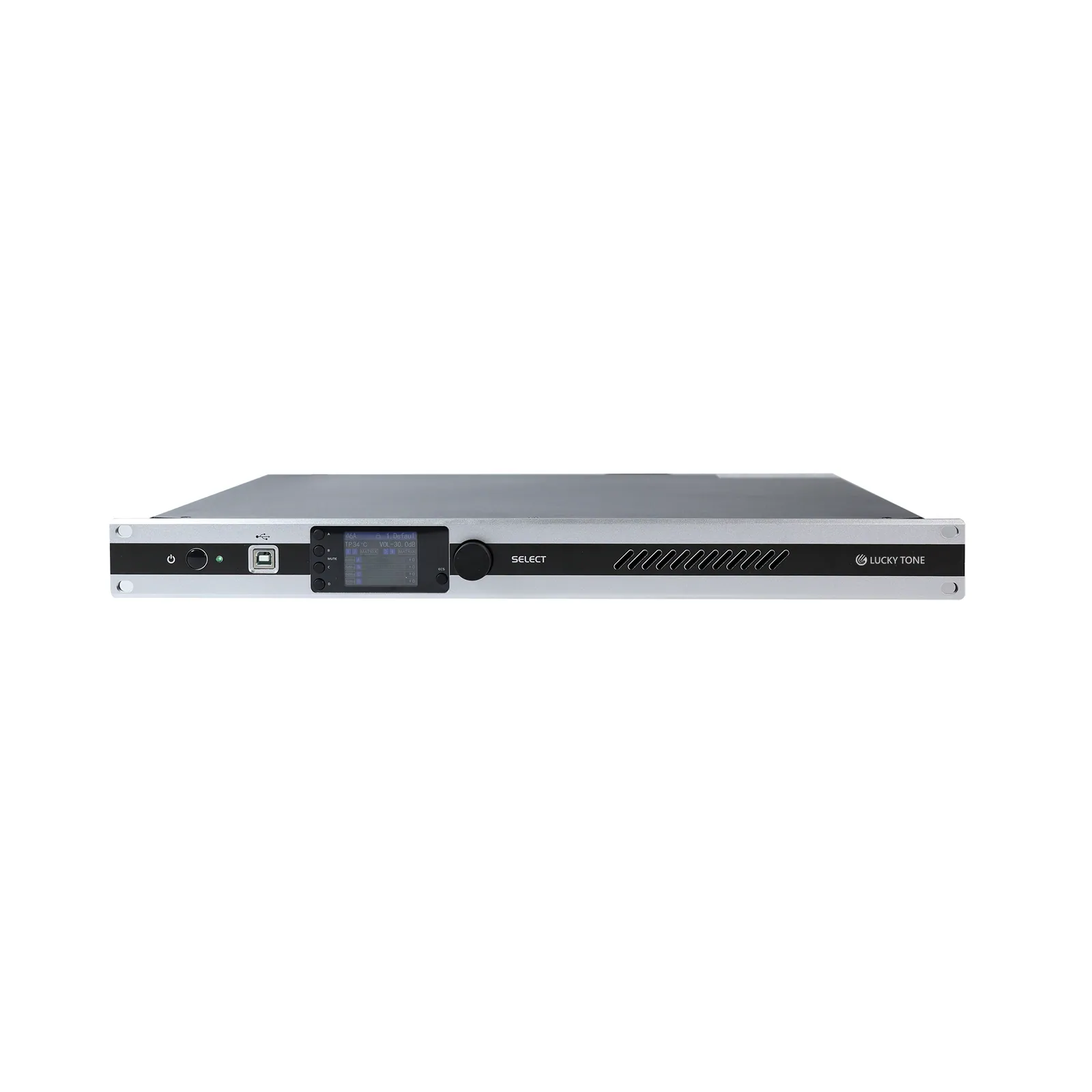

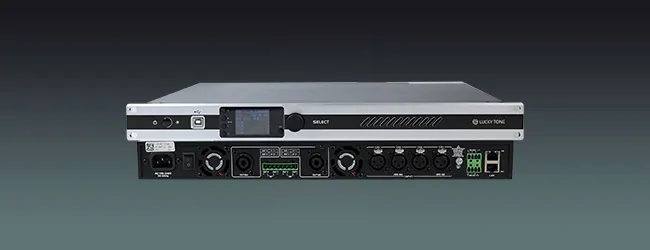

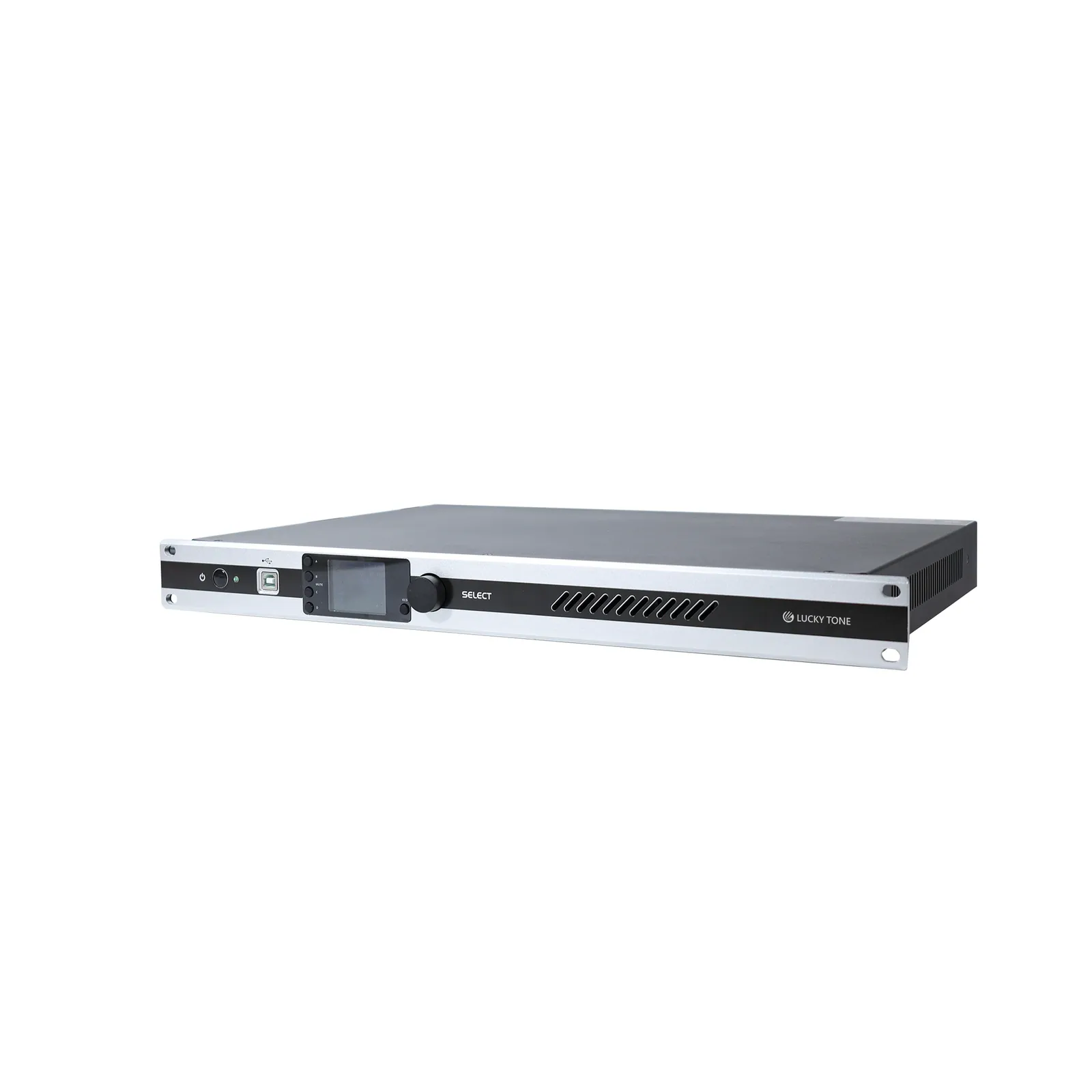

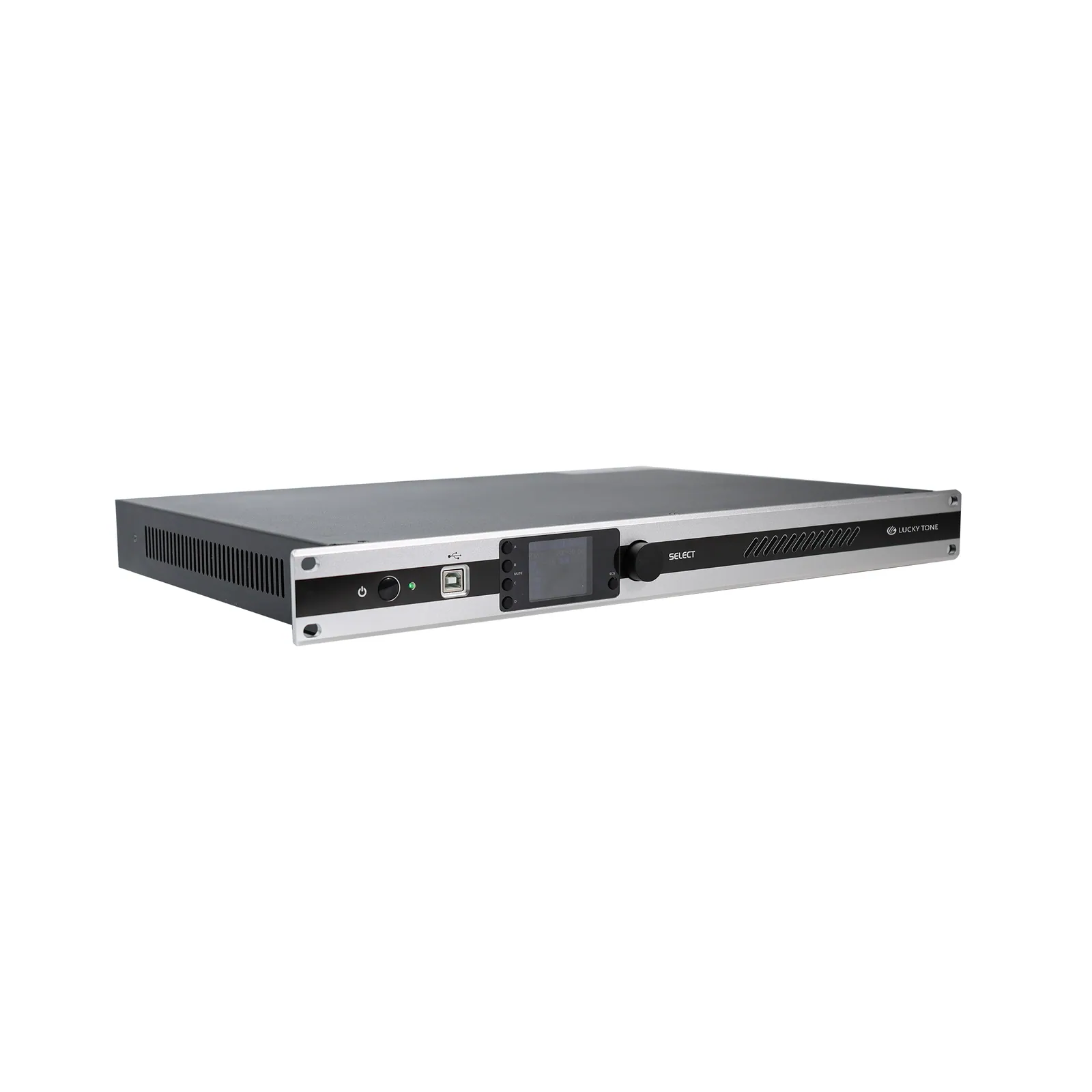

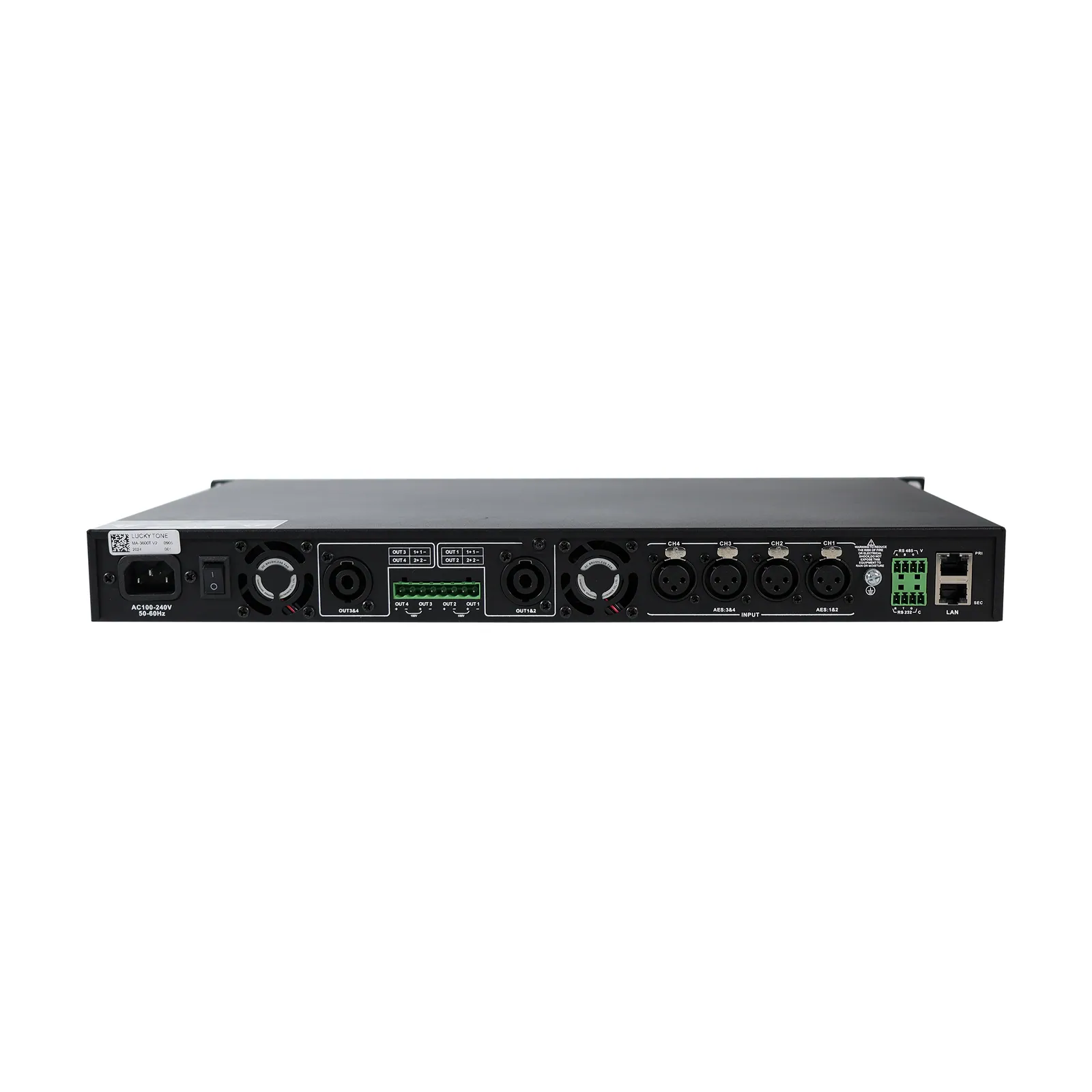

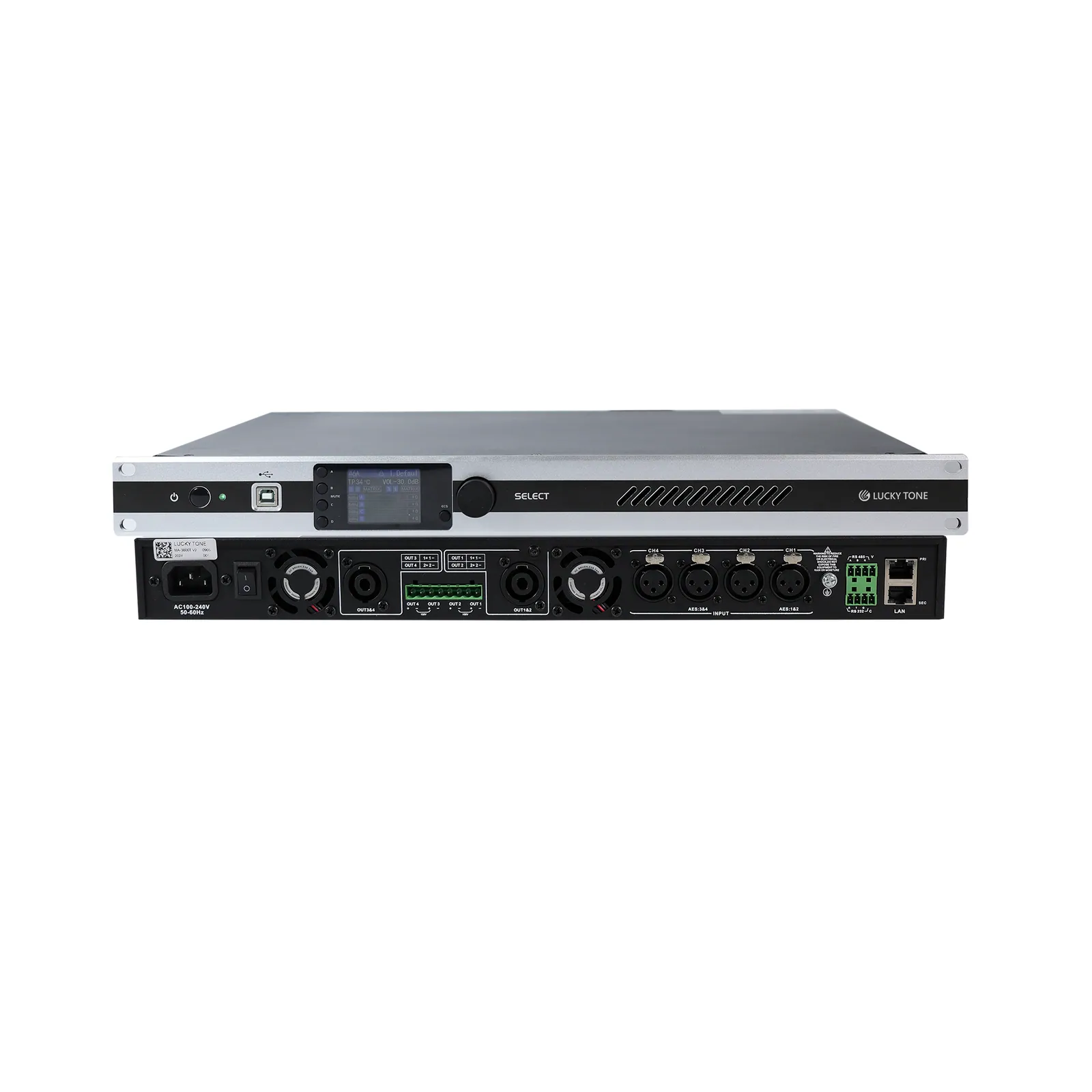

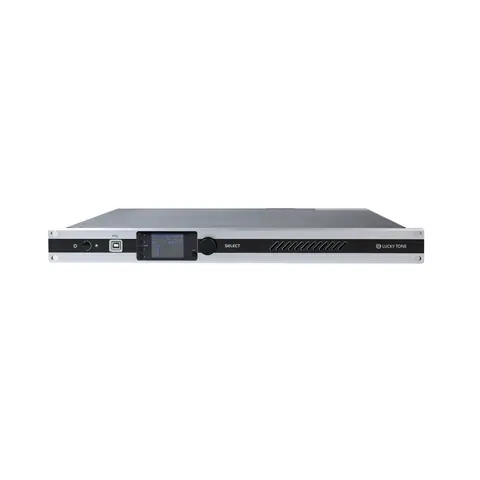

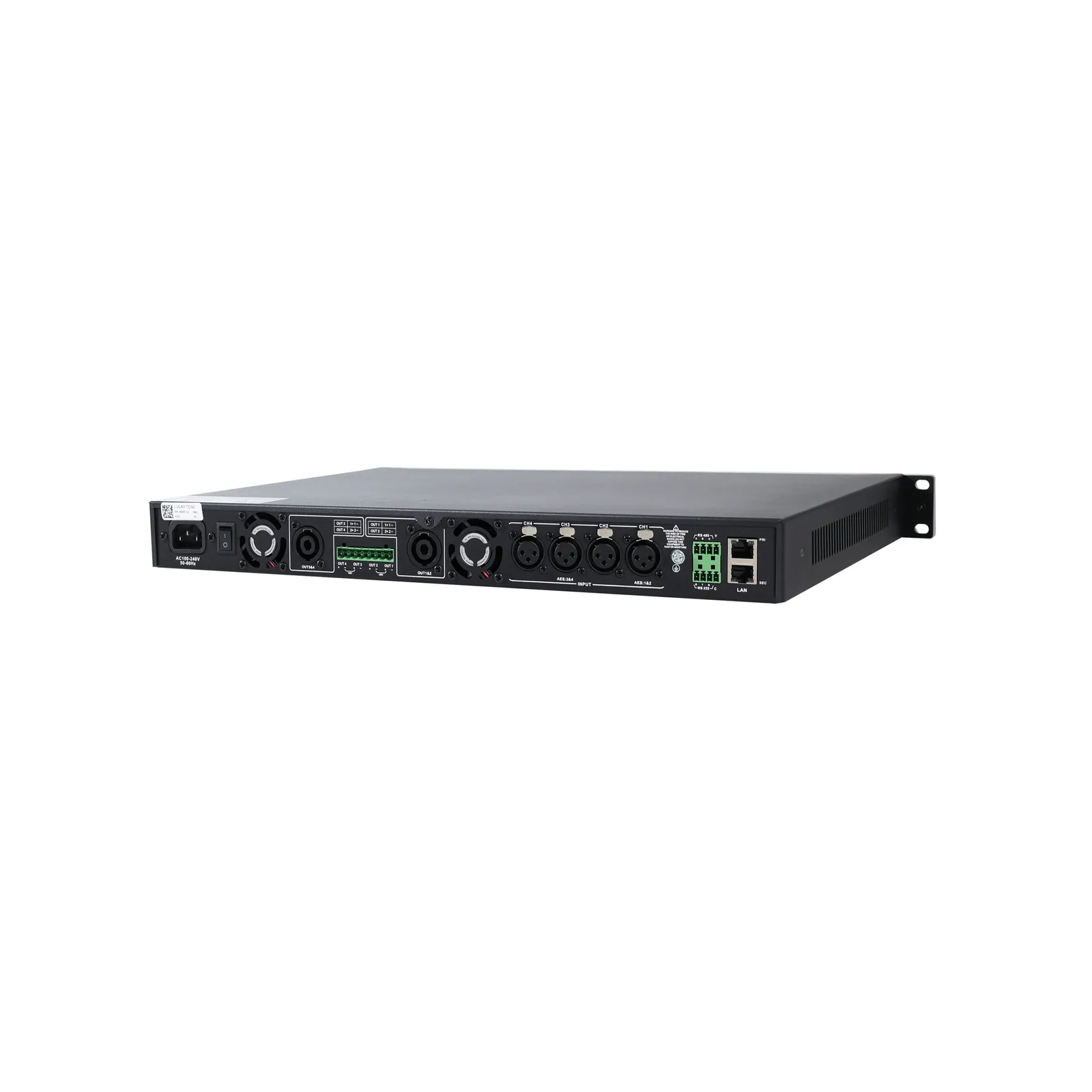

Mixer Power Amplifier with Dante and DSP
ModelMA-3600T V2 / MA-3600TD V2
MA-3600TD V2 is a multi-function network DSP digital High-Z and low-Z power amplifier.
- Output power
- 4*900W at 4ohm; or 4*600W at 8ohm, or 4*300W at 16ohm. Switchable to 2*1250W at 100V, 2*615W at 70V
- Frequency response
- 20Hz to 20kHz (±0.5dB) @1W, 8Ω
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Mixer Power Amplifier with Dante and DSPPrice on requestRequest a quotation
01Models2 models in the family
Models compared.
| Model | MA-3600T V2 | MA-3600TD V2 |
|---|---|---|
| Type | 4-CH Amplifier with DSP | 4-CH Amplifier with DSP and Dante |
| Output Power | 4*900W at 4ohm; or 4*600W at 8ohm, or 4*300W at 16ohm. Switchable to 2*1250W at 100V, 2*615W at 70V | 4*900W at 4ohm; or 4*600W at 8ohm, or 4*300W at 16ohm. Switchable to 2*1250W at 100V, 2*615W at 70V |
| Max. output voltage | 69V | 69V |
| Max. output current | 15A | 15A |
| Min. load output | 4Ω/channel | 4Ω/channel |
| Input connector | 4*XLR | 4*XLR |
| Output connector | 4*SpeakOn | 4*SpeakOn |
| Max. input level | 12dBu sensitivity (17dBu, 5.484V) 6dBu sensitivity (17dBu, 5.484V) 0dBu sensitivity (17dBu, 5.484V) | 12dBu sensitivity (17dBu, 5.484V) 6dBu sensitivity (17dBu, 5.484V) 0dBu sensitivity (17dBu, 5.484V) |
| Sensitivity | 12dBu sensitivity (27dB) 6dBu sensitivity (33dB) 0dBu sensitivity (39dB) | 12dBu sensitivity (27dB) 6dBu sensitivity (33dB) 0dBu sensitivity (39dB) |
| SNR | 12dBu sensitivity (103dB) 6dBu sensitivity (98dB) 0dBu sensitivity (93dB) | 12dBu sensitivity (103dB) 6dBu sensitivity (98dB) 0dBu sensitivity (93dB) |
| Frequency response | 20Hz to 20kHz (±0.5dB) @1W, 8Ω | 20Hz to 20kHz (±0.5dB) @1W, 8Ω |
| THD+N | <1%@1W, 8Ω | <1%@1W, 8Ω |
| Sampling | 48k / 24bit | 48k / 24bit |
| Dante in option | 4 input channels | 4 input channels |
| Display | 320*240 IPS colourful display | 320*240 IPS colourful display |
| Protections | DSP limiter, high temperature, DC, high frequency, short circuit, back EMF, peak current limiter, Back EMF, Surge current limiter, startup delay, power circuit breaker protection, power over voltage/under voltage protection | DSP limiter, high temperature, DC, high frequency, short circuit, back EMF, peak current limiter, Back EMF, Surge current limiter, startup delay, power circuit breaker protection, power over voltage/under voltage protection |
| Power requirement | AC100~240 50/60Hz | AC100~240 50/60Hz |
| Net weight/Gross weight | 5.6kg/6.2kg | 5.6kg/6.2kg |
| Product size | 483mm*309mm*44.5mm | 483mm*309mm*44.5mm |
| Package size | 520mm*442mm*90mm | 520mm*442mm*90mm |
02DescriptionManufacturer's description
What it is.
Description
MA-3600TD V2 is a multi-function network DSP digital High-Z and low-Z power amplifier. It can remotely monitor the status of power amplifier, set compression Controller, limiter, noise gate, parametric equalization, matrix routing, delay and other DSP functions in real time. Simple software interface provides customers with simple setup and operation experience, and a variety of connection methods ensure its good configurability and expandability, suitable for various applications, such as performance center, theatre, gallery, hotel, conference center, shopping center, retail store, restaurant, etc.
Features
- Supports dual backup functionality for digital and analog audio signals
- TCP/IP network control for managing multiple devices
- Remote power on/off functionality
- Built-in DSP digital processor
- Supports multiple connection methods: USB, TCP/IP, RS232, RS485
- Real-time remote monitoring of amplifier status
- On-site amplifier identification via software
- Supports balanced XLR input and Spoken output
- Stereo, bridge, mono, and free matrix modes with one-click switching
- Adjustable input sensitivity: 0dBu (0.775V)/6dBu (1.546V)/12dBu (3.084V), set via software
- Power-on state can be set to Power On/Standby
- Supports both constant voltage (100V, 70V) and low impedance (8 ohms, 4 ohms)
- Software control allows simultaneous management of media matrix and professional processors
- Supports multiple control methods: TCP/IP, RS232, RS485, USB
- Equipped with FIR phase correction, 4 channels with 2048 taps each
- Dual network ports allow for controlling up to 5 devices
- Supports AES/EBU input
03Documents1 file · 1.9 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
