Sheet 05.252
Lucky Tone · Power amplifiers

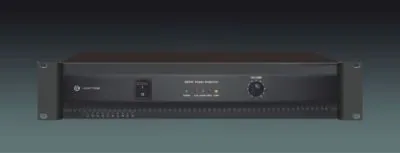

Power Amplifier (360W/460W/660W)
ModelPA-360 / PA-460 / PA-660
This range of amplifier is designed for commercial and industrial grade public address application. With efficiently components, it delivers 360 to 660 watts of clean, reliable audio for the most demanding public address applications.
- Output power
- PA-360: 360W; PA-460: 460W; PA-660: 660W
- Frequency response
- PA-360: 60 – 16,000 Hz, +/- 3dB; PA-460: ; PA-660:
- Dimensions
- PA-360: 89(H) x 483(W) x 366(D) mm; PA-460: ; PA-660:
- Weight
- PA-360: 15.12kg; PA-460: 17.66kg; PA-660: 20.80kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Power Amplifier (360W/460W/660W)Price on requestRequest a quotation
01Models3 models in the family
Models compared.
| MODEL | PA-360 | PA-460 | PA-660 |
|---|---|---|---|
| Rated Power Output | 360W | 460W | 660W |
| Output Regulation | Less than 3 dB (no load to full load) | ||
| Output | 775V, 0dB, XLR and phone jack | ||
| Frequency Response | 60 – 16,000 Hz, +/- 3dB | ||
| THD | Less than 0.5% at 1kHz (1/3 Rated Power) | ||
| S/N Ratio | Better than 73dB | ||
| Slew Rate | 15V/Us | ||
| Controls | Volume control and power switch | ||
| Cooling | Internal 12VDC fan, extensive heat sinking | ||
| Indicators | Power, Clip, Signal, Protect, and Temp LEDs | ||
| Protection | AC Fuse: 10A | AC Fuse: 12A | AC Fuse: 15A |
| Protection | Current limiter, short circuit and thermal protection circuits | ||
| Power Consumption | 485W | 620W | 880W |
| Power Requirement | 220-240V AC, 50/60 Hz | ||
| Dimensions | 89(H) x 483(W) x 366(D) mm | ||
| Built-in Dimensions | 2U rack 19 inch | ||
| Carton Dimensions | 185(H) x 520(W) x 435(D) mm | ||
| Net Weight | 15.12kg | 17.66kg | 20.80kg |
| Gross Weight | 16.76kg | 19.30kg | 22.30kg |
| Finish | Panel: steel plate, black | ||
| Finish | Case: steel plate, black |
02DescriptionManufacturer's description
What it is.
Description
This range of amplifier is designed for commercial and industrial grade public address application. With efficiently components, it delivers 360 to 660 watts of clean, reliable audio for the most demanding public address applications. Rugged and over-built to give years of dependable service, they are equipped with massive torrodial power transformers, extensive heat-sinking and fan cooling, protective circuits such as over-temperature, short circuit, RFI, clip, overload and soft start.
Features
- ● Flexible power rating of 360/460/660W
- ● Master Volume control in the front

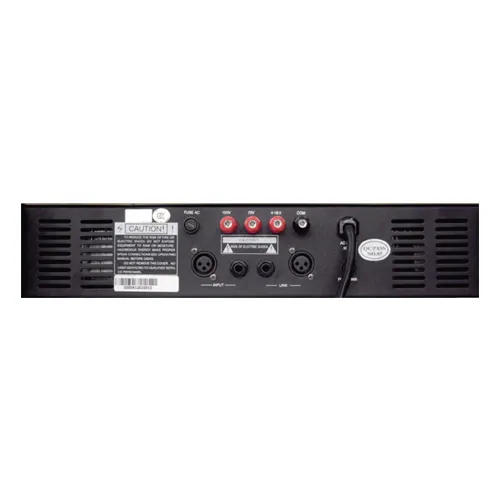

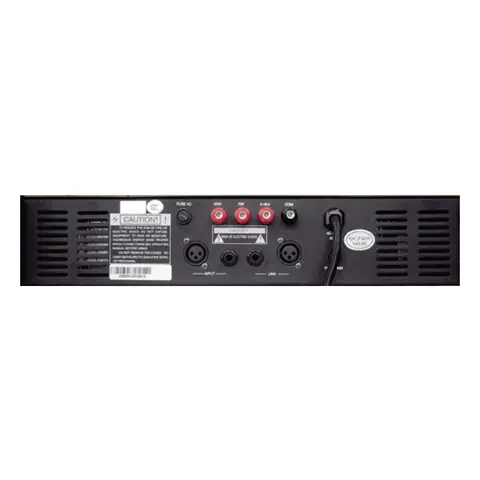

- ● 100V, 70V and 4-16 Ohms transformer isolated speaker outputs
- ● Combination XLR/RCA Line In and Line Out connectors
- ● LED status indicators
- ● Speaker output short circuit protection
