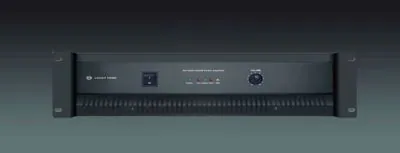

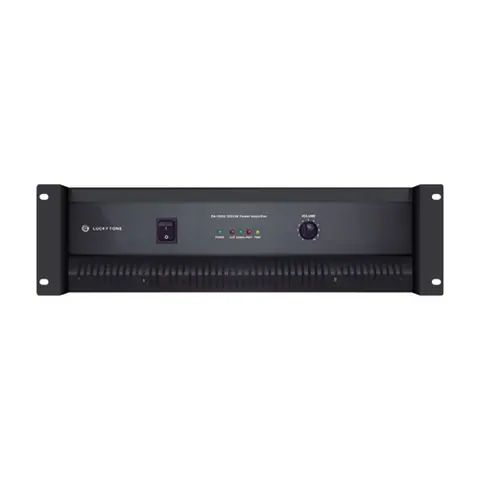

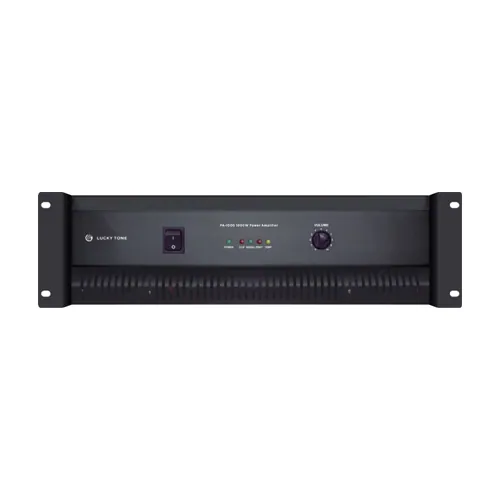

High Power Amplifier (1000W/1500W)

ModelPA-1000 / PA-1500

Output power: PA-1000: 1000W; PA-1500: 1500W
Frequency response: PA-1000: 50 – 18,000 Hz, +/- 1.5dB; PA-1500:
Dimensions: PA-1000: 133(H) x 483(W) x 366(D) mm; PA-1500:
Weight: PA-1000: 25.00kg; PA-1500: 27.00kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01Models2 models in the family

Models compared.

MODEL	PA-1000	PA-1500
Rated Power Output	1000W	1500W
Output Regulation	Less than 3 dB (no load to full load)
Output	775V, 0dB, XLR and phone jack
Frequency Response	50 – 18,000 Hz, +/- 1.5dB
THD	Less than 0.5% at 1kHz (1/3 Rated Power)
S/N Ratio	Better than 105dB
Slew Rate	40V/Us
Controls	Volume control and power switch
Cooling	Internal 12VDC fan, extensive heat sinking
Indicators	Power, Clip, Signal, Protect, and Temp LEDs
Protection	AC Fuse: 20A
Protection	Current limiter, short circuit and thermal protection circuits
Power Consumption	1350W	2000W
Power Requirement	220-240V AC, 50/60 Hz
Dimensions	133(H) x 483(W) x 366(D) mm
Built-in Dimensions	3U rack 19 inch
Carton Dimensions	185(H) x 520(W) x 435(D) mm
Net Weight	25.00kg	27.00kg
Gross Weight	27.50kg	30.00kg
Finish	Panel: steel plate, black
Finish	Case: steel plate, black

02DescriptionManufacturer's description

What it is.

Description

This range of amplifier is designed for commercial and industrial grade public address application. With efficiently components, it delivers 1000 to 1500 watts of clean, reliable audio for the most demanding public address applications. Rugged and over-built to give years of dependable service, they are equipped with massive torrodial power transformers, extensive heat-sinking and fan cooling, protective circuits such as over-temperature, short circuit, RFI, clip, overload and soft start.
