Sheet 05.533
Lucky Tone · Other equipment

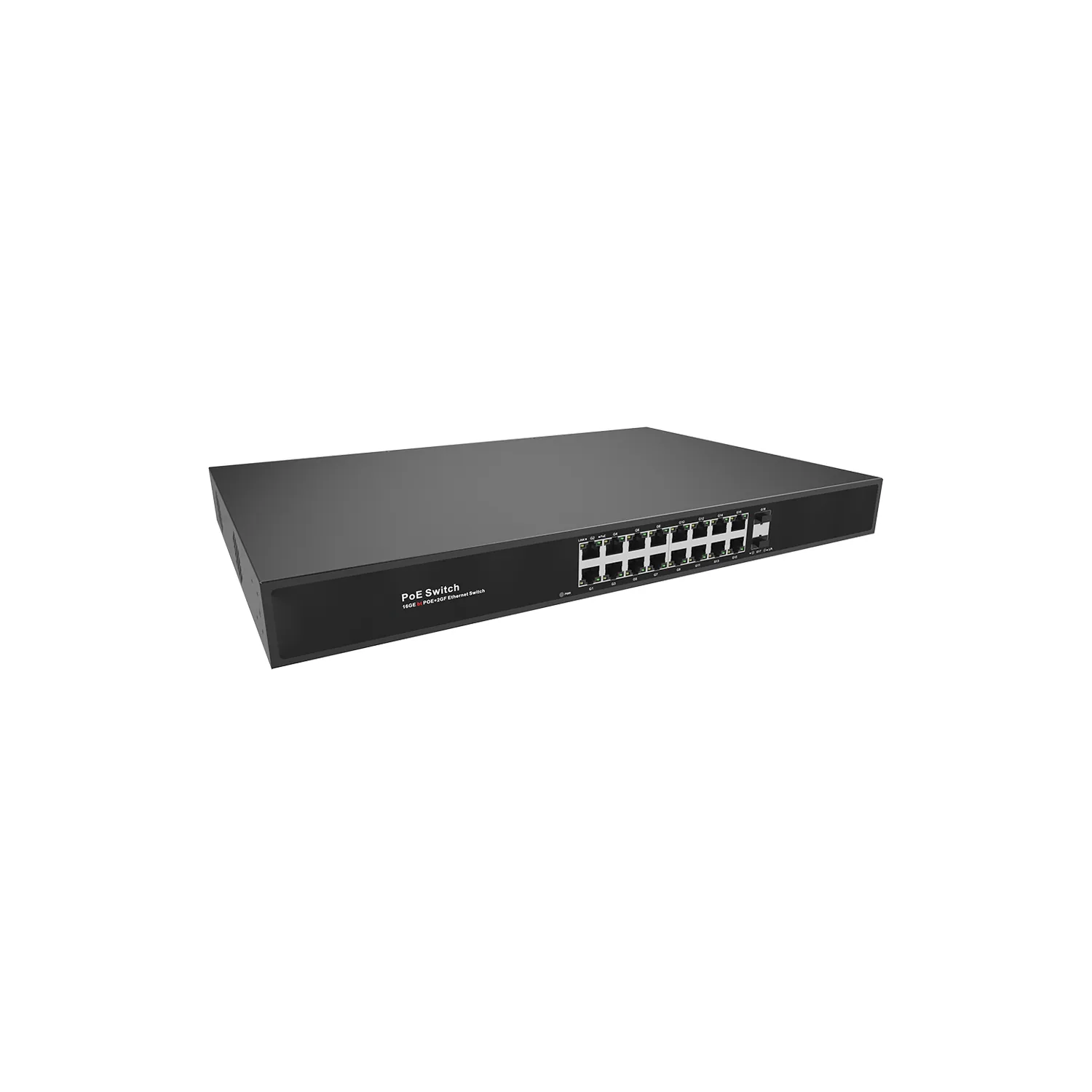

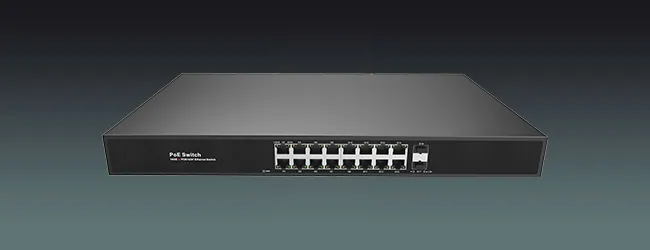

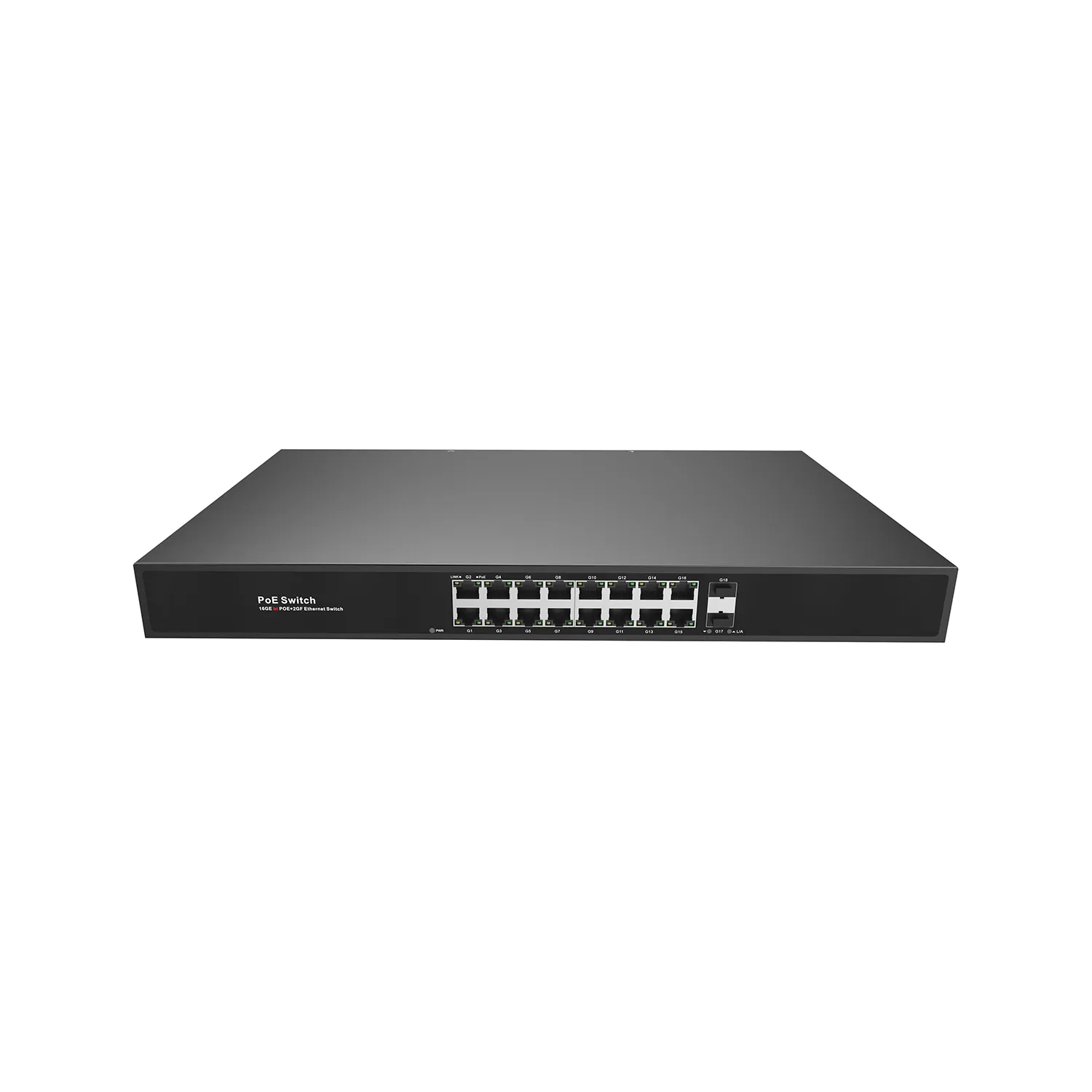

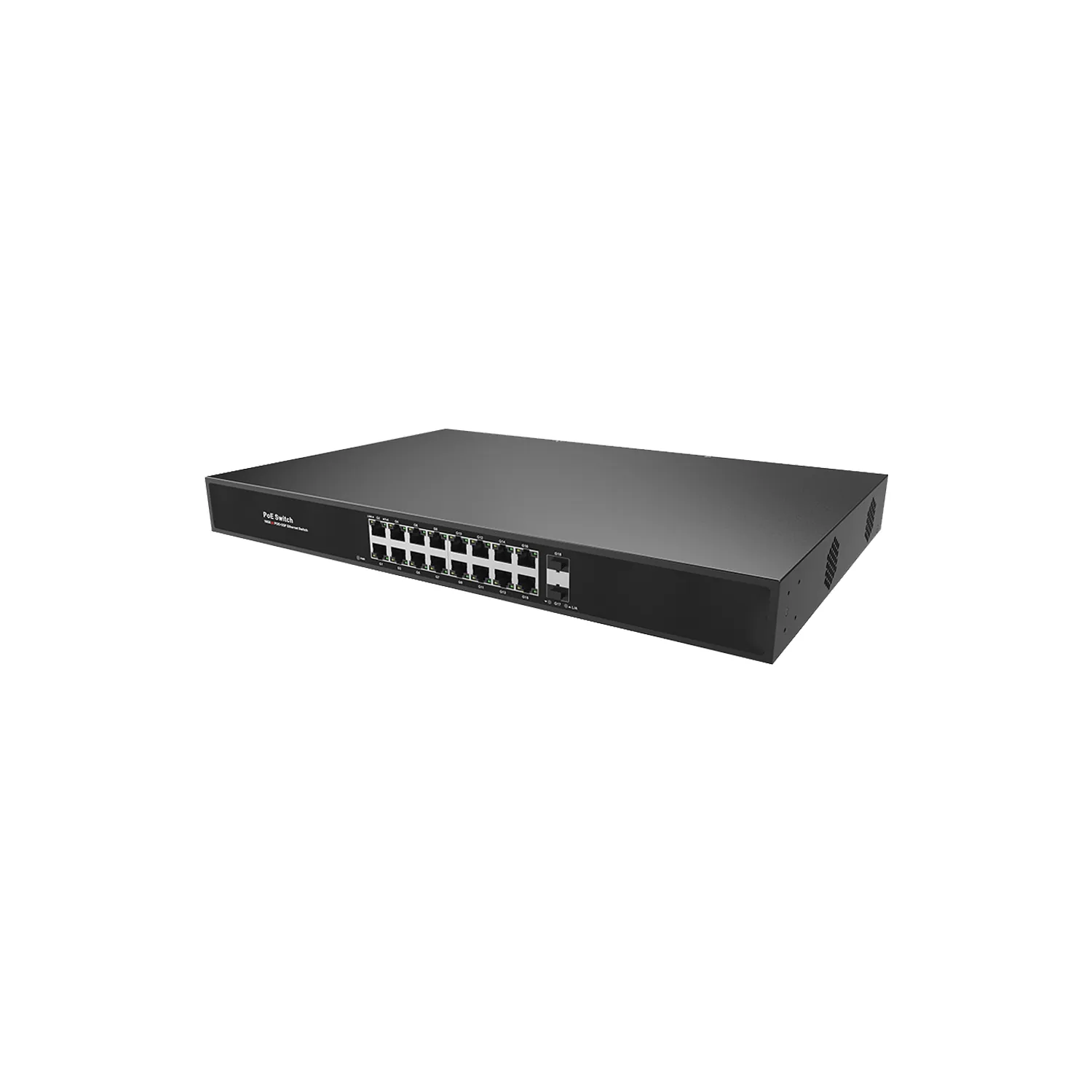

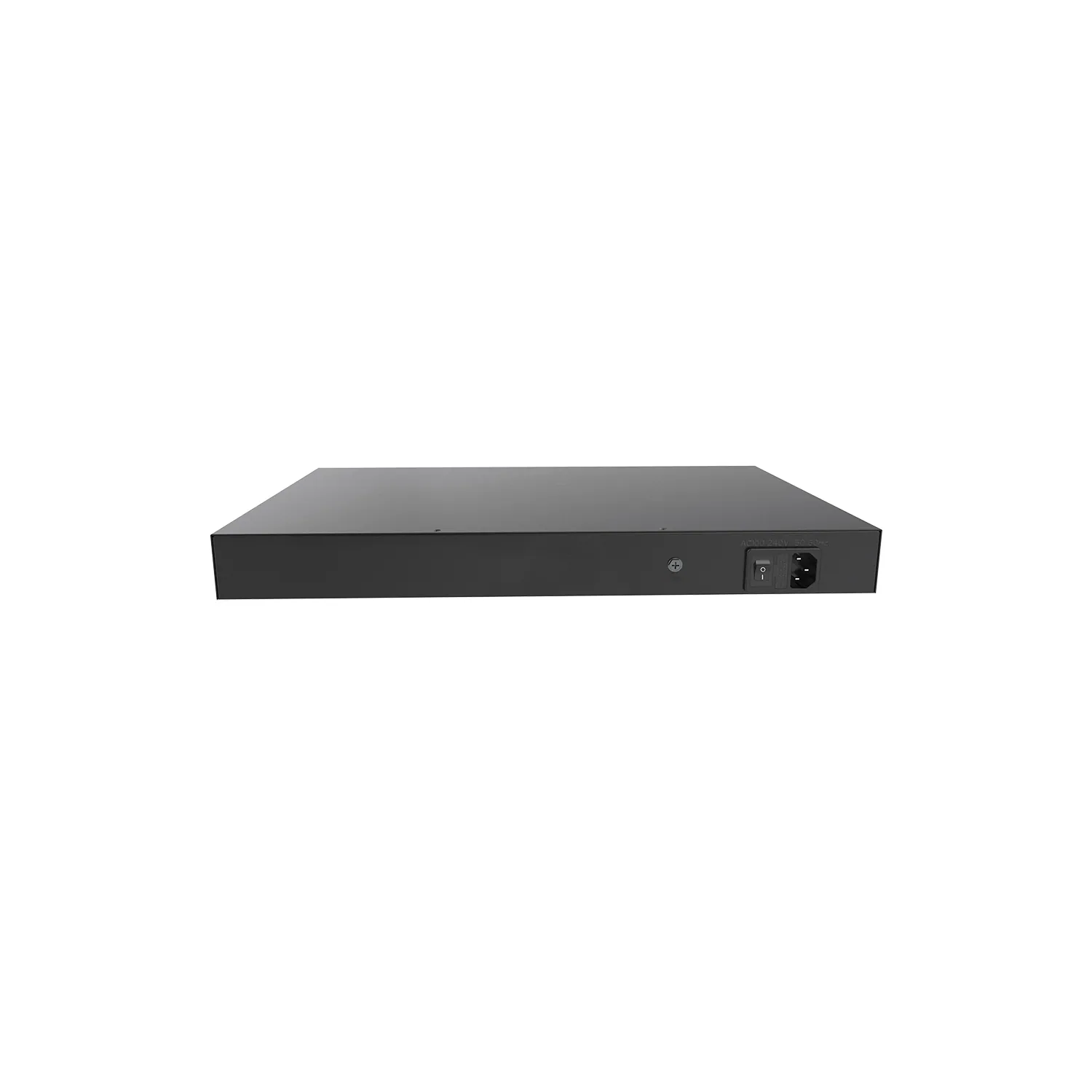

Lucky Tone Network Switch with 16 POE Ports POE 16 P90
ModelPOE 16 P90
Sixteen10/100/1000M adaptive RJ45 ports support IEEE 802.3af/at standard PoE power supply.
- Power supply
- AC100~240V 50-60Hz
- Dimensions
- 440*378*44.5mm
- Weight
- 5.2kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Network Switch with 16 POE PortsPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 11 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications11
- Model
- POE 16 P90
- Transmission Rate
- 10/100/1000Mbps
- Max. Power Per Port
- 90W; IEEE802.3af/at/bt
- Total Power
- 1200W
- Fixed Port
- 2*1000M uplink SFP ports (Data) 16*10/100/1000M bt PoE ports (Data /Power)
- Ethernet Port
- Port 1-16?support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
- Network Protocol
- IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
- Switching Capacity
- 52Gbps (Non-blocking)
- Power Supply
- AC100~240V 50-60Hz
- Dimension (L*W*H)
- 440*378*44.5mm
- Net Weight
- 5.2kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Single port power supply up to 90W, total power supply up to 120
Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
Gigabit RJ45 ports and SFP fiber ports combination, high-speed high-bandwidth connection, to meet the networking needs of various scenarios.
03Documents1 file · 3.1 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
