Indoor Terminals

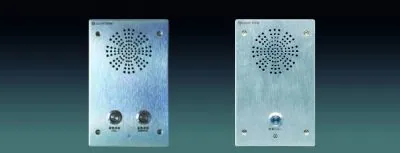

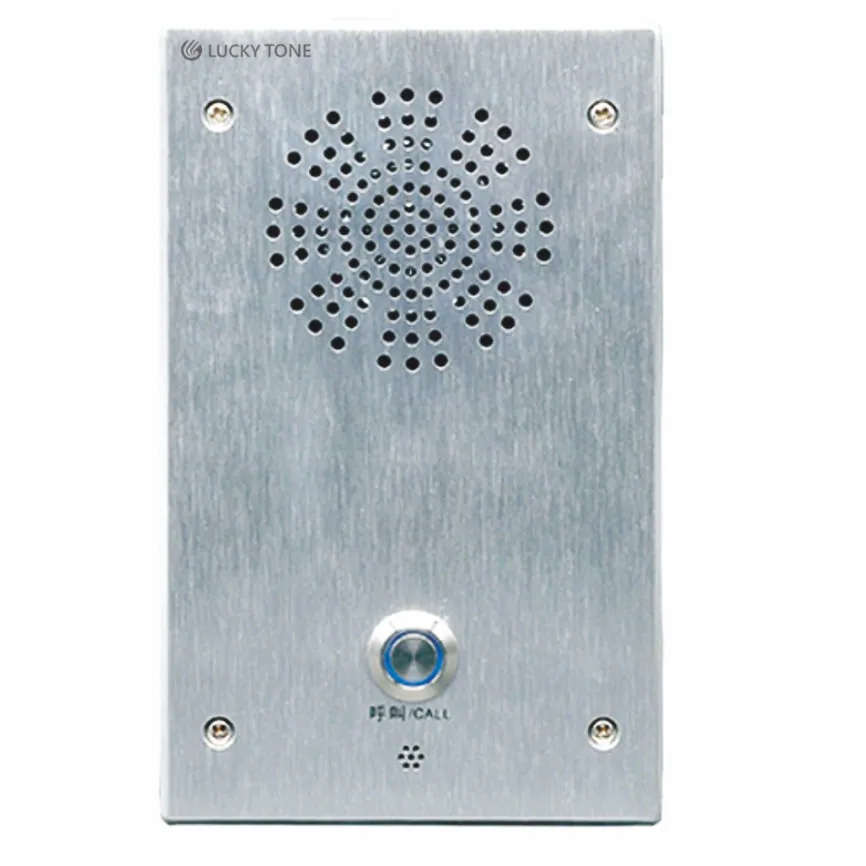

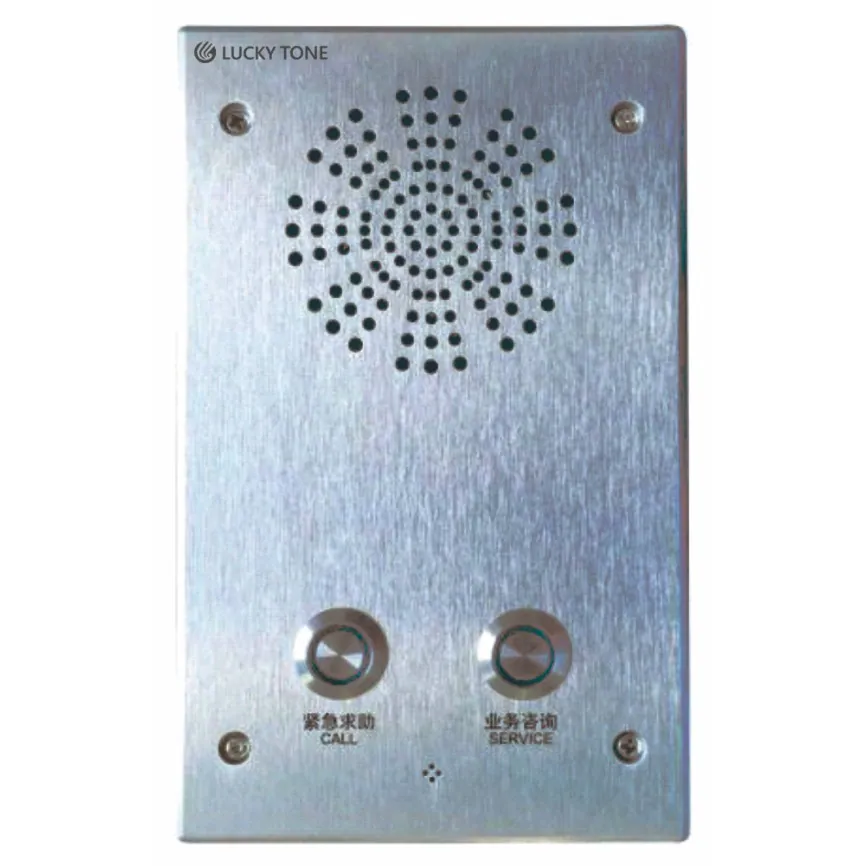

ModelSIP-TL Indoor
●Professional SIP terminals working with Lucky Tone SIP microphone, other SIP telephones and devices.
- Power supply
- DC 12V
- Dimensions
- 100 x 160 x 30 mm
- Weight
- 0.5kg
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications10
- MODEL
- SIP-TL Indoor
- Network Communication Protocol
- TCP, ARP, ICMP, DHCP, UDP, DNS, IGMP
- Network Interface
- 10/100Base-TX,RJ45
- Frequency and Sampling Rate
- 8kHz-32 kHz, 16 bit
- Power consumption
- Less than 300mV
- Microphone Frequency Range
- 70Hz~12.5KHz
- Operating Temp.
- 0~65°C
- Weight
- 0.5kg
- Power Supply
- DC 12V
- Dimension
- 100 x 160 x 30 mm
Show the full specificationHide the rest of the specification0 more groups · 0 values
What it is.
Features
- ●Adopt high-speed industrial grade chip
- ●Support quiet and noisy environment mode, press to answer or auto answer, hangup on site or remote
- ●Built-in speaker for intercom
- ●With audio output for external active speaker
- ●Can work stand alone without any main control unit
