Sheet 05.321
Lucky Tone · IP, SIP and ONVIF

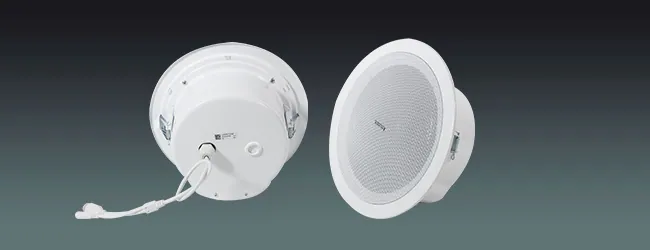

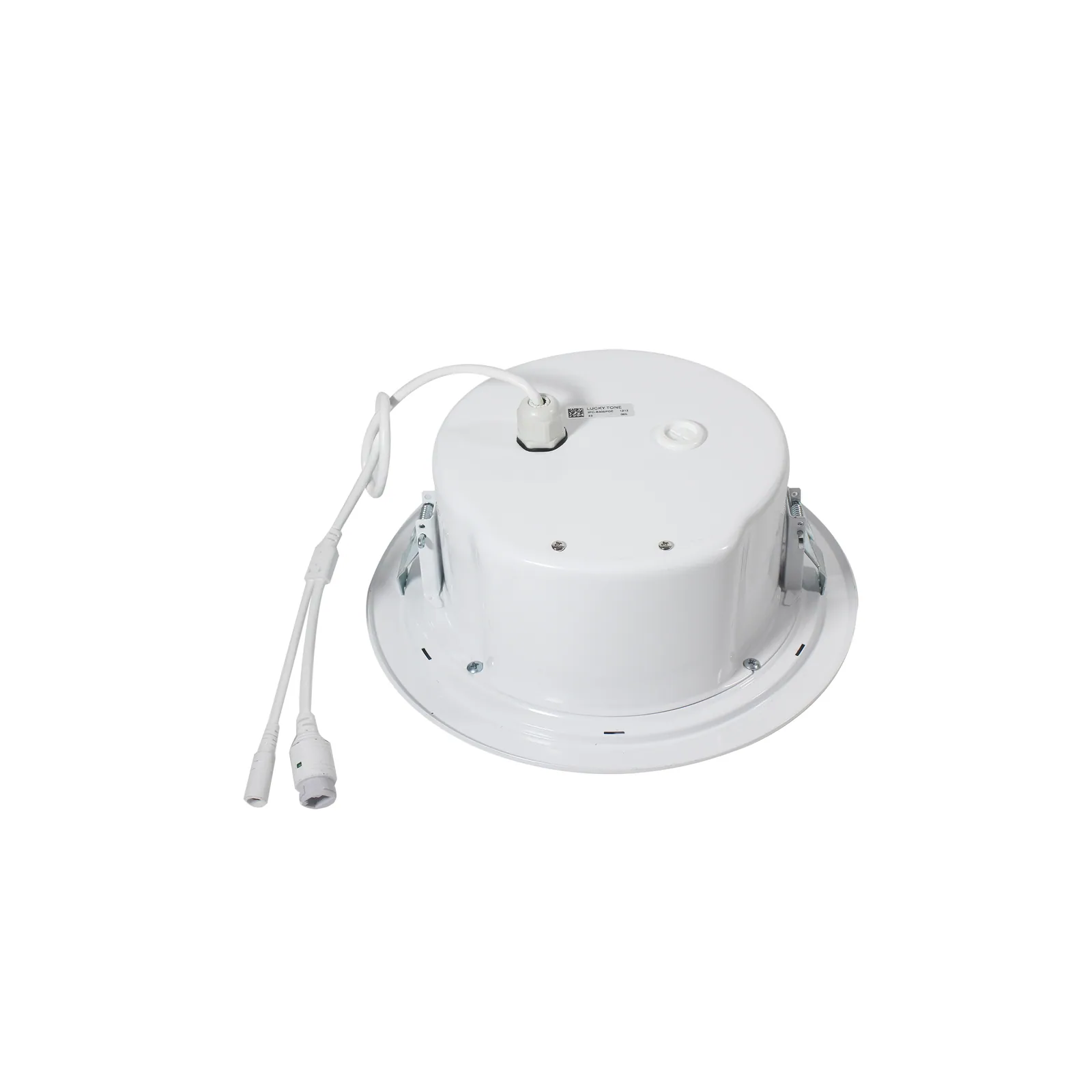

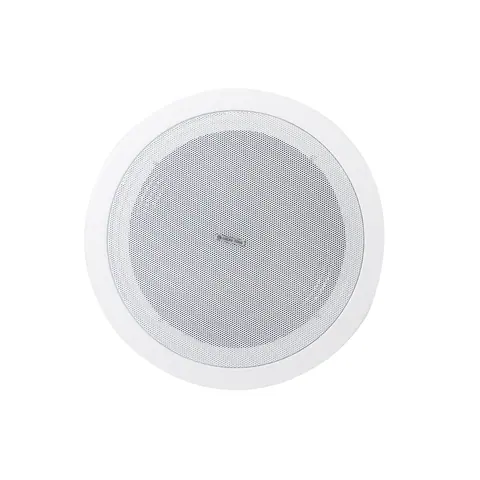

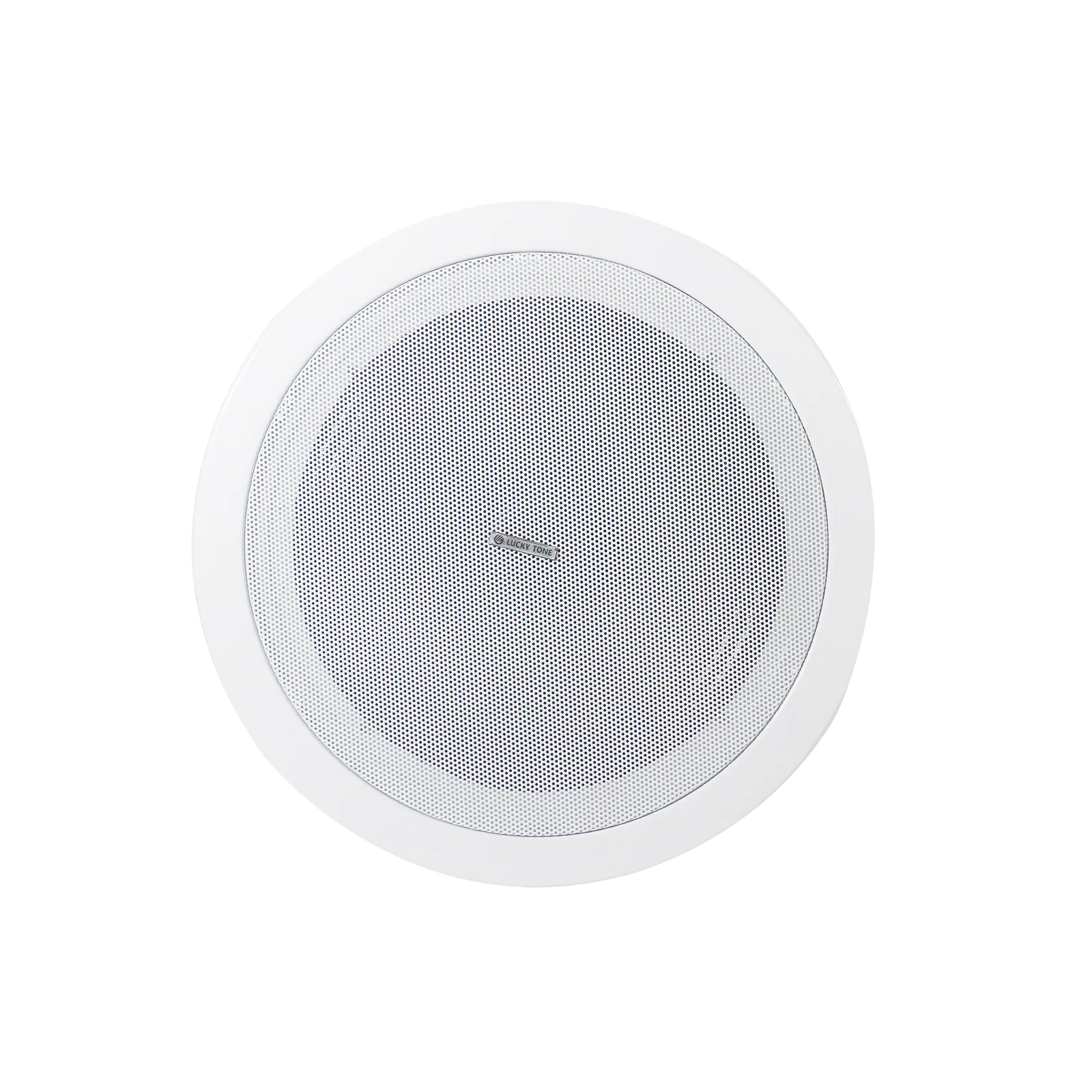

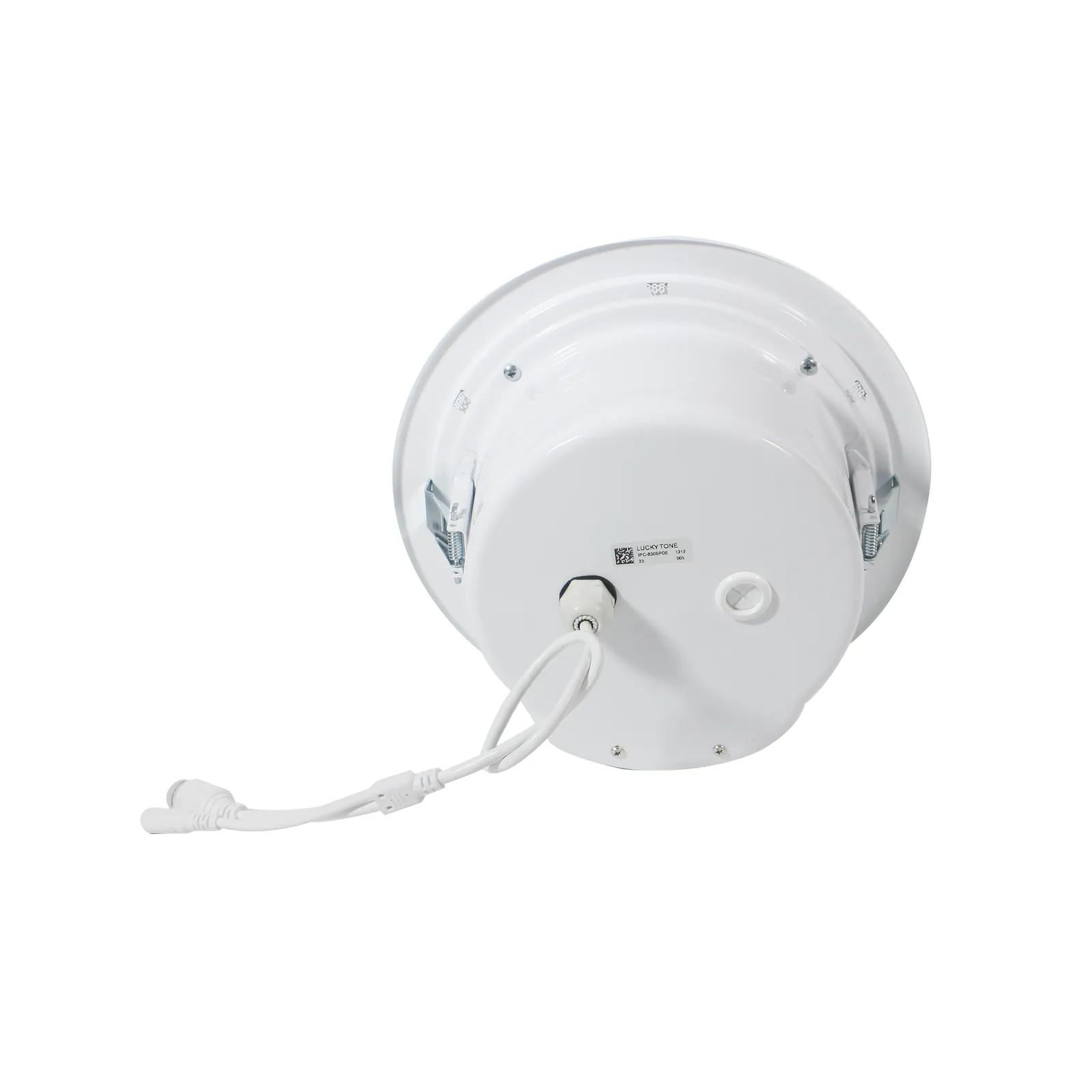

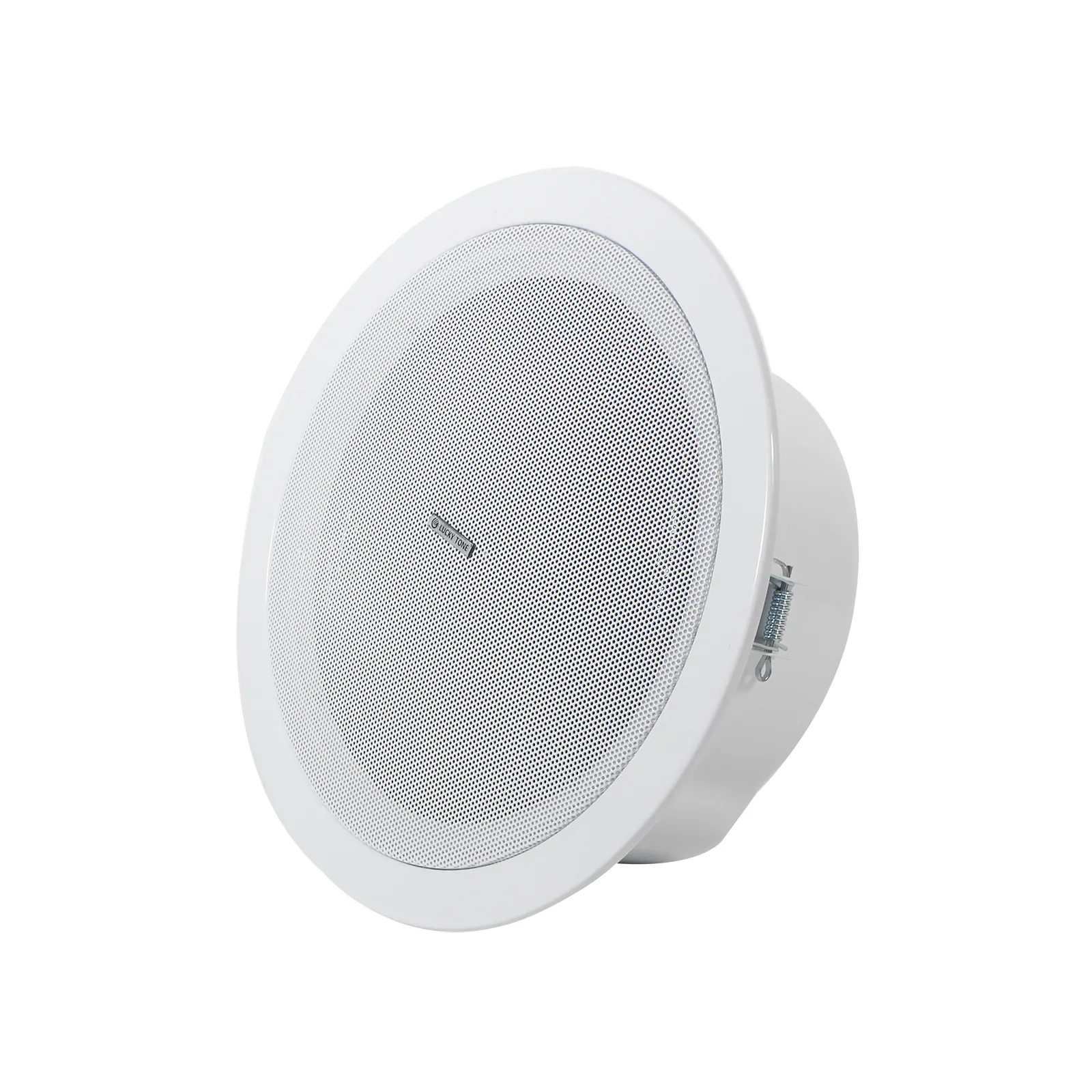

High SPL IP Network Ceiling Speaker
ModelIPC-830SPOE

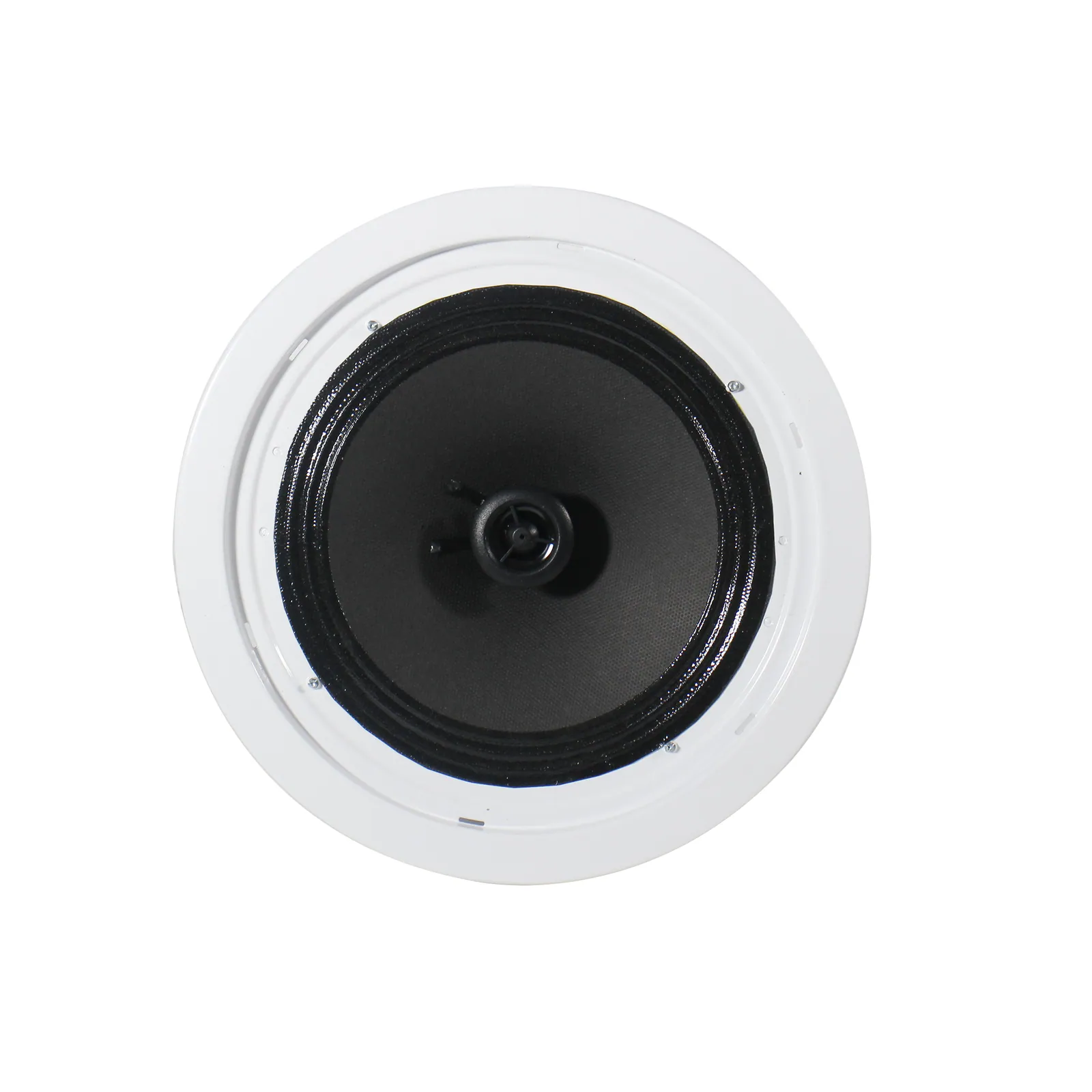

Double magnet ultra-high sensitivity 8-inch coaxial ceiling speaker
- Output power
- 30W
- Frequency response
- 63Hz-20KHz
- Power supply
- 24V DC or PoE
- Weight
- 1.9kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
High SPL IP Network Ceiling SpeakerPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 15 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications15
- Model
- IPC-830SPOE
- Rated Power
- 30W
- Power Supply
- 24V DC or PoE
- Network Protocol
- SIP
- Audio Decoding
- MP3, WMA, WAV
- Network Interface
- 10/100Base-TX, RJ45
- Speaker Sensitivity
- 96dB
- Frequency Response
- 63Hz-20KHz
- Material
- Metal
- Speakers
- 1″ x1 (TREBLE) 8″x1(BASS)
- Cutout Size
- Dia 230mm
- Product Size
- Dia265x130mm(H)
- Package Size
- 605x605x230mm, 8pcs per carton
- Net Weight
- 1.9kg
- Gross Weight
- 2.1kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- Support MP3, WMA, WAV and more decoding
- With a standard RJ45 network interface and supports online firmware upgrade from long distance
- This network ceiling loudspeaker integrated with network audio decoding, digital amplifier
- Empowered by high-speed dual-core (ARM + DSP) chip of industrial grade, startup in less than 1s
- Metal enclosure with fire dome
03Documents1 file · 1.5 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
