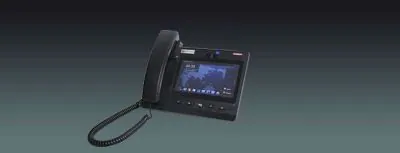

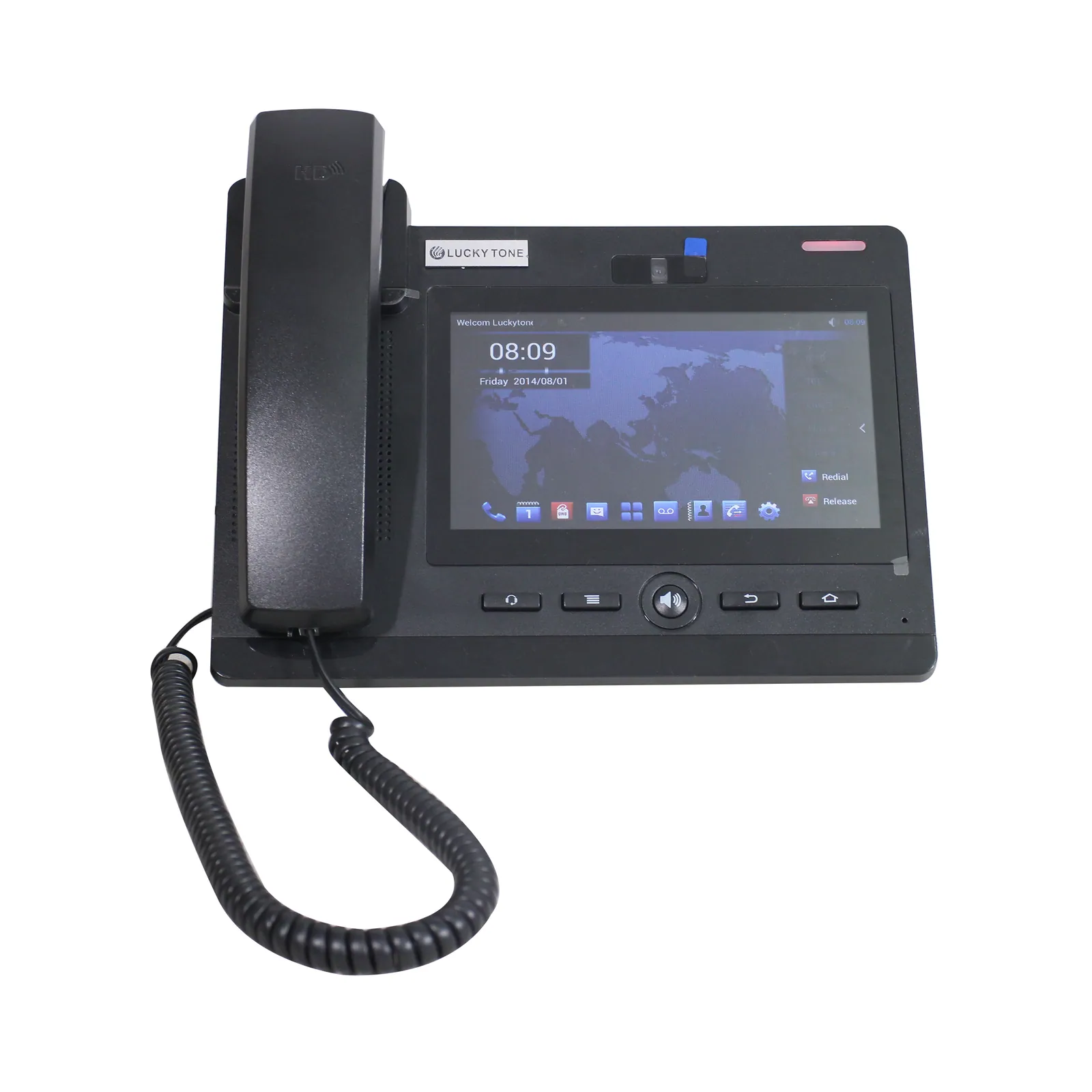

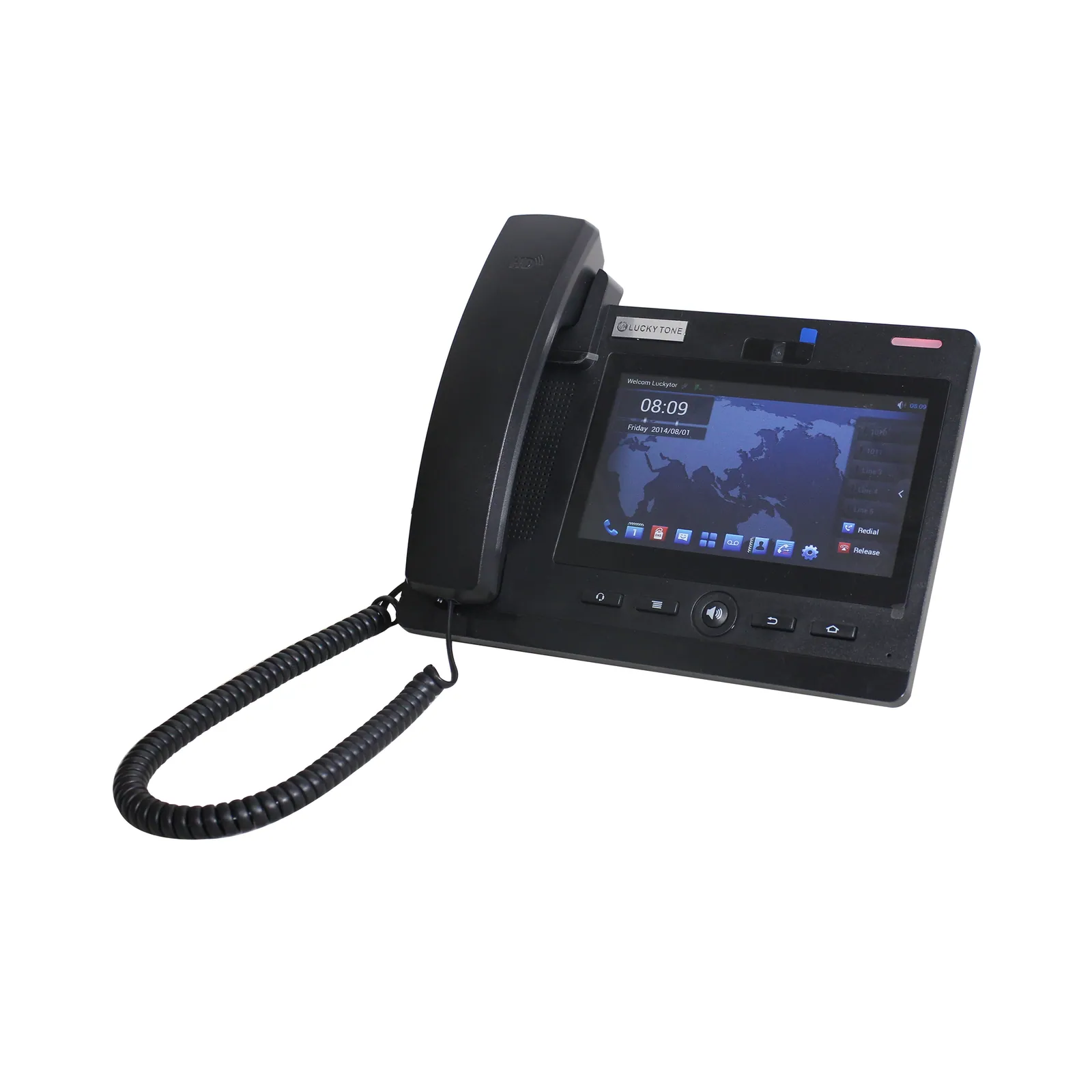

Desktop Smart Video SIP Phone with Android

ModelSIP-T06

SIP-T06 provides complete desk phone solutions with flexible functionality, HD Voice Quality, and highly easy operation. It is absolutely an excellent Smart Video Phone for small to large sized business, as well as mission-critical Enterprise Business.

Dimensions: Desktop Stand (angles 1): 254.8×154.9×202.8mm Desktop Stand (angles 2): 254.8×167.8×182.4mm Wall-mount: 254.8×118.4×206.9mm

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 26 values

What this product is, in numbers.

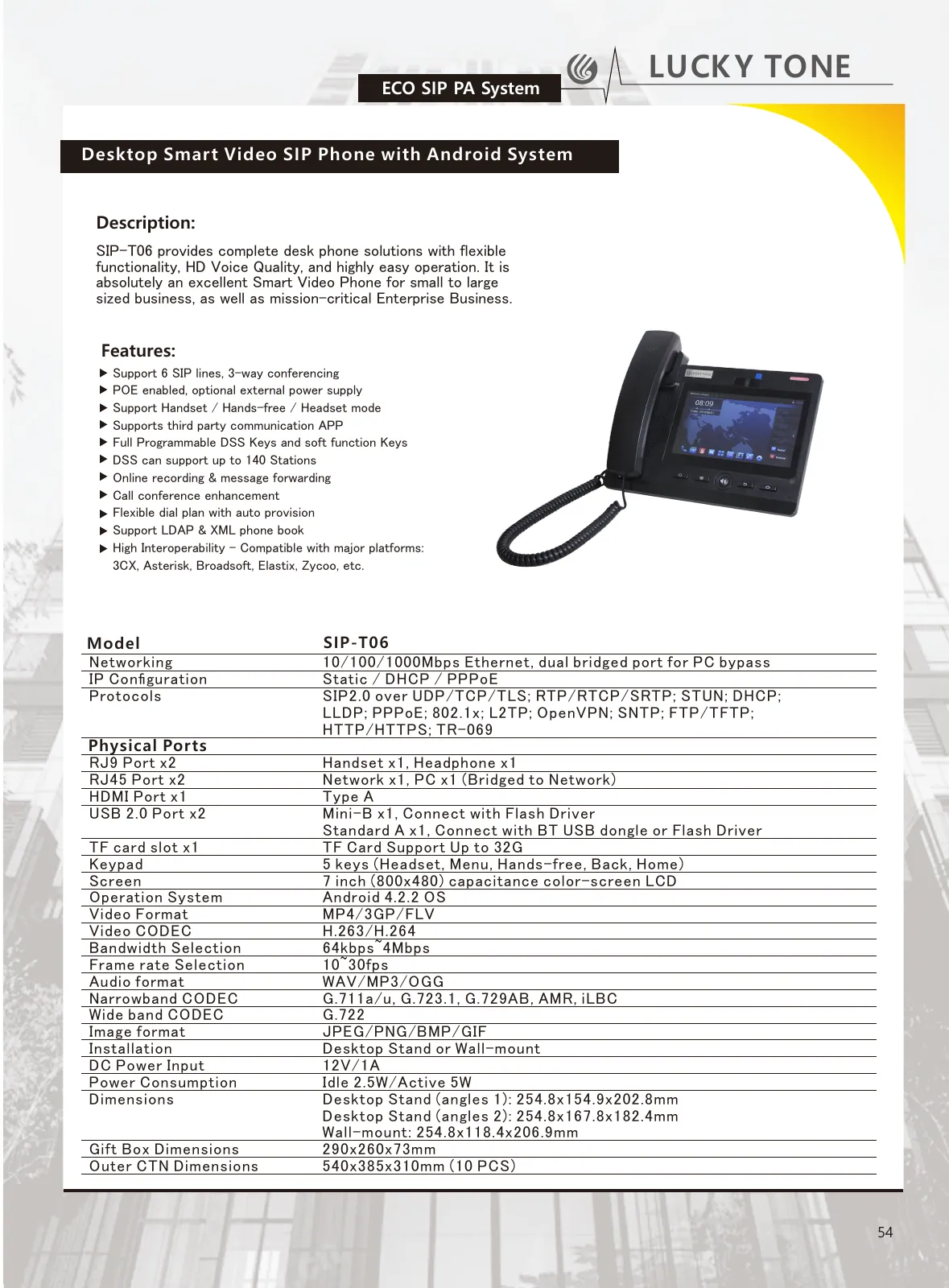

PDFSpecifications2.0 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications26

MODEL: SIP-T06
Networking: 10/100/1000Mbps Ethernet, dual bridged port for PC bypass
IP Configuration: Static / DHCP / PPPoE
Protocols: SIP2.0 over UDP/TCP/TLS; RTP/RTCP/SRTP; STUN; DHCP; LLDP; PPPoE; 802.1x; L2TP; OpenVPN; SNTP; FTP/TFTP; HTTP/HTTPS; TR-069
Physical Ports
RJ9 Port x2: Handset x1, Headphone x1
RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
HDMI Port x1: Type A
USB 2.0 Port x2: Mini-B x1, Connect with Flash Driver Standard A x1, Connect with BT USB dongle or Flash Driver
TF card slot x1: TF Card Support Up to 32G
Keypad: 5 keys (Headset, Menu, Hands-free, Back, Home)
Screen: 7 inch (800×480) capacitance color-screen LCD
Operation System: Android 4.2.2 OS
Video Format: MP4/3GP/FLV
Video CODEC: H.263/H.264
Bandwidth Selection: 64kbps~4Mbps
Frame rate Selection: 10~30fps
Audio format: WAV/MP3/OGG
Narrowband CODEC: G.711a/u, G.723.1, G.729AB, AMR, iLBC
Wide band CODEC: G.722
Image format: JPEG/PNG/BMP/GIF

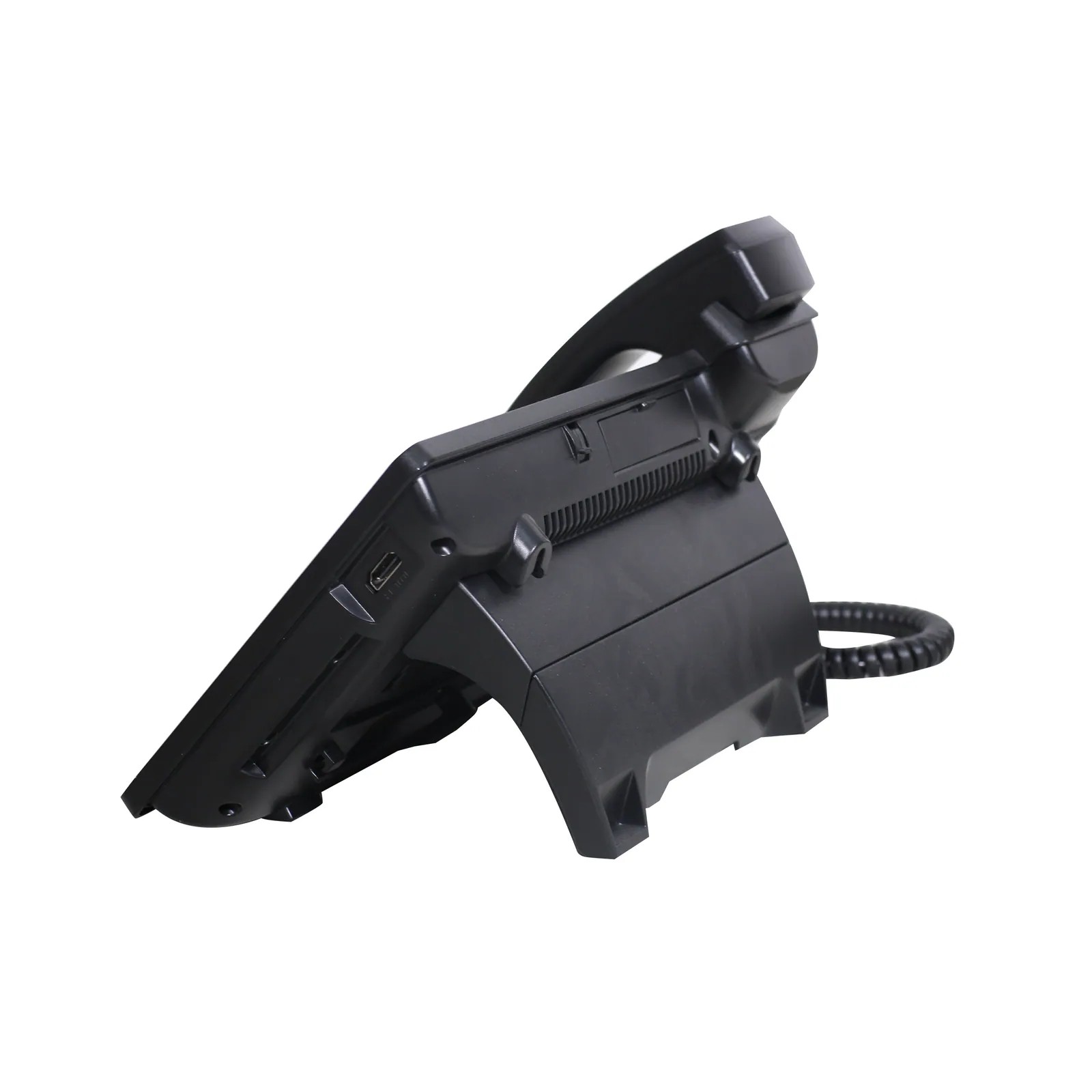

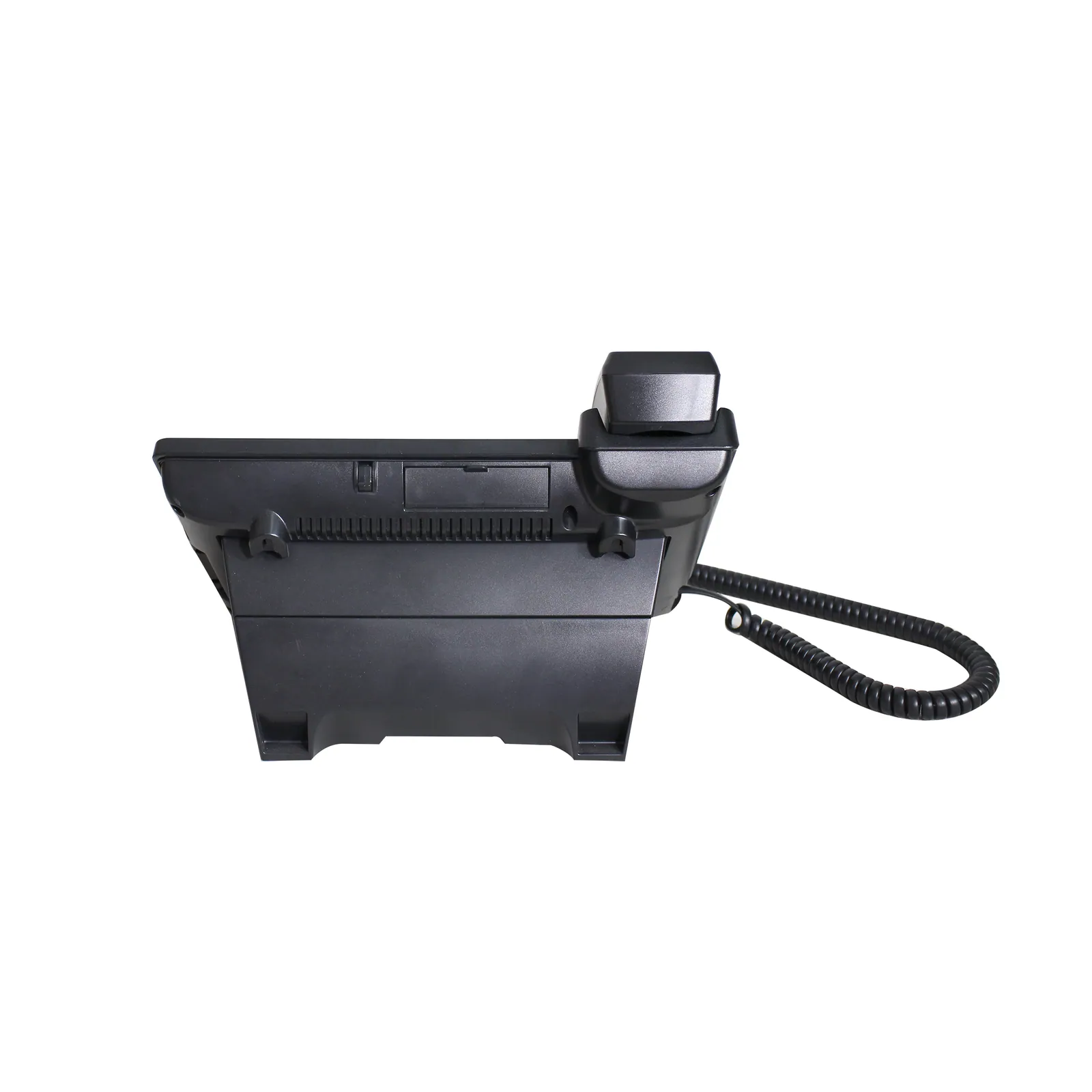

Installation: Desktop Stand or Wall-mount
DC Power Input: 12V/1A
Power Consumption: Idle 2.5W/Active 5W
Dimensions: Desktop Stand (angles 1): 254.8×154.9×202.8mm Desktop Stand (angles 2): 254.8×167.8×182.4mm Wall-mount: 254.8×118.4×206.9mm
Gift Box Dimensions: 290x260x73mm
Outer CTN Dimensions: 540x385x310mm (10 PCS)

02DescriptionManufacturer's description

What it is.

Features

Support 6 SIP lines, 3-way conferencing
POE enabled, optional external power supply
Support Handset / Hands-free / Headset mode
Supports third party communication APP
Full Programmable DSS Keys and soft function Keys
DSS can support up to 140 Stations
Online recording & message forwarding
Call conference enhancement
Flexible dial plan with auto provision
Support LDAP & XML phone book
High Interoperability – Compatible with major platforms: 3CX, Asterisk, Broadsoft, Elastix, Zycoo, etc.

03Documents1 file · 2.0 MB
