Lucky Tone SIP Network Paging Microphone with Intercom SIPM-10
ModelSIPM-10
With a 10/100M Ethernet interface, line input and output, SIPM-10 is an SIP desktop intercom host that is used with SIP server.
- Power supply
- DC 12V
- Dimensions
- 150 x 140 x 55 mm
- Weight
- 0.6Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
SIP Network Paging Microphone with IntercomPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 10 values
What this product is, in numbers.

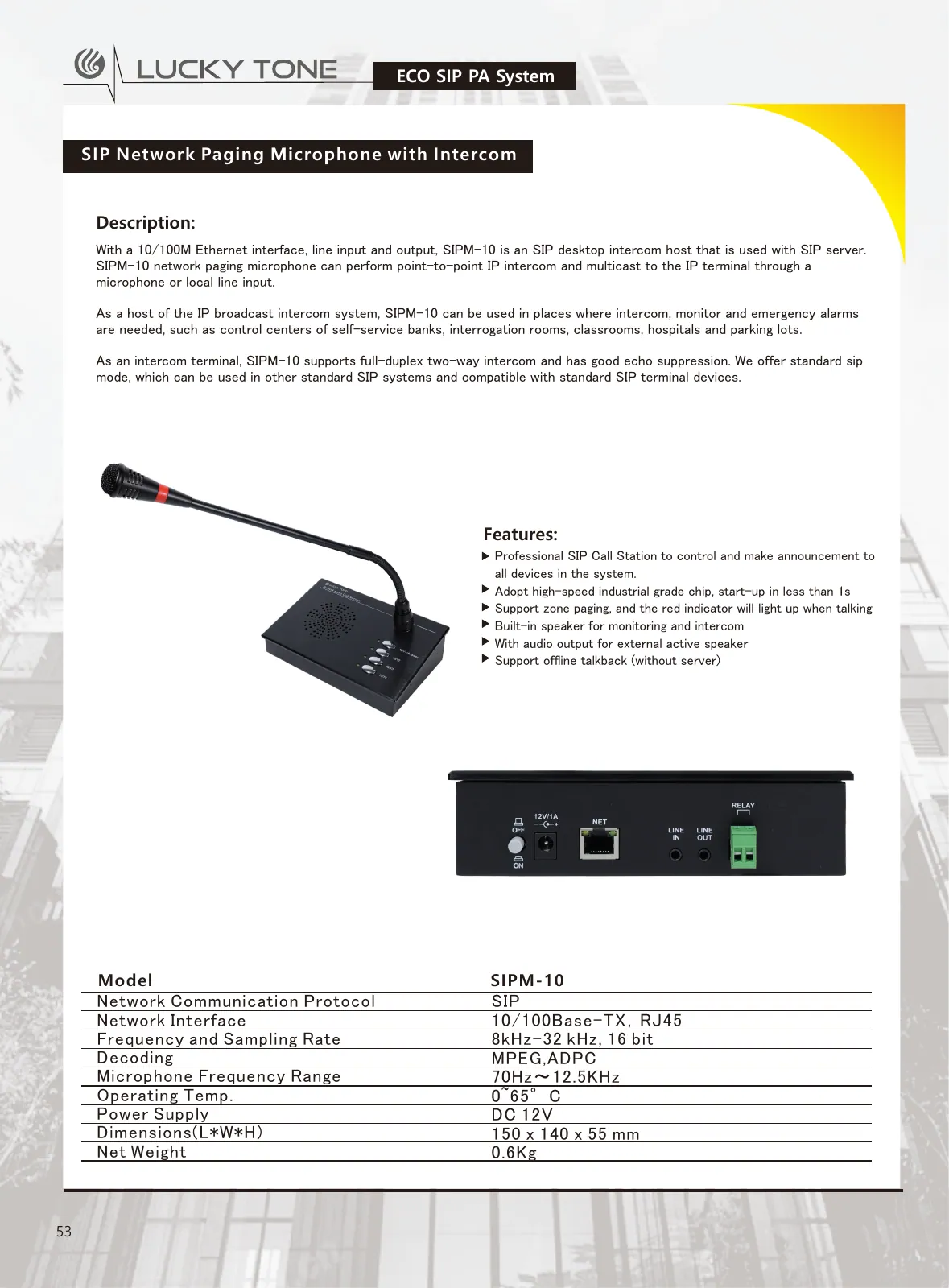

PDFSpecifications8.7 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications10
- MODEL
- SIPM-10
- Network Communication Protocol
- SIP
- Network Interface
- 10/100Base-TX,RJ45
- Frequency and Sampling Rate
- 8kHz-32 kHz, 16 bit
- Decoding
- MPEG,ADPC
- Microphone Frequency Range
- 70Hz~12.5KHz
- Operating Temp.
- 0~65°C
- Power Supply
- DC 12V
- Dimensions(L*W*H)
- 150 x 140 x 55 mm
- Net Weight
- 0.6Kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
SIPM-10 network paging microphone can perform point-to-point IP intercom and multicast to the IP terminal through a microphone or local line input.
As a host of the IP broadcast intercom system, SIPM-10 can be used in places where intercom, monitor and emergency alarms are needed, such as control centers of self-service banks, interrogation rooms, classrooms, hospitals and parking lots.
As an intercom terminal, SIPM-10 supports full-duplex two-way intercom and has good echo suppression. We offer standard sip
mode, which can be used in other standard SIP systems and compatible with standard SIP terminal devices.
Features
- Professional SIP Call Station to control and make announcement to all devices in the system.
- Adopt high-speed industrial grade chip, start-up in less than 1s
- Support zone paging, and the red indicator will light up when talking
- Built-in speaker for monitoring and intercom
- With audio output for external active speaker
- Support offline talkback (without server)
