Sheet 05.358
Lucky Tone · IP, SIP and ONVIF

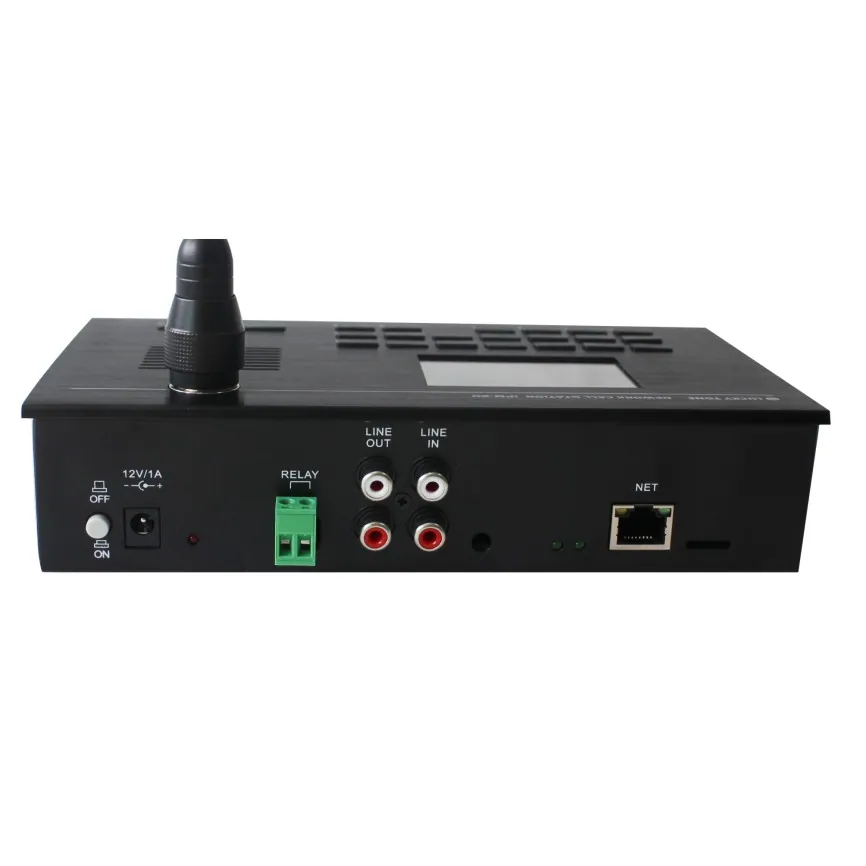

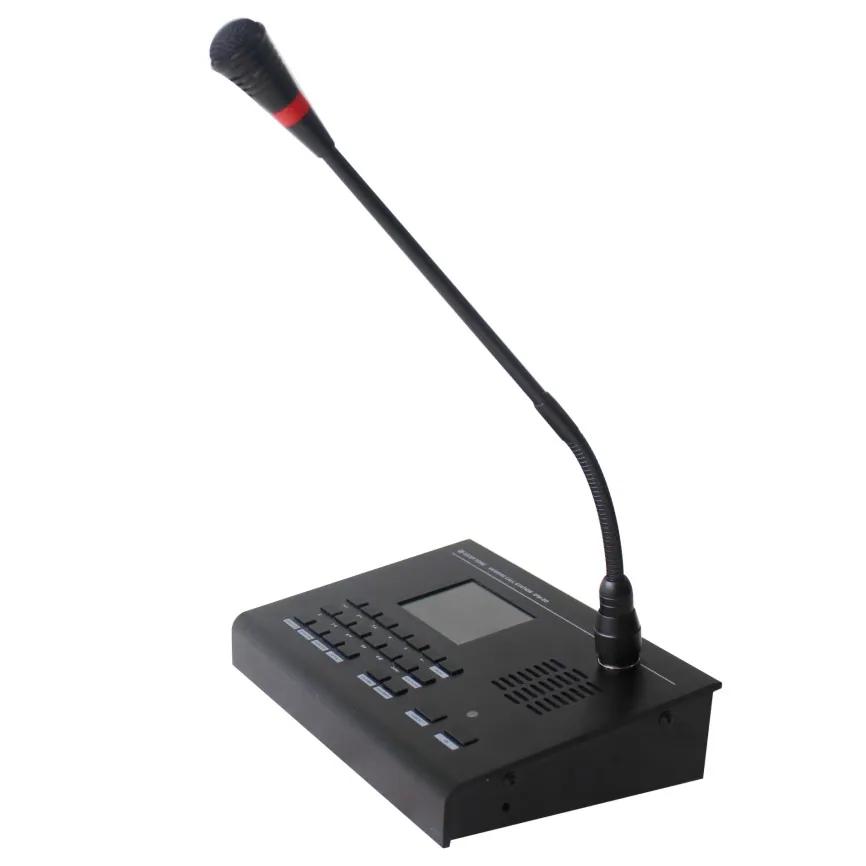

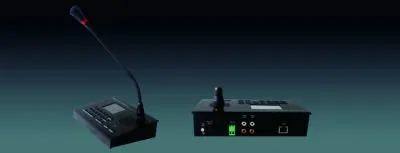

Lucky Tone SIP Network Paging Microphone with Intercom SIPM-20
ModelSIPM-20
● Professional SIP Call Station to control and make announcement or Intercom to all devices in the system.
- Power supply
- DC 12V
- Dimensions
- 210 x 145 x 55 mm
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
SIP Network Paging Microphone with IntercomPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 10 values
What this product is, in numbers.

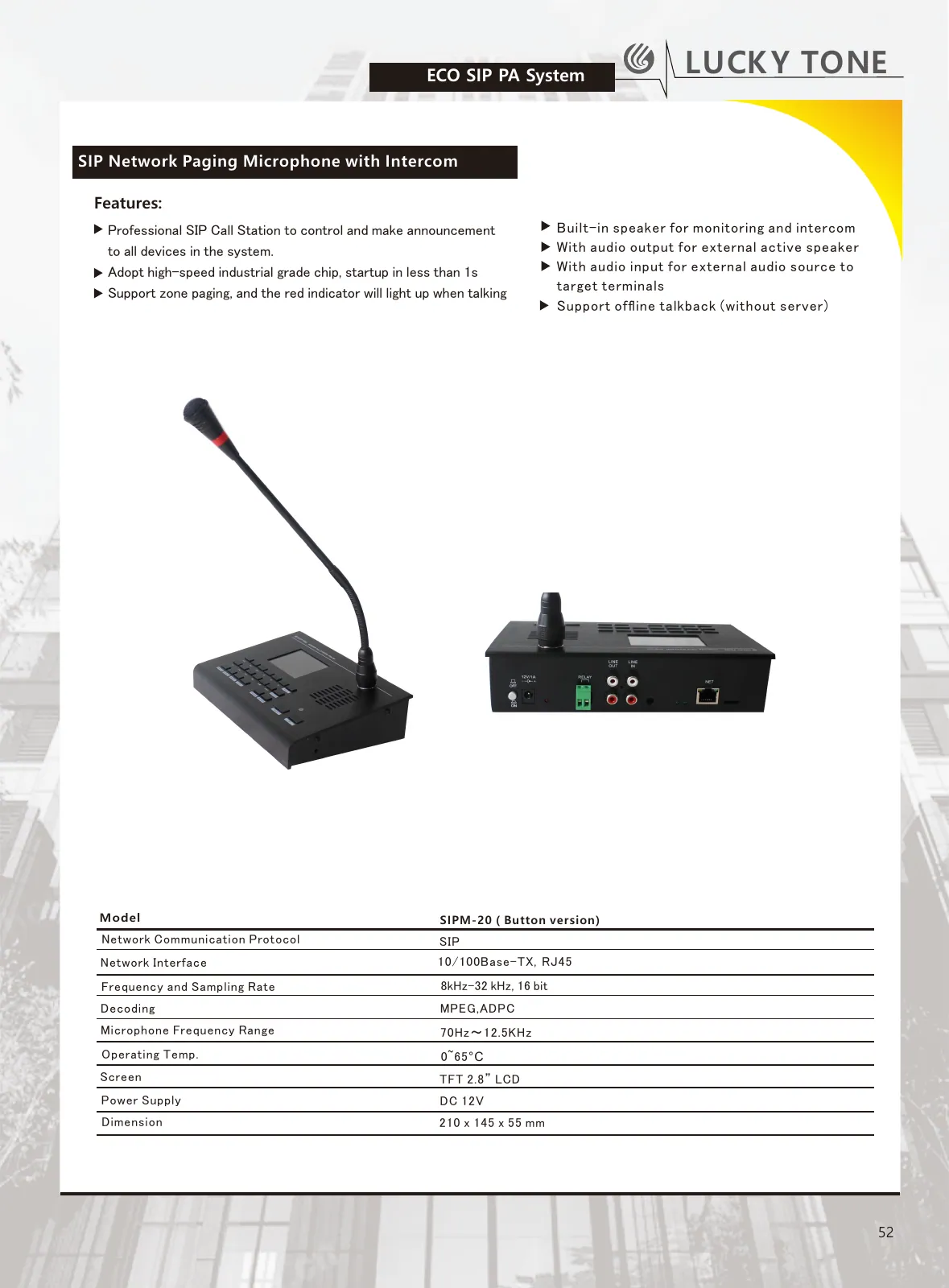

PDFSpecifications1.3 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications10
- MODEL
- SIPM-20
- Network Communication Protocol
- TCP,ARP, ICMP, DHCP, UDP, DNS, IGMP
- Network Interface
- 10/100Base-TX,RJ45
- Frequency and Sampling Rate
- 8kHz-32 kHz, 16 bit
- Line input
- 2000mvpp
- Microphone Frequency Range
- 70Hz~12.5KHz
- Operating Temp.
- 0~65°C
- Screen
- TFT 2.8” LCD
- Power Supply
- DC 12V
- Dimension
- 210 x 145 x 55 mm
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Features
- ● Adopt high-speed industrial grade chip, startup in less than 1s
- ● Support zone paging, and the red indicator will light up when talking
- ● Built-in speaker for monitoring and intercom
- ● With audio output for external active speaker
- ● With audio input for external audio source to target terminals
03Documents1 file · 1.3 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
