Sheet 05.359
Lucky Tone · IP, SIP and ONVIF
System Manager

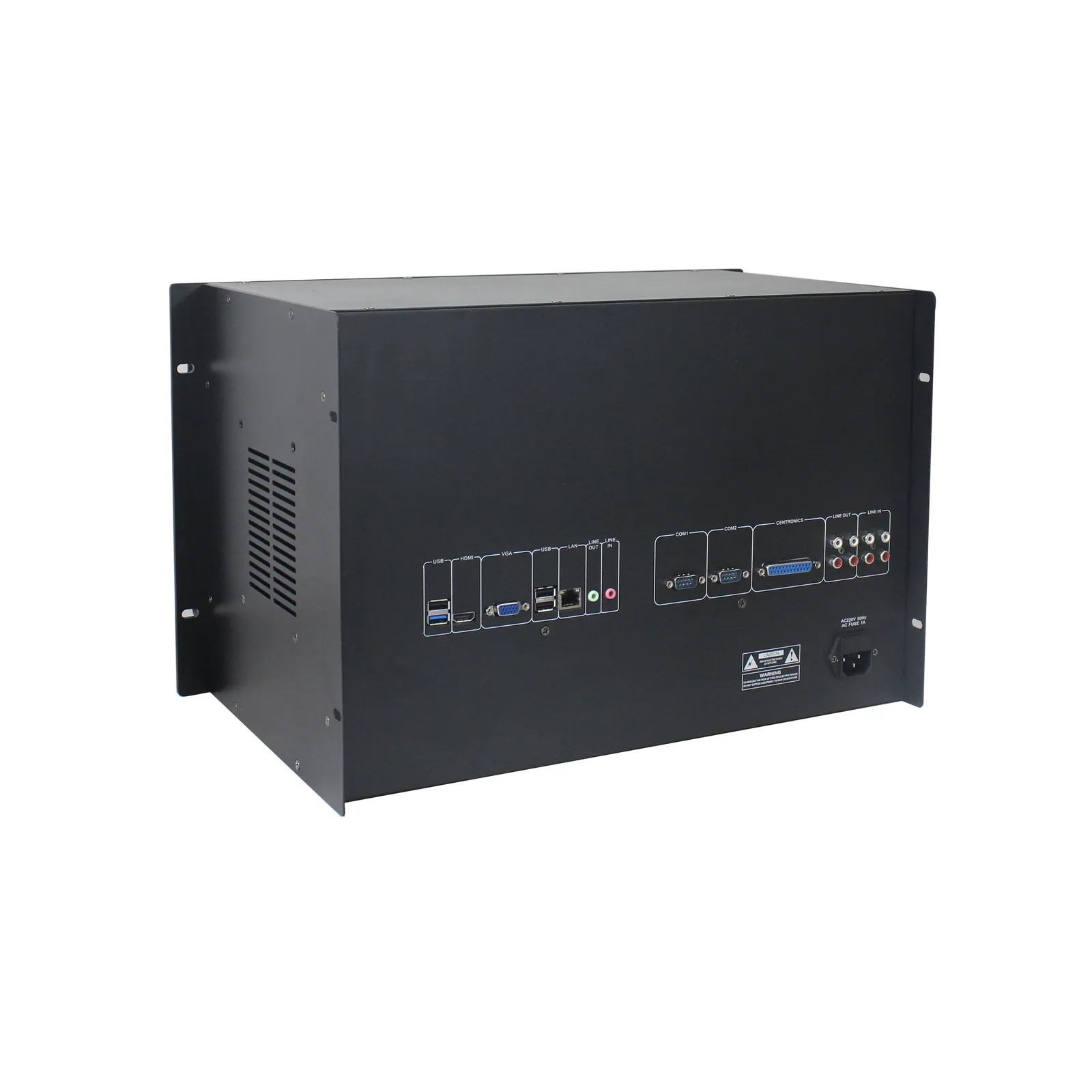

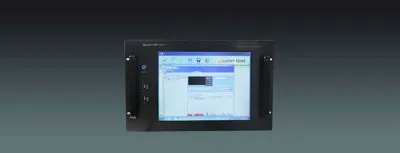

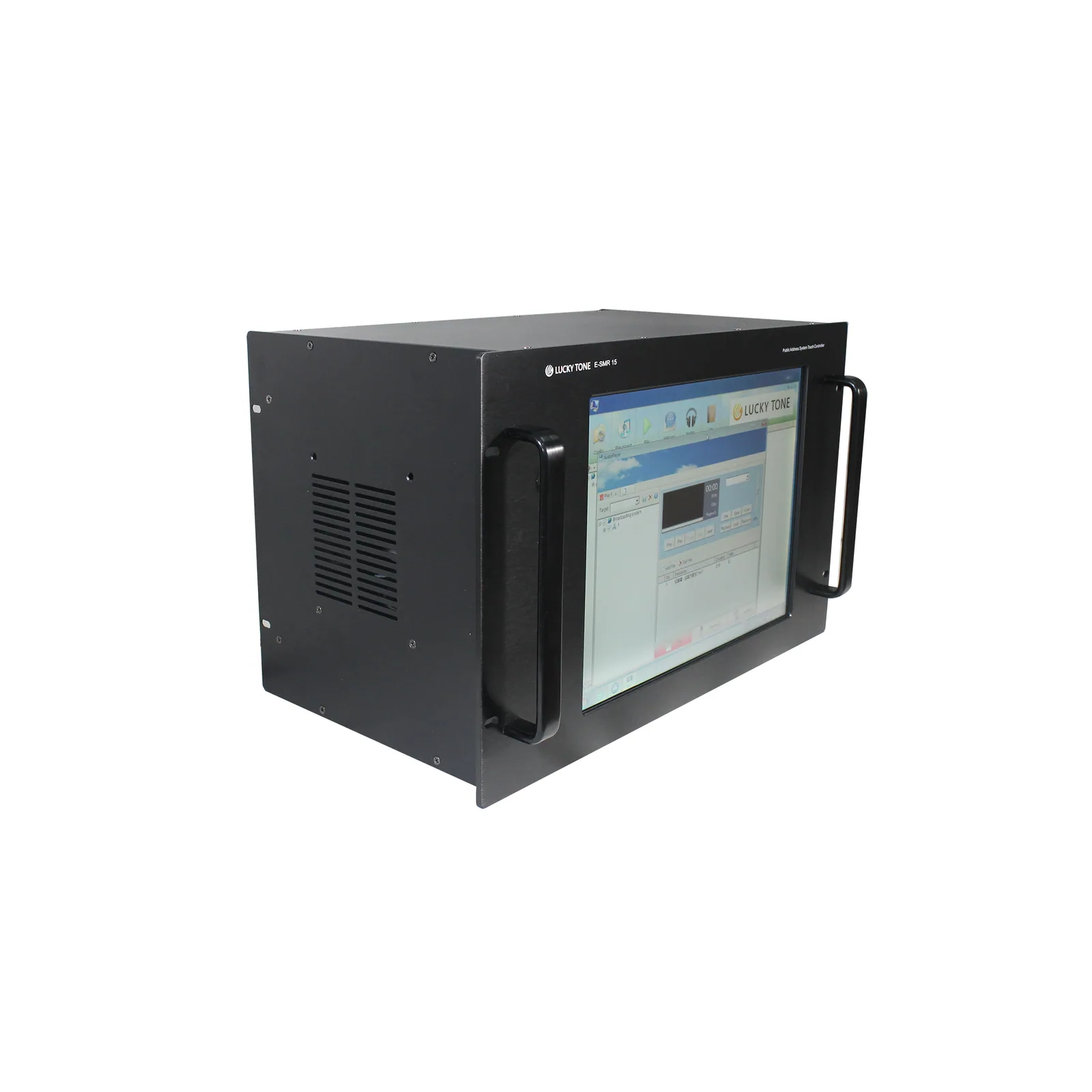

ModelE-SMR 15 / E-SMR 17
A rugged design professional controller where system server and user interface installed to manage the whole system over TCP/IP network
- Dimensions
- 485*335*320mm(W*H*D)
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
System ManagerPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 19 values
What this product is, in numbers.

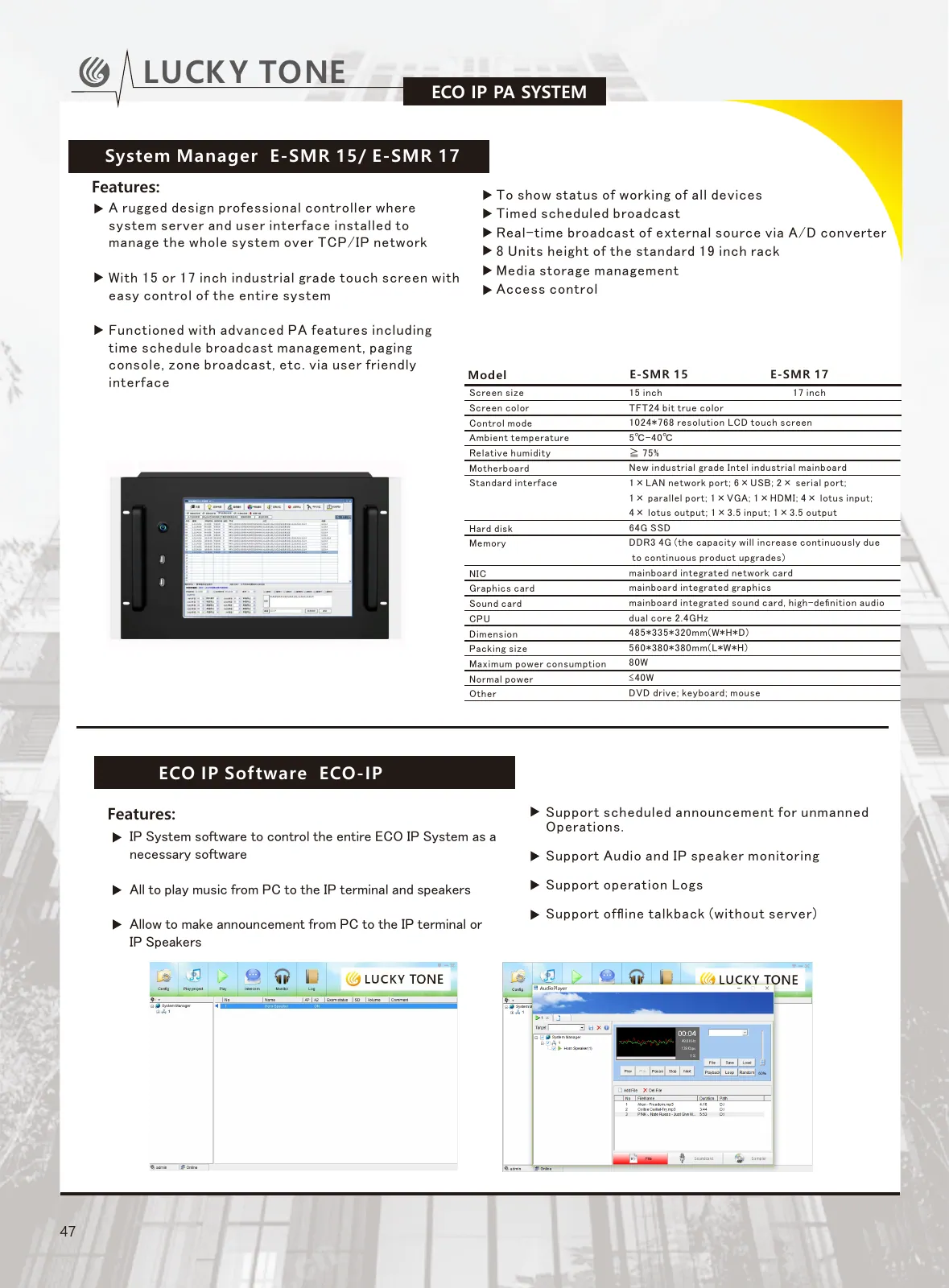

PDFSpecifications1.1 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications19
- MODEL
- E-SMR 15 / E-SMR 17
- Screen size
- 15 inch/17 inch
- Screen color
- TFT24 bit true color
- Control mode
- 1024*768 resolution LCD touch screen
- Ambient temperature
- 5°C-40°C
- Relative humidity
- ≧ 75%
- Motherboard
- New industrial grade Intel industrial mainboard

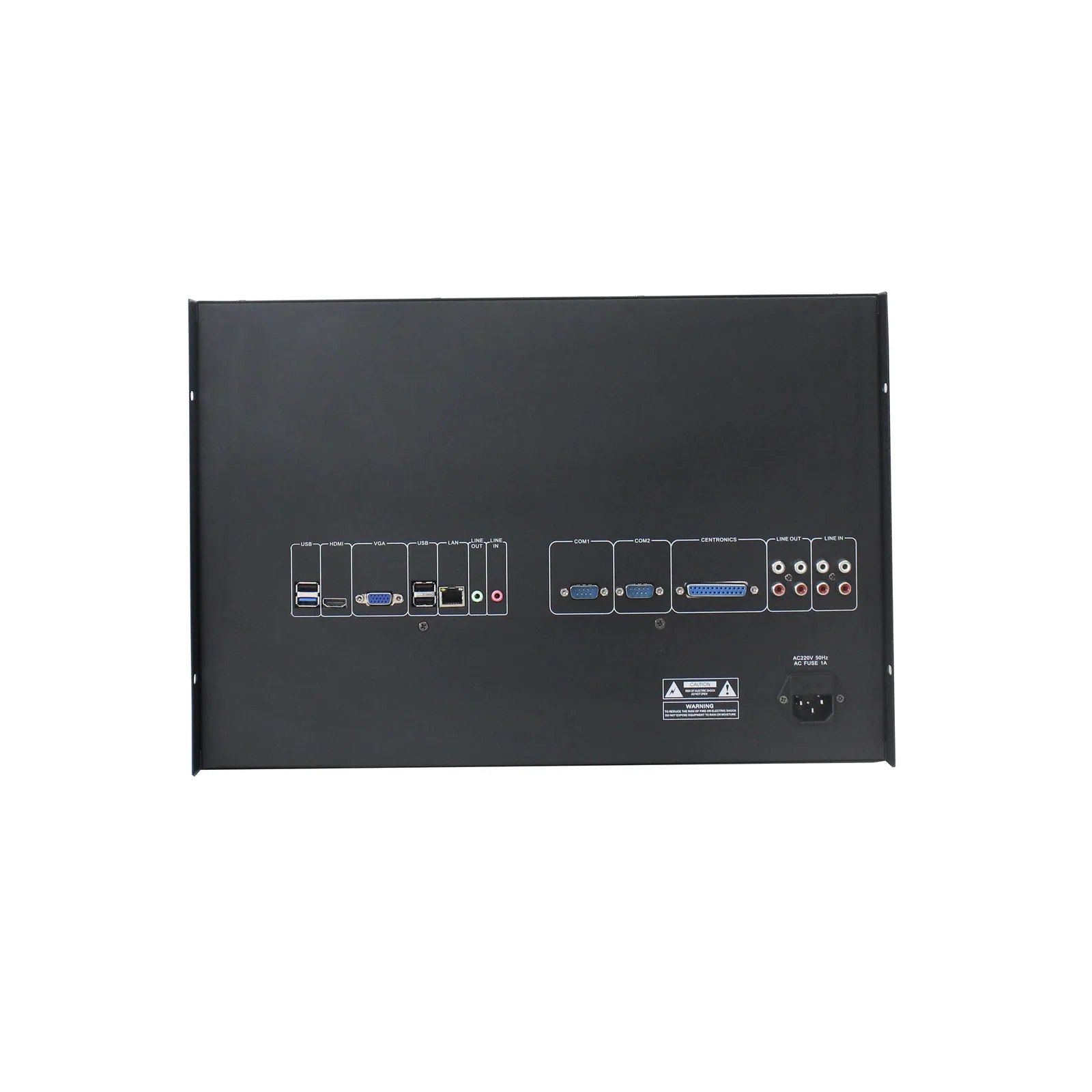

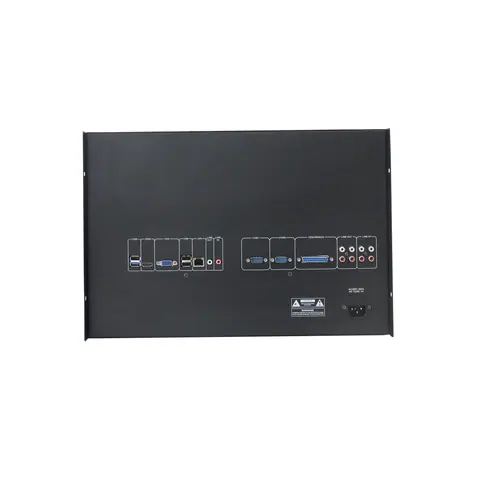

- Standard interface
- 1×LAN network port; 6×USB; 2× serial port; 1× parallel port; 1×VGA; 1×HDMI; 4× lotus input; 4× lotus output; 1×3.5 input; 1×3.5 output
- Hard disk
- 64G SSD
- Memory
- DDR3 4G (the capacity will increase continuously due to continuous product upgrades)
- NIC
- mainboard integrated network card
- Graphics card
- mainboard integrated graphics
- Sound card
- mainboard integrated sound card, high-definition audio
- CPU
- dual core 2.4GHz
- Dimension
- 485*335*320mm(W*H*D)
- Packing size
- 560*380*380mm(L*W*H)
- Maximum power consumption
- 80W
- Normal power
- ≤40W
- Other
- DVD drive; keyboard; mouse
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.

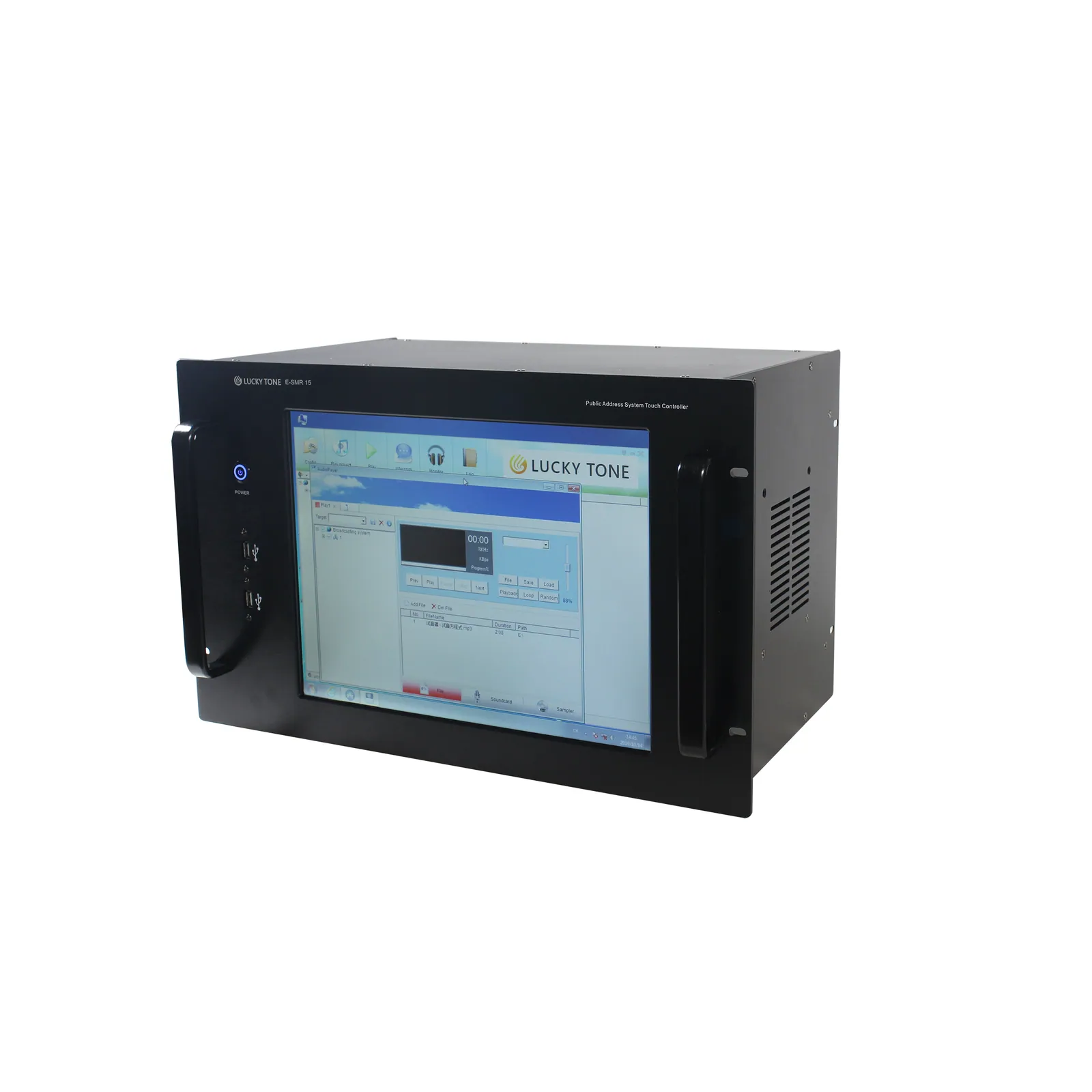

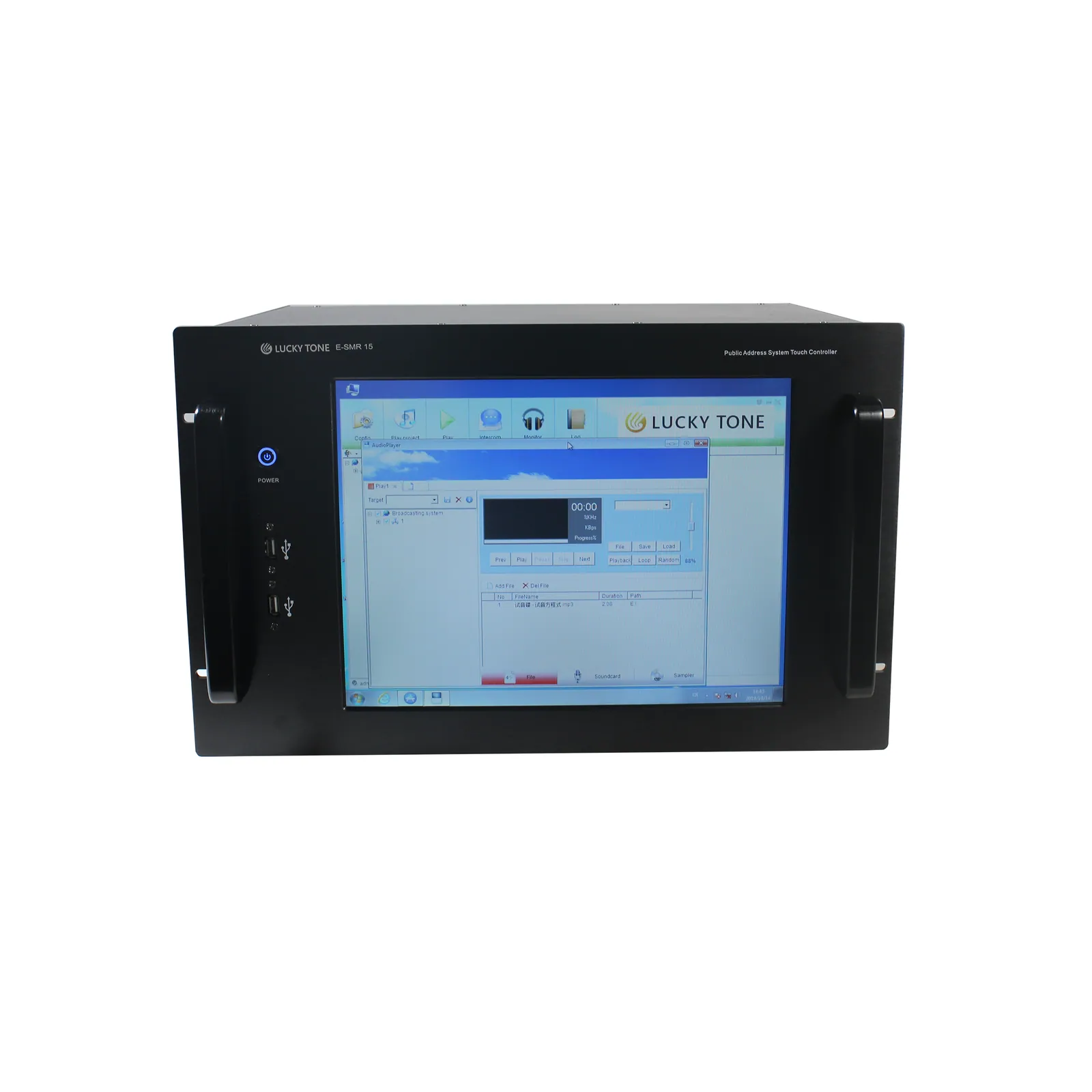

With 15 or 17 inch industrial grade touch screen with easy control of the entire system
Functioned with advanced PA features including time schedule broadcast management, paging console, zone broadcast, etc. via user friendly interface.
- To show status of working of all devices
- Timed scheduled broadcast
- Real-time broadcast of external source via A/D converter
- 8 Units height of the standard 19 inch rack
Media storage management
Access control
