Sheet 05.344
Lucky Tone · IP, SIP and ONVIF

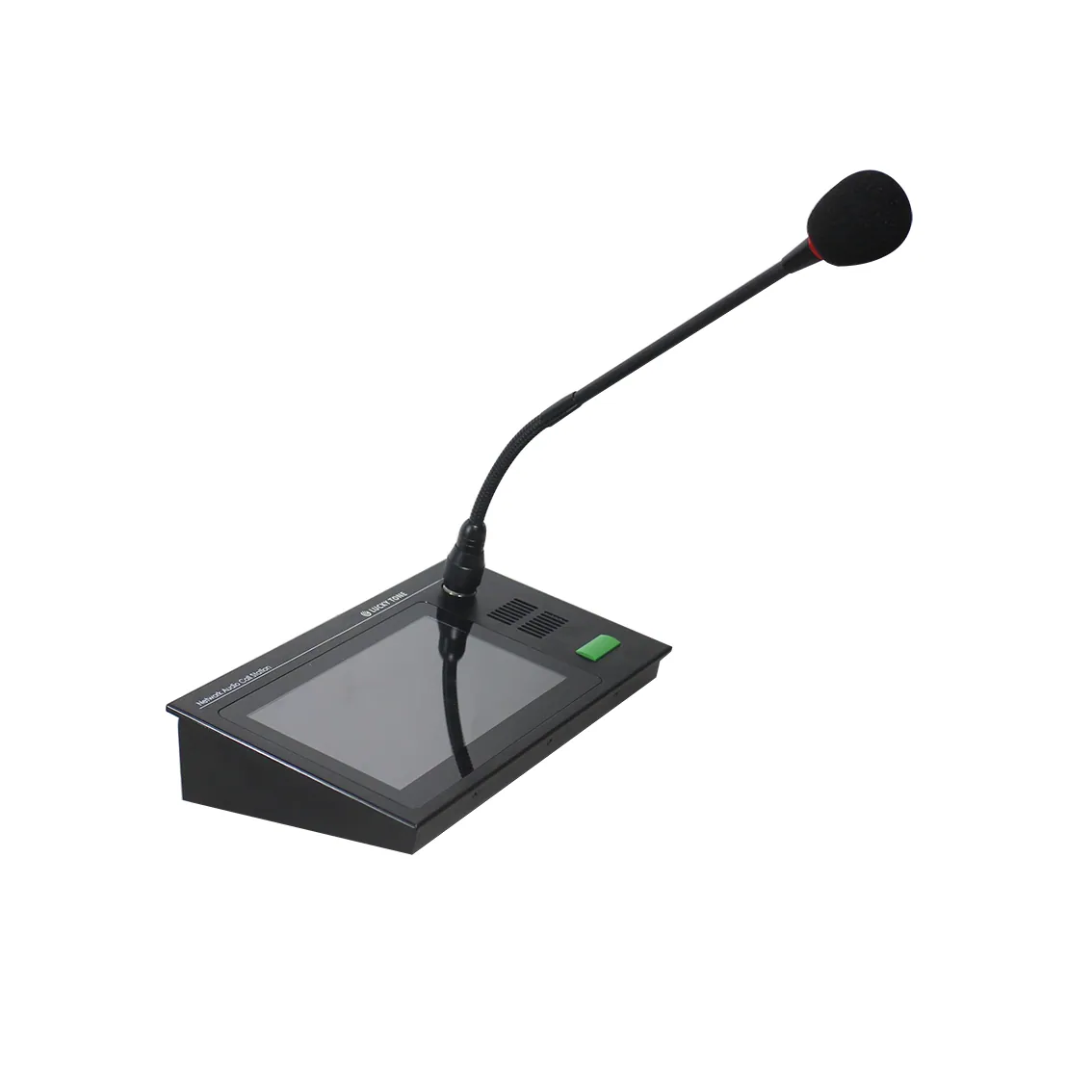

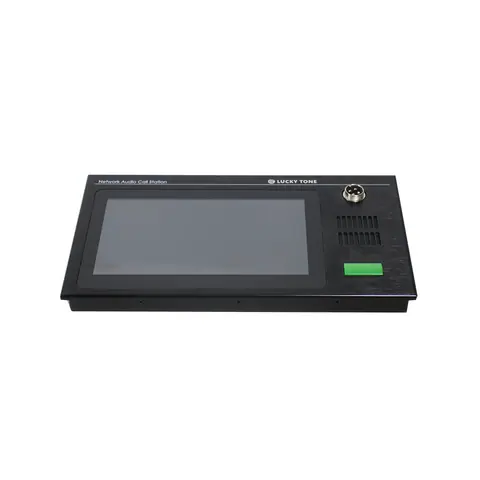

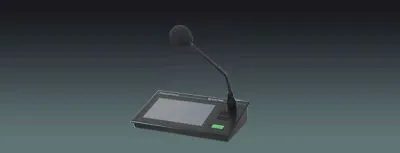

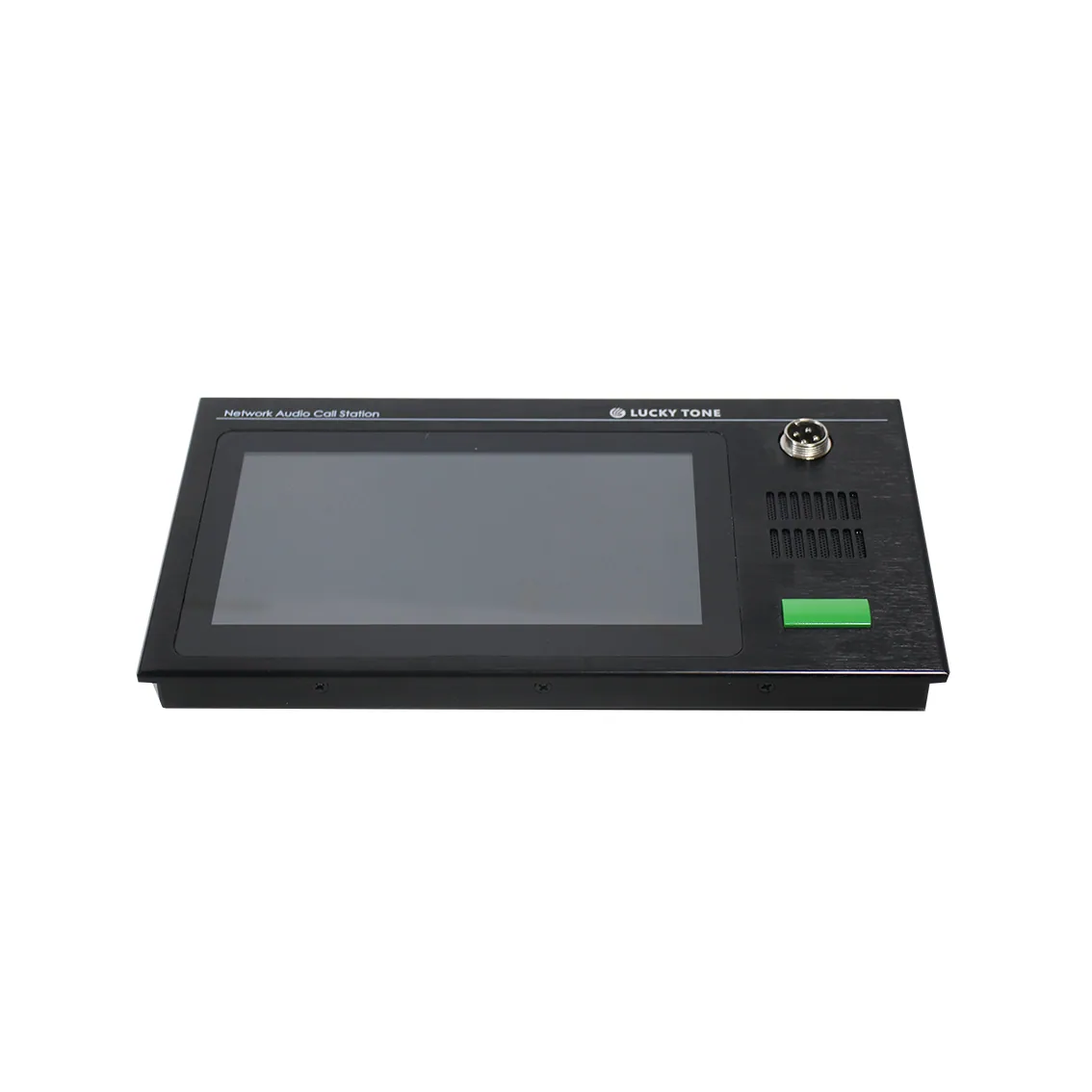

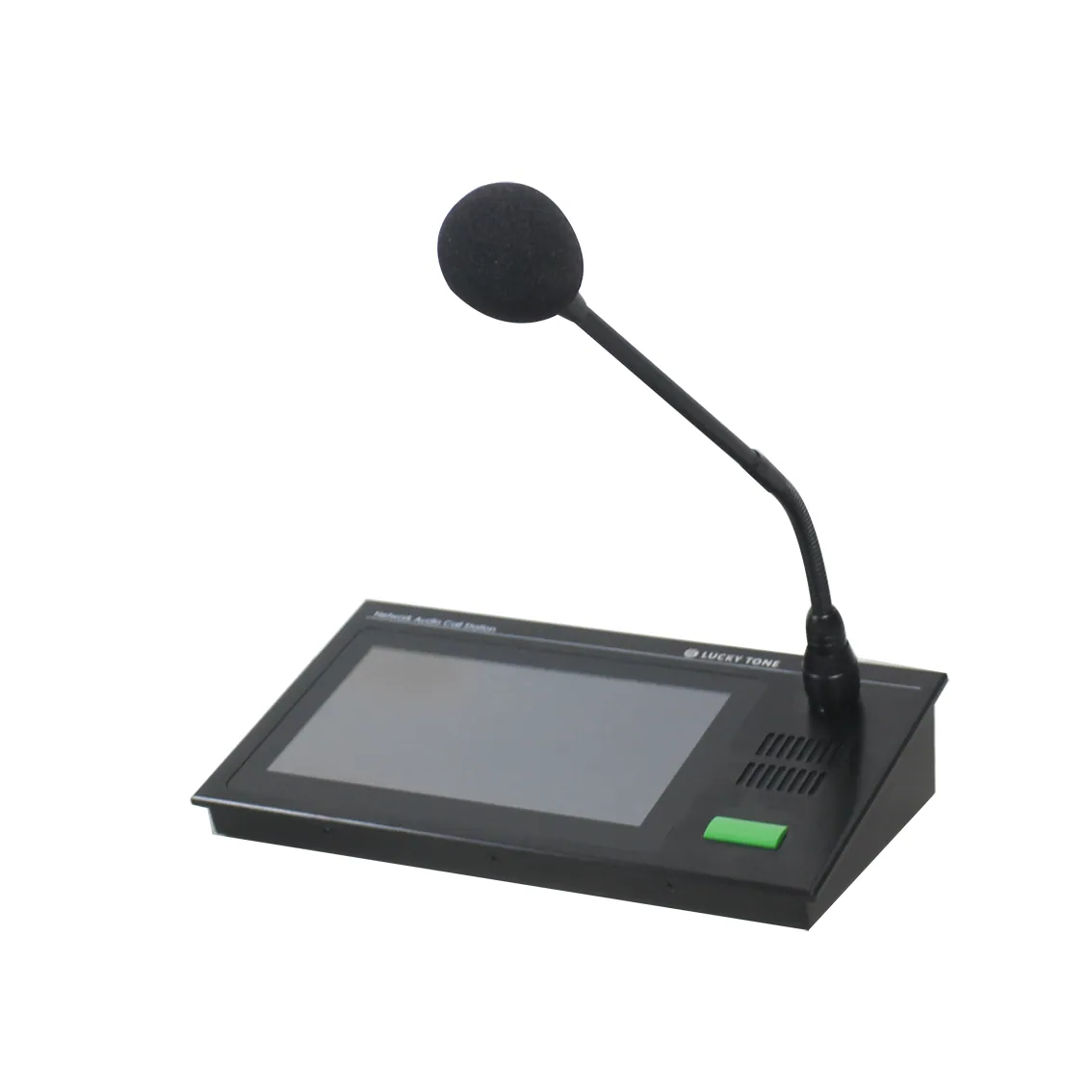

SIP Control Station With Touch Screen
ModelSIPM-30T

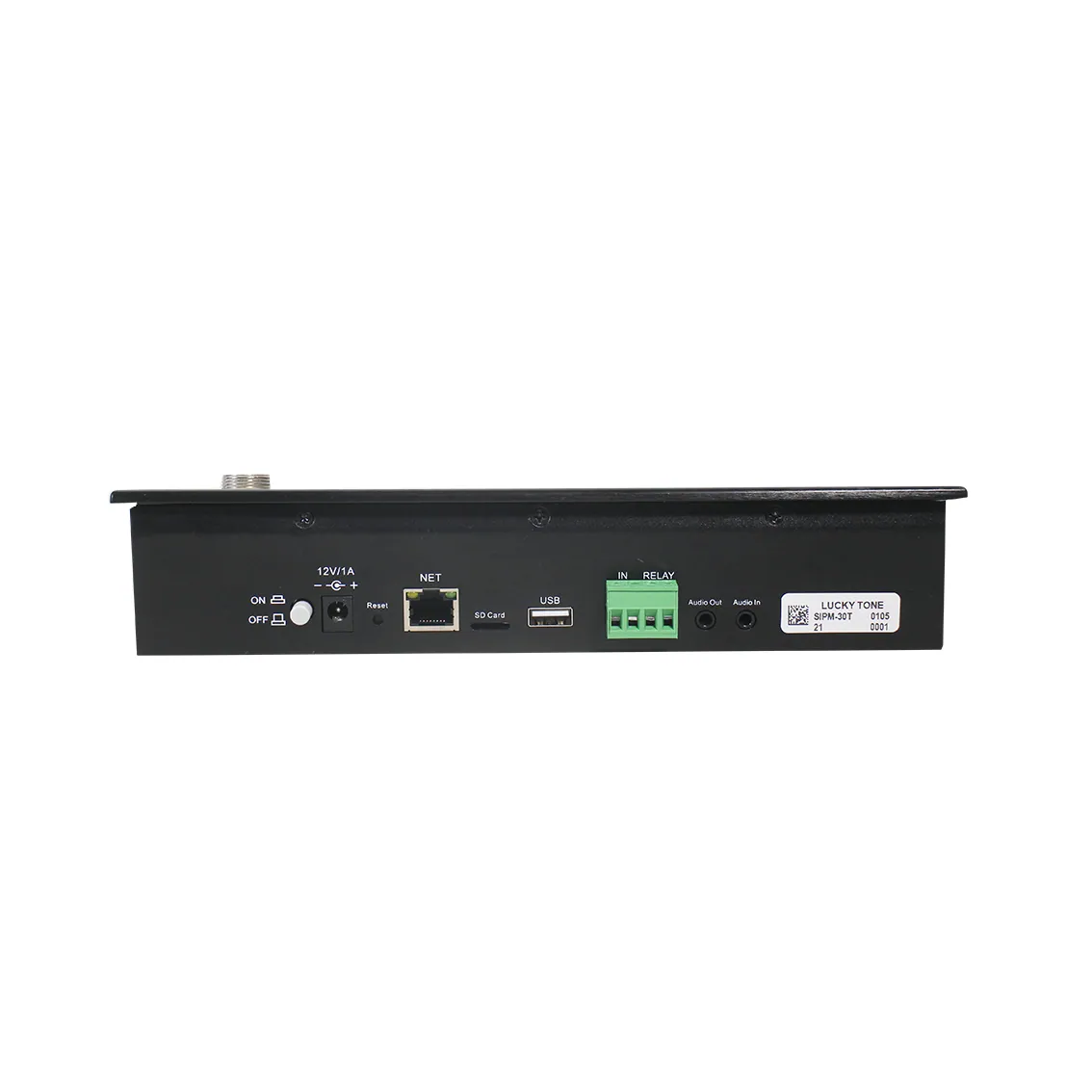

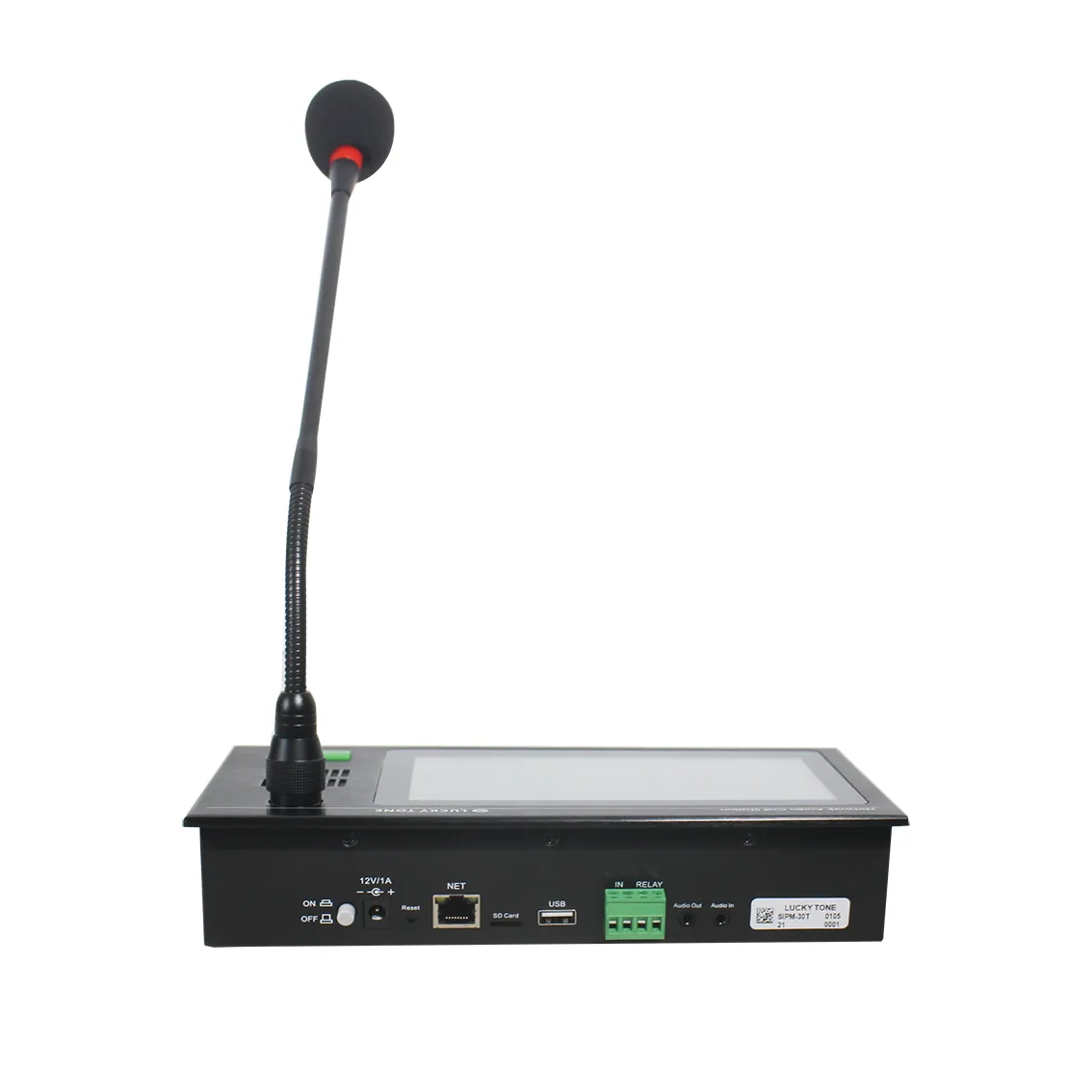

With a 10/100M Ethernet interface, line input and output, SIPM30T is an SIP desktop intercom host that is used with SIP server.
- Power supply
- DC 12V
- Dimensions
- 250 x 145 x 55 mm
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
SIP Control Station With Touch ScreenPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 10 values
What this product is, in numbers.
PDFSpecifications1.2 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications10
- MODEL
- SIPM-30T
- Network Communication Protocol
- SIP
- Network Interface
- 10/100Base-TX,RJ45
- Frequency and Sampling Rate
- 8kHz-32 kHz, 16 bit
- Decoding
- MPEG,ADPC
- Microphone Frequency Range
- 70Hz~12.5KHz
- Operating Temp.
- 0~65°C
- Screen
- 7” touch screen
- Power Supply
- DC 12V
- Dimension
- 250 x 145 x 55 mm
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
SIPM-30T network paging microphone can perform point-topoint IP intercom and multicast to the IP terminal through a microphone or local line input.
As a host of the IP broadcast intercom system, SIPM-30T can be used in places where intercom, monitor and emergency alarms
are needed, such as control centers of self-service banks, interrogation rooms, classrooms, hospitals and parking lots.
As an intercom terminal, SIPM-30T supports full-duplex twoway intercom and has good echo suppression. We offer standard
sip mode, which can be used in other standard SIP systems and compatible with standard SIP terminal devices.
Features
- Stand-alone intercom function
- Stand-alone paging function
- Stand-alone unicast and multicast functions
- Support modify parameters directly on the mic
- Play Audio from SD or USB to the zones
03Documents1 file · 1.2 MB
Documents and files.

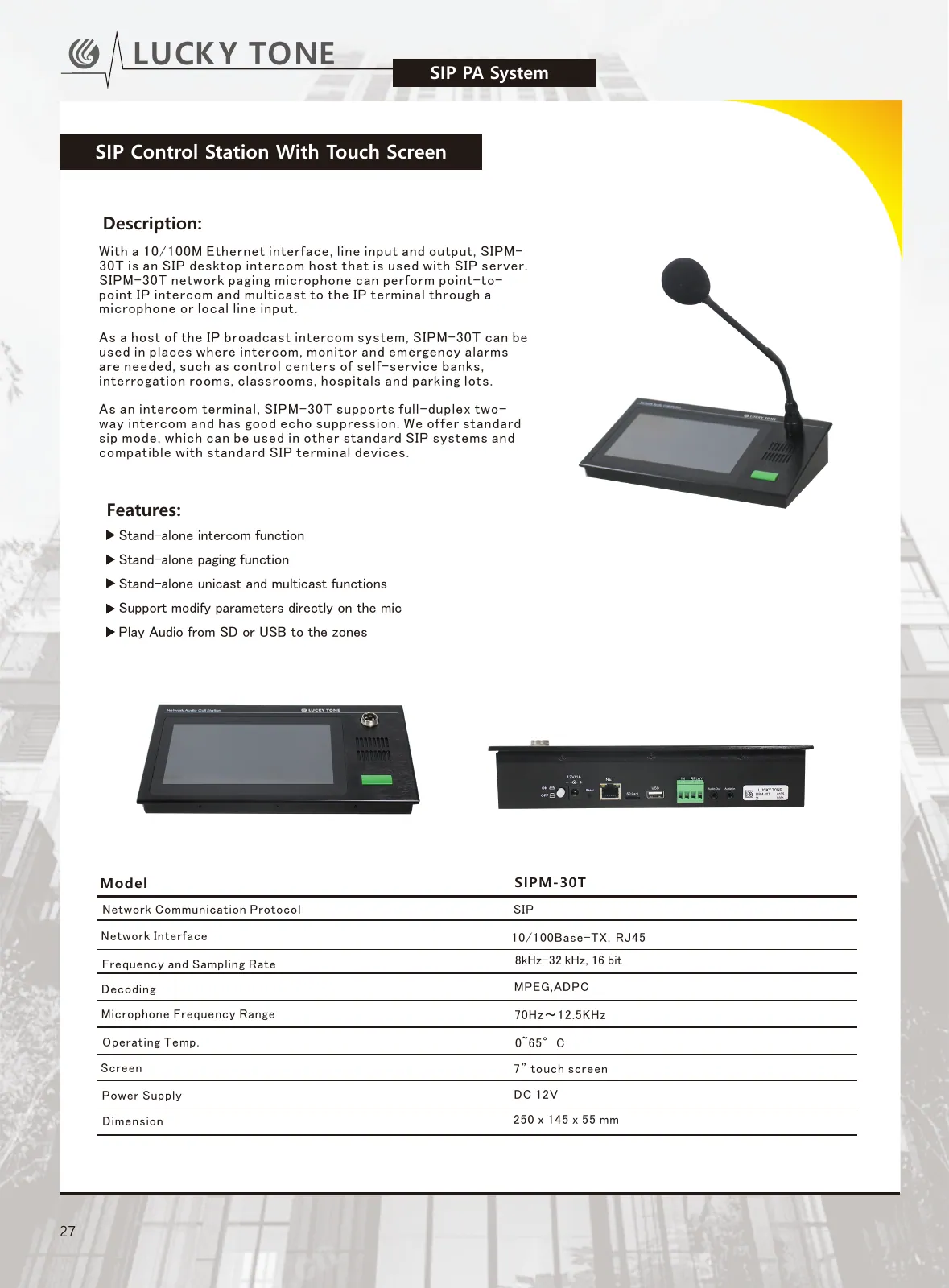

Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
