Sheet 05.343
Lucky Tone · IP, SIP and ONVIF

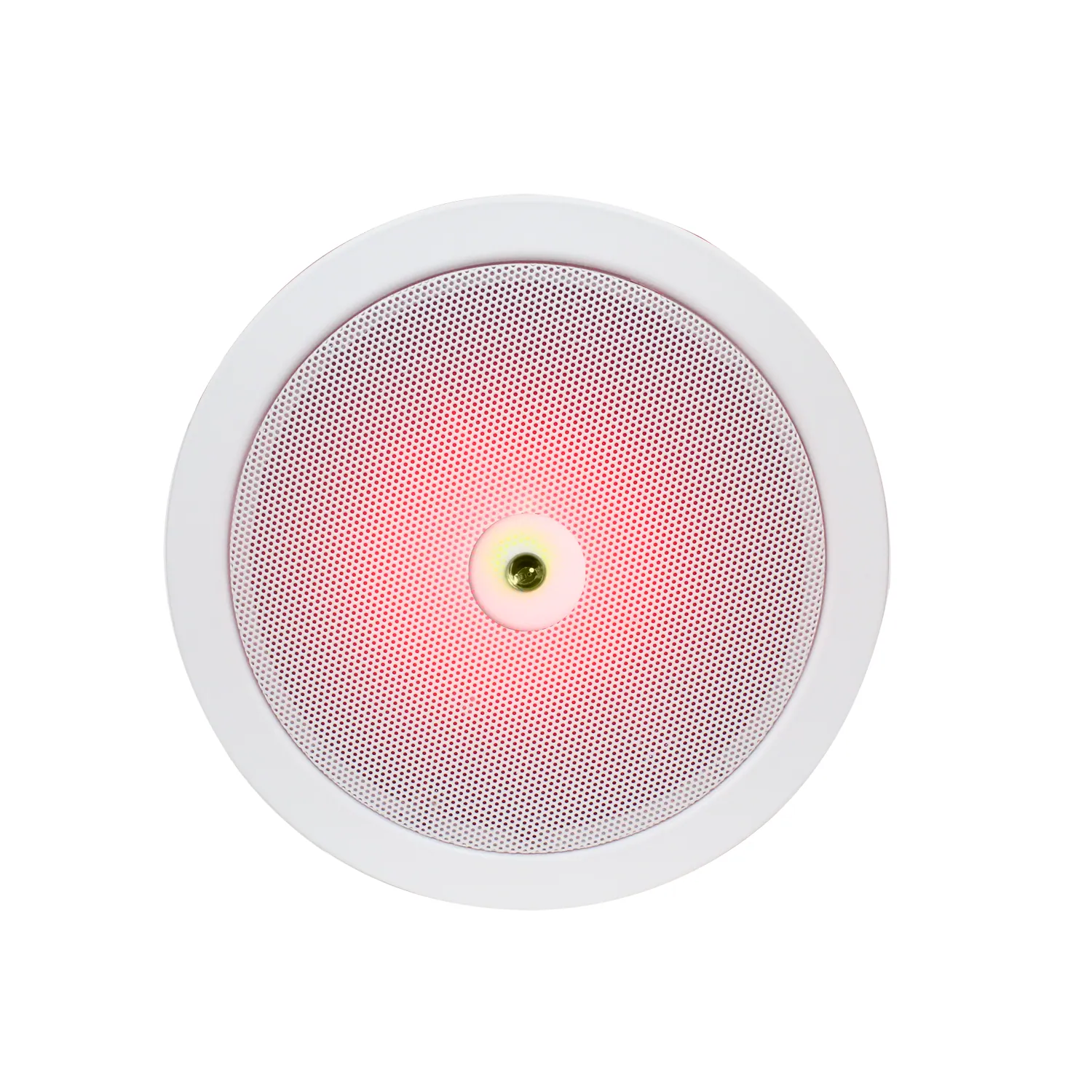

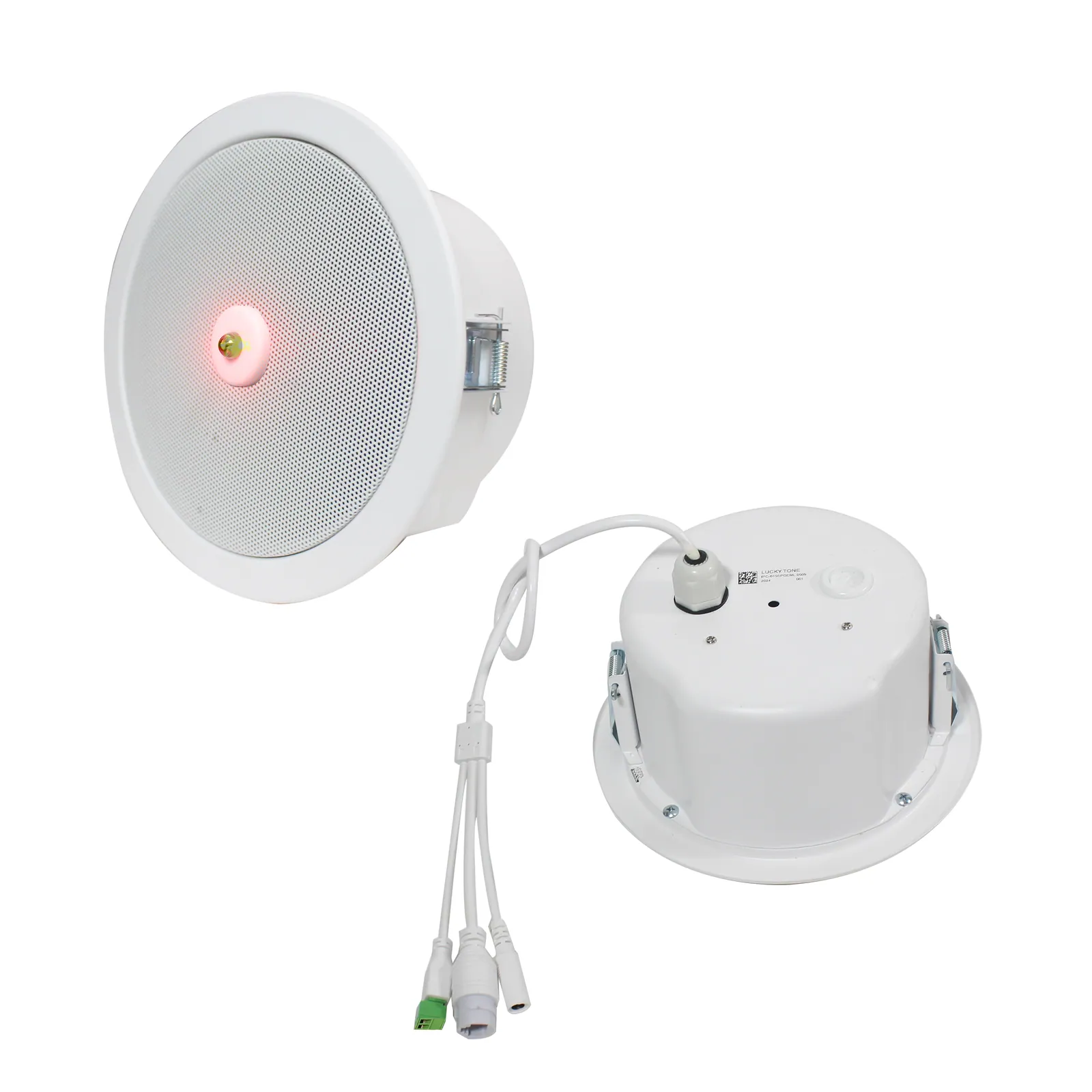

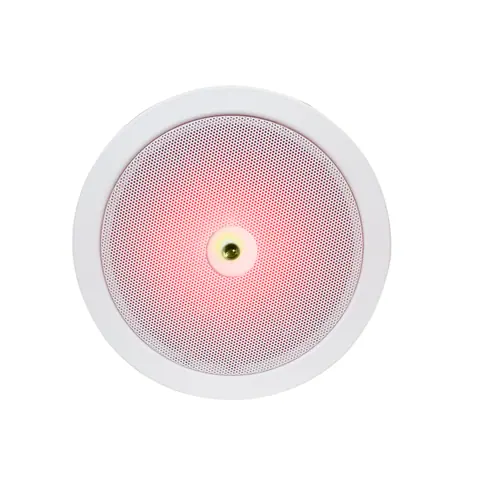

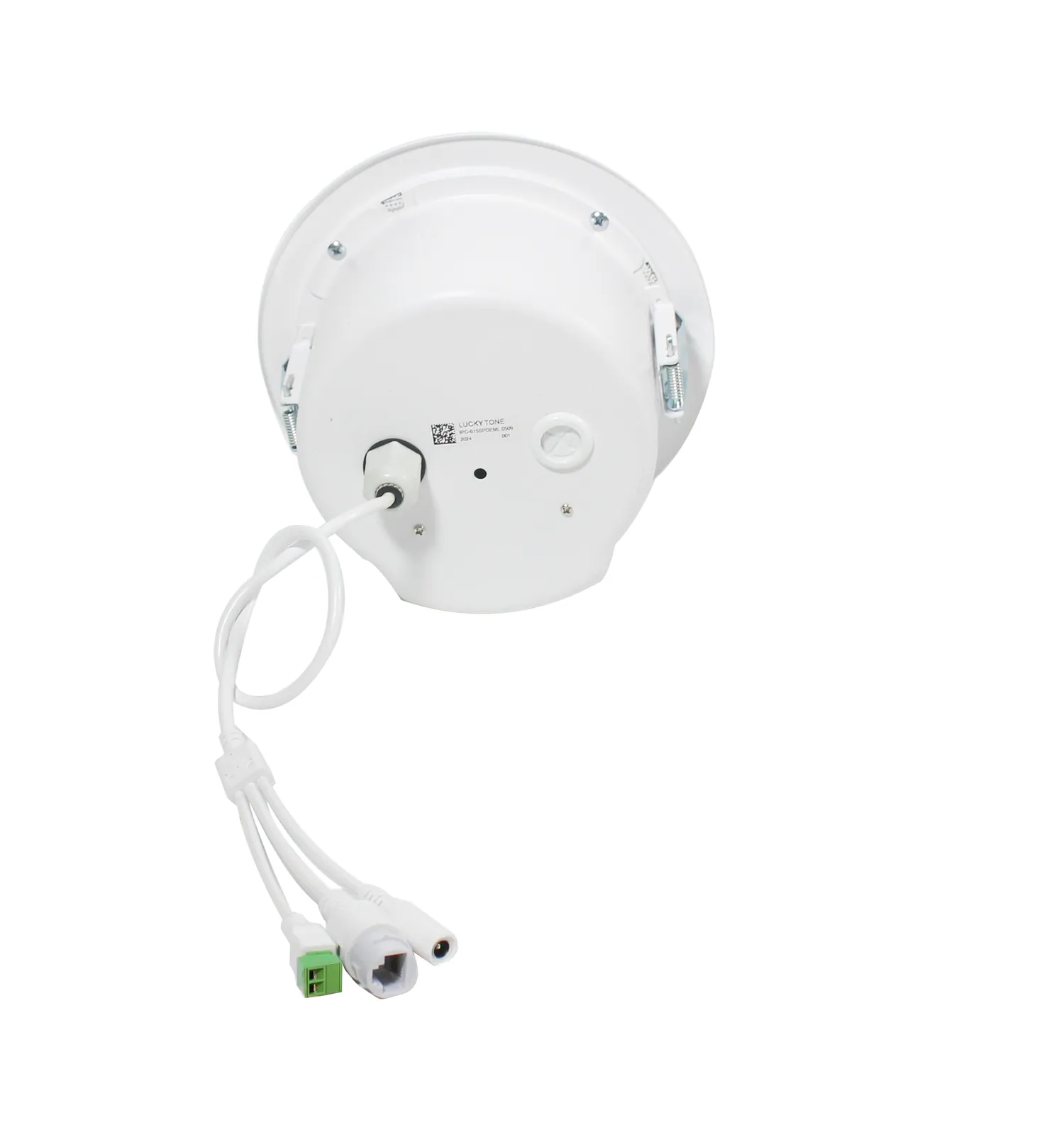

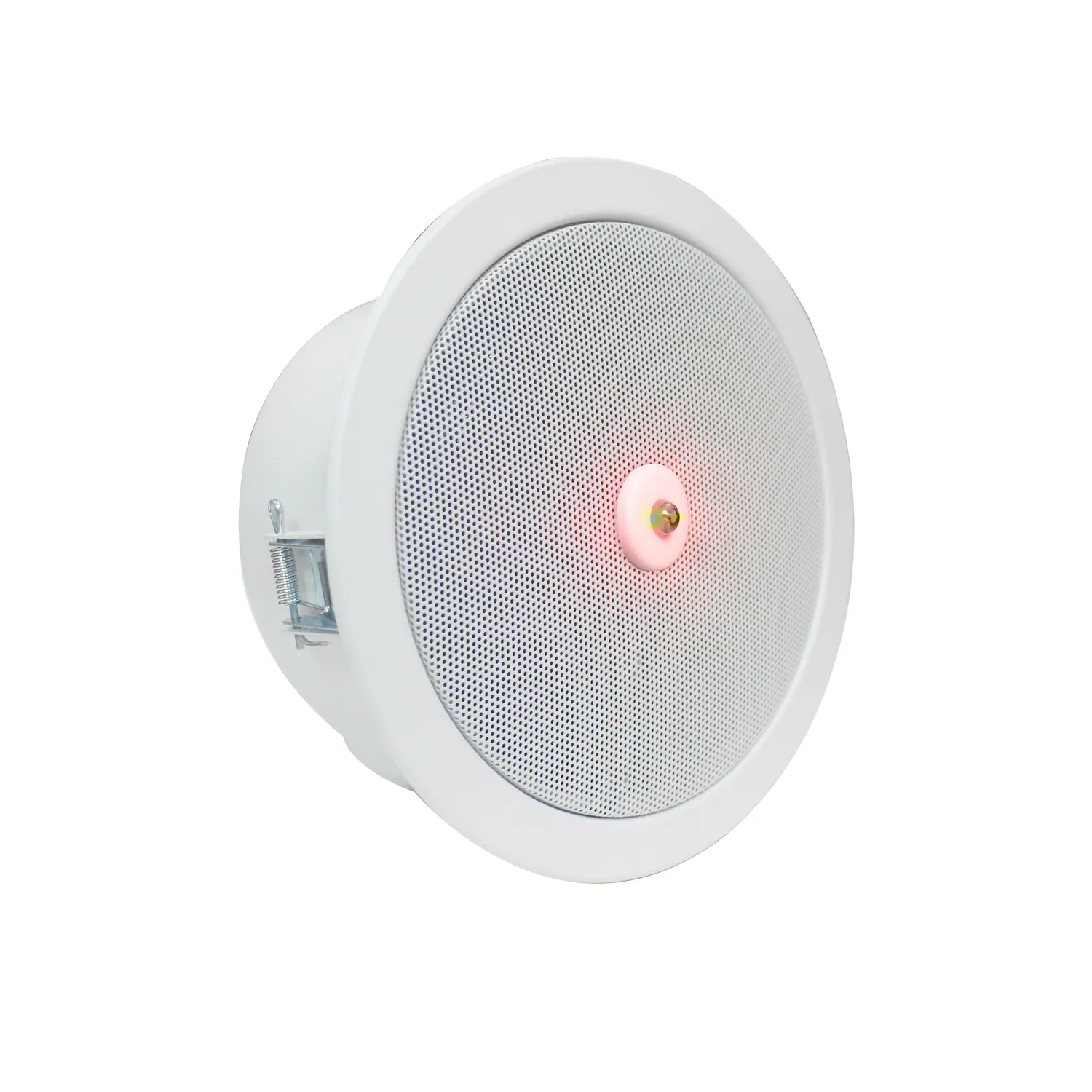

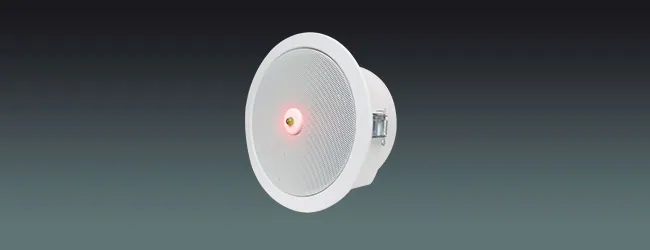

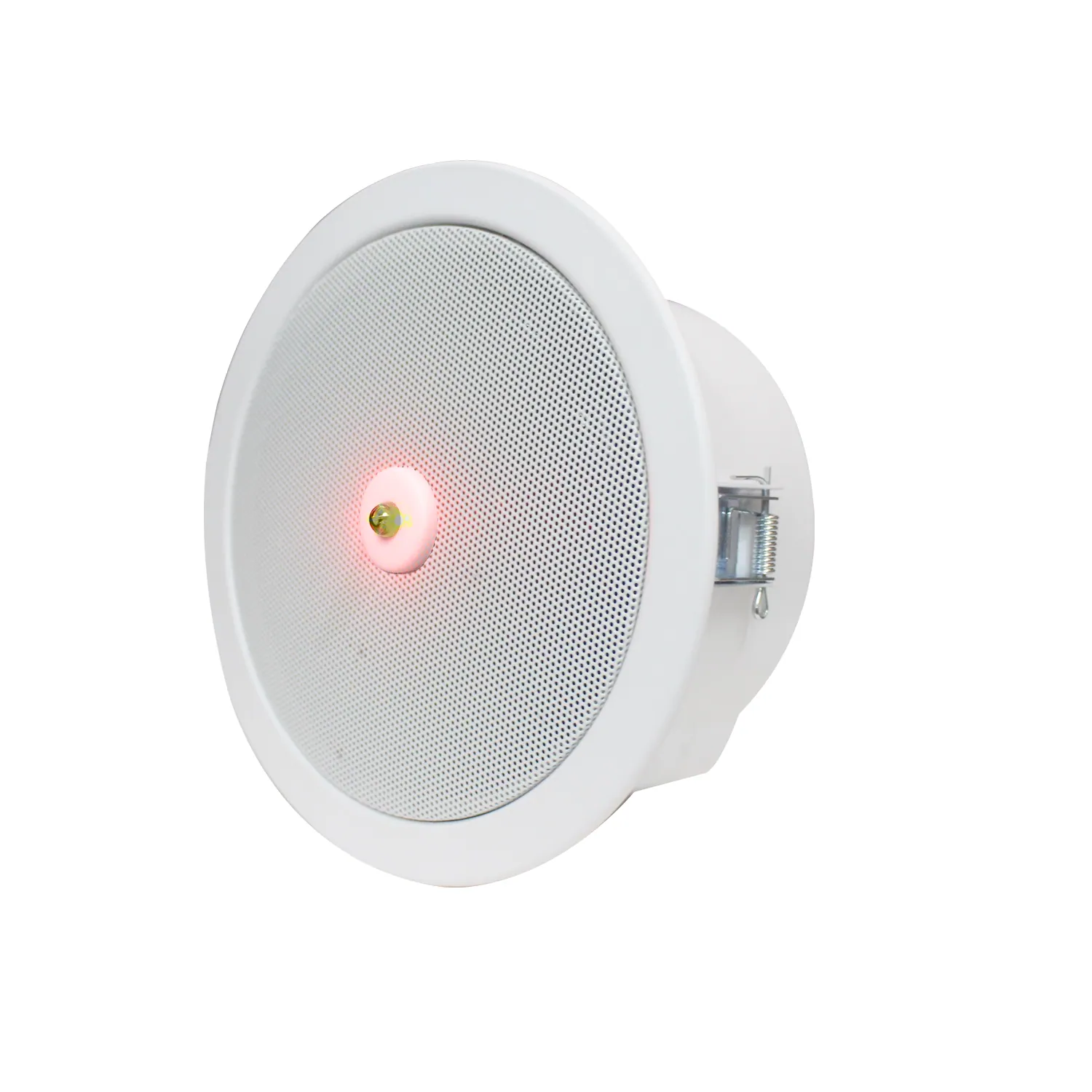

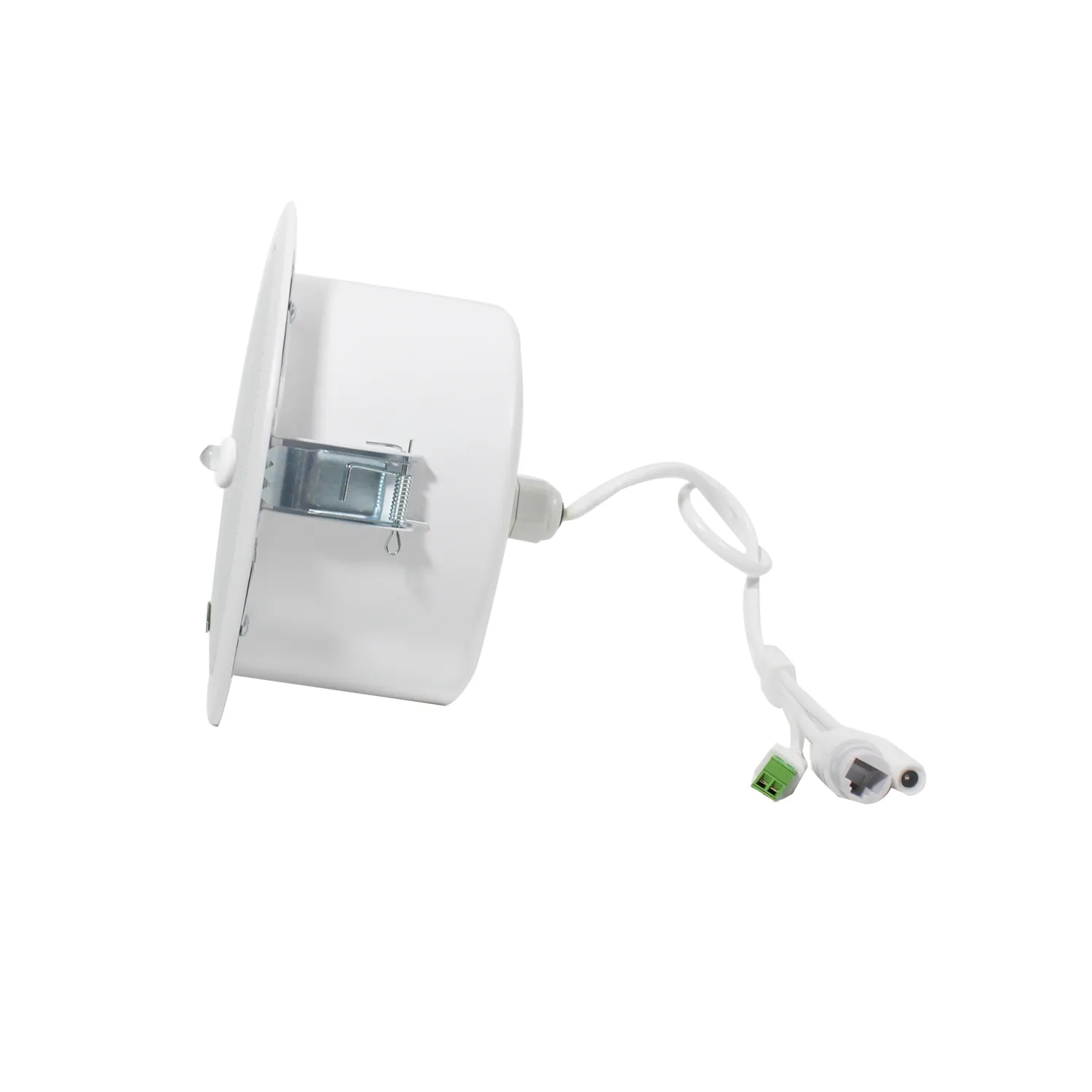

SIP Ceiling Speaker with Microphone and Light
ModelIPC-615SPOEML
With a standard RJ45 network interface and supports online firmware upgrade from long distance
- Output power
- 15W
- Frequency response
- 100Hz‵18KHz
- Power supply
- DC 12V or POE
- Dimensions
- Dia 200 x 90 mm
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
SIP Ceiling Speaker with Microphone and LightPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 13 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications13
- Model
- IPC-615SPOEML
- Communication Protocol
- SIP
- Network Interface
- 10/100Base-TXㄛRJ45
- Rated Power
- 15W
- Speaker SPL (MAX)
- 96dB
- Decoding
- MP3/WMA/WAV
- Frequency Range
- 100Hz‵18KHz
- Installation
- In ceiling
- Enclosure material
- Metal
- Power Supply
- DC 12V or POE
- Sensitivity
- -52 dB
- Dry Contact
- Output and input
- Dimension
- Dia 200 x 90 mm
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- Support MP3, WMA, WAV and more decoding
- With built-in microphone and light
- This network ceiling loudspeaker integrated with network audio decoding, digital amplifier
- Empowered by high-speed dual-core (ARM + DSP) chip of industrial grade, startup in less than 1s
- Metal inclosure with fire dome
03Documents1 file · 1.4 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
