Sheet 05.342
Lucky Tone · IP, SIP and ONVIF

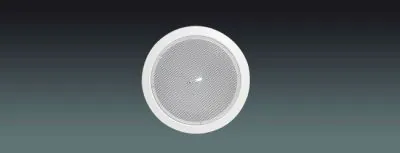

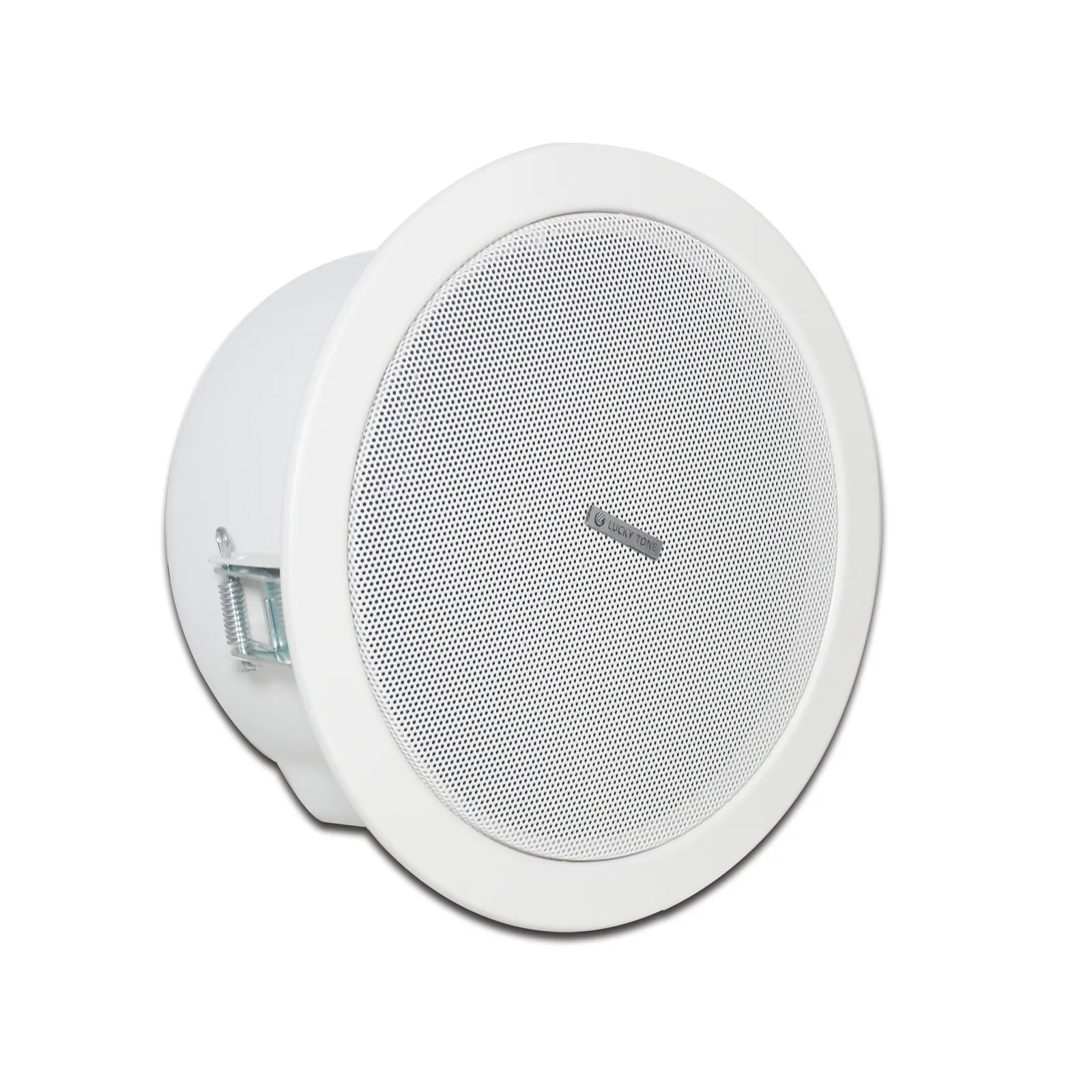

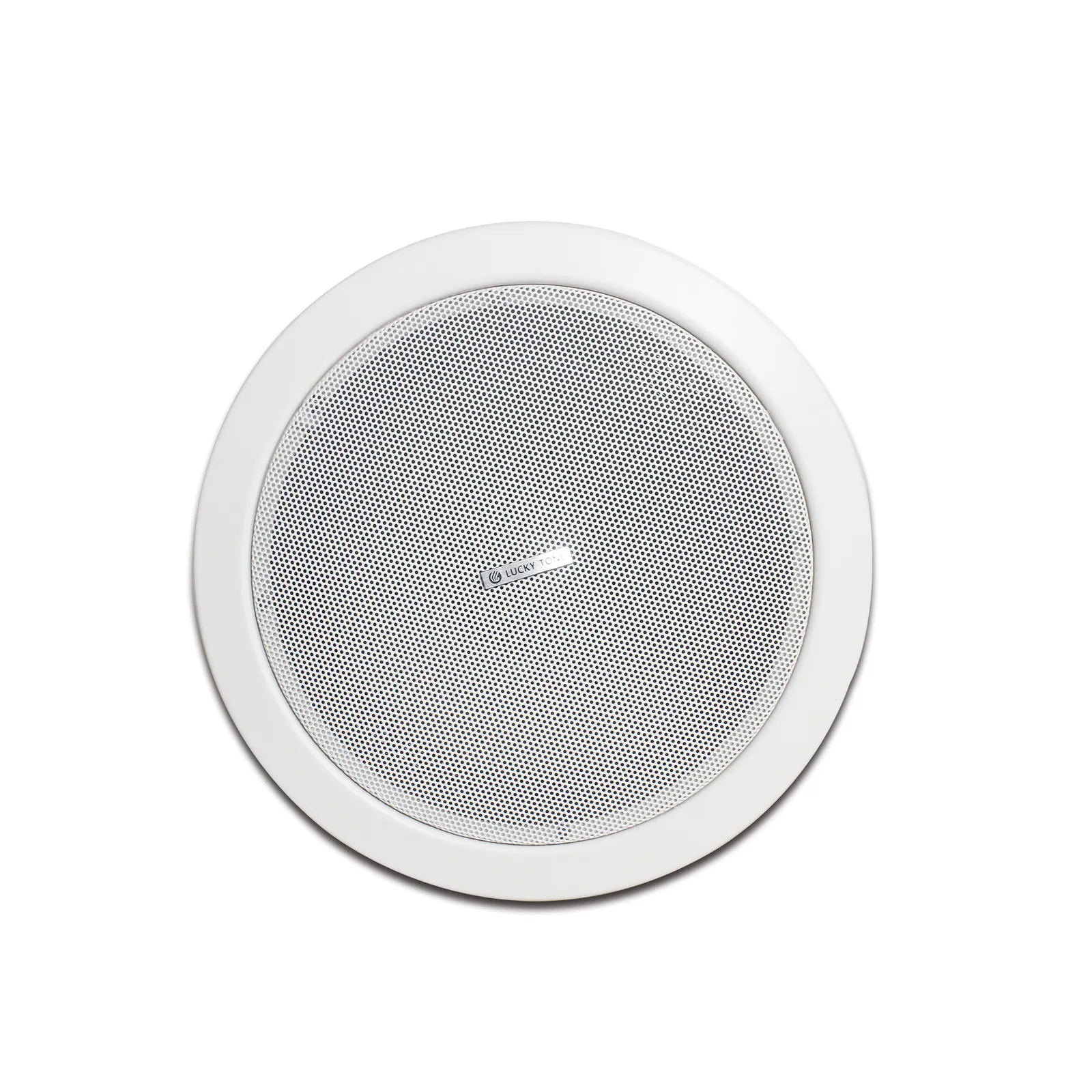

SIP Ceiling Speaker with Microphone
ModelIPC-615SM/IPC-615SPOEM

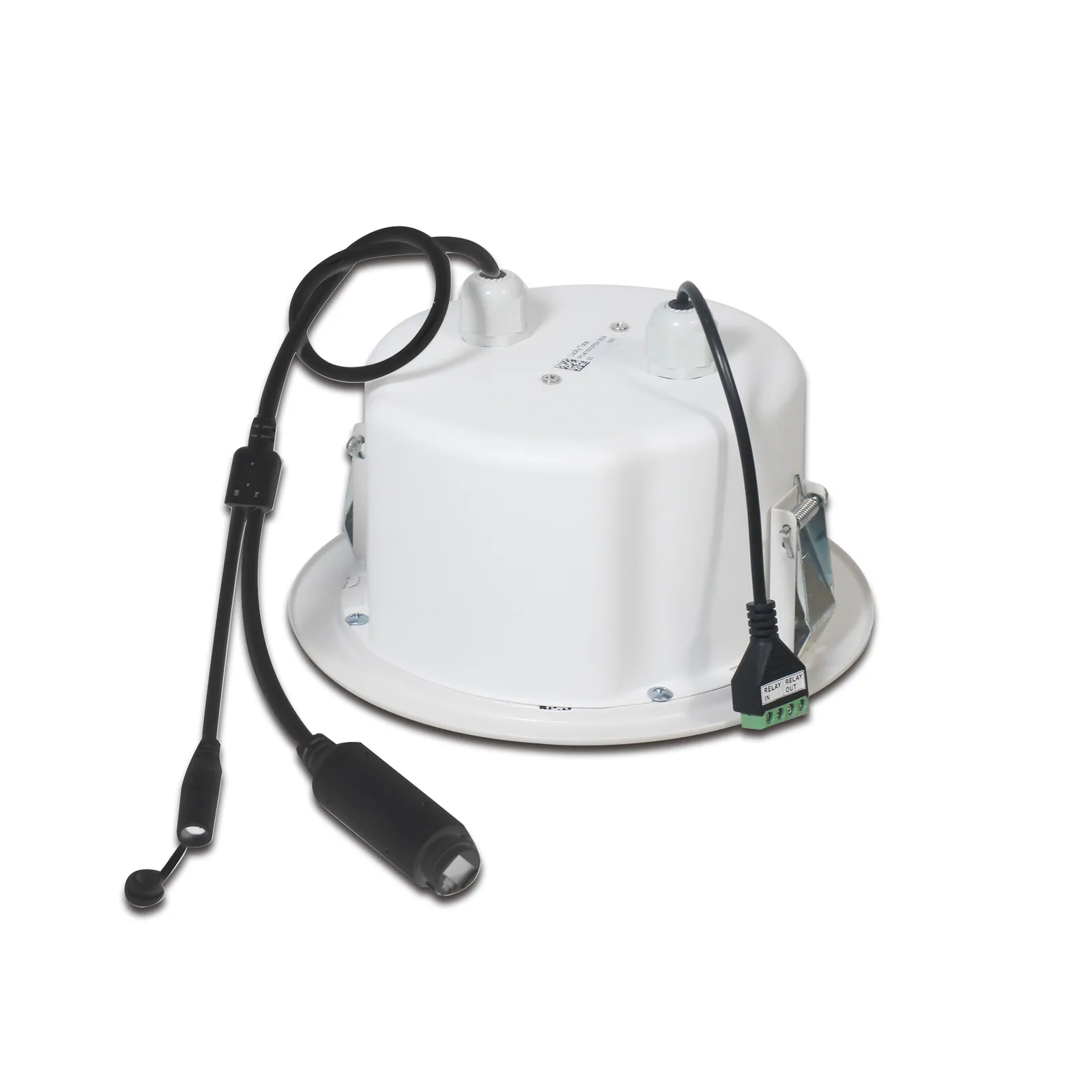

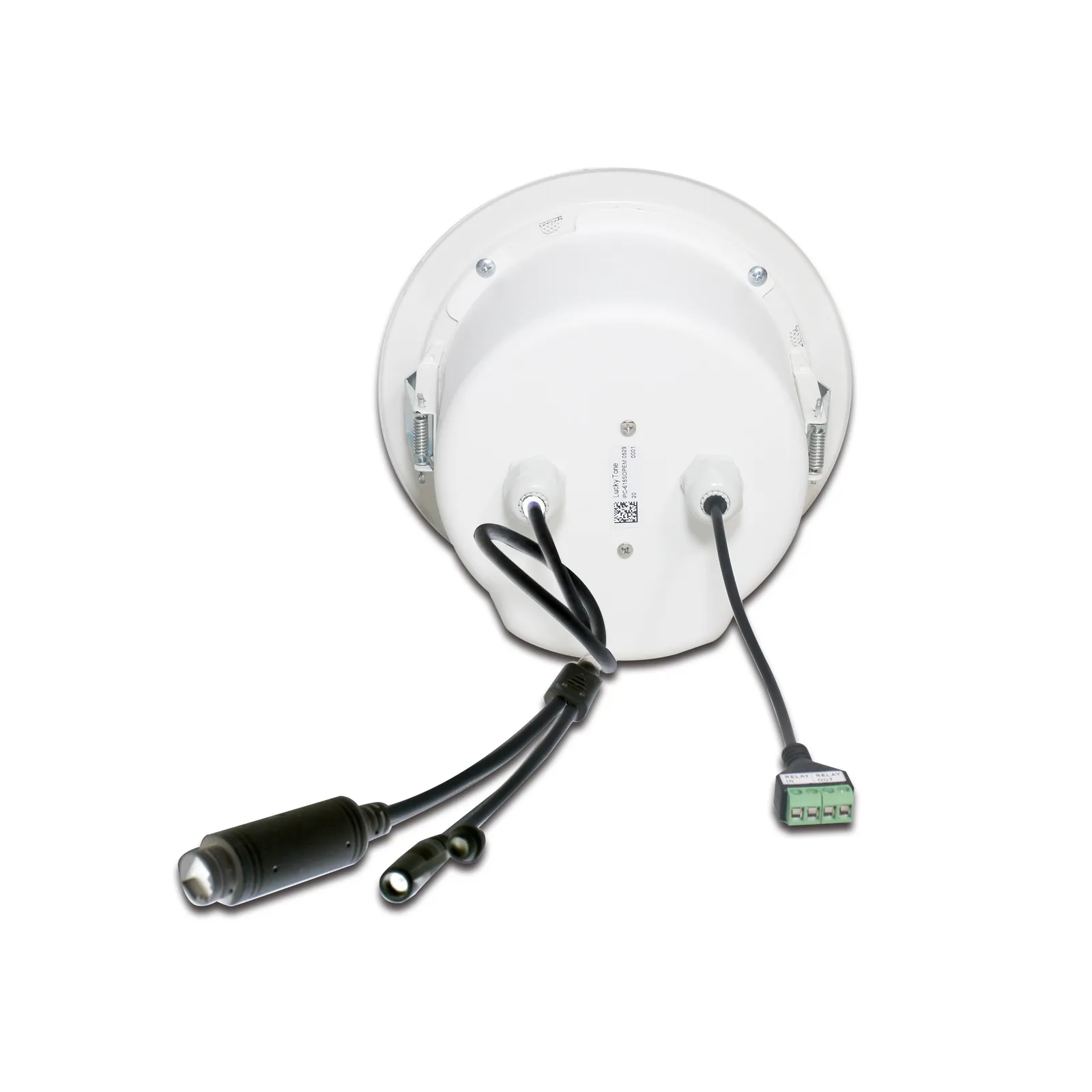

With a standard RJ45 network interface and supports online firmware upgrade from long distance
- Frequency response
- 100Hz~18KHz
- Power supply
- DC 12V/DC 24V or POE
- Dimensions
- Dia 200 x 90 mm
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
SIP Ceiling Speaker with MicrophonePrice on requestRequest a quotation

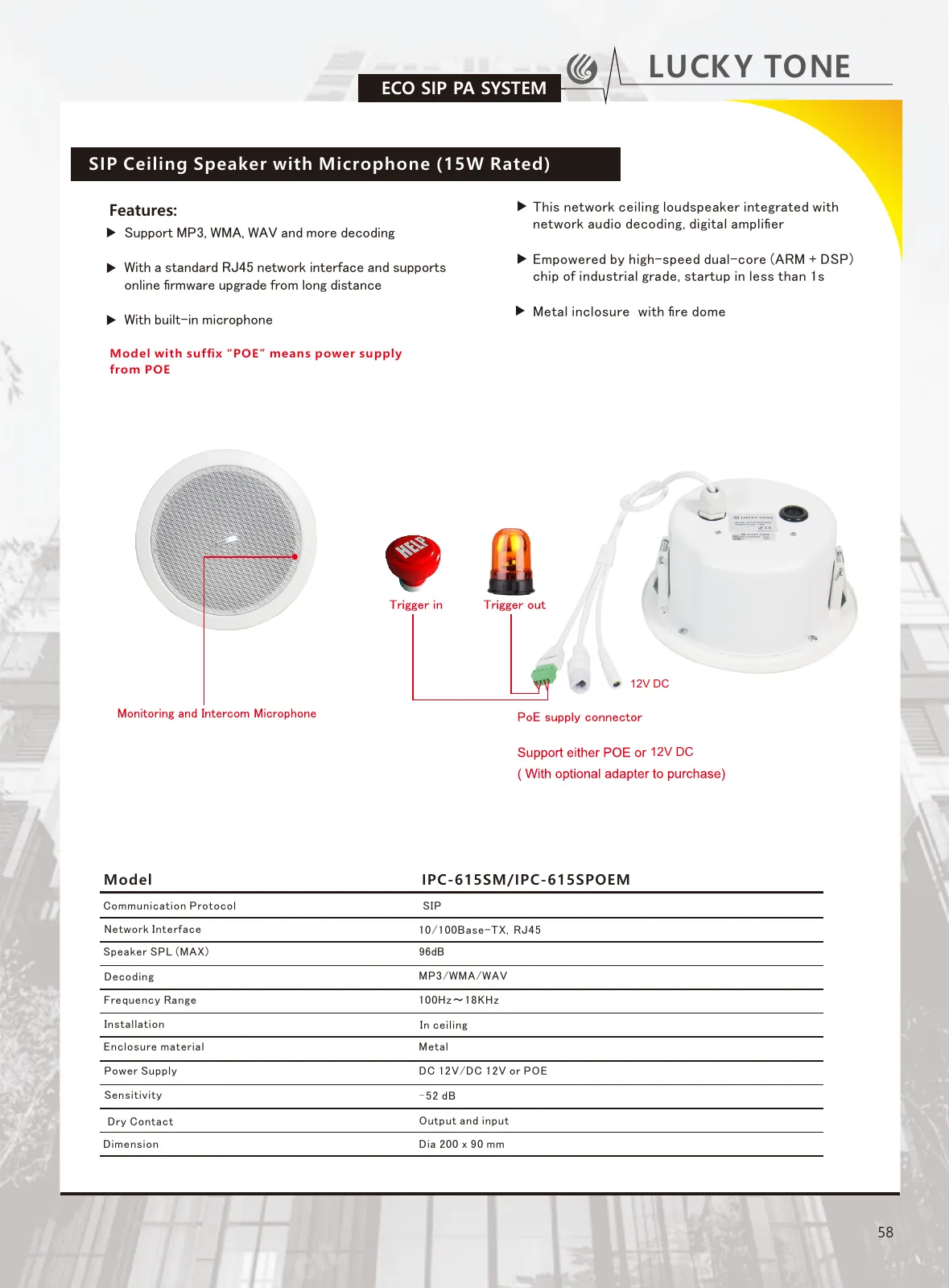

01SpecificationManufacturer's data · 1 group · 12 values
What this product is, in numbers.
PDFSpecifications1.3 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications12
- MODEL
- IPC-615SM/IPC-615SPOEM
- Communication Protocol
- SIP
- Network Interface
- 10/100Base-TX,RJ45
- Speaker SPL (MAX)
- 96dB
- Decoding
- MP3/WMA/WAV
- Frequency Range
- 100Hz~18KHz

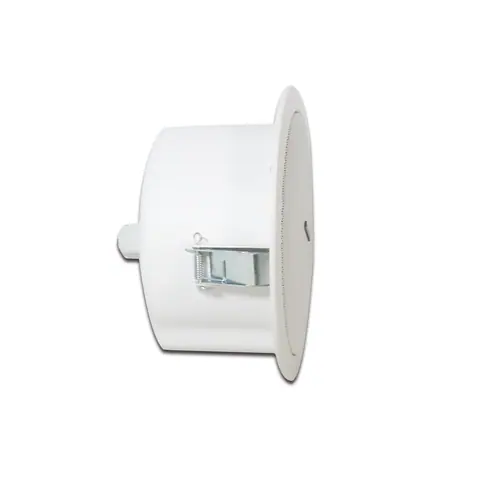

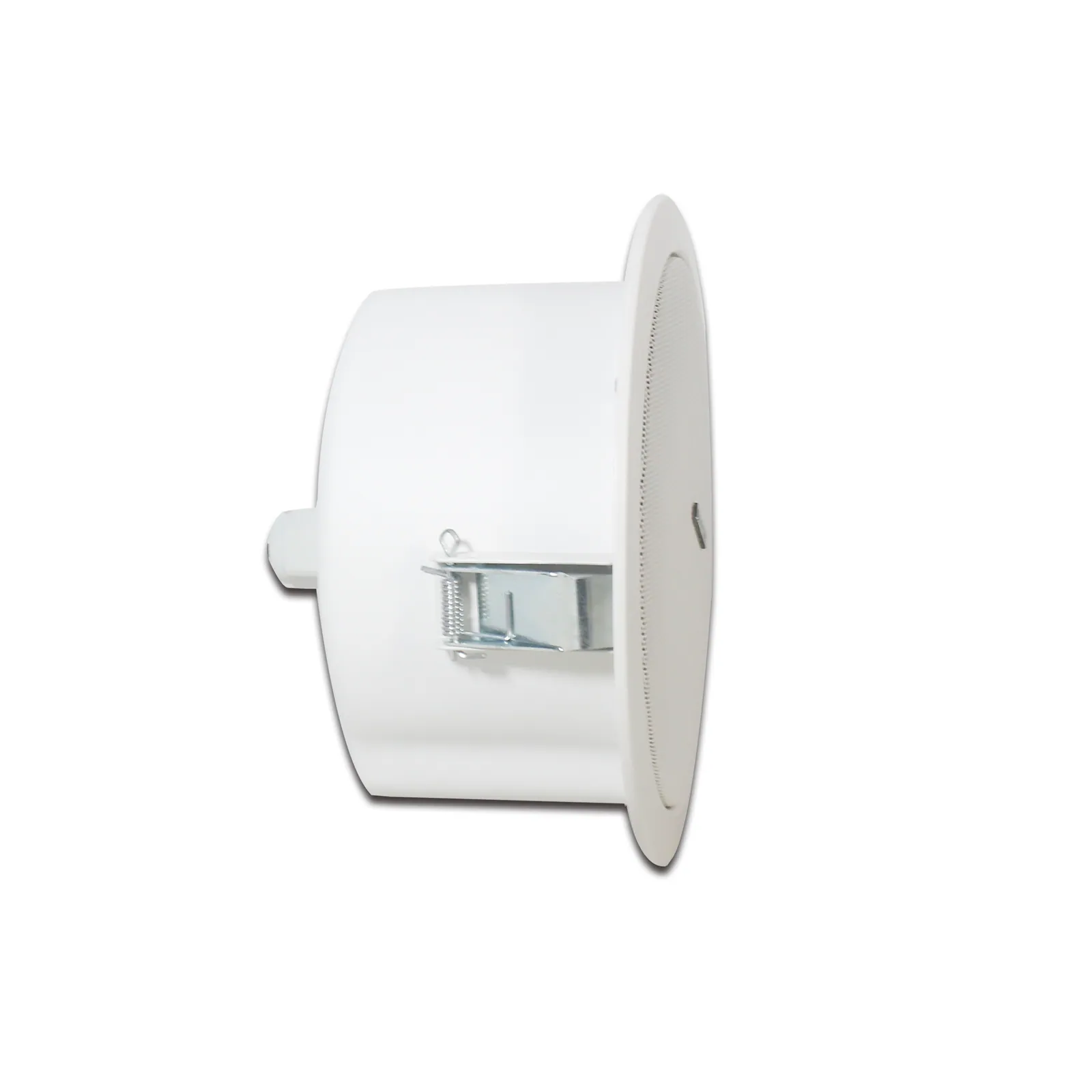

- Installation
- In ceiling
- Enclosure material
- Metal
- Power Supply
- DC 12V/DC 24V or POE
- Sensitivity
- -52 dB

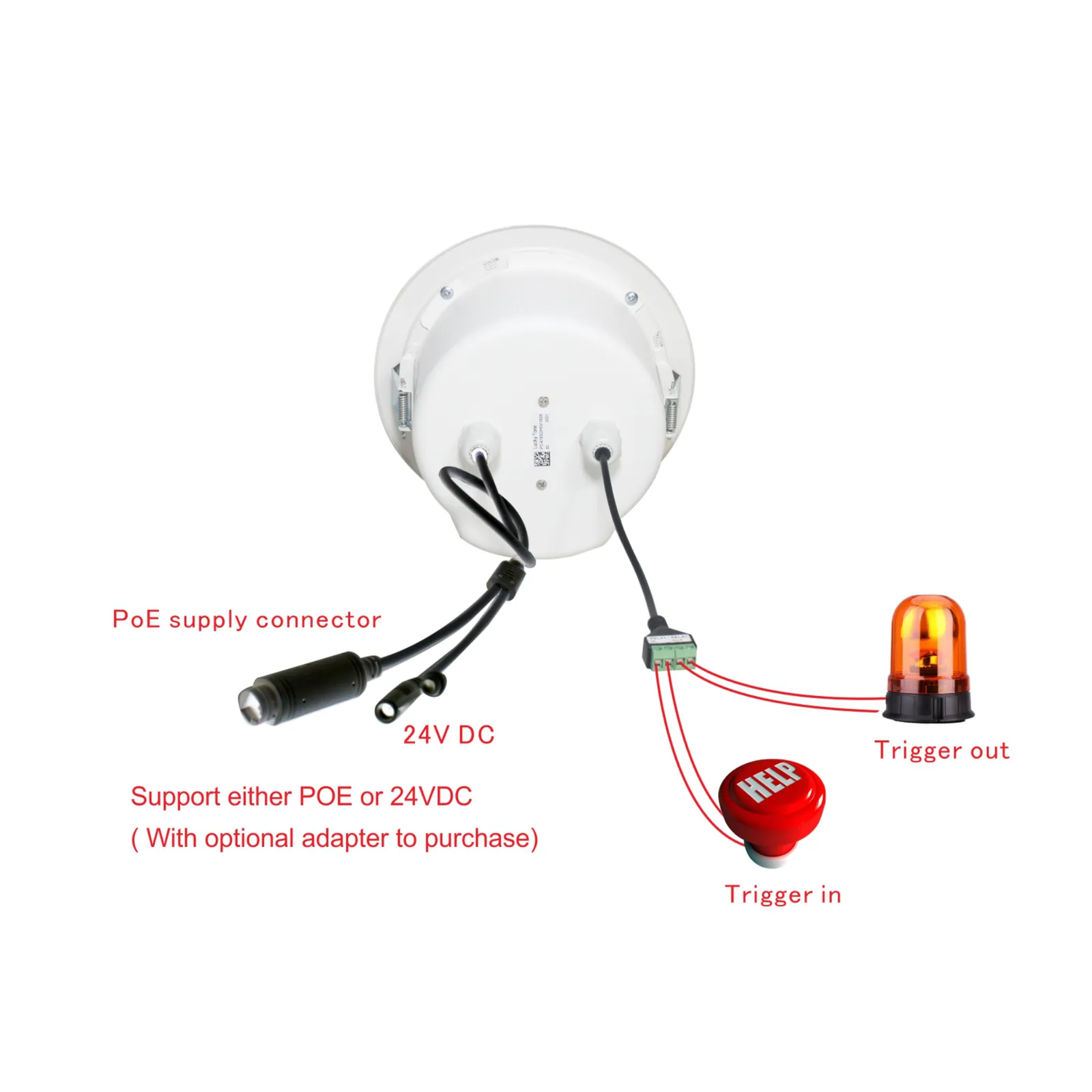

- Dry Contact
- Output and input
- Dimension
- Dia 200 x 90 mm
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Support MP3, WMA, WAV and more decoding
With built-in microphone
- This network ceiling loudspeaker integrated with network audio decoding, digital amplifier
- Empowered by high-speed dual-core (ARM + DSP) chip of industrial grade, startup in less than 1s
- Metal inclosure with fire dome
- Model with suffix “POE” means power supply from POE
03Documents1 file · 1.3 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
