Sheet 05.511
Lucky Tone · Bluetooth, Wi-Fi and smart home

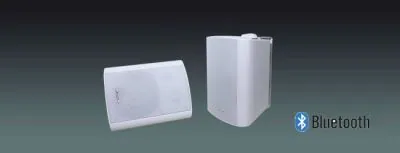

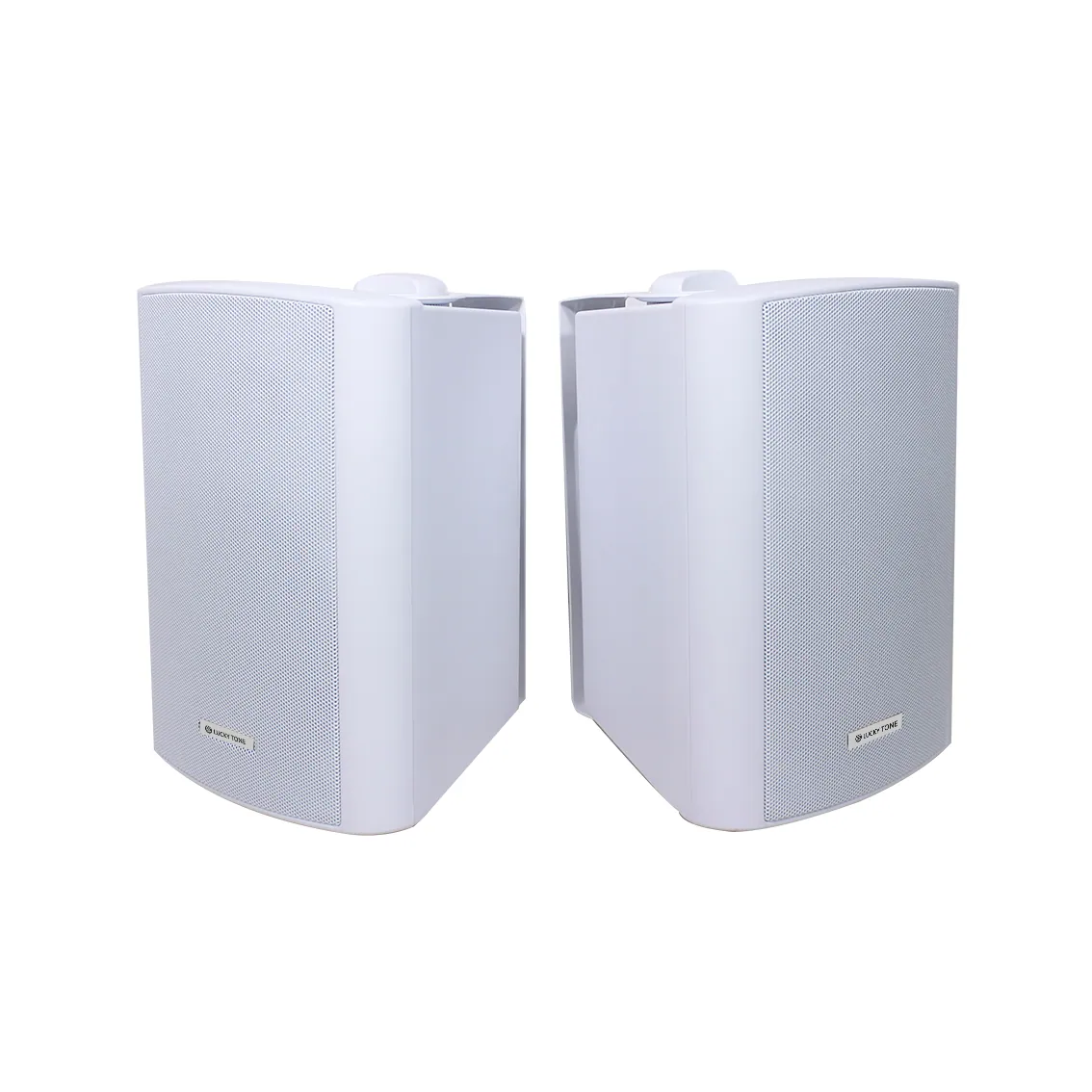

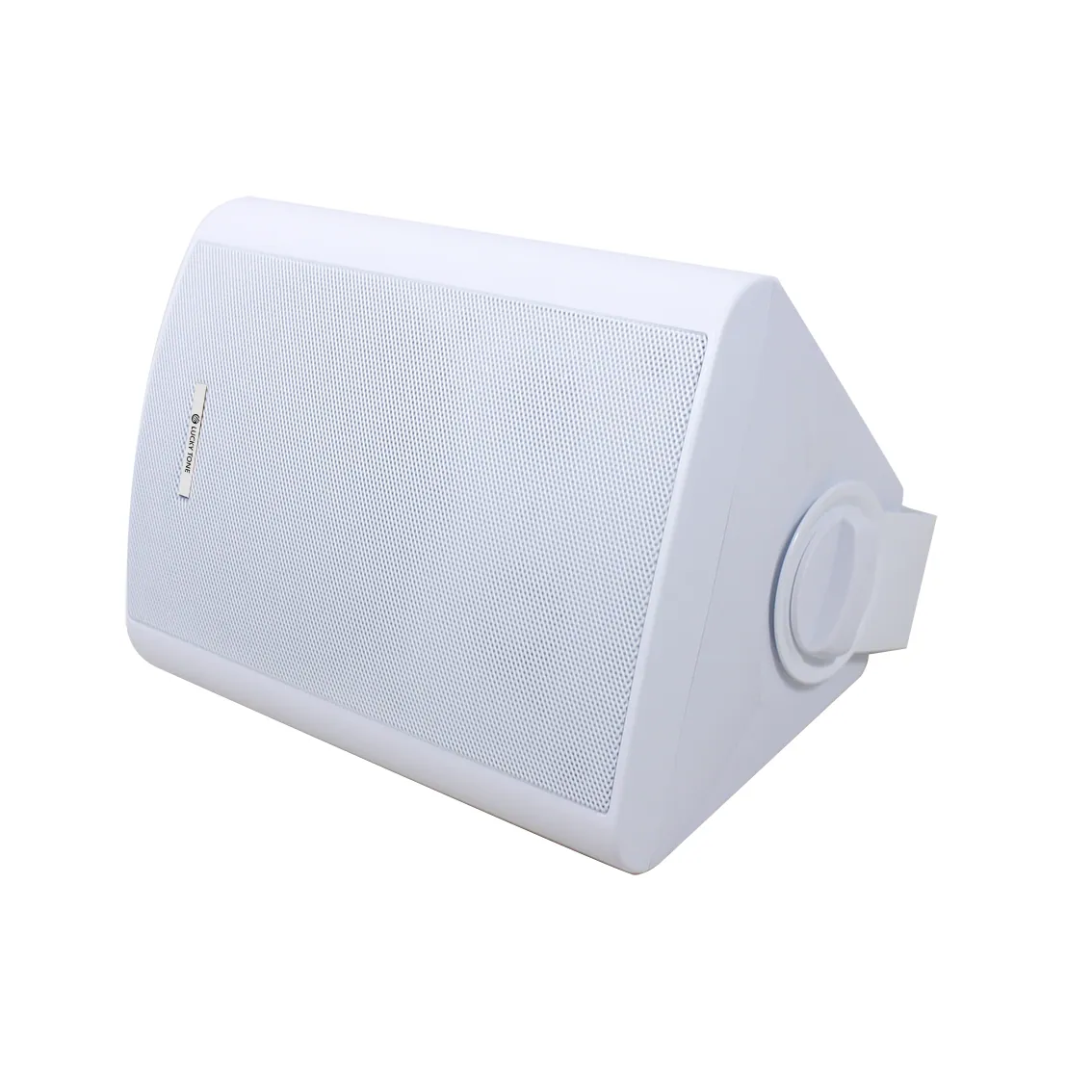

Waterproof Bluetooth Wall Speakers
ModelTWS-5230P/TWS-5430P / TWS-6230P/TWS-6430P
With high efficient Class-D amplifier, audio signal processor, Bluetooth receiver and professionally designed speaker all
- Output power
- 2*30W/4*30W
- Frequency response
- TWS-5230P/TWS-5430P: 75~18KHz; TWS-6230P/TWS-6430P: 65~20KH
- Weight
- TWS-5230P/TWS-5430P: 5 Kg; TWS-6230P/TWS-6430P: 7 Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Waterproof Bluetooth Wall SpeakersPrice on requestRequest a quotation
01Models2 models in the family
Models compared.
| MODEL | TWS-5230P/TWS-5430P | TWS-6230P/TWS-6430P |
|---|---|---|
| Output Power | 2*30W/4*30W | 2*30W/4*30W |
| Impedance | 8Ω | 8Ω |
| SPL (1W/1M) | 88dB | 88dB |
| Frequency Response | 75~18KHz | 65~20KH |
| Input Sensitivity | 400MV | 400MV |
| SNR | 93dB | 95dB |

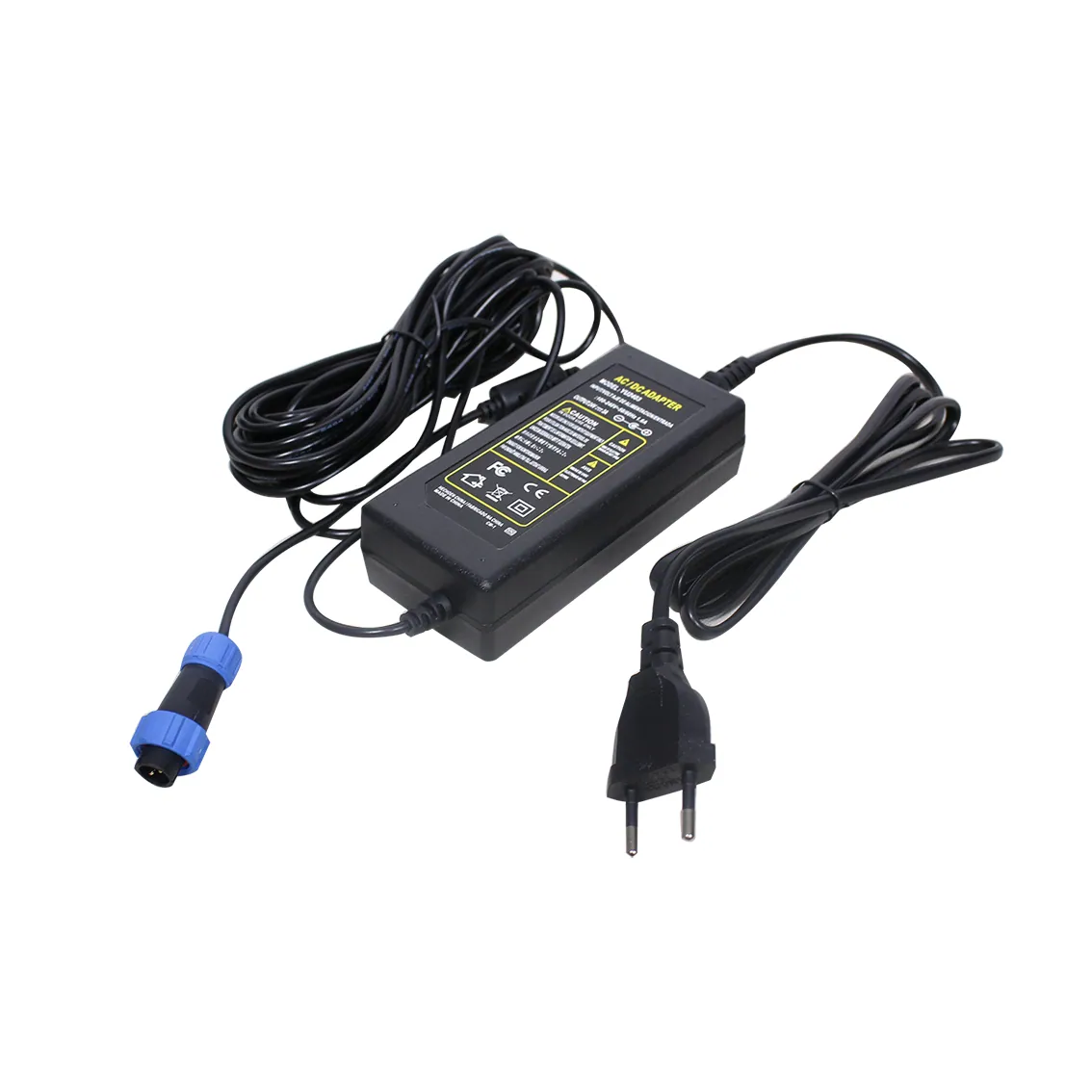

| Input voltage of the power adapter | AC110V-240V, 50Hz/60Hz | AC110V-240V, 50Hz/60Hz |
| Bluetooth Wireless Range | ≤ 10M | ≤10M |
| Housing Material | ABS, Iron (Grille) | ABS, Iron (Grille) |
| Speaker Size | 5″ Woofer, 1″ Tweeter | 6″ Woofer, 1.5″ Tweeter |
| Weight | 5 Kg | 7 Kg |
| Product Size (Each) | 185*167*250mm | 216*195*300mm |
| Color | White | White |
02DescriptionManufacturer's description
What it is.
integrated in one body, our TWS Bluetooth wall speaker allows you to stream the high quality music from your cellphone, tablet or laptop wirelessly via Bluetooth connection, without adding any external amplifier.
Features
- Adopt true wireless stereo technology
- Built-in16bit DAC Digital Audio Processor
- Water-proof design for outdoor application
- Built-in high-efficiency Class-D amplifier
- Adopt high quality speaker drivers
- Designed for fast installation and easy operation

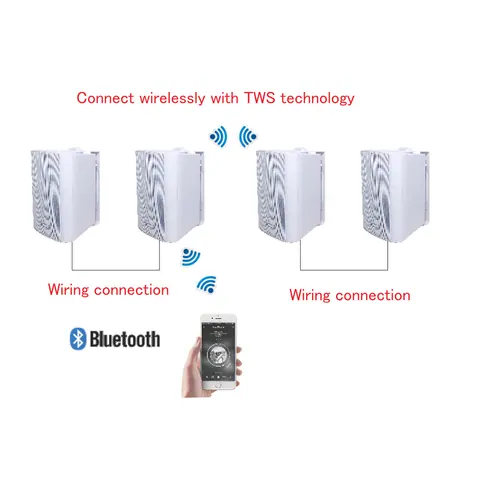

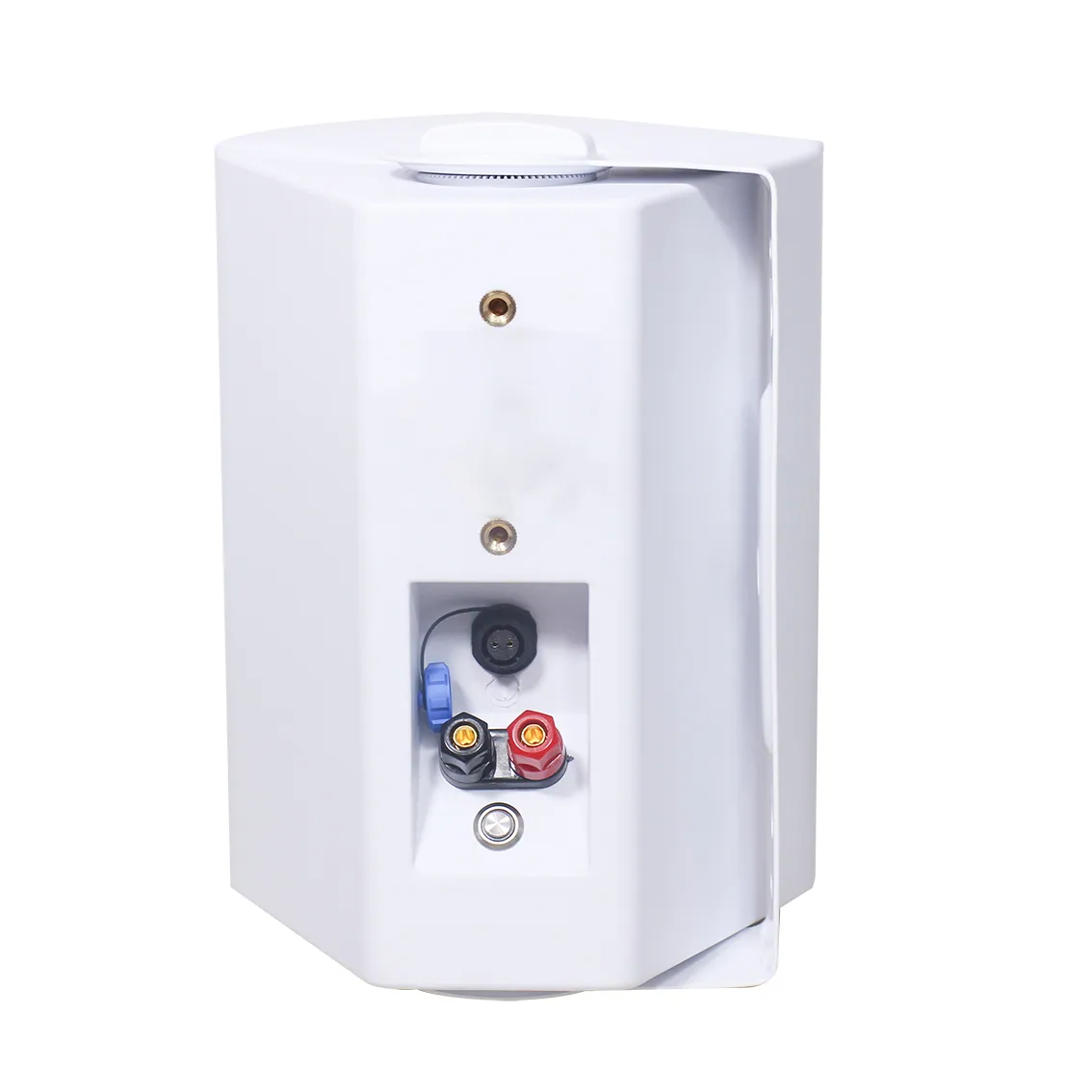

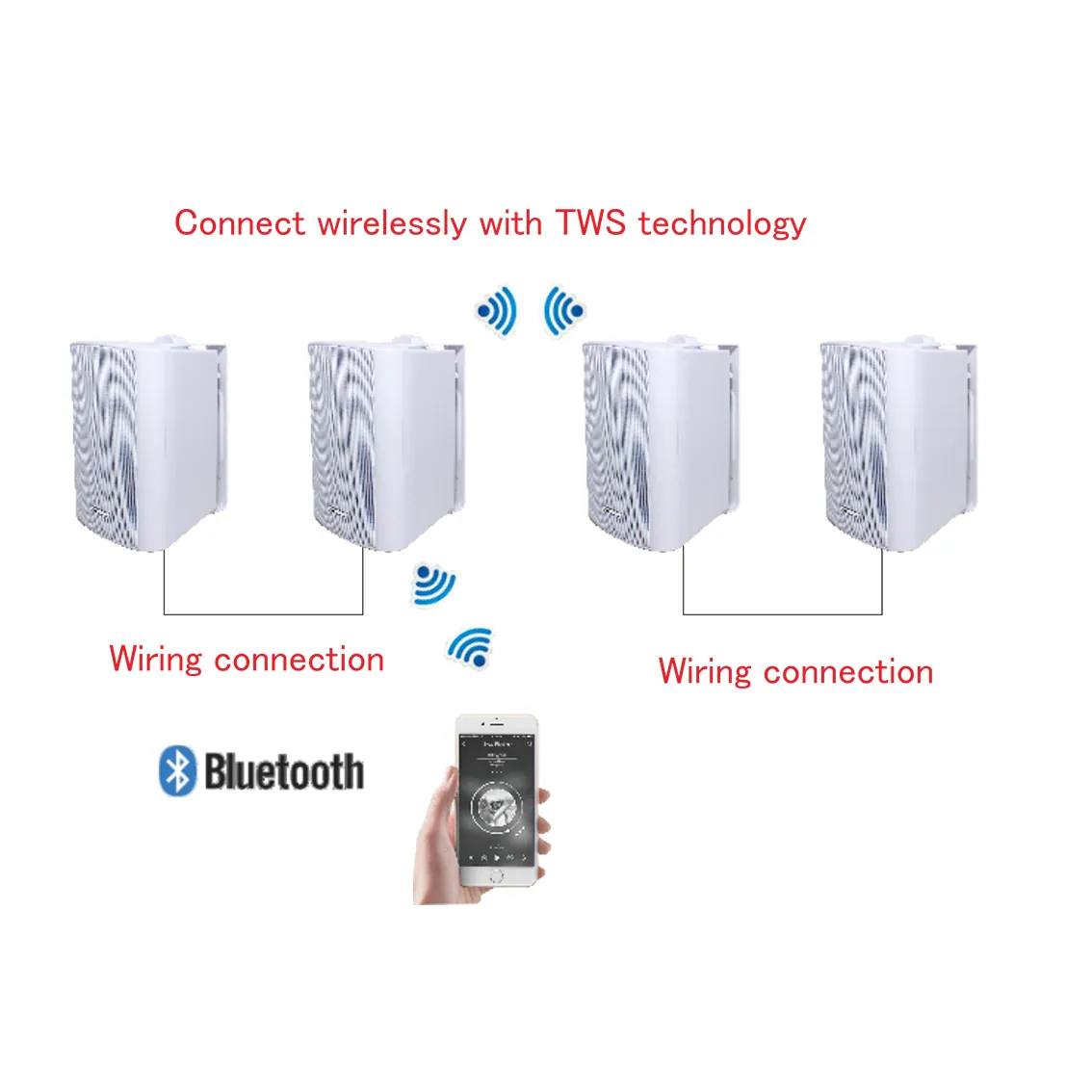

- Support one passive speaker connection to any TWS speaker through wiring
Ordering code
TWS-5230P/TWS-6230P: 2-piece package includes 2 pcs of active speakers
TWS-5430P/TWS-6430P: 4-piece package includes 2 pcs of active speakers and 2 pcs of passive speakers
03Documents1 file · 2.1 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
