Sheet 05.513
Lucky Tone · Audio sources

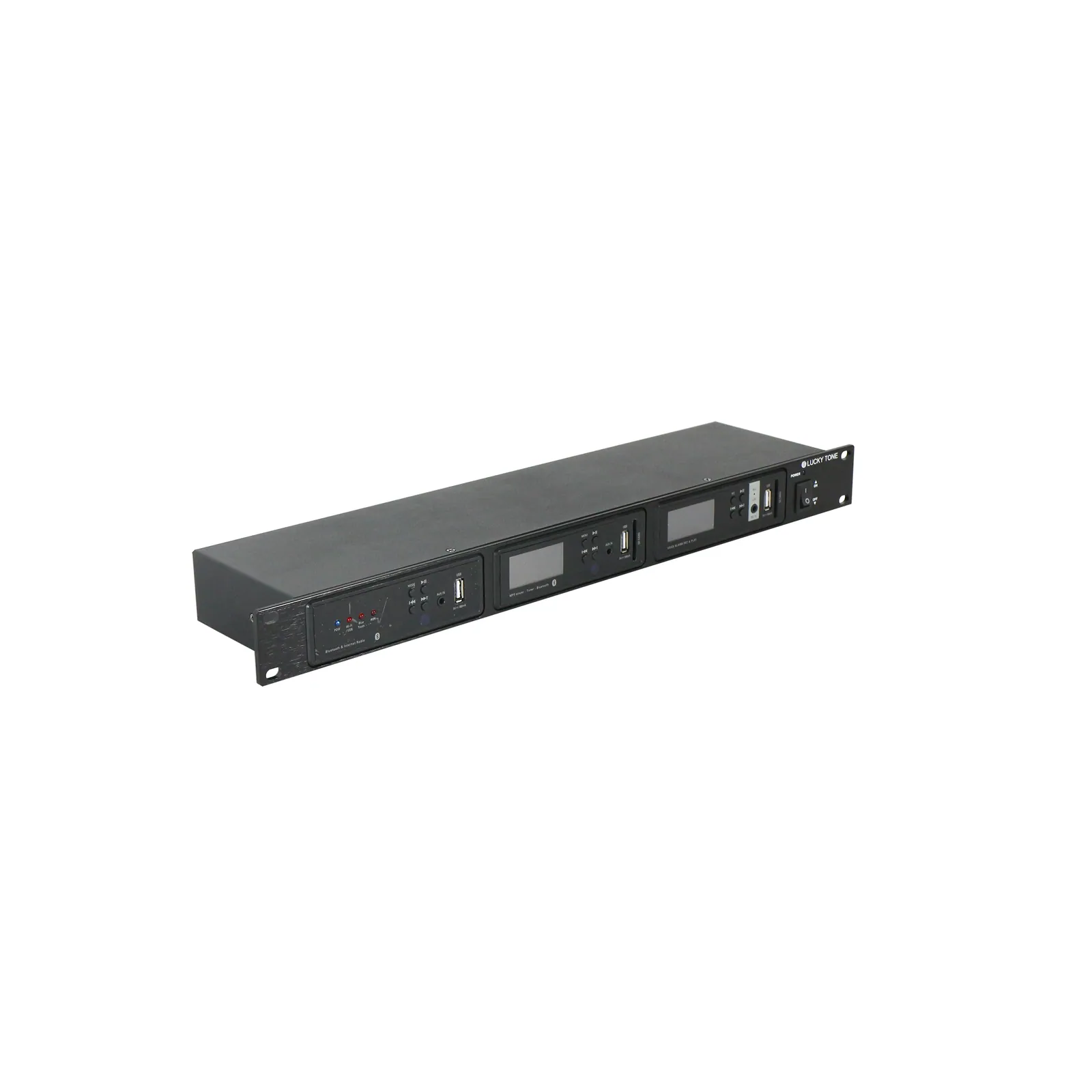

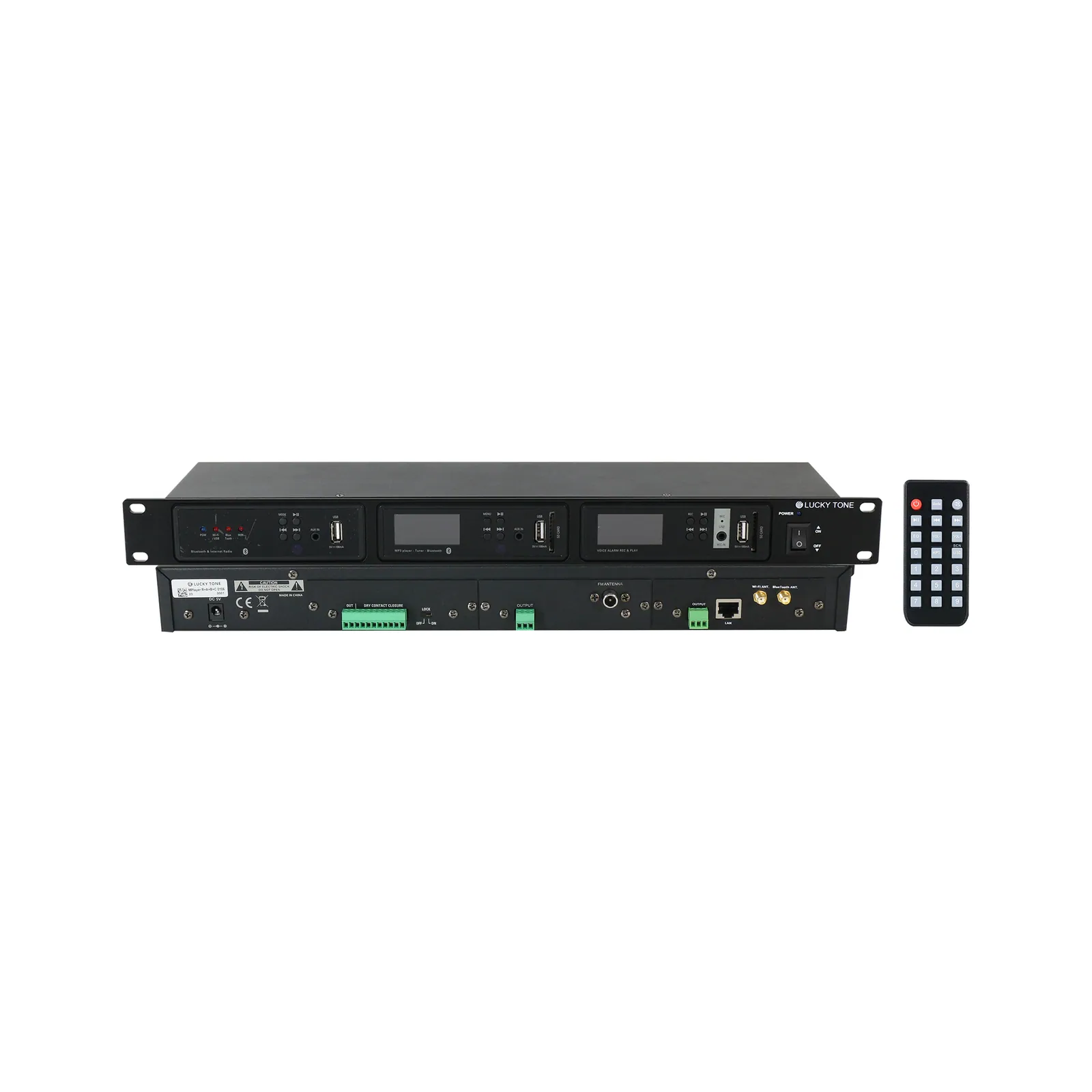

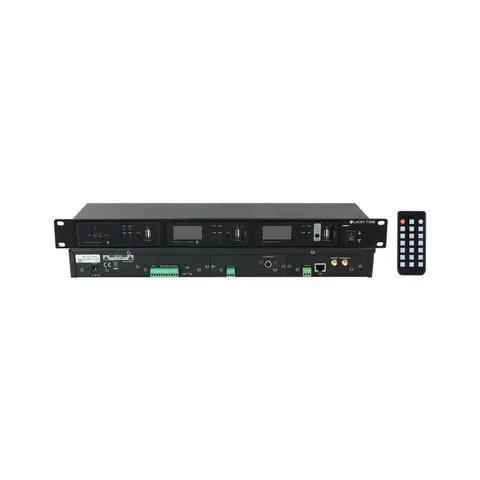

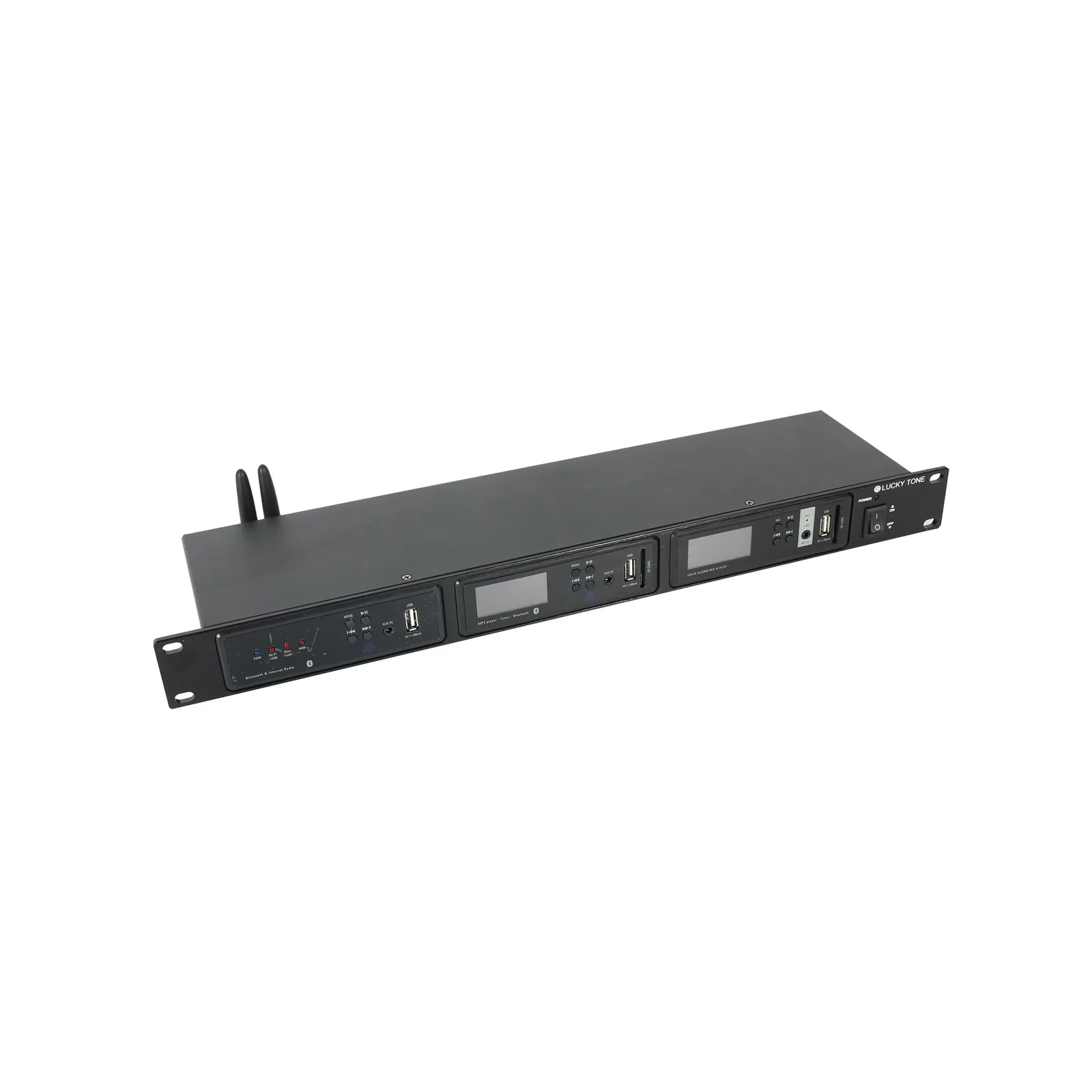

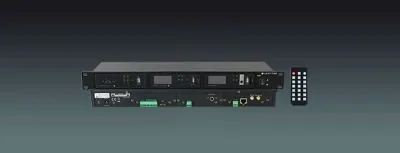

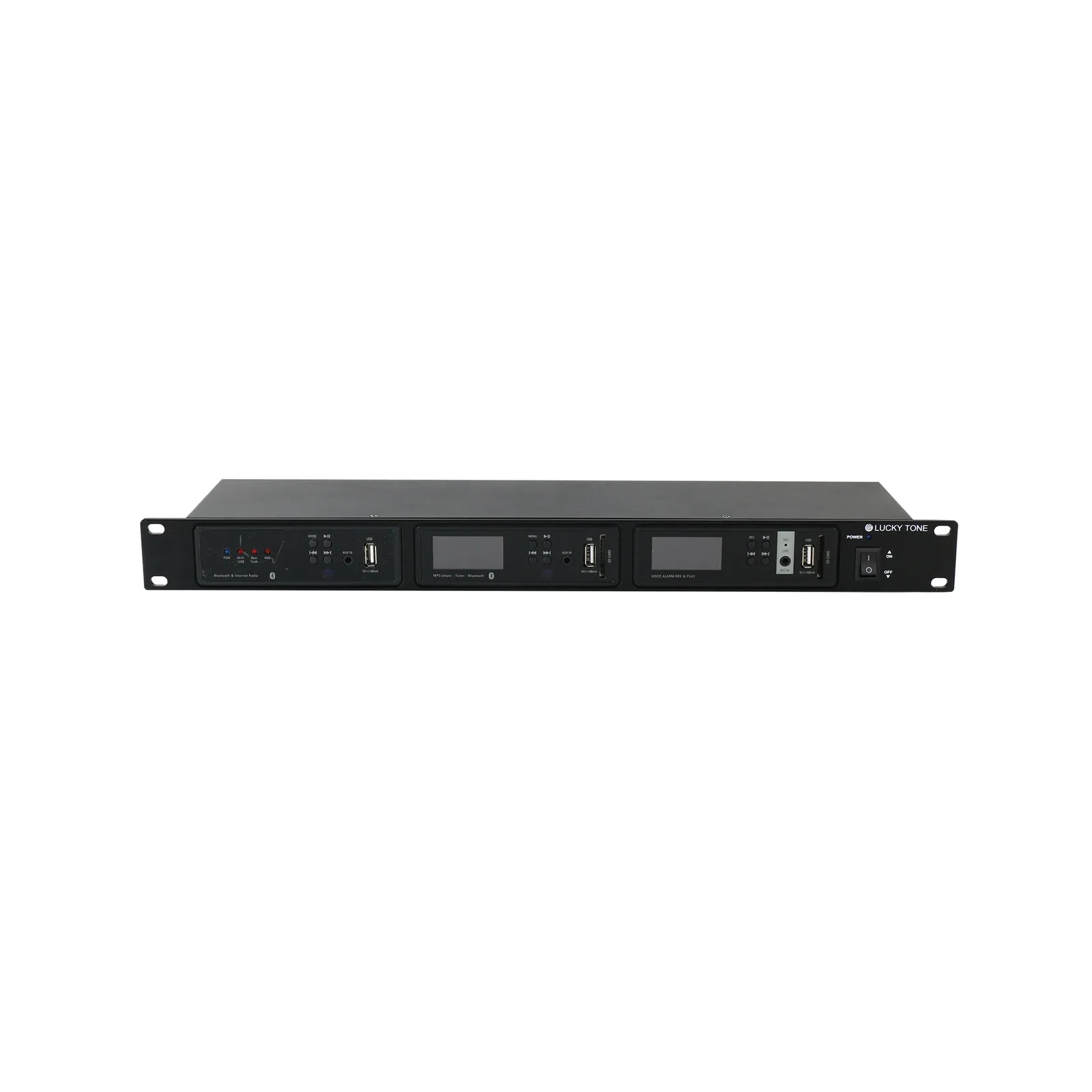

1U 19 inch rack Mount deck for Up to 3 Mplayers
ModelMplayer R
FM tuner, DAB+, USB memory, SD card slot, Internet radio, Bluetooth, Voice alarm message.
- Frequency response
- Mplayer R: ; : 20Hz – 20kHz
- Power supply
- Mplayer R: ; : 110-240V AC / 50~60Hz DC 24V
- Dimensions
- Mplayer R: ; : 483 x 44 x 320mm
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
1U 19 inch rack Mount deck for Up to 3 MplayersPrice on requestRequest a quotation
01Models2 models in the family
Models compared.
| MODEL | Mplayer R | |
|---|---|---|
| Fequency range | FM | 87.5-108.0Mhz |
| Fequency range | DAB+ Band-3 | 171-240MHz |
| Fequency range | L-Band | 1452-1492MHZ |
| Channel step | FM | 50kHz |
| Sensitivity | FM | 2 uV at 30dB S/N |
| Sensitivity | DAB+ | -99dBm |
| Signal to noise ratio | FM | > 60 dB |
| Signal to noise ratio | DAB+ | > 80 dB |
| Signal to noise ratio | CD/USB | > 90 dB |
| THD+N | FM | <0.3% |
| THD+N | DAB+ | <0.3% |
| THD+N | CD/USB | <0.1% |
| Audio codec | MPEG 1/2/5 Layer 2/3 decoding (8 kHz – 48 kHz) | |
| Audio codec | WMA V4, V7, V8, V9(L1, L2) decoding (8 kHz – 48 kHz) | |
| Wireless Network Protocol | Internet Radio | 802.11b/g |
| MP3/WMA Compatible media | MP3-CD SD/MMC Memory cards and USB Memory sticks up to 16 GB (FAT32) | |
| Output Level / Impedance | 0 dB / 600Ω | |
| Frequency response | 20Hz – 20kHz | |
| Power consumption | 10 Watt | |
| Power supply | 110-240V AC / 50~60Hz DC 24V | |
| Weight (Net) | 3.82 kg | |
| Dimensions (W x H x D) | 483 x 44 x 320mm |
02DescriptionManufacturer's description
What it is.
Mplayer R
Controls
Front : Power switch, Encoder with switch, MENU, FF, FR, PLAY/PAUSE.

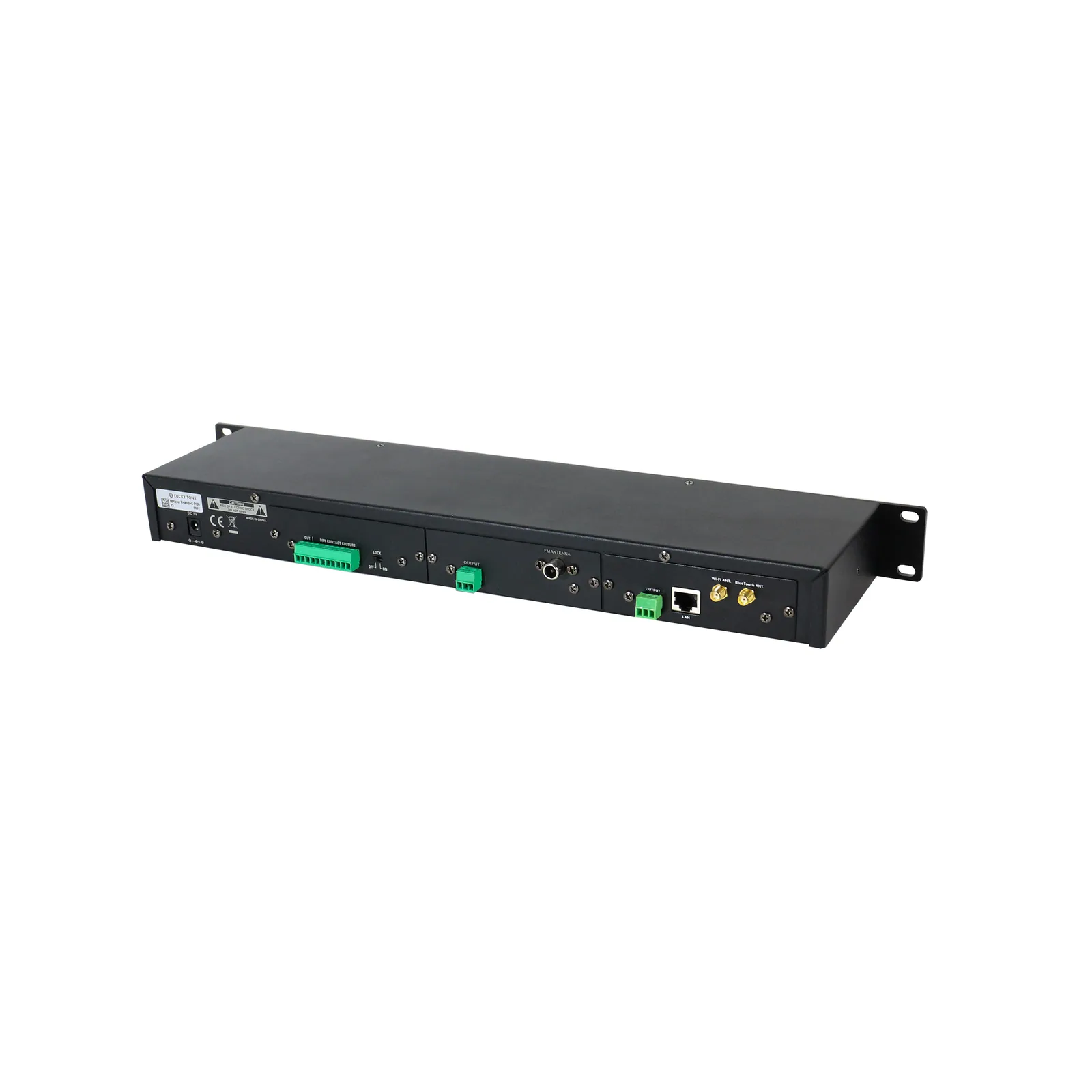

Connectors
- Euroblock for audio output.
- Euroblock for dry contact input.
- MIC or LINE for REC input.
- FM Antenna, 2.4GHz wireless Antenna, DAB+ Antenna,
- Bluetooth Antenna.
- DC 24V input.
- Indicators: 2.0?TFT LCD, Power LED.

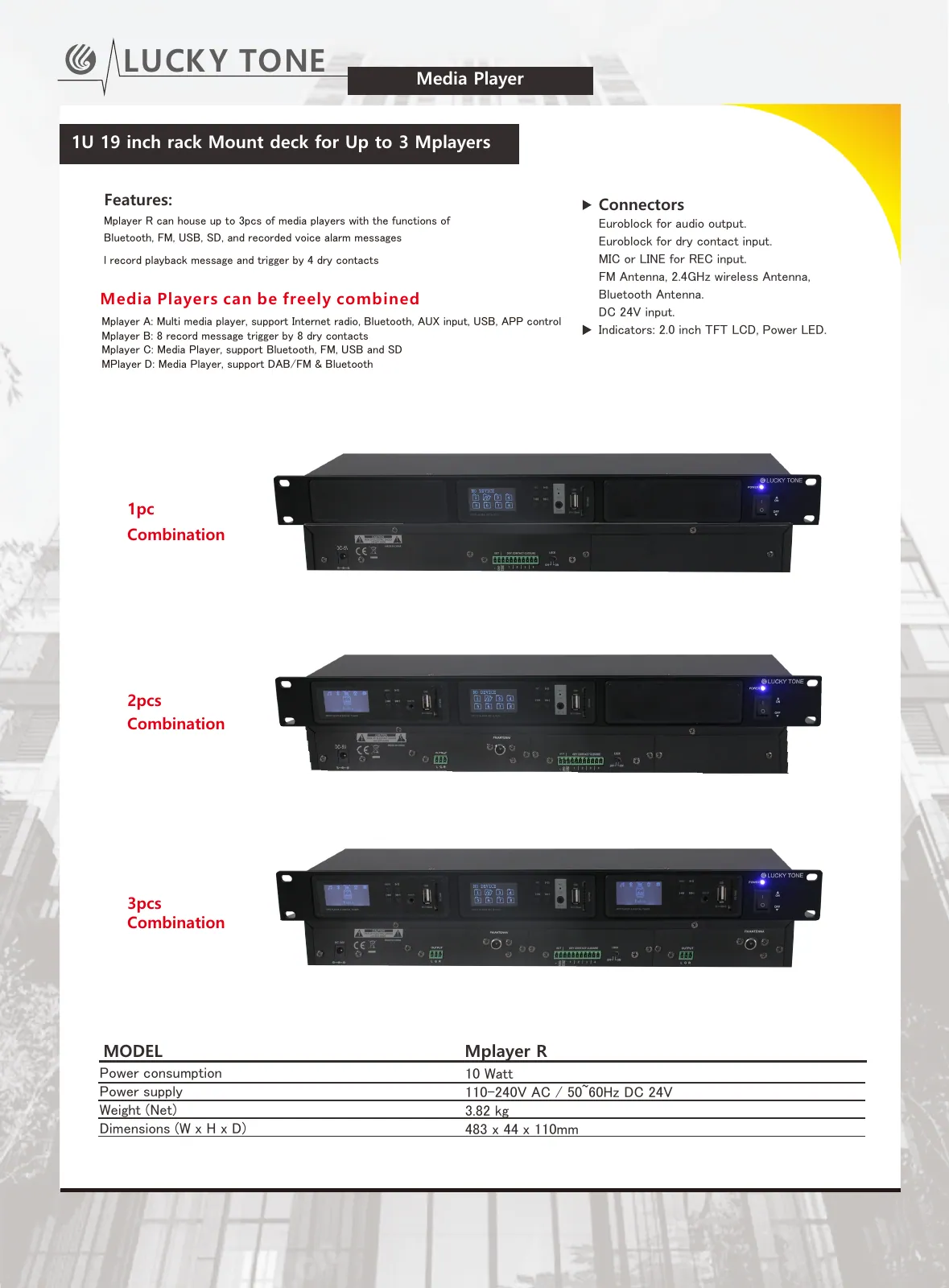

03Documents1 file · 2.0 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
