Sheet 05.512
Lucky Tone · Bluetooth, Wi-Fi and smart home

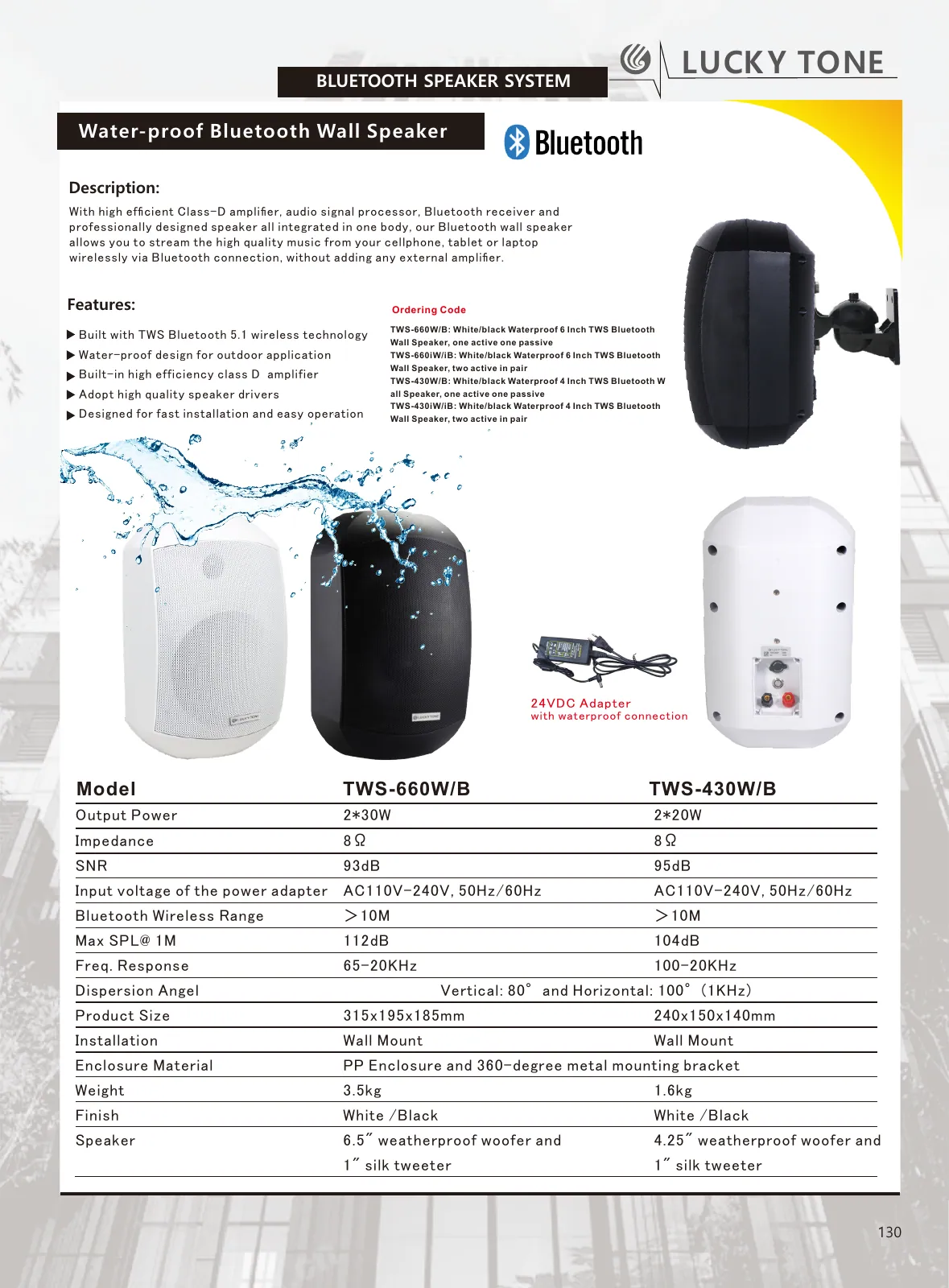

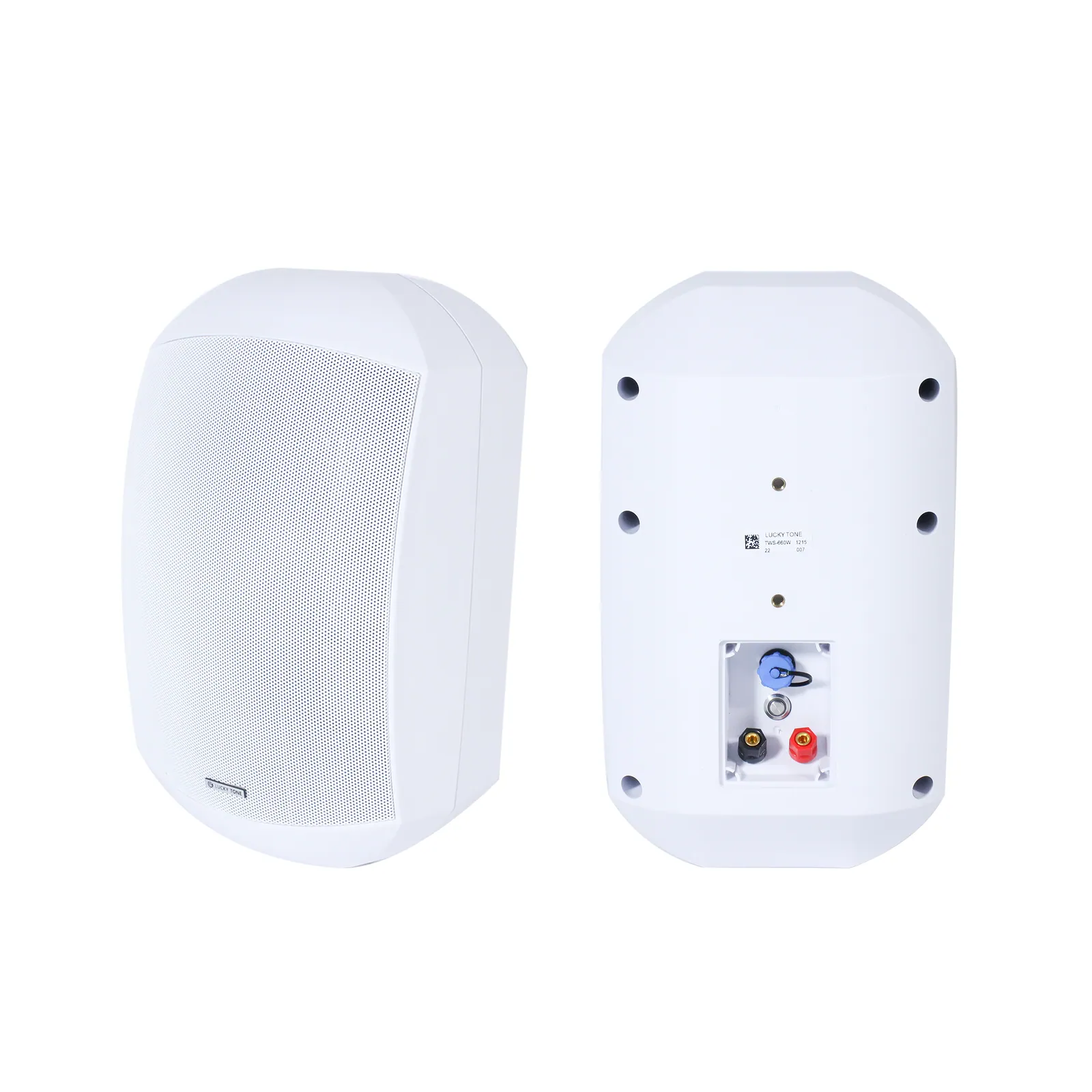

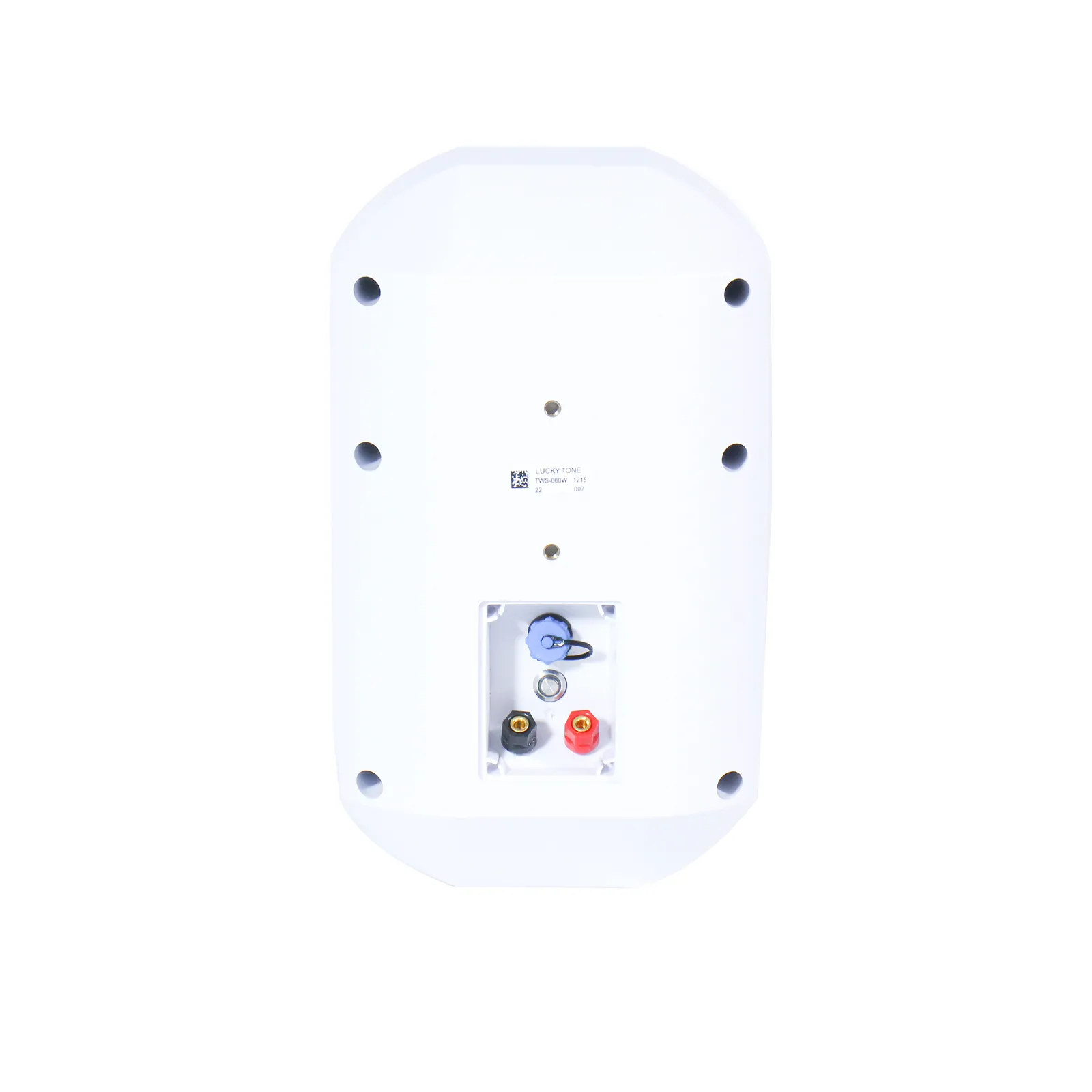

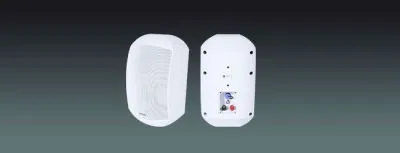

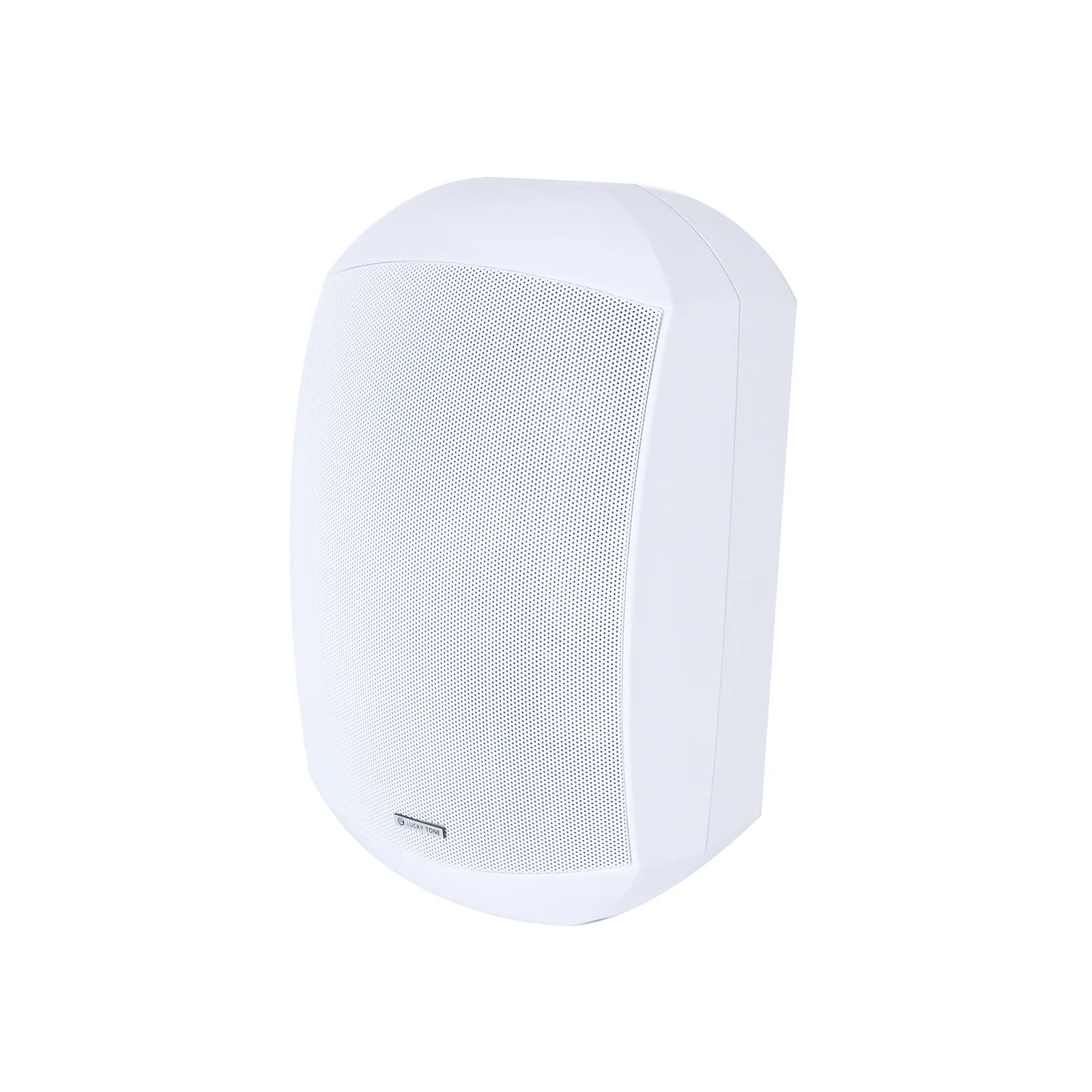

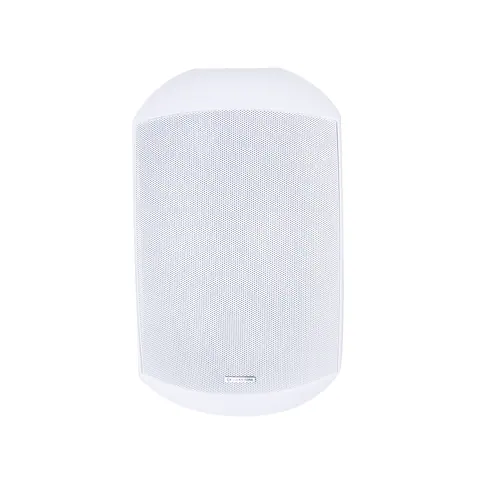

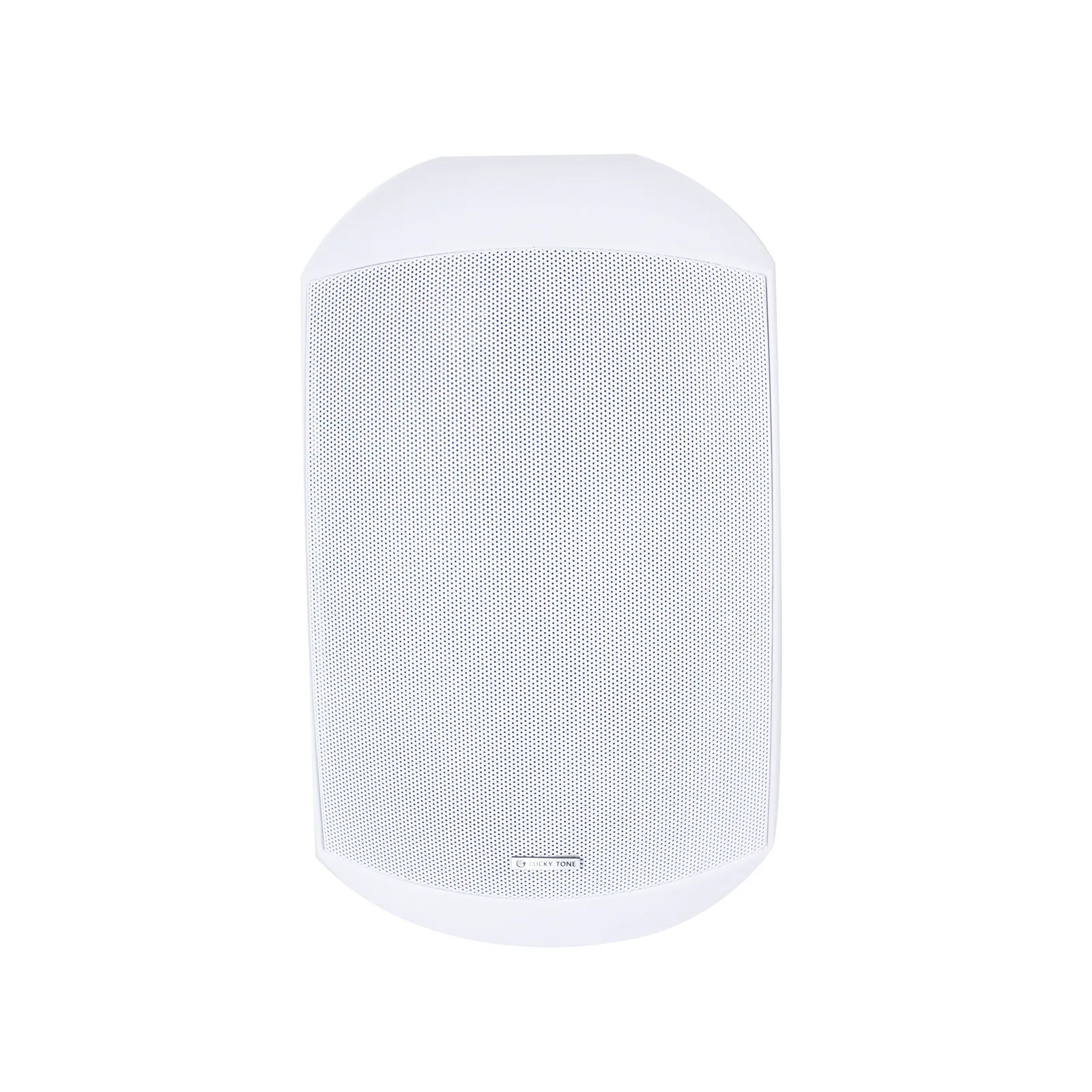

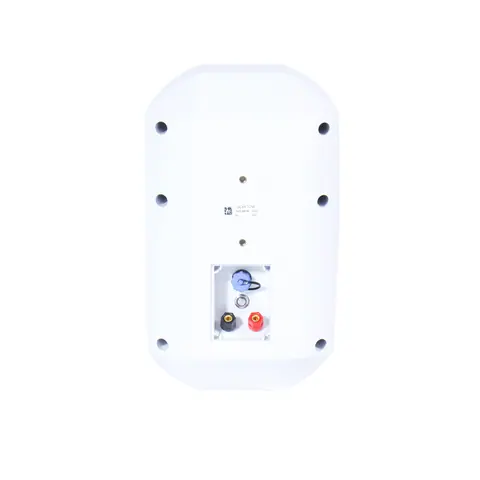

Waterproof TWS Bluetooth Wall Speaker
ModelTWS-660iW/iB / TWS-430iW/iB
With high efficient Class-D amplifier, audio signal processor, Bluetooth receiver and professionally designed speaker all integrated in one body, our Bluetooth wall speaker allows you to stream the high quality music from your cellphone, tablet or laptop wirelessly via Bluetooth connection, without adding any external amplifier
- Output power
- TWS-660iW/iB: 2*30W; TWS-430iW/iB: 2*20W
- Weight
- TWS-660iW/iB: 3.5kg; TWS-430iW/iB: 1.6kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Waterproof TWS Bluetooth Wall SpeakerPrice on requestRequest a quotation
01Models2 models in the family
Models compared.
| Model | TWS-660iW/iB | TWS-430iW/iB |
|---|---|---|
| Output Power | 2*30W | 2*20W |
| Impedance | 8Ω | 8Ω |
| SNR | 93dB | 95dB |
| Input voltage of the power adapter | AC110V-240V, 50Hz/60Hz | AC110V-240V, 50Hz/60Hz |
| Bluetooth Wireless Range | >10M | >10M |
| Max SPL@ 1M | 112dB | 104dB |
| Freq. Response | 65-20KHz | 100-20KHz |
| Dispersion Angel | Vertical: 180° and Horizontal: 180° (1KHz) | Vertical: 180° and Horizontal: 180° (2KHz) |
| Product Size | 315x195x185mm | 240x150x140mm |
| Installation | Wall Mount | Wall Mount |
| Enclosure Material | ABS enclosure, stainless metal grille & stainless mounting bracket | ABS enclosure, stainless metal grille & stainless mounting bracket |
| Weight | 3.5kg | 1.6kg |
| Finish | White /Black | White /Black |
| Speaker | 6.5″ weatherproof woofer and 1″ silk tweeter | 4.25″ weatherproof woofer and 1″ silk tweeter |
02DescriptionManufacturer's description
What it is.
Description
Features
- Built with TWS Bluetooth 5.1 wireless technology
- Water-proof design for outdoor application
- Built-in high efficiency class D amplifier
- Adopt high quality speaker drivers
- Designed for fast installation and easy operation
Ordering code
- TWS-660W/B: White/black Waterproof 6 Inch TWS Bluetooth Wall Speaker, one active one passive
- TWS-660iW/iB: White/black Waterproof 6 Inch TWS Bluetooth Wall Speaker, two active in pair
- TWS-430W/B: White/black Waterproof 4 Inch TWS Bluetooth Wall Speaker, one active one passive
- TWS-430iW/iB: White/black Waterproof 4 Inch TWS Bluetooth Wall Speaker, two active in pair
03Documents1 file · 3.3 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
