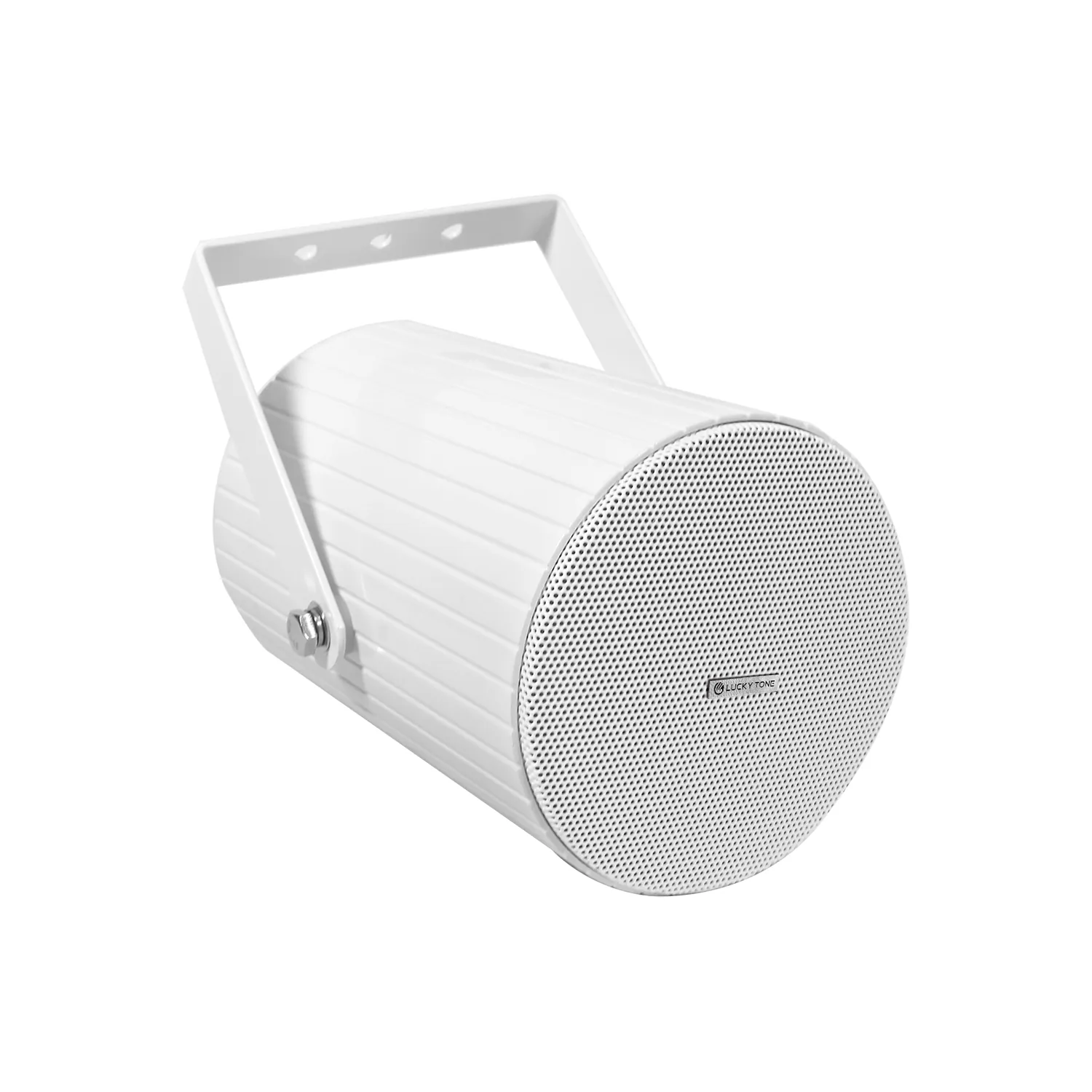

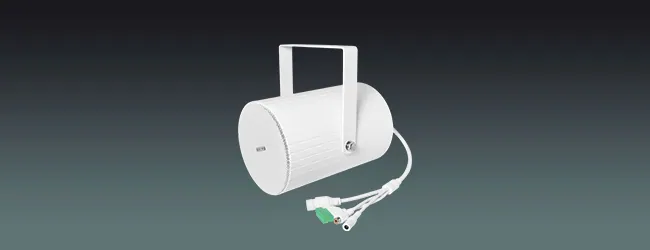

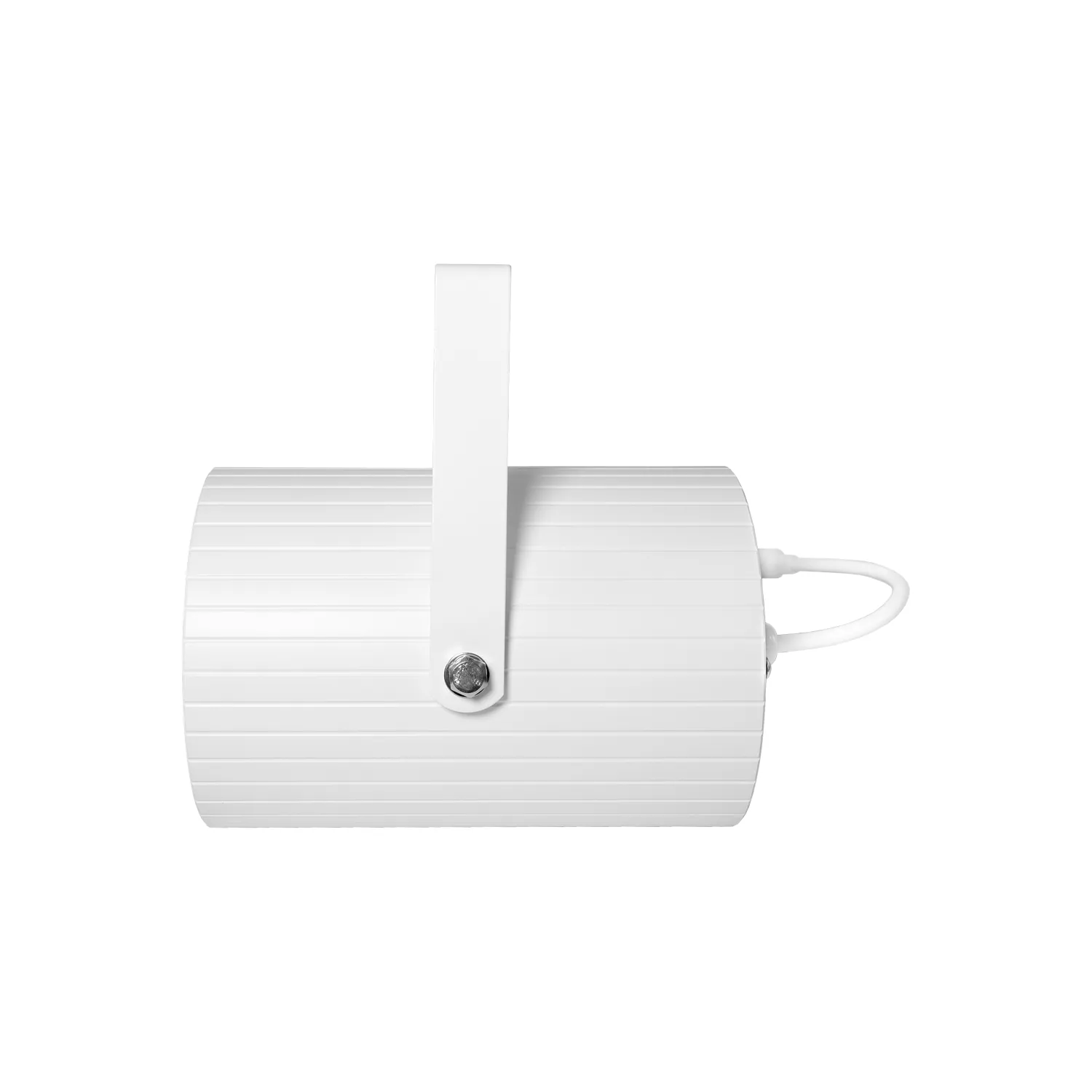

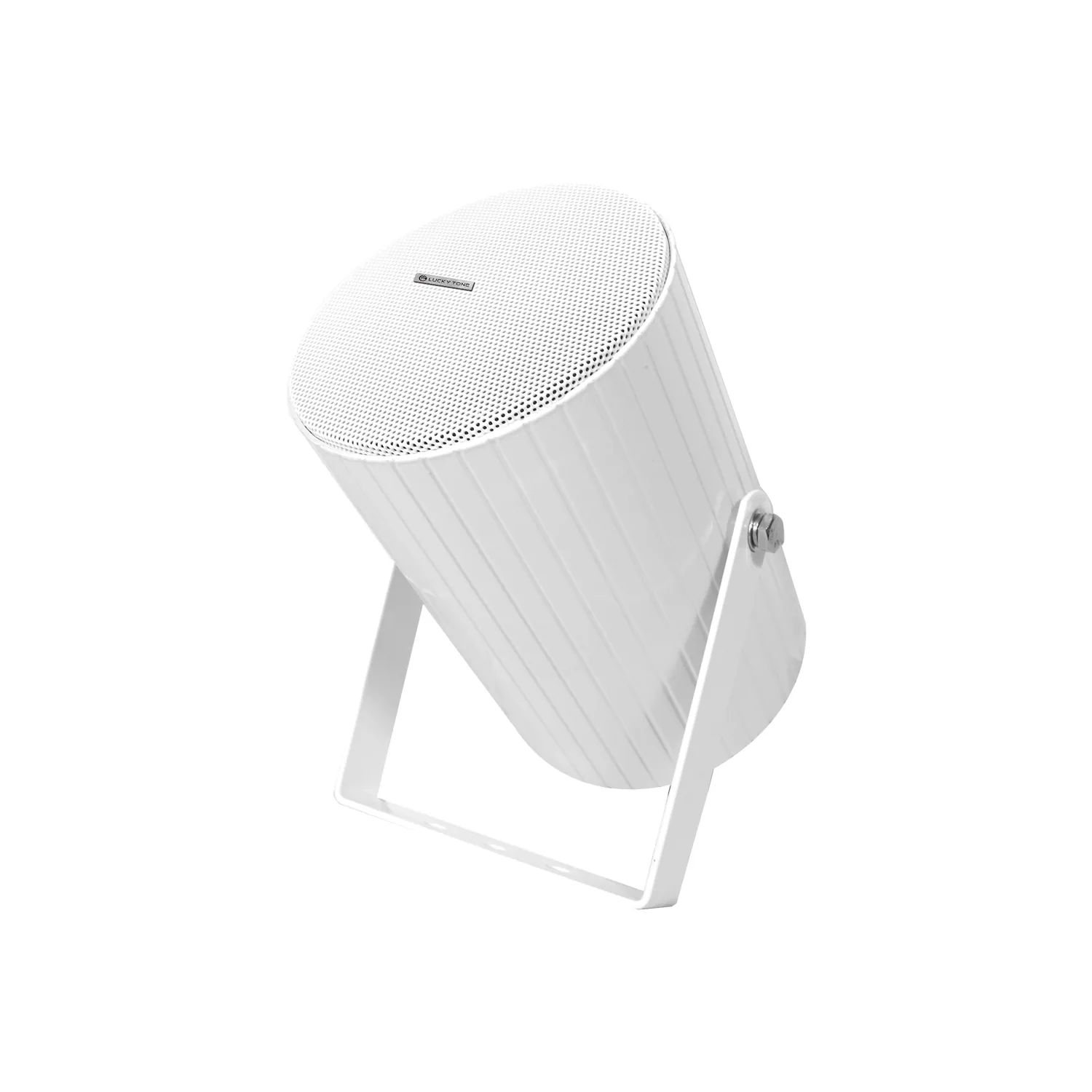

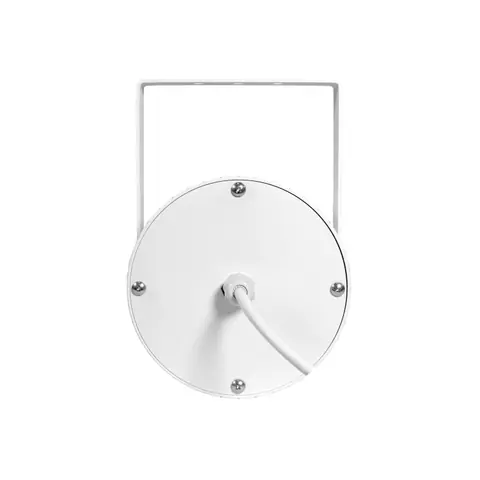

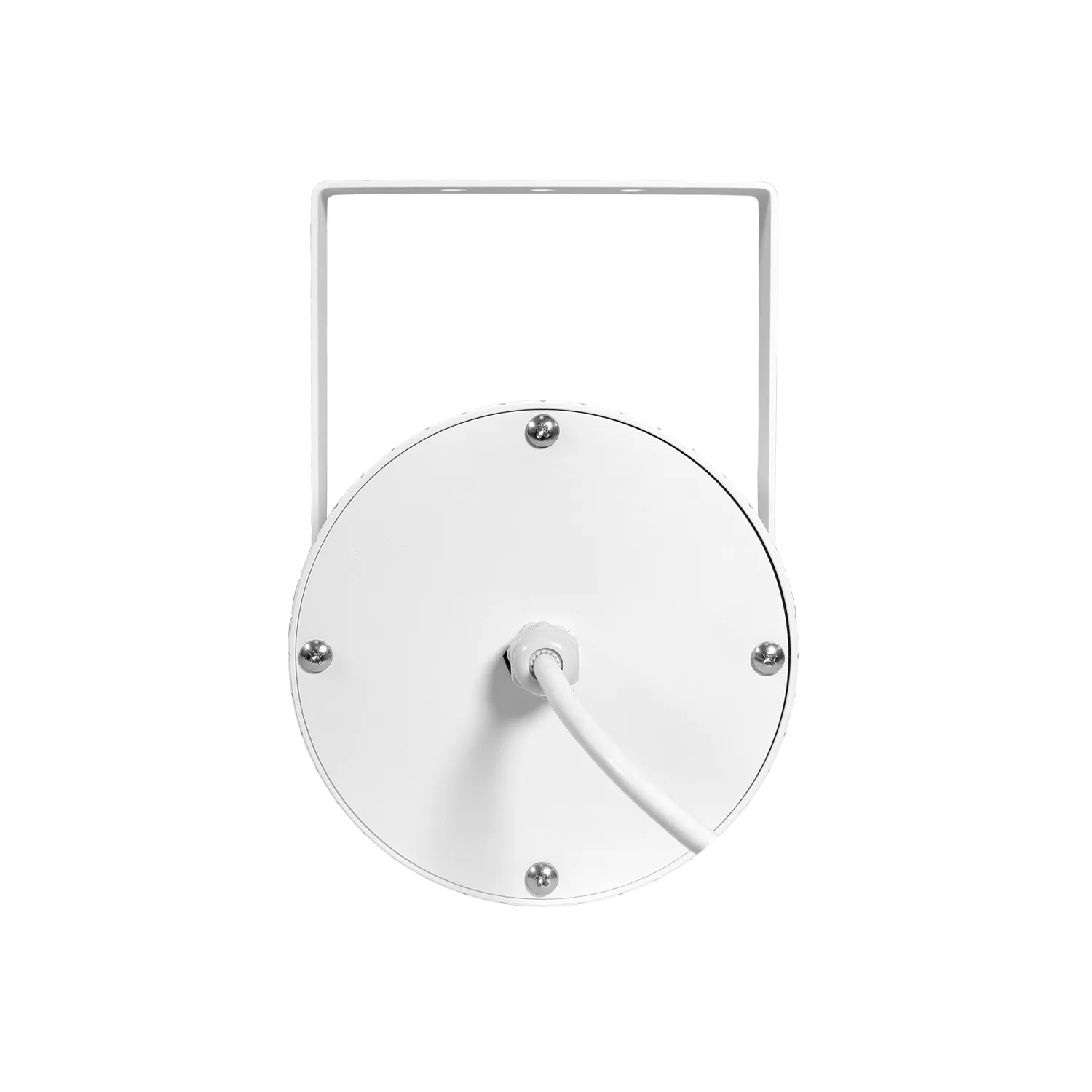

ONVIF Network Projection Speaker
ModelVOIP-20PJ
This ONVIF Network Projection Speaker delivers 20W of clear, focused audio output, featuring a 5″full-range driver housed in a durable aluminum enclosure.
- Output power
- 20W
- Frequency response
- 130Hz-17kHz
- Power supply
- POE/DC12V
- Weight
- 2.4kg
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications16
- MODEL
- VOIP-20PJ
- Product Type
- Projection Speaker
- Rated Power
- 20W
- Network Protocol
- SIP, ONVIF
- Audio Decoding
- MP3, WMA, WAV
- Network Interface
- 10/100Base-TX, RJ45
- SPL(1M/1W)
- 93dB
- Max. SPL
- 106dB
- Frequency Response
- 130Hz-17kHz
- IP Rating
- IP66
- Power Supply
- POE/DC12V
- Installation
- Wall Mount
- Speaker
- 5″*1 Full Range
- Material
- Aluminum
- Product Dimension
- Dia138*205mm
- Net Weight
- 2.4kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
What it is.
This ONVIF Network Projection Speaker delivers 20W of clear, focused audio output, featuring a 5″full-range driver housed in a durable aluminum enclosure. With an IP66 waterproof rating, it is ideal for semi-outdoor and industrial environments such as factory floors, warehouses, car parks, loading bays, and outdoor corridors. SIP-enabled and powered via PoE or DC power, it easily integrates with modern IP communication systems for real-time alerts, announcements, and scheduled broadcasts.
