Sheet 05.335
Lucky Tone · IP, SIP and ONVIF

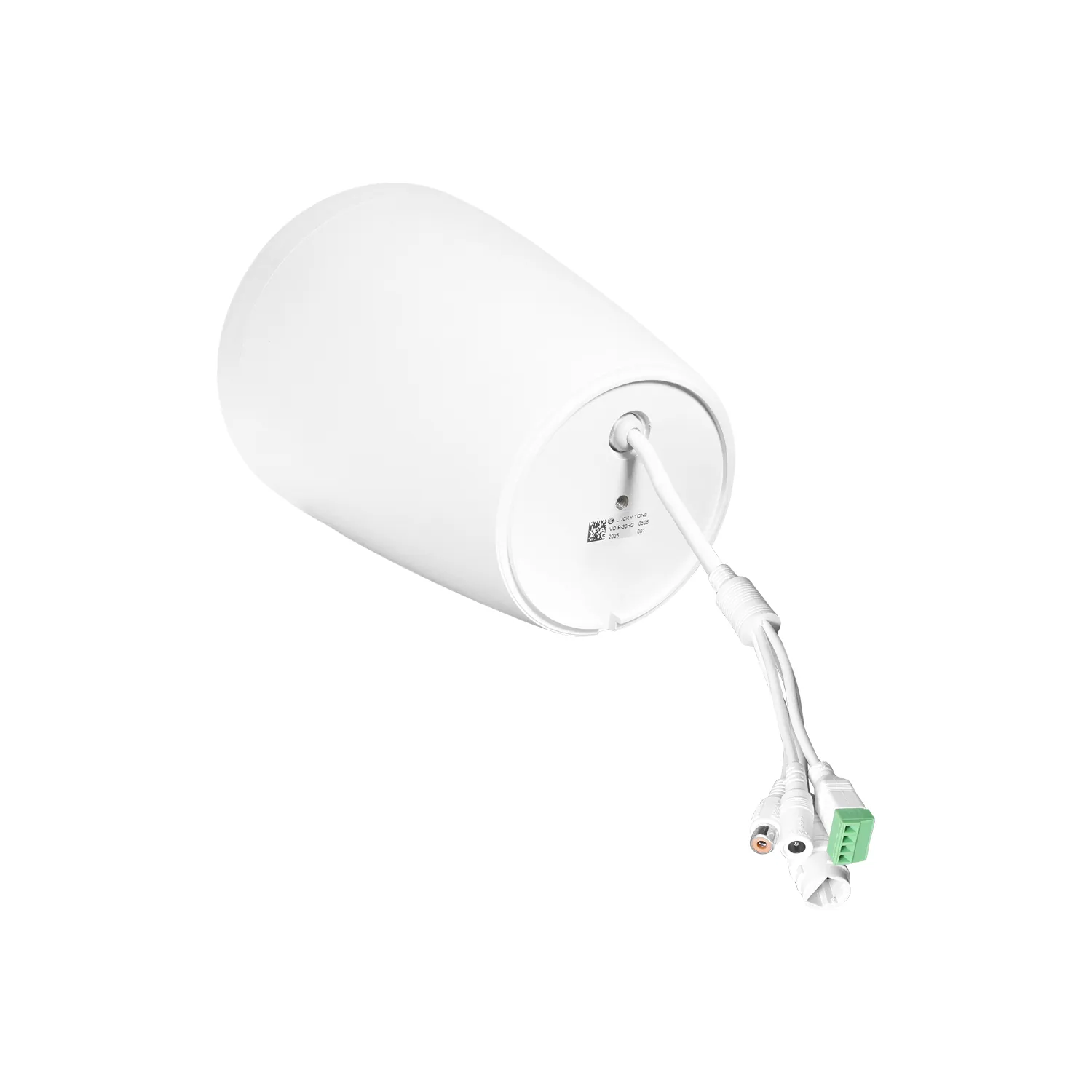

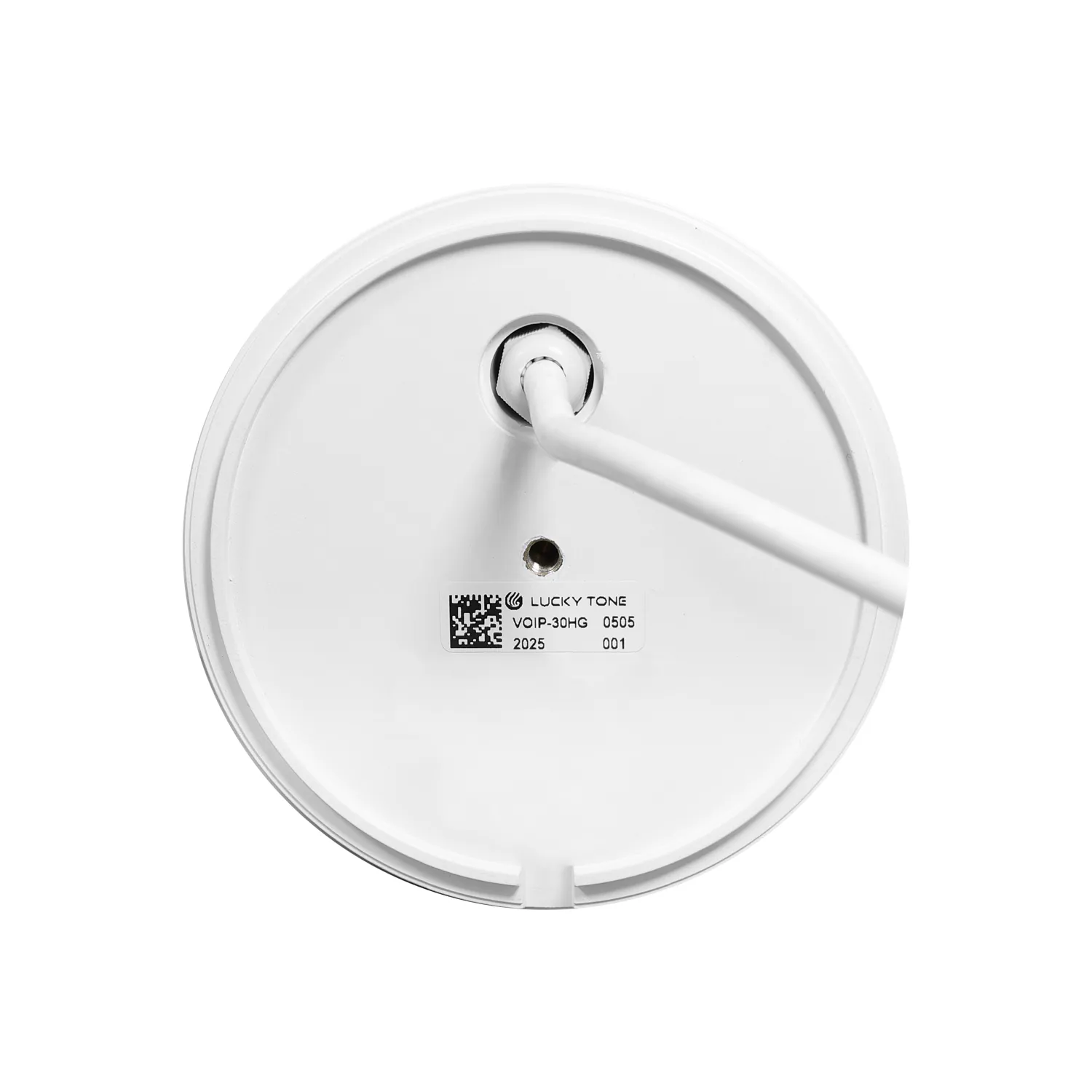

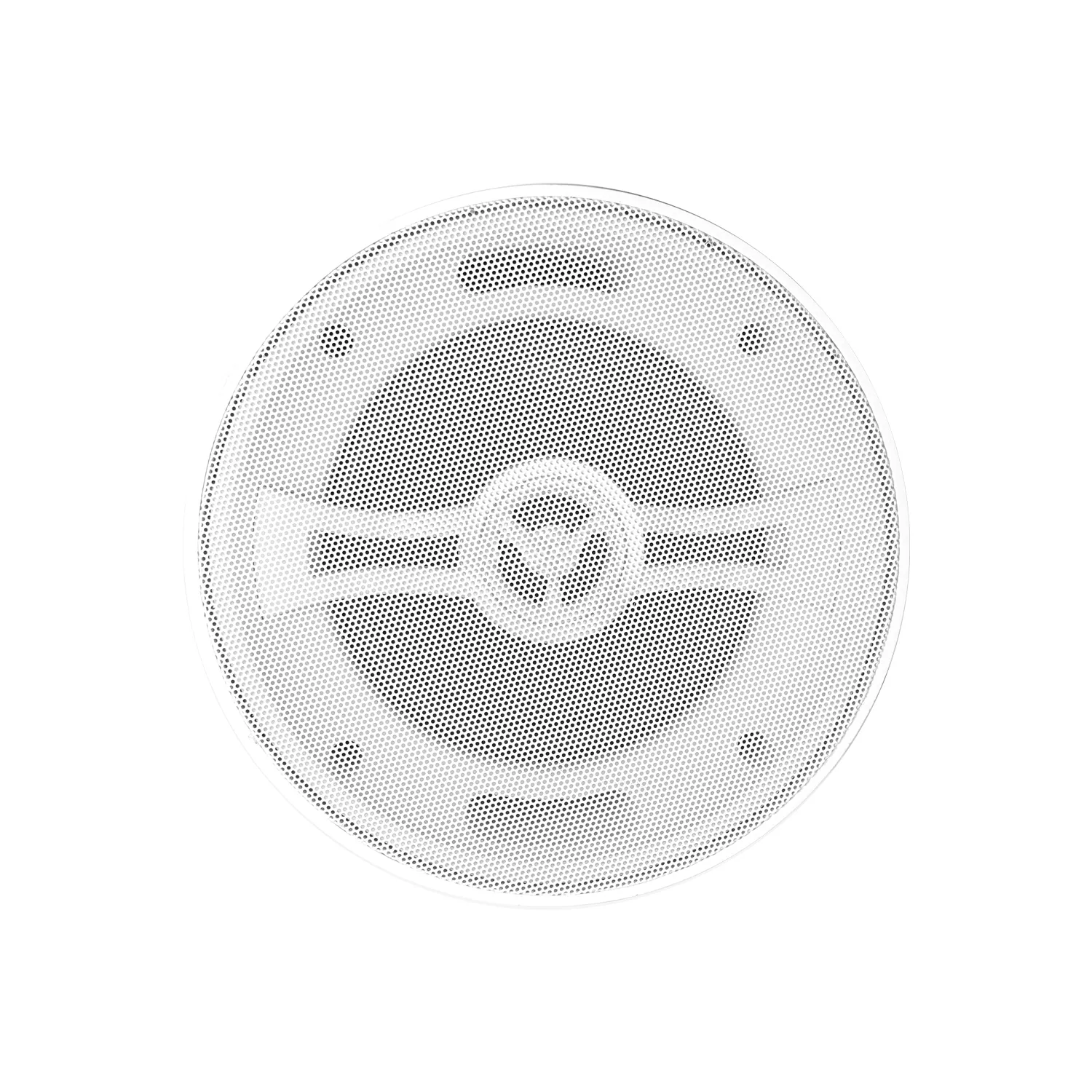

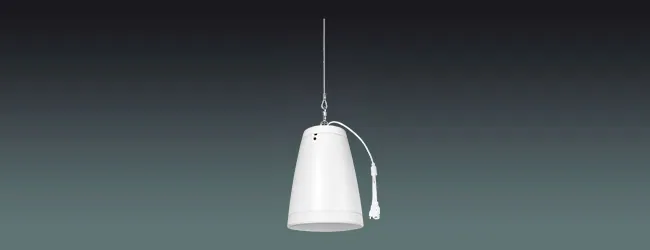

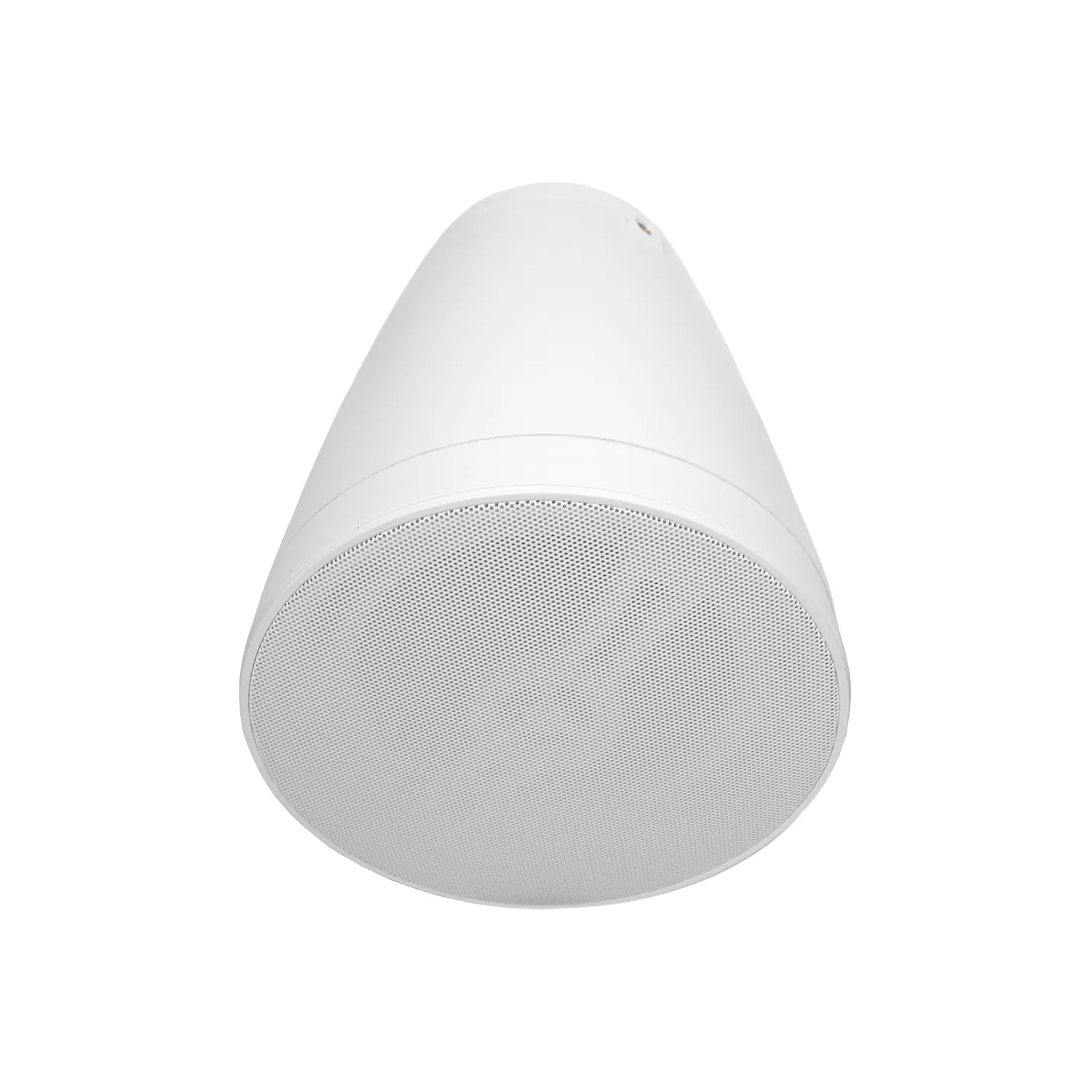

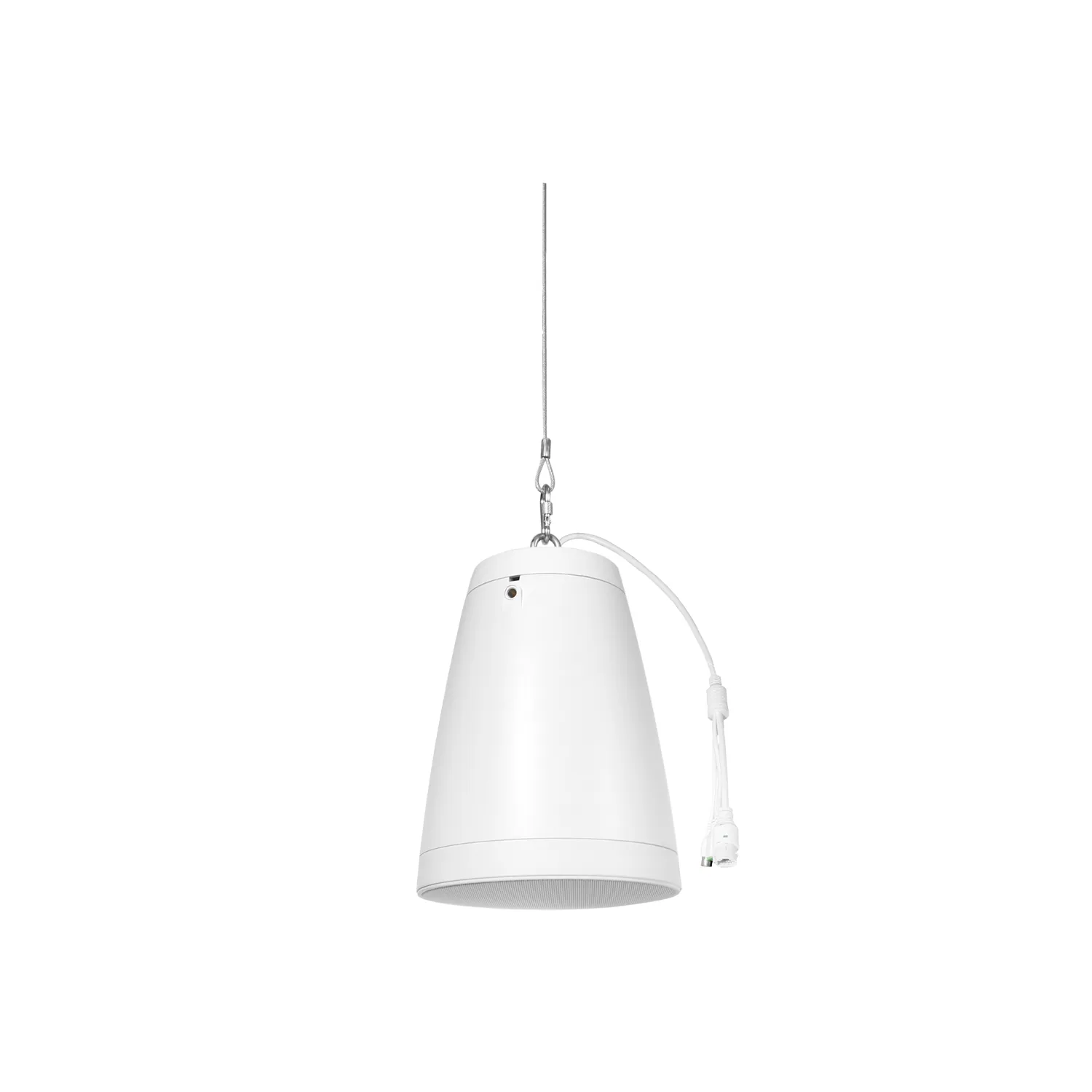

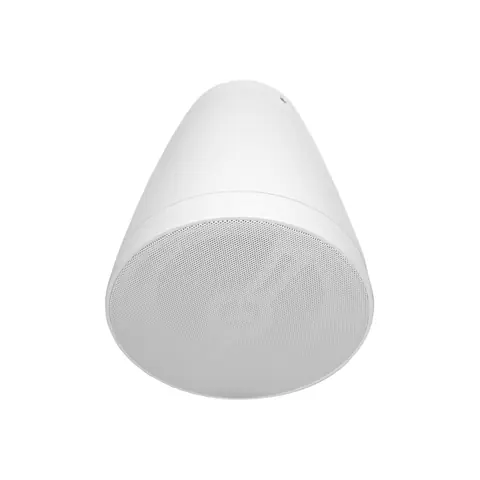

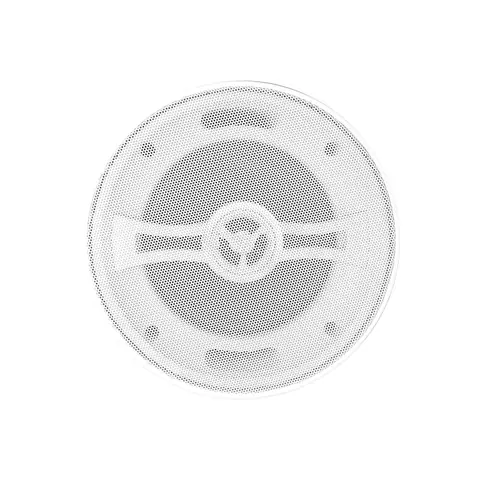

ONVIF Network Pendant Speaker
ModelVOIP-30HG
This ONVIF Network Pendant Speaker is built for durability and exceptional audio quality, ideal for public address, emergency alerts, and broadcasting in schools, hospitals, malls, and transportation hubs.
- Output power
- 30W
- Frequency response
- 98Hz-20kHz
- Power supply
- POE/DC12V
- Weight
- 2.6kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
ONVIF Network Pendant SpeakerPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 16 values
What this product is, in numbers.
PDFSpecifications977 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications16
- MODEL
- VOIP-30HG
- Product Type
- Pendant Speaker
- Rated Power
- 30W
- Network Protocol
- SIP, ONVIF
- Audio Decoding
- MP3, WMA, WAV
- Network Interface
- 10/100Base-TX, RJ45
- SPL(1M/1W)
- 84dB
- Max. SPL
- 99dB
- Frequency Response
- 98Hz-20kHz
- IP Rating
- IP66
- Power Supply
- POE/DC12V
- Installation
- Hanging
- Speaker
- 5″ (125mm) Graphite Cone 1″(25mm) Silk Soft Dome,Rubber Surround
- Material
- PP
- Product Dimension
- Dia190*250mm
- Net Weight
- 2.6kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
This ONVIF Network Pendant Speaker is built for durability and exceptional audio quality, ideal for public address, emergency alerts, and broadcasting in schools, hospitals, malls, and transportation hubs. SIP-enabled with PoE and DC power, they integrate seamlessly with IP systems.
