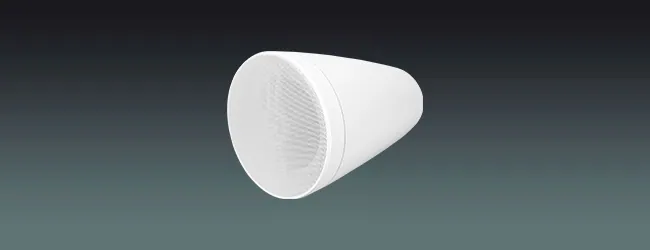

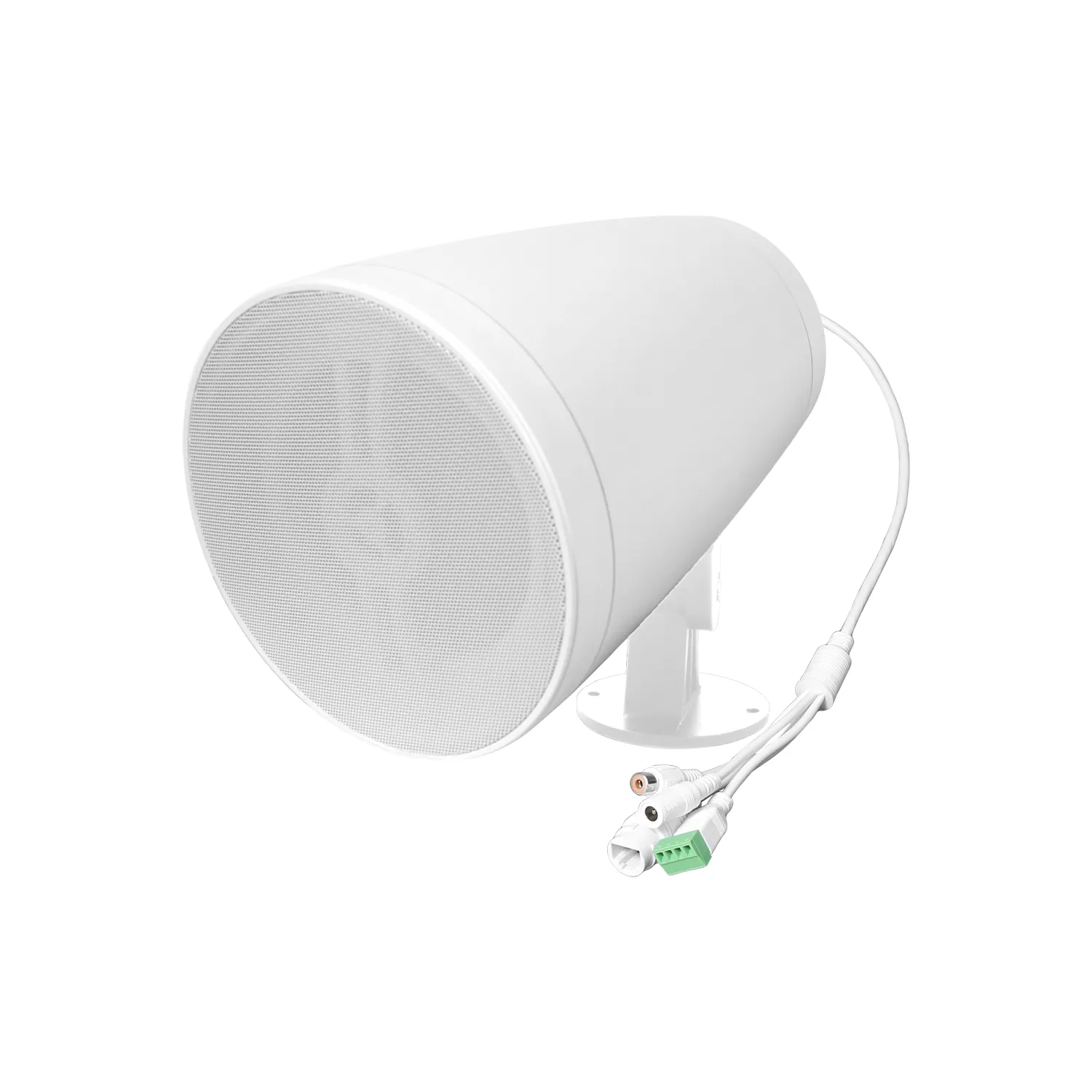

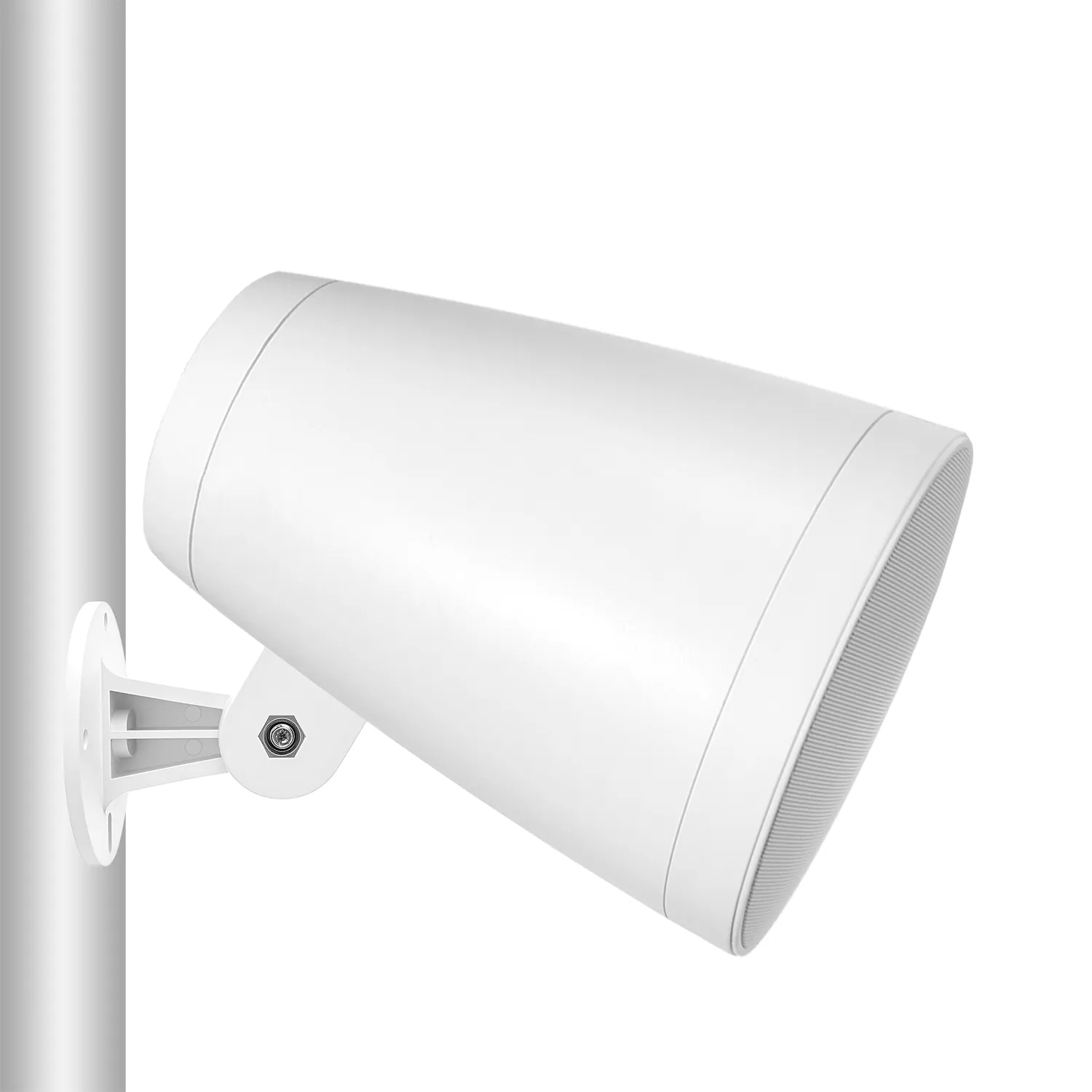

Lucky Tone ONVIF Network Wall Speaker VOIP-30WM
ModelVOIP-30WM
This ONVIF Network Wall Speaker is built for durability and exceptional audio quality, ideal for public address, emergency alerts, and broadcasting in schools, hospitals, malls, and transportation hubs.
- Output power
- 30W
- Frequency response
- 98Hz-20kHz
- Power supply
- POE/DC12V
- Weight
- 2.5kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
ONVIF Network Wall SpeakerPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 16 values
What this product is, in numbers.
PDFSpecifications977 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications16
- MODEL
- VOIP-30WM
- Product Type
- Wall Speaker
- Rated Power
- 30W
- Network Protocol
- SIP, ONVIF
- Audio Decoding
- MP3, WMA, WAV
- Network Interface
- 10/100Base-TX, RJ45
- SPL(1M/1W)
- 84dB
- Max. SPL
- 99dB
- Frequency Response
- 98Hz-20kHz
- IP Rating
- IP66
- Power Supply
- POE/DC12V
- Installation
- Wall Mount
- Speaker
- 5″ (125mm) Graphite Cone1″(25mm) Silk Soft Dome,Rubber Surround
- Material
- PP
- Product Dimension
- Dia190*250mm
- Net Weight
- 2.5kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
This ONVIF Network Wall Speaker is built for durability and exceptional audio quality, ideal for public address, emergency alerts, and broadcasting in schools, hospitals, malls, and transportation hubs. SIP-enabled with PoE and DC power, they integrate seamlessly with IP systems.
03Documents1 file · 977 KB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
